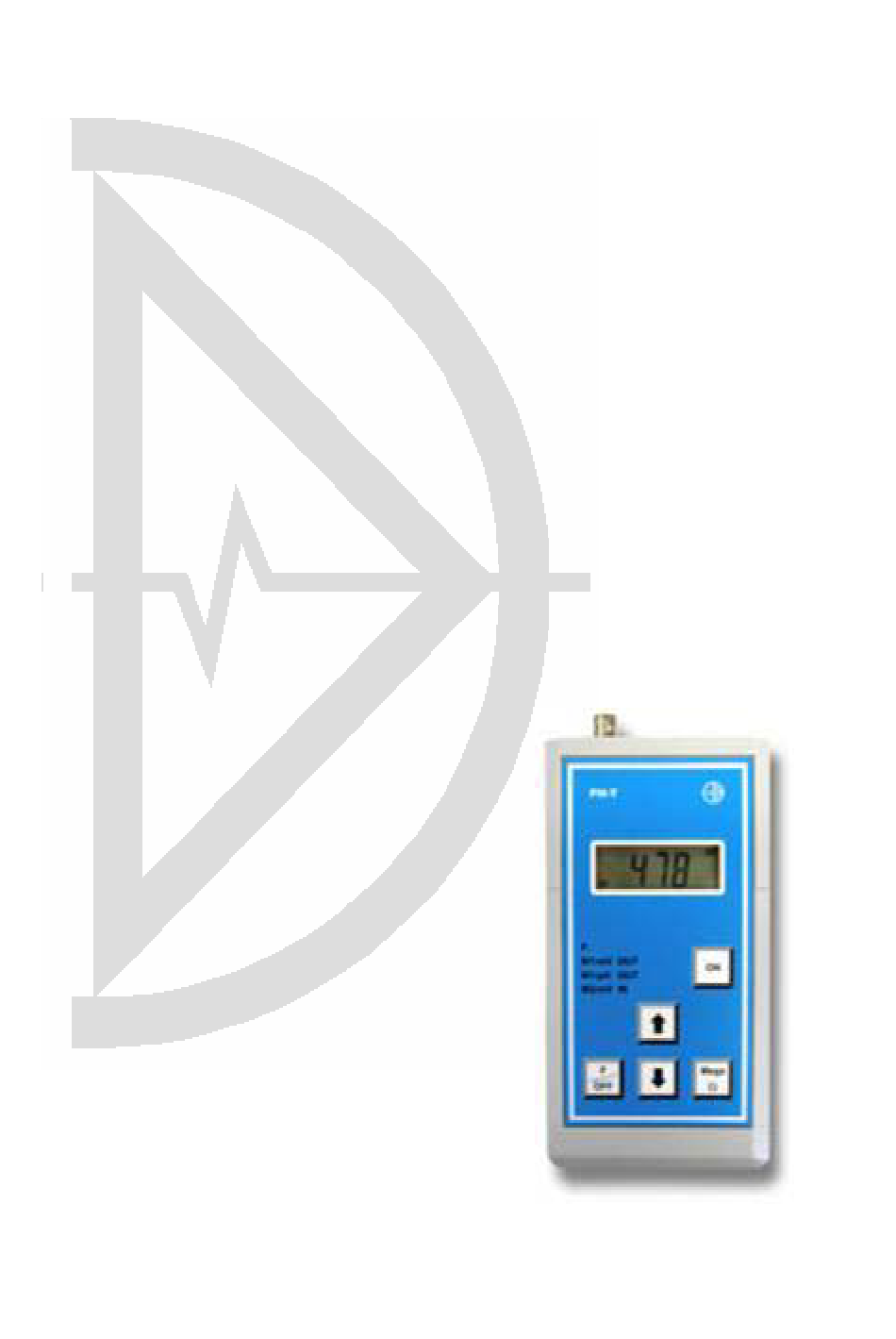

  • Page 1 Manual PH-T pH and mV simulator for pH/ORP meters and pH/ORP sensors...
  • Page 2 Dr. A. Kuntze Gutes Wasser mit System Dr. A. Kuntze GmbH Robert-Bosch-Str. 7a D-40668 Meerbusch Tel. +49-21 50-70 66-0 Fax +49-21 50-70 66-60 info@kuntze.com www.kuntze.com Vertrieb / sales: georg.wilholm@kuntze.com +49-21 50-70 66-11...
  • Page 3 A quick check with the PH-T shows you whether the trouble is really located in the sensor. On the other hand, the PH-T can be used as an ideal sensor to check instruments and cable connections. No need for buffer solutions - the PH-T simulates electronically the measuring signals a sensor would give in various solutions.

  • Page 4: Table Of Contents

    Content 1. Instrument test ORP .............5 2. Instrument test pH ..............6 2.1 High resistance test ............7 3. Sensor test ................8 4. Batteries and accumulators ..........10 5. Technical data ..............11...

  • Page 5: Instrument Test Orp

    PH-T. By use of the scroll keys of the PH-T you can set an arbitrary value within +/-1500mV. Your instrument must react within a few seconds to any changes and finally show the same value as the PH-T.

  • Page 6: Instrument Test Ph

    58 mV/pH, and a zero point of 0mV. 5 - Test By use of the scroll keys of the PH-T you can set an arbitrary value within pH 0 - 14. Your instrument must react within a few seconds to any changes and finally show the same value as the PH-T.

  • Page 7: High Resistance Test

    Press the key labelled “MegaΩ“. “MΩ“ in the display indicates that the high resistance has been activated. Focus on the value displayed by the PH-T: if it drops significantly, e. g. to approx. half its original value, then the measuring system does not provide the required high resistance.

  • Page 8: Sensor Test

    1 - Connect Connect the sensor to the PH-T using the COAX cable. 2 - Switch on Switch on the PH-T by pressing key “ON“ for 5 seconds. NOTE Switch-on is delayed to prevent accidental activation during transport. 3 - Select sensor test Press key “F“...
  • Page 9 Interpretation of the mV signals of pH sensors The following table shows the mV values an ideal sensor would give in various buffer solutions: mV ideal mV ideal -116 -174 -232 -290 -348 -406 If your sensor does not show exactly those values, don´t worry - it simply means that your sensor does not have a slope of 58mV/pH and/or that its zero point is not exactly pH 7.

  • Page 10: Batteries And Accumulators

    4. Batteries and accumulators At works the PH-T is equipped with a 9V battery. This will last approx. 72 hours when used for simulation (instrument test). When used for measurement (sensor test) or high resistance test, power consumption is higher.

  • Page 11: Technical Data

    1 GigaOhm high resistance test Measuring range +/- 1500 mV (Sensor test) Accessories (not included): Order number Cable COAX-F-2-1,5, BNC plug/electrode plug 44136020K for connection of sensors Adapter, BNC plug/electrode plug 49100010K for connection to pH/ORP cables Complete set (PH-T, cable, adapter, case) 45512800K...
