Summary of Contents for Zubr ZPL-350-190

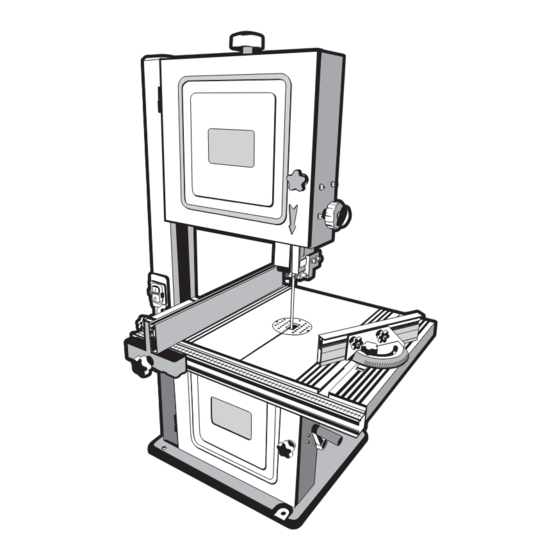

- Page 1 MASTER www.kraftool.hk Instruction Manual KRAFTOOL HONG KONG LIMITED Band Saw G/F, MOD595, RECLAMATION STREET, KOWLOON, HONG KONG ZPL-350-190 ZPL-305 171232 Version: 210119...
- Page 2 Band Saw www.kraftool.hk...
- Page 3 Instruction Manual www.kraftool.hk...
-
Page 4: Purpose And Scope
Band Saw Dear customer! When purchasing product: ` require the verification of its serviceability by trial switching-on, as well as completeness according to the delivery kit; ` make sure that the warranty slip is duly executed and contains the date of sale, the stamp of the store and the seller’s signature. -
Page 5: Specification
Instruction Manual Specification Model ZPL-350-190 ZPL-305 Continuous rating Input, W Rating Voltage 220V±10% / 50Hz Blade speed, m/s 14,7 6,3 / 13,2 Thickness cutting capacity, mm Width cutting capacity, mm Blade: 1425 2320 ` length, mm 12,7 ` width, mm... - Page 6 Band Saw workpiece or the product there is HIGHLY Operating recommended that you anchor the base on the support surface. Instruction ` How to install the work table: ` Set the table 2 with a bracket 33 on the base bracket 31 by passing the blade through the table Components slot;...
- Page 7 For ease of installation put a blade on the lower wheel, pull it, as far as possible, on For ZPL-350-190: set guide 3 on the table and fix it the upper wheel and, by turning of the wheel, get by lowering the handle 19.
-
Page 8: Getting Started
2-3 sm from the top of the workpiece by rotating of the fly screw (for ZPL-305) manually (for ZPL-350-190), depending on the thickness of the workpiece; ` tighten the screw of the regulator 10. b) Adjust the position of the longitudinal guide 3: ` lift the locking handle 19 of the guide;... -
Page 9: Operating Procedure
Instruction Manual Note! The type of the switch is electromagnetic. If the power supply will disappear and then subsequently appears, the product will not turn on by its own. In this case press the button «I» again to activate the product. Put one the edge of the workpiece on the table, press it to the guide (with the adjusted cutting width) and start feeding the workpiece toward the blade. - Page 10 Band Saw For performing the above, refer to the ASSEMBLY out the cause of this phenomenon. Do not operate section. the product before the cause of the malfunction is found and rectified. d) Adjusting of the angle pointer of the table: Provide good lighting, ventilation (or connect a ` turn off the product and unplug it out of the vacuum cleaner to the product - dust is generated...
-
Page 11: Safety Instructions
Instruction Manual Do not apply excessive force when working with Conclusion on the limit state of the product or its parts the service center issues in the form of the the product. This will not speed up the sawing process, but will only reduce the quality of work relevant Act. -
Page 12: Warranty Liabilities
| 11 Band Saw d) For maintenance of the tool, for example: lubrication, washing Warranty Liabilities e) Malfunctions of the tool due to the use of accessories and spare parts that are not original accessories / parts of «3Y6P» f) For mechanical damages (cracks, chips, We constantly care about improving the quality of etc.) and damages caused by an influence service for our customers, therefore, if you have... - Page 13 Contact the service center for repair winding SAWING BLADES Band Saw Article Blade Article Name Features L-1425mm, Н-8,0mm, teeth pitch-2mm ZPL-350-190 155810-190-2 Band Saw 3Y6P (12ТРI), carbon steel-65 L-1425mm, Н-8,0mm, teeth pitch-4mm ZPL-350-190 155810-190-4 Band Saw 3Y6P (6ТРI), carbon steel-65 L-2320mm, Н-12,7mm, teeth pitch-4mm...
- Page 14 | 13 Notes Acceptance and packing information The product is manufactured and accepted in accordance with the requirements of the manufacturer’s specifications and is considered usable. The product is packed according to the requirements of the manufacturer’s specifications. Warranty Slip Product Модель...
- Page 15 14 | Notes Shop 3, G/F, MOD 595, Reclamation street, Kowloon, Hong Kong www.kraftool.hk cs@kraftool.hk 3184-0265, 3184-0368 www.kraftool.hk...
