Tools Required
7/16" Wrench
Flat Head Screwdriver
Instructions for Installation of MX Battery
Step 1 – Disconnect Battery
Disconnect the battery cable from the circular port on the
control box
Step 3 – Remove Battery Box
Remove the Battery Box from the yoke post wrap.

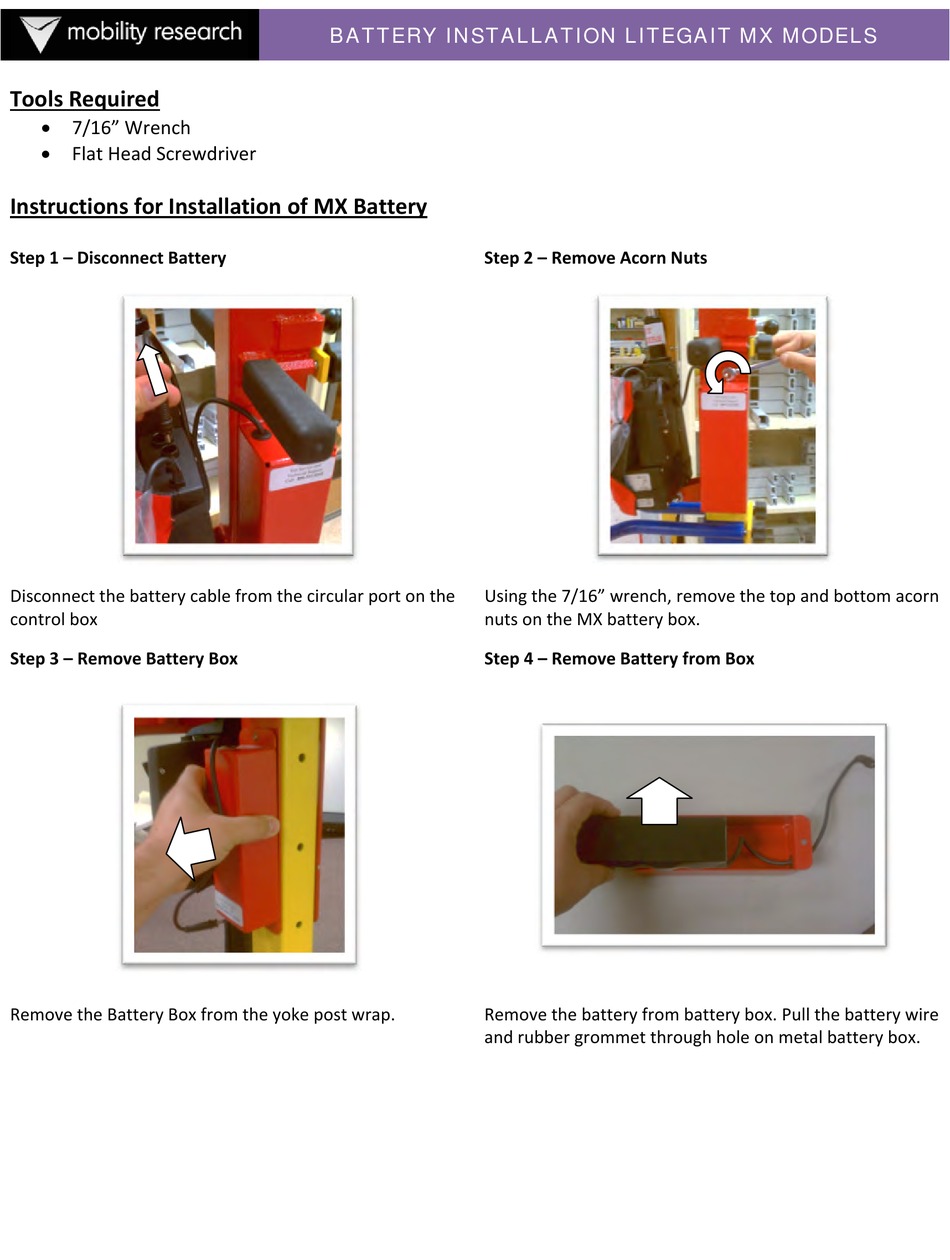

BATTERY INSTALLATION LITEGAIT MX MODELS
Step 2 – Remove Acorn Nuts
Using the 7/16" wrench, remove the top and bottom acorn
nuts on the MX battery box.
Step 4 – Remove Battery from Box
Remove the battery from battery box. Pull the battery wire
and rubber grommet through hole on metal battery box.
Advertisement
Related Manuals for Mobility Research LITEGAIT MX Series
Summary of Contents for Mobility Research LITEGAIT MX Series
- Page 1 BATTERY INSTALLATION LITEGAIT MX MODELS Tools Required 7/16” Wrench Flat Head Screwdriver Instructions for Installation of MX Battery Step 1 – Disconnect Battery Step 2 – Remove Acorn Nuts Disconnect the battery cable from the circular port on the Using the 7/16” wrench, remove the top and bottom acorn control box nuts on the MX battery box. Step 3 – Remove Battery Box Step 4 – Remove Battery from Box Remove the Battery Box from the yoke post wrap. Remove the battery from battery box. Pull the battery wire and rubber grommet through hole on metal battery box. ...
- Page 2 BATTERY INSTALLATION LITEGAIT MX MODELS Step 5 – Remove Grommet from Cable Step 6 – Insert New Battery Remove rubber grommet from battery cable. Pull the Feed the cable of the replacement battery through the grommet from the barrel plug. The grommet should roll metal hole . off of the plug and when pulled appart. Step 7 – Reattach Grommet to Cable Step 8 – Insert Grommet in Battery Box Thread the battery cable through the rubber grommet. Using a flat head screwdriver insert the rubber grommet The grommet should roll onto the plug when the two are such that the rubber grommet is flush with the metal pressed together. battery box. Step 9 – Reattach Battery Box and Tighten Nuts Step 10 – Reconnect Battery Cable Replace the battery box and attach the acorn nuts using Reconnect the battery cable in the circular port on the the 7/16” wrench. Tighten the nuts until snug. control box. Test the up and down button to make sure the system is functioning properly. The LiteGait Battery should be charged at least once per week overnight. If you should have any questions, please contact: Phone: Technical Support at 1‐800‐332‐9255 ext. 7104 Email: technicalsupport@litegait.com ...
