Summary of Contents for DZ DRW657

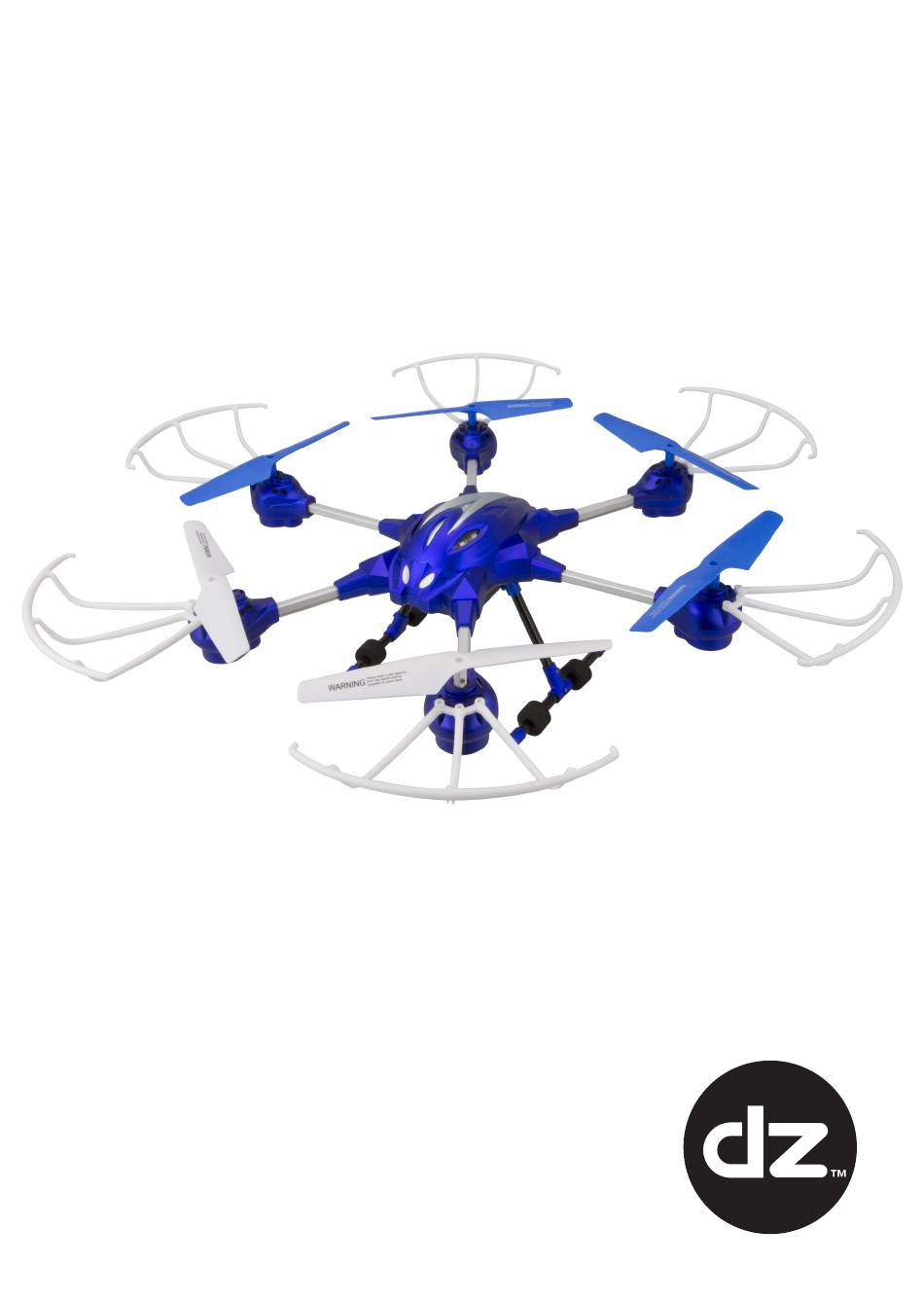

- Page 1 Six Rotor Drone with Wi-Fi Camera User’s Guide for Model DRW657 v1664-01...
- Page 2 Warnings & Precautions Important Safety Instructions • Increase the separation between the equipment and receiver. • Read and follow all instructions. • Connect the equipment into an outlet on a circuit • Keep these instructions for future reference. different from that to which the receiver is connected. •...
-
Page 3: Table Of Contents
Table of Contents Orientation � � � � � � � � � � � � � � � � � � � � � � � �4 Wi-Fi Mode � � � � � � � � � � � � � � � � � � � � � � 16 Includes Smartphone App Overview... -
Page 4: Orientation
Orientation Includes • Remote control: requires 4 AA batteries (not included) • Detachable smartphone cradle • 2 Rechargeable lithium polymer batteries • AC/DC adapter for battery recharge • 6 rotors/8 rotor guards • Screwdriver • User’s guide Overview Rotors White rotors indicate front of craft Craft Chassis (Rotor guards not shown). -
Page 5: Remote Control
Remote Control Antenna Power/Status Indicator Flip Press then use Right Control Stick to perform a flip. Left Control Right Control Stick Stick Increase Pitch: Throttle: push forward/ push forward backward Decrease Roll/Bank: Throttle: push left/ push backward right Yaw/Spin: push left or right Headless Mode/ Power Switch... - Page 6 Assembly Note notch Attaching the Landing Skids position Follow the diagram below to attach and secure the landing skids to the craft. It is recommended to attach the skids one at a time. Note notch position Insert landing skid, make sure to fully Insert seat in the socket Use included...
-
Page 7: Assembly
Attaching the Smartphone Cradle You can use your smartphone and the remote control together by attaching the included smartphone cradle to the top of the remote. This can be useful for photography and video, or for flying the craft just by watching the screen. Smartphone Cradle Rear Front... -
Page 8: Batteries & Charging
Batteries & Charging Battery Info BATTERY SPECIFICATION DURATION CHARGE TIME TYPE Craft 3.7V/650mAH 5 to 7 minutes Approx. 90 Li-Po Battery flight time minutes Remote AA 1.5V Approx. 18 hours Non-rechargeable Batteries Remote Control Battery Installation 4 x 1.5V AA Use included screwdriver Remove Battery Cover... -
Page 9: Charge Battery
Charge Battery The craft’s battery must be charged before it can be flown. Plug the power adapter in to a standard wall outlet and connect it to the battery. Charge fully before use for maximum performance and flight time. Charging time is approximately 90 minutes. Be sure to properly match the plugs or damage may occur. -
Page 10: Flying
Flying Craft/Remote Link Before flying, the craft and the remote must be linked together and the gyroscopes on the craft must be allowed to calibrate. Begin with the craft and remote powered OFF� Step 1 Place the craft on a flat, level surface. This is necessary for the gyroscopes to properly align�... - Page 11 Step 4 Push the Left Control Stick directly forward, wait for a chime to sound, then pull the stick directly backward, and wait for a second chime. When the last chime has sounded, the craft is calibrated and ready to fly� Step 5 Push the Left Control Stick (throttle) forward to take off.
-
Page 12: Trim Adjustment
Trim Adjustment Setting Trim & Countering Drift Even after the craft is calibrated, it may show a tendency to drift while airborne. Adjusting the trim will help counter this effect and allow you to better control the craft. To avoid potential damage, adjust the trim while attempting a stable hover. Try to avoid making any exaggerated movements with the flight controls. - Page 13 Craft pitches/angles forward or backward. Use Pitch Trim buttons left of the Right Control Stick. (Front) Craft rolls/banks left or right. Use Roll Trim buttons under the Right Control Stick. (Front) (Front)
-
Page 14: Flying Tips & Features
Flying Tips & Features Tips for Safe Operation • It is recommended to only fly in large, open spaces that are free of obstacles like power lines, trees, ceiling fans, etc. • When flying indoors, avoid walls and ceilings, as the craft will be drawn towards them if closer than 2 to 3 feet. -
Page 15: Flips & Tricks
Flips & Tricks Before attempting any stunts, be sure that there is ample clear space around the craft, ideally 9 to 10 ft. in every direction. It is not recommended to attempt to flip around or through any obstacles, as this may result in unintended damage. Press the Flip button, then move the Craft will perform flip in the desired direction. -
Page 16: Wi-Fi Mode
Wi-Fi Mode Smartphone App You can fly the craft using a Wi-Fi linked smartphone. Scan the appropriate QR code to download and install the free app software. The app can also be found on the Apple App Store or Google Play Store by searching for Digital Zone FPV� Android Apple Step 1... -
Page 17: Main Screen
Main Screen Play Press to begin using the app and fly the craft. Parameter Settings Help Adjust control settings Press to access Help Screen. for the app. -
Page 18: Parameters Screen
Wi-Fi Mode Parameters Screen Back Save trim Press to return to settings for the Main screen. future flights. Reverses the Reset trim controls to default. control stick layout. -
Page 19: Flight Screen
Flight Screen Camera View 1. Record Video 6. Speed Setting 11. Roll Trim 2. Take Photo 7. Controls ON/OFF 12. Yaw Trim 3. Image/Video Gallery 8. Wi-Fi Signal Strength 13. Throttle Trim 4. Intuitive Mode 9. Previous Screen 14. Left Control Stick 5. -
Page 20: Repair
Repair REMINDER: Pilots are responsible for any damage caused by improper use� The craft comes with 6 replacement rotors and two spare rotor guards to be used if the originals are broken or badly damaged. Rotor Replacement To replace a rotor, use a small Phillips head screwdriver (included) to remove the screw connecting the rotor to the motor shaft. -
Page 21: Parts
Parts Parts Replacement If any major components of the craft are damaged beyond repair, you can order new parts by contacting the customer support number on pg. 23. 3.7V/650mAh Li-Po Battery AC/DC Battery Charger Receiver Board Inner Body Frame Upper Body Motor Cover Motor wire and assembly Motor wire and assembly... -
Page 22: Troubleshooting
Troubleshooting If you are experiencing problems using or flying the craft, consult this table. PROBLEM POSSIBLE CAUSES SOLUTION Craft does not • No power to remote • Check remote batteries, respond to controls� or craft. replace if needed. • Poor contact between •... -
Page 23: Customer Support
Customer Support Telephone: 1-800-208-2500 Monday - Friday, 8:00am - 8:00pm, Central Time...
