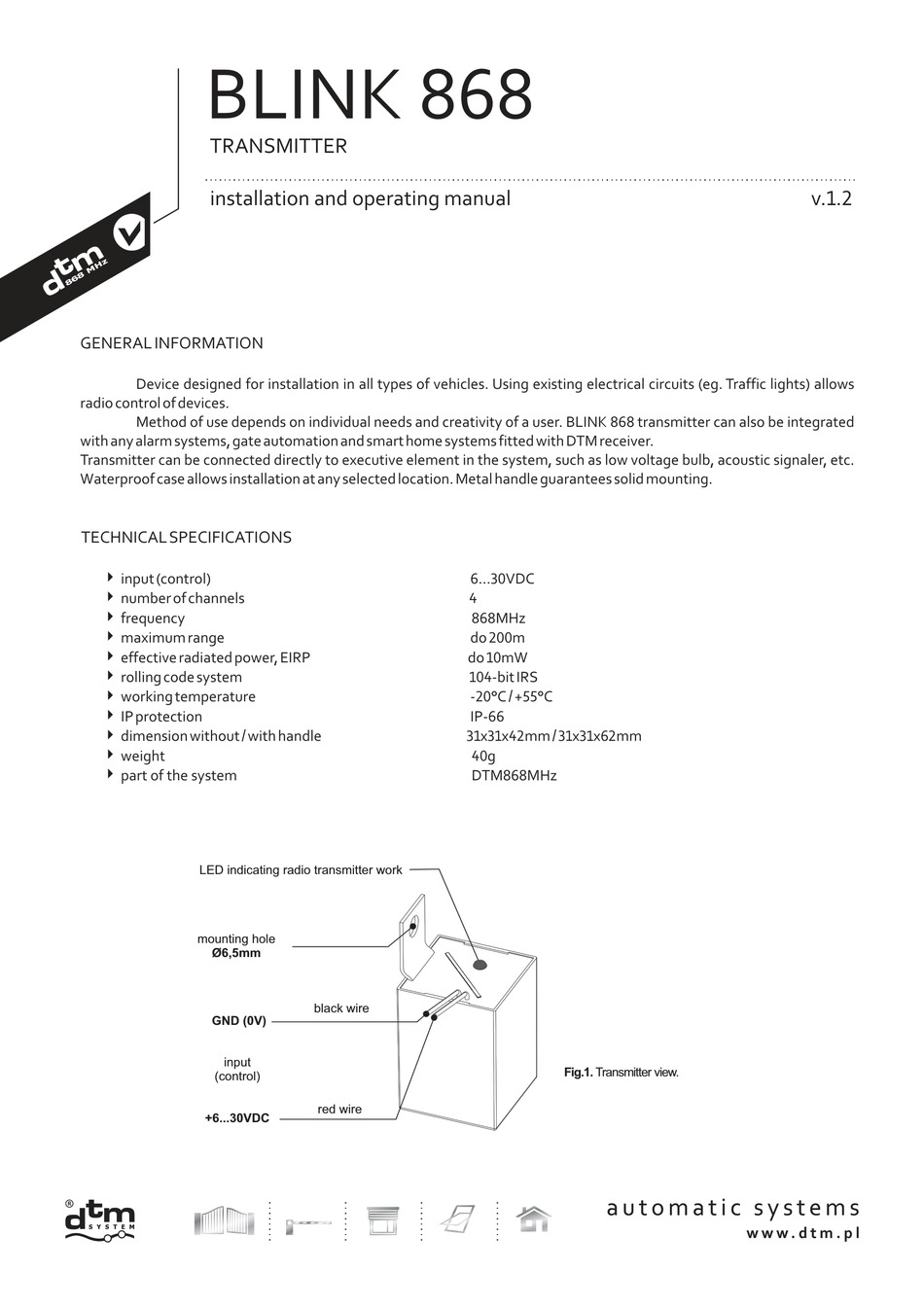

BLINK 868
TRANSMITTER
installation and operating manual

GENERAL INFORMATION

Device designed for installation in all types of vehicles. Using existing electrical circuits (eg. Traffic lights) allows
radio control of devices.
Method of use depends on individual needs and creativity of a user. BLINK 868 transmitter can also be integrated
with any alarm systems, gate automation and smart home systems fitted with DTM receiver.
Transmitter can be connected directly to executive element in the system, such as low voltage bulb, acoustic signaler, etc.
Waterproof case allows installation at any selected location. Metal handle guarantees solid mounting.
TECHNICALSPECIFICATIONS
4 input (control)
4 number of channels
4 frequency
4 maximum range
4 effective radiated power, EIRP
4 rolling code system
4 working temperature
4 IP protection
4 dimension without / with handle
4 weight
4 part of the system
LED indicating radio transmitter work
mounting hole
Ø6,5mm
GND (0V)
input
(control)
+6...30VDC
6...30VDC
4
868MHz
do 200m
do 10mW
104-bit IRS
-20°C / +55°C
IP-66
31x31x42mm / 31x31x62mm
40g
DTM868MHz
black wire
red wire
Fig.1. Transmitter view.
v.1.2

Advertisement

Table of Contents
loading
Need help?

Need help?

Do you have a question about the BLINK 868 and is the answer not in the manual?

Questions and answers

Summary of Contents for DTM System BLINK 868

  • Page 1 Device designed for installation in all types of vehicles. Using existing electrical circuits (eg. Traffic lights) allows radio control of devices. Method of use depends on individual needs and creativity of a user. BLINK 868 transmitter can also be integrated with any alarm systems, gate automation and smart home systems fitted with DTM receiver.
  • Page 2 1.Transmitter instalation For safe installation BLINK 868 transmitter should be protected with delayed tripping time fuse of 500mA value (eg.ZKT-0.5A). Fuse and slot are not included. Control signal from the automation must be connected to two BLINK wires (red wire +6...30VDC, black 0V) Example of electrical diagram with BLINK 868 connection is shown on Fig.2.
  • Page 3 h one short pulse corresponds to short press of number 1 button h two short pulses corresponds to short press of number 2 button h three short pulses corresponds to short press of number 3 button h four short pulses corresponds to short press of number 4 button VICTORY remote buttons numbering h one long pulse corresponds to holding number 1 button...
  • Page 4 W A R R A N T Y DTM System checks all the devices before shipping. The warranty time is 24 months from the selling date.This time is counted according to the warranty label. The manufacturer will fix all the problems which come because of his fault.
