- Page 1 DIRECT FIBRE TX 1550 nm INSTRUCTION MANUAL 47 MHz ... 862 MHz PRODUCT CODE: DF/TXD9 ® AUSTRALIA...
- Page 2 DIRECT FIBRE TRANSMITTER 1550 nm [47 MHz ... 862 MHz] SAFETY PRECAUTIONS WARNING: Avoid personal injury and product damage by complying with the following important operating and maintenance instructions. Avoid Electric Shock WARNING: To reduce the risk of an electric shock, perform only the instructions that are included in this instruction manual.
- Page 3 DIRECT FIBRE TRANSMITTER 1550 nm [47 MHz ... 862 MHz] Ventilation WARNING: To protect this product against damage from overheating, do the following: • This product has openings for ventilation to protect it from overheating. To ensure product reliability, do not block or cover these openings • Do not open this product • Do not push objects through openings in the product or enclosure • If the TX has been kept in cold conditions for a long time, keep it in a warm room no less than...
-
Page 4: Introduction
DIRECT FIBRE TRANSMITTER 1550 nm [47 MHz ... 862 MHz] INTRODUCTION 1.1 Product Overview This is an all-in-one direct fibre transmitter for the use in medium to large fibre distribution networks. Combined with our EYDFA, this unit provides long life stability and reliability in commercial environments. 1.2 Features • Module design, simple installation • RF input and an RF test port on the front of the TX... -
Page 5: Table Of Contents
DIRECT FIBRE TRANSMITTER 1550 nm [47 MHz ... 862 MHz] CONTENTS INTRODUCTION 1.1 Product Overview 1.2 Features CONTENTS 1.3 Main Technical Specification Parameters 1.4 Diagram 1.5 Front Panel 1.6 Rear Panel CHANGING IP SETTINGS Default Configuration... -
Page 6: Main Technical Specification Parameters
DIRECT FIBRE TRANSMITTER 1550 nm [47 MHz ... 862 MHz] 1.3 Main Technical Specification Parameters Specification Optical Power (mW) 7.95 Optical Power (dBm) Optical Wavelength (nm) 1550 ± 20 Fibre Connection SC/APC RF Bandwidth (MHz) 47 ... 862 Channels ≤ 0.75 Band Unflatness Optical Modulation Mode Direct... -
Page 7: Front Panel

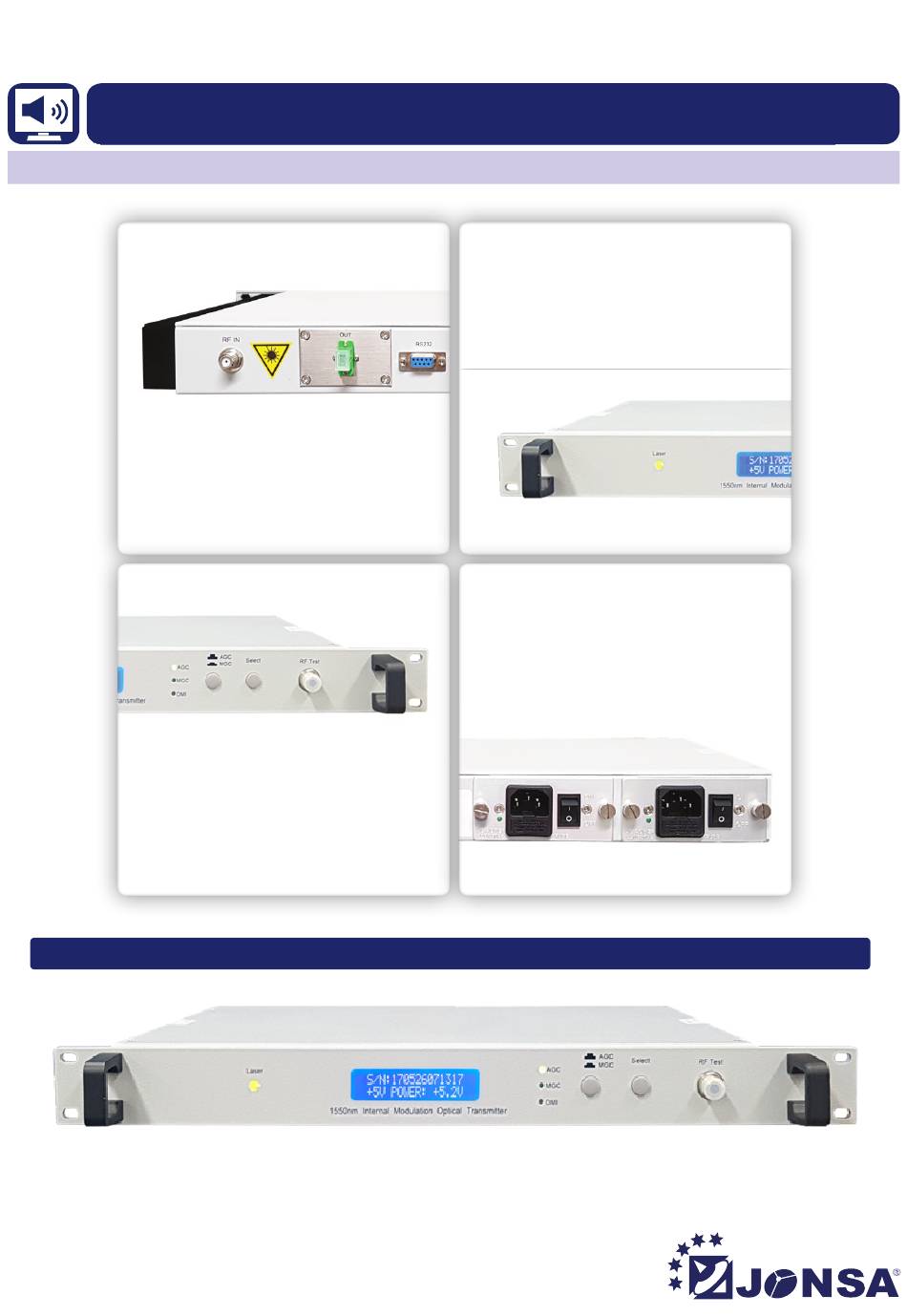

DIRECT FIBRE TRANSMITTER 1550 nm [47 MHz ... 862 MHz] 1.5 Front Panel 1.6 Rear Panel... -
Page 8: Changing Ip Settings
DIRECT FIBRE TRANSMITTER 1550 nm [47 MHz ... 862 MHz] CHANGING IP SETTINGS Default Configuration IP Network Configuration Description Name root Password 123456 IP Address 192.168.1.67 Subnet Mask 255.255.255.0 Gateway 192.168.1.1 Open command prompt and ping the IP Address first to ensure the Fibre TX is available on your network. Refer to the example above. - Page 9 DIRECT FIBRE TRANSMITTER 1550 nm [47 MHz ... 862 MHz] The web browser will display the Device Status menu first as shown above. All of the parameters are shown in the Device Status. In the Alarm Status menu. Should there be an issue with the Direct Fibre Transmitter, the Alarm Status will show an error.
- Page 10 DIRECT FIBRE TRANSMITTER 1550 nm [47 MHz ... 862 MHz] In the Alarm Properties menu any issues that appeared in the Alarm Status that have been resolved or are current will be logged in this menu. In the Network Settings menu, all of the IP configurations can be configured accordingly in this menu.
- Page 11 DIRECT FIBRE TRANSMITTER 1550 nm [47 MHz ... 862 MHz] In the Change Password menu, you can change the username and password to the users preference. In the Reset Settings menu, you can restore the parameters back to the factory default settings.
