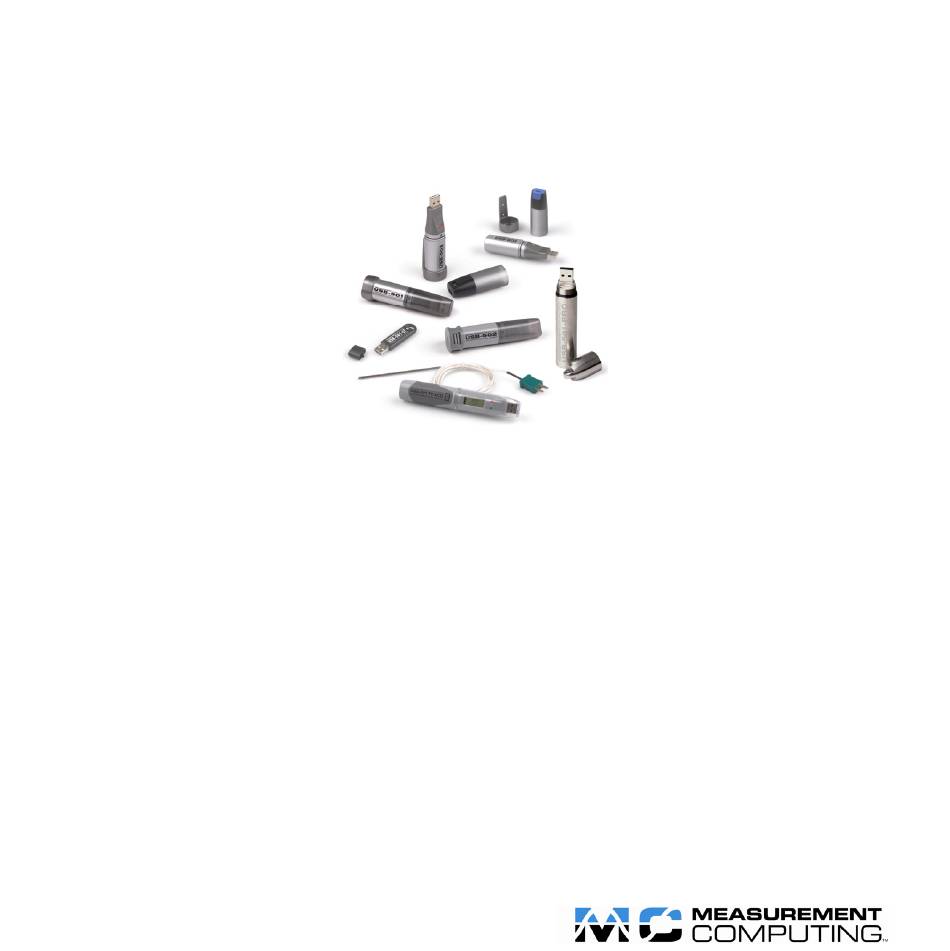

MC USB-500 Series Quick Start & Reference Manual

Hide thumbs
Table of Contents

Advertisement

Quick Links

USB-500 Series
Quick Start & Reference Guide
System requirements and recommendations ..........................................................................................................................................2
USB-501-PRO Safety Agreement ......................................................................................................................................................... 3
Installing the software ............................................................................................................................................................................4
Installing USB-500 Series Data Loggers ...............................................................................................................................................5
Running the USB-500 Data Logger Application and Help....................................................................................................................5
USB-501 LED functions ........................................................................................................................................................................6
USB-501-TC, USB-501-TC-LCD, and USB-501-RCG LED functions ...............................................................................................7
USB-501-TC-LCD display ....................................................................................................................................................................8
USB-501-LT LED functions ..................................................................................................................................................................9
USB-502 and USB-502-PLUS LED functions ....................................................................................................................................10
USB-502-LCD LED functions .............................................................................................................................................................11
USB-502-LCD display .........................................................................................................................................................................12
USB-503 and USB-504 LED functions ...............................................................................................................................................13
USB-505 LED functions ......................................................................................................................................................................14
Battery safety and power-saving guidelines .........................................................................................................................................15
Replacing the battery............................................................................................................................................................................16
Recharging the USB-501-RCG battery ................................................................................................................................................19
How to contact technical support .........................................................................................................................................................19
Contents



















Advertisement

Table of Contents
loading
Need help?

Need help?

Do you have a question about the USB-500 Series and is the answer not in the manual?

Questions and answers

Subscribe to Our Youtube Channel

Related Manuals for MC USB-500 Series

Summary of Contents for MC USB-500 Series

  • Page 1: Table Of Contents

    System requirements and recommendations ............................2   USB-501-PRO Safety Agreement ................................. 3    Installing the software ....................................4    Installing USB-500 Series Data Loggers ...............................5    Running the USB-500 Data Logger Application and Help........................5    USB-501 LED functions ..................................6  ...

  • Page 2: System Requirements And Recommendations

    System requirements and recommendations USB-500 Series Data Loggers System requirements and recommendations  PC with Pentium® II-class processor, 450 MHz (Pentium III class processor, 650 MHz or higher recommended)  Windows XP (SP2), Windows Vista, Windows 7, 32 & 64-bit versions ...

  • Page 3: Usb-501-Pro Safety Agreement

    System requirements and recommendations USB-500 Series Data Loggers USB-501-PRO Safety Agreement PLEASE READ THROUGH THIS USB-500 QUICK START GUIDE, WHICH SHOULD BE KEPT FOR FUTURE REFERENCE. PASS THE USB-500 QUICK START GUIDE ON TO THOSE WHO USE THIS DEVICE. DO NOT ATTEMPT TO USE THE USB-501-PRO WITHOUT READING AND UNDERSTANDING THE DOCUMENTATION.

  • Page 4: Installing The Software

    Installing the software USB-500 Series Data Loggers Installing the software Follow these steps to install the USB-500 Data Logger Application on your computer. Insert the USB-500 Data Logger Application CD into your computer's CD drive. If the CD does not start automatically, run setup.exe from the root of the CD.

  • Page 5: Installing Usb-500 Series Data Loggers

    Important! To avoid damaging your USB-500 Series data logger, do not disconnect it from the USB port while it is communicating with the PC, such as when you are setting up the data logger or downloading data from it.

  • Page 6: Usb-501 Led Functions

    USB-501 LED functions USB-500 Series Data Loggers USB-501 LED functions The USB-501 has two LEDs. The red/green LED flashes green when there is no alarm, and flashes red to indicate an alarm reading. The amber LED flashes when the USB-501 data memory is full, and when the battery charge is low.

  • Page 7: Usb-501-Tc, Usb-501-Tc-Lcd, And Usb-501-Rcg Led Functions

    USB-501-TC, USB-501-TC-LCD, and USB-501-RCG LED functions USB-500 Series Data Loggers USB-501-TC, USB-501-TC-LCD, and USB-501-RCG LED functions The USB-501-TC, USB-501-TC-LCD, and USB-501-RCG each have two LEDs—one that flashes green and the other that flashes red. The red LED flashes to indicate an alarm reading.

  • Page 8: Usb-501-Tc-Lcd Display

    USB-501-TC-LCD display USB-500 Series Data Loggers USB-501-TC-LCD display The USB-501-TC-LCD's high contrast LCD displays temperature information as well as the logging status. You can configure the LCD to be always on, always off, or on when the LCD button is pressed.

  • Page 9: Usb-501-Lt Led Functions

    USB-501-LT LED functions USB-500 Series Data Loggers USB-501-LT LED functions Red/Green The USB-501-LT has one LED which can flash either red or green. You must button press the LED button to make the LED flash. The LED flashes red to indicate an alarm reading.

  • Page 10: Usb-502 And Usb-502-Plus Led Functions

    USB-502 and USB-502-PLUS LED functions USB-500 Series Data Loggers USB-502 and USB-502-PLUS LED functions The USB-502 and USB 502-PLUS each have two LEDs—each of which flash either Red/Green Red/Green red or green. One LED represents temperature (ºC/ºF), and the other represents LED (%rh) LED (°C/°F)

  • Page 11: Usb-502-Lcd Led Functions

    USB-502-LCD LED functions USB-500 Series Data Loggers USB-502-LCD LED functions Red/Green Red/Green The USB-502-LCD has two LEDs—each of which flash either red or green. One LED (%rh) LED (°C/°F) LED represents temperature (ºC/ºF), and the other relative humidity (%rh). An LED flashes red to indicate an alarm reading.

  • Page 12: Usb-502-Lcd Display

    USB-502-LCD display USB-500 Series Data Loggers USB-502-LCD display The USB-502-LCD's high contrast LCD displays temperature and humidity information as well as the logging status. You can configure the LCD to be always on, always off, or on when the LCD button is pressed.

  • Page 13: Usb-503 And Usb-504 Led Functions

    USB-503 and USB-504 LED functions USB-500 Series Data Loggers USB-503 and USB-504 LED functions The USB-503 and USB-504 have two LEDs—one that flashes green and the other that Green flashes red. The red LED flashes to indicate an alarm reading.

  • Page 14: Usb-505 Led Functions

    USB-505 LED functions USB-500 Series Data Loggers USB-505 LED functions The USB-505 has two LEDs—one that flashes green and the other that flashes red. The red Green LED flashes to indicate an alarm reading. Green LED  When the green LED flashes once every 10 seconds, the USB-505 is logging with no alarms.

  • Page 15: Battery Safety And Power-Saving Guidelines

    Keep batteries out of reach of children.  A USB-500 Series data logger that is connected to the USB port uses more battery power than normal. Do not leave the data logger connected to the USB port for longer than necessary.

  • Page 16: Replacing The Battery

    Replacing the battery USB-500 Series Data Loggers Replacing the battery Complete the following steps to replace the 3.6 V ½AA lithium battery in these data loggers:  USB-501  USB-502  USB-503  USB-501-TC  USB-502-PLUS  USB-504  USB-501-TC-LCD ...
  • Page 17 Replacing the battery USB-500 Series Data Loggers USB-501-PRO Complete the following steps to replace the 3.6 V ⅔AA lithium battery in the USB-501-PRO Disconnect the data logger from the computer. Remove the end cap from the bottom of the logger using a coin or flathead screwdriver.
  • Page 18 Replacing the battery USB-500 Series Data Loggers USB-501-LT Complete the following steps to replace the CR1620 lithium button cell battery in the USB-501-LT Disconnect the data logger from the computer. Remove the screw using a small Phillips screwdriver. Open slightly, and pull the top housing away from the bottom housing.

  • Page 19: Recharging The Usb-501-Rcg Battery

    Recharging the USB-501-RCG battery USB-500 Series Data Loggers Recharging the USB-501-RCG battery You should recharge the USB-501-RCG battery when either the device or the USB-500 software indicates a low battery state.  When the LEDs indicate that the USB-501-RCG battery needs recharging, recharge the battery immediately.
  • Page 20 HM USB-500-QS-Ref.doc *325168D-01* Document Revision 13, January 2011...
