Amit IDG700-0TP23 User Manual

4g wan, 4g poe-wan extender
Hide thumbs
Table of Contents

Advertisement

Quick Links

Download this manual

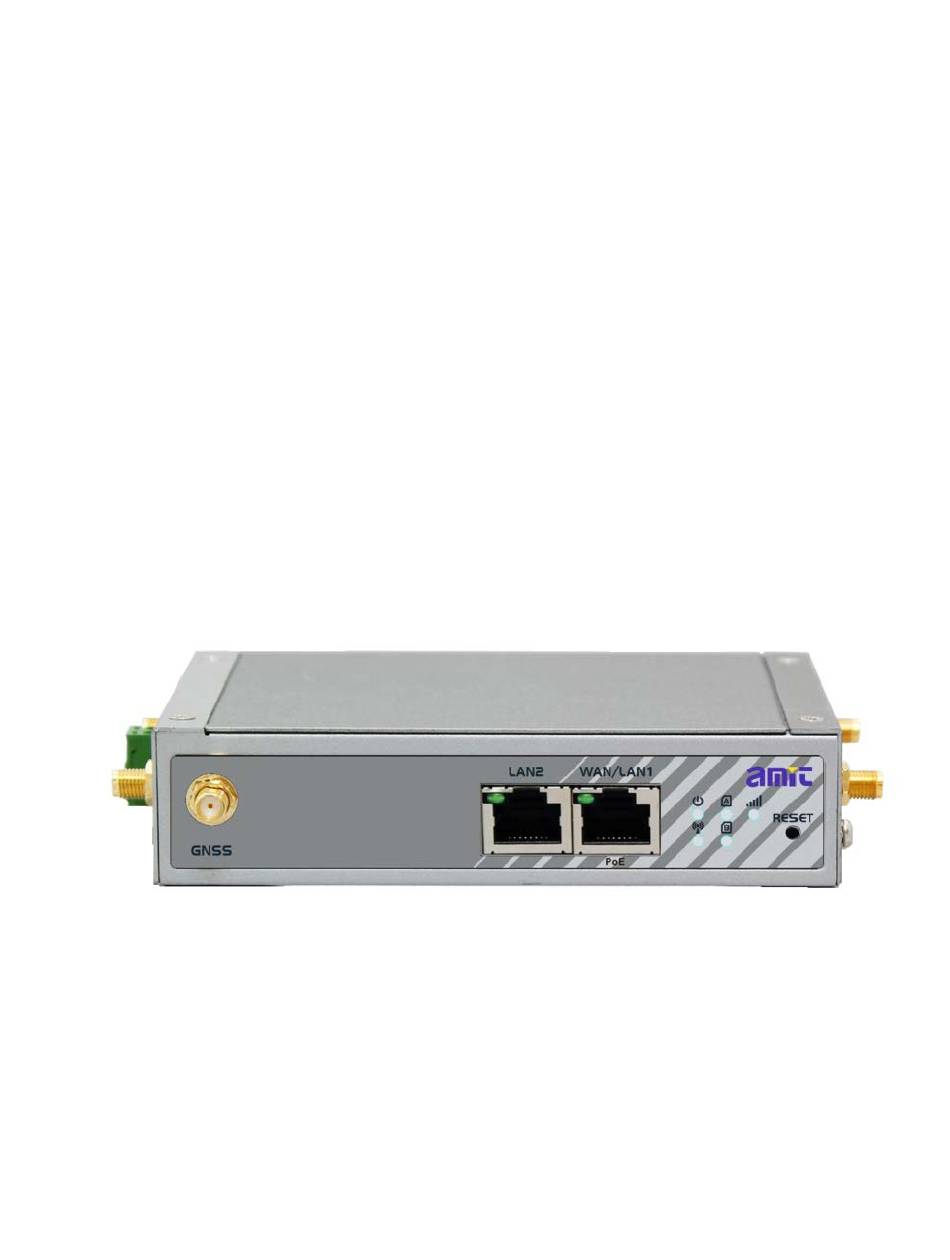

4G WAN
4G PoE-WAN Extender
IDG700-0TP23
User Manual

Advertisement

Table of Contents
loading
Need help?

Need help?

Do you have a question about the IDG700-0TP23 and is the answer not in the manual?

Questions and answers

Subscribe to Our Youtube Channel

Summary of Contents for Amit IDG700-0TP23

  • Page 1 4G WAN 4G PoE-WAN Extender IDG700-0TP23 User Manual...

  • Page 2: Table Of Contents

    4G PoE-WAN Extender Chapter 1 Introduction ...........................6 1.1 Introduction ............................. 6 1.2 Contents List ........................... 7 1.2.1 Package Contents ........................7 1.2.2 Optional Accessories ......................7 1.3 Hardware Configuration ........................9 1.4 LED Indication ..........................11 1.5 Installation & Maintenance Notice ....................12 1.5.1 SYSTEM REQUIREMENTS ....................
  • Page 3 4G PoE-WAN Extender 2.4.1 IPv6 Configuration ......................95 2.5 Port Forwarding ...........................103 2.5.1 Configuration ........................104 2.5.2 Virtual Server & Virtual Computer ..................105 2.5.3 DMZ & Pass Through ......................111 2.6 Routing ............................114 2.6.1 Static Routing ........................115 2.6.2 Dynamic Routing ....................... 118 2.6.3 Routing Information ......................123 2.7 DNS &...
  • Page 4 4G PoE-WAN Extender 5.2.2 URL Blocking ........................185 5.2.3 MAC Control ........................188 5.2.4 Content Filter (not supported) .....................191 5.2.5 Application Filter (not supported) ..................192 5.2.6 IPS.............................193 5.2.7 Options ..........................197 Chapter 6 Administration ........................... 201 6.1 Configure & Manage ........................201 6.1.1 Command Script ........................202 6.1.2 TR-069 ..........................206 6.1.3 SNMP ..........................
  • Page 5 4G PoE-WAN Extender 7.2.2 Managing Events........................270 7.2.3 Notifying Events ........................273 7.3 Location Tracking..........................275 7.3.1 GNSS ..........................276 Chapter 8 Status............................282 8.1 Dashboard ............................282 8.1.1 Device Dashboard ......................282 8.2 Basic Network ..........................284 8.2.1 WAN & Uplink Status ......................284 8.2.2 LAN & VLAN Status ......................288 8.2.3 WiFi Status ........................289 8.2.4 DDNS Status........................292 8.3 Security ............................293...

  • Page 6: Chapter 1 Introduction

    SIM design provides a more reliable WAN connection for critical applications. By VPN tunneling technology, remote sites easily become a part of Intranet, and all data are transmitted in a secure (256-bit AES encryption) link. To meet a variety of M2M application requirements, AMIT M2M Cellular Gateway products are based on modular design.

  • Page 7: Contents List

    4G PoE-WAN Extender 1.2 Contents List 1.2.1 Package Contents #Standard Package Items Description Contents Quantity IDG700-0TP23 1pcs 4G PoE-WAN Extender Cellular Antenna 2pcs WiFi Antenna 2pcs Power Adapter (DC 12V/1A) 1pcs RJ45 Cable 1pcs 2 Pin Terminal Block 1pcs DIN-Rail Bracket 1pcs 1.2.2 Optional Accessories...
  • Page 8 4G PoE-WAN Extender Compatible Passive PoE Injector Passive PoE Injector (Gigabit, 30W) Proprietary Passive PoE Power Passive PoE Injector. Supply (Gigabit) These parts are sold separately. If necessary, please contact us via sales@amit.com.tw...

  • Page 9: Hardware Configuration

    4G PoE-WAN Extender 1.3 Hardware Configuration  Front View GPS Ant. Auto MDI/MDIX RJ45 Ports Reset 1x FE LAN to connect local (optional) Indicators Button devices ※Reset Button The RESET button provides user with a quick and easy way to resort the default setting. Press the RESET button continuously for 6 seconds, and then release it.
  • Page 10 4G PoE-WAN Extender Left View  3G/4G (Main) 3G/4G (Aux) Antenna Antenna Power Terminal Block Right View  WiFi WiFi Antenna Antenna...

  • Page 11: Led Indication

    4G PoE-WAN Extender 1.4 LED Indication LED Color LED Icon Indication Description Power Source Blue Steady ON: Device is powered on by power source Flash: Data packet transferred. WiFi Blue OFF: Wireless Radio is disable OFF: SIM card A not detected SIM A Blue Flash: SIM card A is chosen for connection...

  • Page 12: Installation & Maintenance Notice

    4G PoE-WAN Extender 1.5 Installation & Maintenance Notice 1.5.1 SYSTEM REQUIREMENTS A fast Ethernet RJ45 cable • 3G/4G cellular service subscription • IEEE 802.11b/g/n wireless network • Network Requirements IEEE 802.11b/g/n wireless clients • 10/100 Ethernet adapter on PC • Computer with the following: Windows®, Macintosh, or Linux-based operating •...

  • Page 13: Hot Surface Caution

    4G PoE-WAN Extender 1.5.3 HOT SURFACE CAUTION CAUTION: The surface temperature for the metallic enclosure can be very high! Especially after operating for a long time, installed at a closed cabinet without air conditioning support, or in a high ambient temperature space.
  • Page 14 4G PoE-WAN Extender Federal Communication Commission Interference Statement This device complies with Part 15 of the FCC Rules. Operation is subject to the following two conditions: (1) This device may not cause harmful interference, and (2) this device must accept any interference received, including interference that may cause undesired operation.

  • Page 15: Product Information For Ce Red Requirements

    4G PoE-WAN Extender 1.5.4 Product Information for CE RED Requirements The following product information is required to be presented in product User Manual for latest CE RED requirements. (1) Frequency Band & Maximum Power 1.a Frequency Band for Cellular Connection (for ME3630 E1C version) Band number Operating Frequency Max output power...
  • Page 16 (2) DoC Information You can get the DoC information of this product from the following URL: http://www.amit.com.tw/products-doc/ (3) RF Exposure Statements The antenna of the product, under normal use condition, is at least 20 cm away from the body of user.
  • Page 17 4G PoE-WAN Extender Manufacture Name: AMIT Wireless Inc. Manufacture Address: No. 28, Lane 31, Sec. 1, Huandong Rd., Xinshi Dist., Tainan 74146, Taiwan (R.O.C.)

  • Page 18: Hardware Installation

    4G PoE-WAN Extender 1.6 Hardware Installation This chapter describes how to install and configure the hardware. 1.6.1 Mount the Unit The IDG700 series can be placed on a desktop, or mounted on the DIN Rail, and wall. The DIN-rail bracket is not screwed on the product when out of factory.

  • Page 19: Connecting Power

    (1) For Powering through PoE cabling, the IDG700-0TP23 can also be powered by 802.3af or 802.3at compliant PoE Injector, PoE Switch, or proprietary passive PoE Injector that is listed in optional parts in Section 1.2.2.

  • Page 20: Connecting To The Network Or A Host

    4G PoE-WAN Extender 1.6.4 Connecting to the Network or a Host The IDG700 series product provides RJ45 ports to connect 10/100Mbps Ethernet. It can auto detect the transmission speed on the network and configure itself automatically. Connect the Ethernet cable to the RJ45 port of the device.

  • Page 21: Chapter 2 Basic Network

    4G PoE-WAN Extender Chapter 2 Basic Network 2.1 WAN & Uplink The gateway provides multiple WAN interfaces to let all client hosts in Intranet of the gateway access the Internet via ISP. But ISPs in the world apply various connection protocols to let gateways or user's devices dial in ISPs and then link to the Internet via different kinds of transmit media.

  • Page 22: Physical Interface

    4G PoE-WAN Extender 2.1.1 Physical Interface M2M gateways are usually equipped with various WAN interfacess to support different WAN connection scenario for requirement. You can configure the WAN interface one by one to get proper internet connection setup. Refer to the product specification for the available WAN interfaces in the product you purchased. The first step to configure one WAN interface is to specify which kind of connection media to be used for the WAN connection, as shown in "Physical Interface"...
  • Page 23 4G PoE-WAN Extender Operation Mode: There are three option items “Always on”, “Failover”, and “Disable” for the operation mode setting. Always on: Set this WAN interface to be active all the time. When two or more WAN are established at "Always on"...
  • Page 24 4G PoE-WAN Extender The purpose is to shorten the switch time during failover process. So, when primary connection is disconnected, failover interface will take over the data transfer mission instantly by only changing routing path to the failover interface. The dialing-up time of failover connection is saved since it has been connected beforehand.
  • Page 25 4G PoE-WAN Extender Physical Interface Setting Go to Basic Network > WAN > Physical Interface tab. The Physical Interface allows user to setup the physical WAN interface and to adjust WAN’s behavior. Note: Numbers of available WAN Interfaces can be different for the purchased gateway. When Edit button is applied, an Interface Configuration screen will appear.
  • Page 26 4G PoE-WAN Extender secondary WAN interface to switch Failover from. (Note: for WAN-1, only Always on option is available.) Check Enable box to enter tag value provided by your ISP. Otherwise uncheck the box. VLAN Tagging Optional setting Value Range: 1 ~ 4095. Note: This feature is NOT available for 3G/4G WAN connection.

  • Page 27: Internet Setup

    4G PoE-WAN Extender 2.1.2 Internet Setup After specifying the physical interface for each WAN connection, administrator must configure their connection profile to meet the dial in process of ISP, so that all client hosts in the Intranet of the gateway can access the Internet.
  • Page 28 4G PoE-WAN Extender Internet Connection List - Ethernet WAN WAN Type for Ethernet Interface: Ethernet is the most common WAN and uplink interface for M2M gateways. Usually it is connected with xDSL or cable modem for you to setup the WAN connection. There are various WAN types to connect with ISP. •...
  • Page 29 4G PoE-WAN Extender WAN Type = Dynamic IP When you select it, "Dynamic IP WAN Type Configuration" will appear. Items and setting is explained below Dynamic IP WAN Type Configuration Item Value setting Description Host Name Enter the host name provided by your Service Provider. An optional setting Enter the MAC address that you have registered with your service provider.
  • Page 30 4G PoE-WAN Extender Static IP WAN Type Configuration Item Value setting Description WAN IP Address A Must filled setting Enter the WAN IP address given by your Service Provider WAN Subnet Mask A Must filled setting Enter the WAN subnet mask given by your Service Provider WAN Gateway A Must filled setting Enter the WAN gateway IP address given by your Service Provider...
  • Page 31 4G PoE-WAN Extender WAN Type= PPTP When you select it, "PPTP WAN Type Configuration" will appear. Items and setting is explained below PPTP WAN Type Configuration Item Value setting Description Select either Static or Dynamic IP address for PPTP Internet connection. When Static IP Address is selected, you will need to enter the WAN IP ...
  • Page 32 4G PoE-WAN Extender WAN Type= L2TP When you select it, "L2TP WAN Type Configuration" will appear. Items and setting is explained below L2TP WAN Type Configuration Item Value setting Description Select either Static or Dynamic IP address for L2TP Internet connection. When Static IP Address is selected, you will need to enter the WAN IP ...
  • Page 33 4G PoE-WAN Extender Ethernet Connection Common Configuration There are some important parameters to be setup no matter which Ethernet WAN type is selected. You should follow up the rule to configure. Connection Contro Auto-reconnect: This gateway will establish Internet connection automatically once it has been booted up, and try to reconnect once the connection is down.
  • Page 34 4G PoE-WAN Extender Manually: This gateway won’t start to establish WAN connection until you press “Connect” button on web UI. After normal data transferring between LAN and WAN sides, this gateway will disconnect WAN connection if idle time reaches value of Maximum Idle Time. Please be noted, if the WAN interface serves as the primary one for another WAN interface in Failover role, the Connection Control parameter will not be available to you to configure as the system must set it to “Auto- reconnect (Always on)”.
  • Page 35 4G PoE-WAN Extender Set up “Ethernet Common Configuration” Ethernet WAN Common Configuration Item Value setting Description There are three connection modes. • Auto-reconnect enables the router to always keep the Internet connection on. • Connect-on-demand enables the router to automatically re- establish Internet connection as soon as user attempts to access Connection Control A Must filled setting...
  • Page 36 4G PoE-WAN Extender Network Monitoring Configuration Item Value setting Description Check the Enable box to activate the network monitoring function. 1. An optional setting Network Monitoring 2. Box is checked by Configuration default Choose either DNS Query or ICMP Checking to detect WAN link. 1.
  • Page 37 4G PoE-WAN Extender Value Range: 1 ~ 10 times. Target1 specifies the first target of sending DNS query/ICMP request. 1. An Optional filled DNS1: set the primary DNS to be the target. setting Target 1 DNS2: set the secondary DNS to be the target. 2.
  • Page 38 4G PoE-WAN Extender Internet Connection – 3G/4G WAN Preferred SIM Card – Dual SIM Fail Over For 3G/4G embedded device, one embedded cellular module can create only one WAN interface. This device has featured by using dual SIM cards for one module with special fail-over mechanism. It is called Dual SIM Failover.
  • Page 39 4G PoE-WAN Extender SIM-A/SIM-B only: When “SIM-A Only” or “SIM-B Only” is used, the specified SIM slot card is the only one to be used for negotiation parameters between gateway device and cellular ISP. SIM-A / SIM-B first without enable Failback By default, “SIM-A First”...
  • Page 40 4G PoE-WAN Extender Configure 3G/4G WAN Setting When Edit button is applied, Internet Connection Configuration, and 3G/4G WAN Configuration screens will appear. 3G/4G Connection Configuration Item Value setting Description 1. A Must filled setting From the dropdown box, select Internet connection method for 3G/4G WAN Type 2.
  • Page 41 4G PoE-WAN Extender Note: Keep it unchecked unless your cellular ISP asked the connected gateway to enable the Auto Flight Mode. Click the Policy Setting button to define the SIM Switch policy or browse SIM Switch Policy the current policy settings. Configure SIM-A / SIM-B Card Here you can set configurations for the cellular connection according to your situation or requirement.
  • Page 42 4G PoE-WAN Extender Connection with SIM-A/-B Card Item Value setting Description Select Auto to register a network automatically, regardless of the network type. Select 2G Only to register the 2G network only. 1. A Must filled setting Select 2G Prefer to register the 2G network first if it is available. Network Type 2.
  • Page 43 4G PoE-WAN Extender parameters that required, such as IP address, subnet mask and gateway. Note: IP Subnet Mask is a must filled setting, and make sure you have the right configuration. Otherwise, the connection may get issues. 1. An Optional setting Enter the IP address to change the primary DNS (Domain Name Server) Primary DNS 2.
  • Page 44 4G PoE-WAN Extender 2. String format : any text String format : any text Enter the APN you want to use to establish the connection. 1. A Must filled setting Specify the IP type of the network serveice provided by your 3G/4G IP Type 2.
  • Page 45 4G PoE-WAN Extender Note: If the WAN interface serves as the primary one for another WAN interface in Failover role( and vice versa), the Connection Control parameter will not be available on both WANs as the system must set it to “Auto-reconnect”...
  • Page 46 4G PoE-WAN Extender Network Monitoring Configuration Item Value setting Description 1. An optional setting Check the Enable box to activate the network monitoring function. Network Monitoring 2. Box is checked by Configuration default Choose either DNS Query or ICMP Checking to detect WAN link. 1.
  • Page 47 4G PoE-WAN Extender...

  • Page 48: Load Balance

    4G PoE-WAN Extender 2.1.3 Load Balance When there are multiple WAN interfaces, and when the bandwidth of one WAN connection is not enough for the traffic loads from the Intranet to the Internet, the WAN load balance function can be considered to enlarge the total WAN bandwidth.
  • Page 49 4G PoE-WAN Extender By Specific Weight When you select "By Specific Weight", you need to set up ratio of WAN-1/WAN-2 to decide sessions sent ratio. Total ratio should be 100%. Ratio is usually defined based on practical WAN speed of environment.
  • Page 50 4G PoE-WAN Extender Load Balance Setting Go to Basic Network > WAN & Uplink > Load Balance Tab. The Load Balance function is used to manage balance bandwidth usage among multiple WAN connections When you choose "By Smart Weight" strategy, system will operate load balance function automatically based on the embedded Smart Weight algorithm.
  • Page 51 4G PoE-WAN Extender Weight Definition Item Value setting Description WAN ID The Identifier for each available WAN interface.. Enter the weight ratio for each WAN interface. 1. A Must filled setting Initially, the bandwidth ratio of each WAN is set by default. Weight 2.
  • Page 52 4G PoE-WAN Extender is : xxx.xxx.xxx.xxx/xx e.g. 192.168.123.0/24. IP Range: Specify the IP Range for the traffics come from the IPs Single IP: Specify a unique IP Address for the traffics come from the IP. Input format is : xxx.xxx.xxx.xxx e.g. 192.168.123.101. There are five options can be selected : Any: No specific destination IP is provided.

  • Page 53: Lan & Vlan

    4G PoE-WAN Extender 2.2 LAN & VLAN This section provides the configuration of LAN and VLAN. VLAN is an optional feature, and it depends on the product specification of the purchased gateway. 2.2.1 Ethernet LAN The Local Area Network (LAN) can be used to share data or files among computers attached to a network.
  • Page 54 4G PoE-WAN Extender by default The default subnet mask is 255.255.255.0 (/24), and it means maximum 254 IP addresses are allowed in this subnet. However, one of them is occupied by LAN IP address of this gateway, so there are maximum 253 clients allowed in LAN network.
  • Page 55 4G PoE-WAN Extender network. Value Range: 255.0.0.0 (/8) ~ 255.255.255.255 (/32). Save Click the Save button to save the configuration...

  • Page 56: Vlan

    4G PoE-WAN Extender 2.2.2 VLAN VLAN (Virtual LAN) is a logical network under a certain switch or router device to group client hosts with a specific VLAN ID. This gateway supports both Port-based VLAN and Tag-based VLAN. These functions allow you to divide local network into different “virtual LANs”.
  • Page 57 4G PoE-WAN Extender Staff) with NAT mode and DHCP-2 server equipped. At last, administrator also configure Data Center segment with VLAN ID 1. The VLAN group includes Port-1 with NAT mode to WAN interface as shown in following diagram. Above is the general case for 3 Ethernet LAN ports in the gateway. But if the device just has one Ethernet LAN port, there will be only one VLAN group for the device.
  • Page 58 4G PoE-WAN Extender For example, in a company, administrator schemes out 3 network segments, Lab, Meeting Rooms, and Office. In a Security VPN Gateway, administrator can configure Office segment with VLAN ID 12. The VLAN group is equipped with DHCP-3 server to construct a 192.168.12.x subnet. He also configure Meeting Rooms segment with VLAN ID 11.
  • Page 59 4G PoE-WAN Extender  VLAN Groups Access Control Administrator can specify the Internet access permission for all VLAN groups. He can also configure which VLAN groups are allowed to communicate with each other. VLAN Group Internet Access Administrator can specify members of one VLAN group to be able to access Internet or not. Following is an example that VLAN groups of VID is 2 and 3 can access Internet but the one with VID is 1 cannot access Internet.
  • Page 60 4G PoE-WAN Extender Inter VLAN Group Routing: In Port-based tagging, administrator can specify member hosts of one VLAN group to be able to communicate with the ones of another VLAN group or not. This is a communication pair, and one VLAN group can join many communication pairs.
  • Page 61 4G PoE-WAN Extender VLAN Setting Go to Basic Network > LAN & VLAN > VLAN Tab. The VLAN function allows you to divide local network into different virtual LANs. There are Port-based and Tag-based VLAN types. Select one that applies. Configuration Item Value setting...
  • Page 62 4G PoE-WAN Extender Port-based VLAN - Configuration Port-based VLAN Configuration (part-I) Item Value setting Description Define the Name of this rule. It has a default text and cannot be modified. 1. A Must filled setting Name 2. String format: already have default texts VLAN ID A Must filled setting...
  • Page 63 4G PoE-WAN Extender Port-based VLAN Configuration (part-II) Item Value setting Description WAN & WAN All WANs is selected by Select which WAN or All WANs that allow accessing Internet. VID to Join default. Note: If Bridge mode is selected, you need to select a WAN and enter a VID. LAN IP Assign an IP Address for the DHCP Server that the rule used, this IP address is a A Must filled setting...
  • Page 64 4G PoE-WAN Extender device. By default, the lease time is 86400 seconds. String format can be any The Domain Name of this DHCP Server. Domain Name Value Range: 0 ~ 31 characters. text Primary DNS IPv4 format The Primary DNS of this DHCP Server. Secondary IPv4 format The Secondary DNS of this DHCP Server.
  • Page 65 4G PoE-WAN Extender Besides, you can add some IP rules in the IP Fixed Mapping Rule List if DHCP Server for the VLAN groups is required. When Add button is applied, Mapping Rule Configuration screen will appear. Mapping Rule Configuration Item Value setting Description...
  • Page 66 4G PoE-WAN Extender Port-based VLAN – Inter VLAN Group Routing Click VLAN Group Routing button, the VLAN Group Internet Access Definition and Inter VLAN Group Routing screen will appear. When Edit button is applied, a screen similar to this will appear. Inter VLAN Group Routing Item Value setting...
  • Page 67 4G PoE-WAN Extender Note: VLAN ID 1 is available always; it is the default VLAN ID of LAN rule. The other VLAN IDs are available only when they are enabled. Click the expected VLAN IDs box to enable the Inter VLAN access function. By default, members in different VLAN IDs can’t access each other.
  • Page 68 4G PoE-WAN Extender If you select New to create a new DHCP server setting for the VLAN group, you have to further specify the following configuration. Tag-based VLAN Configuration (part-II) Item Value setting Description Assign an IP Address for the DHCP Server that the rule used, this IP address is a IP Address A Must filled setting gateway IP.

  • Page 69: Dhcp Server

    4G PoE-WAN Extender 2.2.3 DHCP Server  DHCP Server The gateway supports up to 4 DHCP servers to fulfill the DHCP requests from different VLAN groups (please refer to VLAN section for getting more usage details). And there is one default setting for whose LAN IP Address is the same one of gateway LAN interface, with its default Subnet Mask setting as “255.255.255.0”, and its default IP Pool ranges is from “.100”...
  • Page 70 4G PoE-WAN Extender  Fixed Mapping User can assign fixed IP address to map the specific client MAC address by select them then copy, when targets were already existed in the DHCP Client List, or to add some other Mapping Rules by manually in advance, once the target's MAC address was not ready to connect.
  • Page 71 4G PoE-WAN Extender DHCP Server Setting Go to Basic Network > LAN & VLAN > DHCP Server Tab. The DHCP Server setting allows user to create and customize DHCP Server policies to assign IP Addresses to the devices on the local area network (LAN) Create / Edit DHCP Server Policy The gateway allows you to custom your DHCP Server Policy.
  • Page 72 4G PoE-WAN Extender DHCP Server Configuration Item Value setting Description 1. String format can be any DHCP Server text Enter a DHCP Server name. Enter a name that is easy for you to understand. Name 2. A Must filled setting LAN IP 1.
  • Page 73 4G PoE-WAN Extender Mapping Rule Configuration Item Value setting Description 1. MAC Address string MAC Address format The MAC Address of this mapping rule. 2. A Must filled setting 1. IPv4 format. IP Address The IP Address of this mapping rule. 2.
  • Page 74 4G PoE-WAN Extender Option Meaning TFTP server name [RFC 2132] Default World Wide Web Server [RFC 2132] [RFC 3679] Create / Edit DHCP Server Options The gateway supports up to a maximum of 99 option settings. When Add/Edit button is applied, DHCP Server Option Configuration screen will appear. DHCP Server Option Configuration Item Value setting...
  • Page 75 4G PoE-WAN Extender Option 66 for tftp; Option 72 for www; Option 144 for url; Each different options has different value types. Single IP Address Single FQDN IP Addresses List, separated by “,” Dropdown list DHCP Single URL Type server option value’s type IP Addresses List, separated by “,”...
  • Page 76 4G PoE-WAN Extender DHCP Relay Configuration Item Value setting Description 1. String format can be any Enter a DHCP Relay name. Enter a name that is easy for you to understand. Agent Name text Value Range: 1~64 characters. 2. A Must filled setting. 1.

  • Page 77: Wifi

    4G PoE-WAN Extender 2.3 WiFi The gateway provides WiFi interface for mobile devices or BYOD devices to connect for Internet/Intranet accessing. WiFi function is usually modulized design in a gateway, and there can be single or dual modules within a gateway. The WiFi system in the gateway complies with IEEE 802.11ac/11n/11g/11b standard in 2.4GHz or 5GHz single band or 2.4G/5GHz concurrent dual bands of operation.

  • Page 78: Wifi Configuration

    4G PoE-WAN Extender 2.3.1 WiFi Configuration Due to optional module(s) and frequency band, you need to setup module one by one. For each module, you need to specify the operation mode, and then setup the virtual APs for wireless access. Hereunder are the scenarios for each wireless operation mode, you can get how it works, and what is the difference among them.
  • Page 79 4G PoE-WAN Extender WDS Only Mode WDS (Wireless Distributed System) Only mode drives a WiFi gateway to be a bridge for its wired Intranet and a repeater to extend distance. You can use multiple WiFi gateways as a WiFi repeater chain with all gateways setup as "WDS Only"...
  • Page 80 4G PoE-WAN Extender Multiple VAPs VAP (Virtual Access Point) is function to partition wireless network into multiple broadcast domains. It can simulate multiple APs in one physical AP. This wireless gateway supports up to 8 VAPs. For each VAP, you need to setup SSID, authentication and encryption to control Wi-Fi client access.
  • Page 81 4G PoE-WAN Extender WiFi Configuration Setting The WiFi configuration allows user to configure 2.4GHz or 5GHz WiFi settings. Go to Basic Network > WiFi > WiFi Module One Tab. If the gateway is equipped with two WiFi modules, there will be another WiFi Module Two. You can do the similar configurations on both WiFi modules. Basic Configuration Basic Configuration Item...
  • Page 82 4G PoE-WAN Extender  By Less Interference The channel will be selected according to interference. (The lower, the better). Specify the preferred WiFi System. The dropdown list of WiFi system is based on IEEE 802.11 standard. WiFi System A Must filled setting ...
  • Page 83 4G PoE-WAN Extender by clicking the Edit button. Click Add / Edit button in the VAP List screen to create or edit the settings for a VAP. A VAP Configuration screen will appear. For VAP 1: For others: VAP Configuration Item Value setting Description...
  • Page 84 4G PoE-WAN Extender by default. station. The box is unchecked by default. It means no special limitation on the number of connected STAs. For security, there are several authentication methods supported. Client stations should provide the key when associate with this device. When Open is selected The check box named 802.1x shows up next to the dropdown list.
  • Page 85 4G PoE-WAN Extender TKIP TKIP was proposed instead of WEP without upgrading hardware. Enter a Pre- shared Key for it. The length of key is from 8 to 63 characters. The newest encryption system in WiFi, it also designed for the fast 802.11n high bitrates schemes.
  • Page 86 4G PoE-WAN Extender WDS Only Mode For the WDS Only mode, the device only bridges the connected wired clients to another WDS-enabled WiFi device which the device associated with. That is, it also means the no wireless clients stat can connect to this device while WDS Only Mode is selected.
  • Page 87 4G PoE-WAN Extender Under WDS Only mode, only VAP1 is available for further specifying the required authentication and Encryption settings. Click Edit button in the VAP List screen and a VAP Configuration screen will appear for you to configure the required settings For the detail description about VAP configuration, please refer to the description stated in AP-Router section.
  • Page 88 4G PoE-WAN Extender WDS Hybrid Mode For the WDS Hybrid mode, the device bridges all the wired LAN and WLAN clients to another WDS or WDS hybrid enabled WiFi devices which the device associated with. WDS Hybrid Mode Item Value setting Description Check the Enable box to activate this function.
  • Page 89 4G PoE-WAN Extender differs from devices. So, you can connected to the VAP1 (SSID: Staff_2.4G) with the provided key. However, it is strongly recommanded that you have to change the security key to a easy-to-remember one by clicking the Edit button. Under WDS Hybrid mode, the VAP function is available and you can further specifying the required VAP settings for connecting with wireless client devices.
  • Page 90 4G PoE-WAN Extender For others: For the detail description about VAP configuration, please refer to the description stated in AP-Router section.

  • Page 91: Wireless Client List

    4G PoE-WAN Extender 2.3.2 Wireless Client List The Wireless Client List page shows the information of wireless clients which are associated with this device. Go to Basic Network > WiFi > Wireless Client List Tab. Select Target WiFi Target Configuration Item Value setting Description...
  • Page 92 4G PoE-WAN Extender RSSI0, RSSI1 It shows the RX sensitivity (RSSI) value for each radio path. Signal The signal strength between client and this device. Interface It shows the VAP ID that the client associated with. Refresh Click the Refresh button to update the Client List immediately.

  • Page 93: Advanced Configuration

    4G PoE-WAN Extender 2.3.3 Advanced Configuration This device provides advanced wireless configuration for professional user to optimize the wireless performance under the specific installation environment. Please note that if you are not familiar with the WiFi technology, just leave the advanced configuration with its default values, or the connectivity and performance may get worse with improper settings.
  • Page 94 4G PoE-WAN Extender Advanced Configuration Item Value setting Description The default setting is It limits the available radio channel of this device. Regulatory Domain according to where The permissible channels depend on the Regulatory Domain. the product sale to It shows the time interval between each beacon packet broadcasted. Beacon Interval The beacon packet contains SSID, Channel ID and Security setting.

  • Page 95: Ipv6

    4G PoE-WAN Extender 2.4 IPv6 The growth of the Internet has created a need for more addresses than are possible with IPv4. IPv6 (Internet Protocol version 6) is a version of the Internet Protocol (IP) intended to succeed IPv4, which is the protocol currently used to direct almost all Internet traffic.
  • Page 96 4G PoE-WAN Extender IPv6 WAN Connection Type Static IPv6 Static IPv6 does the same function as static IPv4. The static IPv6 provides manual setting of IPv6 address, IPv6 default gateway address, and IPv6 DNS. Above diagram depicts the IPv6 IP addressing, type in the information provided by your ISP to setup the IPv6 network.
  • Page 97 4G PoE-WAN Extender PPPoEv6 PPPoEv6 in IPv6 does the same function as PPPoE in IPv4. The PPPoEv6 server provides configuration parameters based on PPPoEv6 client request. When PPPoEv6 server gets client request and successfully authenticates it, the server sends IP address, DNS server addresses and other required parameters to automatically configure the client.
  • Page 98 4G PoE-WAN Extender IPv6 Configuration Setting Go to Basic Network > IPv6 > Configuration Tab. The IPv6 Configuration setting allows user to set the IPv6 connection type to access the IPv6 network. IPv6 Configuration Item Value setting Description The box is unchecked IPv6 Check the Enable box to activate the IPv6 function.
  • Page 99 4G PoE-WAN Extender Length Default Gateway A Must filled setting Enter the WAN Default Gateway IPv6 address. Primary DNS An optional setting Enter the WAN primary DNS Server. Secondary DNS An optional setting Enter the WAN secondary DNS Server. The box is unchecked MLD Snooping Enable/Disable the MLD Snooping function by default...
  • Page 100 4G PoE-WAN Extender DHCPv6 WAN Type Configuration DHCPv6 WAN Type Configuration Item Value setting Description The option [From Select the [Specific DNS] option to active Primary DNS and Secondary DNS. Then Server] is selected by fill the DNS information. default Can not modified by Primary DNS Enter the WAN primary DNS Server.
  • Page 101 4G PoE-WAN Extender PPPoEv6 WAN Type Configuration PPPoEv6 WAN Type Configuration Item Value setting Description Enter the Account for setting up PPPoEv6 connection. If you want more Account A Must filled setting information, please contact your ISP. Value Range: 0 ~ 45 characters. Enter the Password for setting up PPPoEv6 connection.
  • Page 102 4G PoE-WAN Extender Then go to Address Auto-configuration (summary) for setting LAN environment. If above setting is configured, click the save button to save the configuration and click reboot button to reboot the router. Address Auto-configuration Address Auto-configuration Item Value setting Description The box is unchecked Auto-configuration...

  • Page 103: Port Forwarding

    4G PoE-WAN Extender 2.5 Port Forwarding Network address translation (NAT) is a methodology of remapping one IP address space into another by modifying network address information in Internet Protocol (IP) datagram packet headers while they are in transit across a traffic routing device. The technique was originally used for ease of rerouting traffic in IP networks without renumbering every host.

  • Page 104: Configuration

    4G PoE-WAN Extender 2.5.1 Configuration NAT Loopback This feature allows you to access the WAN global IP address from your inside NAT local network. It is useful when you run a server inside your network. For example, if you set a mail server at LAN side, your local devices can access this mail server through gateway’s global IP address when enable NAT loopback feature.

  • Page 105: Virtual Server & Virtual Computer

    4G PoE-WAN Extender 2.5.2 Virtual Server & Virtual Computer There are some important Pot Forwarding functions implemented within the gateway, including "Virtual Server", "NAT loopback" and "Virtual Computer". It is necessary for cooperate staffs who travel outside and want to access various servers behind office gateway.
  • Page 106 4G PoE-WAN Extender Virtual Server & NAT Loopback "Virtual Server" allows you to access servers with the global IP address or FQDN of the gateway as if they are servers existed in the Internet. But in fact, these servers are located in the Intranet and are physically behind the gateway.
  • Page 107 4G PoE-WAN Extender Virtual Server & Virtual Computer Setting Go to Basic Network > Port Forwarding > Virtual Server & Virtual Computer tab. Enable Virtual Server and Virtual Computer Configuration Item Value setting Description The box is unchecked by Virtual Server Check the Enable box to activate this port forwarding function default The box is checked by...
  • Page 108 4G PoE-WAN Extender Virtual Server Rule Configuration Item Value setting Description Define the selected interface to be the packet-entering interface of the gateway. If the packets to be filtered are coming from WAN-x then select WAN-x for this 1. A Must filled setting field.
  • Page 109 4G PoE-WAN Extender When “UDP” is selected It means the option “Protocol” of packet filter rule is UDP. Public Port selected a predefined port from Well-known Service, and Private Port is the same with Public Port number. Public Port is selected Single Port and specify a port number, and Private Port can be set a Single Port number.
  • Page 110 4G PoE-WAN Extender Create / Edit Virtual Computer The gateway allows you to custom your Virtual Computer rules. It supports up to a maximum of 20 rule-based Virtual Computer sets. When Add button is applied, Virtual Computer Rule Configuration screen will appear. Virtual Computer Rule Configuration Item Value setting...

  • Page 111: Dmz & Pass Through

    4G PoE-WAN Extender 2.5.3 DMZ & Pass Through DMZ (De Militarized Zone) Host is a host that is exposed to the Internet cyberspace but still within the protection of firewall by gateway device. So, the function allows a computer to execute 2-way communication for Internet games, Video conferencing, Internet telephony and other special applications.
  • Page 112 4G PoE-WAN Extender VPN Pass through Scenario Since VPN traffic is different from that of TCP or UDP connection, it will be blocked by NAT gateway. To support the pass through function for the VPN connections initiating from VPN clients behind NAT gateway, the gateway must implement some kind of VPN pass through function for such application.
  • Page 113 4G PoE-WAN Extender Note: The available check boxes (WAN-1 ~ WAN-4) depend on the number of WAN interfaces for the product. Pass Through Enable The boxes are checked by Check the box to enable the pass through function for the IPSec, PPTP, and default L2TP.

  • Page 114: Routing

    4G PoE-WAN Extender 2.6 Routing If you have more than one router and subnet, you will need to enable routing function to allow packets to find proper routing path and allow different subnets to communicate with each other. Routing is the process of selecting best paths in a network.

  • Page 115: Static Routing

    4G PoE-WAN Extender 2.6.1 Static Routing "Static Routing" function lets you define the routing paths for some dedicated hosts/servers or subnets to store in the routing table of the gateway. The gateway routes incoming packets to different peer gateways based on the routing table. You need to define the static routing information in gateway routing rule list. When the administrator of the gateway wants to specify what kinds of packets to be transferred via which gateway interface and which peer gateway to...
  • Page 116 4G PoE-WAN Extender Static Routing Setting Go to Basic Network > Routing > Static Routing Tab. There are three configuration windows for static routing feature, including "Configuration", "Static Routing Rule List" and "Static Routing Rule Configuration" windows. "Configuration" window lets you activate the global static routing feature.
  • Page 117 4G PoE-WAN Extender of each static routing rule can let you modify the rule. IPv4 Static Routing Item Value setting Description 1. IPv4 Format Destination IP Specify the Destination IP of this static routing rule. 2. A Must filled setting 255.255.255.0 (/24) is set by Subnet Mask Specify the Subnet Mask of this static routing rule.

  • Page 118: Dynamic Routing

    4G PoE-WAN Extender 2.6.2 Dynamic Routing Dynamic Routing, also called adaptive routing, describes the capability of a system, through which routes are characterized by their destination, to alter the path that the route takes through the system in response to a change in network conditions.
  • Page 119 4G PoE-WAN Extender RIP Scenario The Routing Information Protocol (RIP) is one of the oldest distance-vector routing protocols, which employs the hop count as a routing metric. RIP prevents routing loops by implementing a limit on the number of hops allowed in a path from the source to a destination.
  • Page 120 4G PoE-WAN Extender Dynamic Routing Setting Go to Basic Network > Routing > Dynamic Routing Tab. The dynamic routing setting allows user to customize RIP, and OSPF protocols through the router based on their office setting. In the "Dynamic Routing" page, there are several configuration windows for dynamic routing feature. They are the "RIP Configuration"...
  • Page 121 4G PoE-WAN Extender OSPF Configuration Item Value setting Description OSPF Disable is set by default Click Enable box to activate the OSPF protocol. 1. IPv4 Format Router ID The Router ID of this router on OSPF protocol 2. A Must filled setting The Authentication method of this router on OSPF protocol.
  • Page 122 4G PoE-WAN Extender OSPF Area Configuration Item Value setting Description 1. Classless Inter Domain Routing (CIDR) Subnet Area Subnet Mask Notation. (Ex: The Area Subnet of this router on OSPF Area List. 192.168.1.0/24) 2. A Must filled setting 1. IPv4 Format Area ID The Area ID of this router on OSPF Area List.

  • Page 123: Routing Information

    4G PoE-WAN Extender 2.6.3 Routing Information The routing information allows user to view the routing table and policy routing information. Policy Routing Information is only available when the Load Balance function is enabled and the Load Balance Strategy is By User Policy Go to Basic Network >...

  • Page 124: Dns & Ddns

    4G PoE-WAN Extender 2.7 DNS & DDNS How does user access your server if your WAN IP address changes all the time? One way is to register a new domain name, and maintain your own DNS server. Another simpler way is to apply a domain name to a third- party DDNS service provider.
  • Page 125 4G PoE-WAN Extender DNS & DDNS Setting Go to Basic Network > DNS & DDNS > Configuration Tab. The DNS & DDNS setting allows user to setup Dynamic DNS feature and DNS redirect rules. Setup Dynamic DNS The gateway allows you to custom your Dynamic DNS settings. DDNS (Dynamic DNS) Configuration Item Value setting...
  • Page 126 4G PoE-WAN Extender Setup DNS Redirect DNS redirect is a special function to redirect certain traffics to a specified host. Administator can manage the internet / intranet traffics that are going to access some restricted DNS and force those traffics to be redirected to a specified host.
  • Page 127 4G PoE-WAN Extender 2. A Must filled setting Value Range: at least 1 character is required; ‘*’ for any. 1. IPv4 format Enter an IP Address as the target for the DNS redirect. 2. A Must filled setting Specify when will the DNS redirect action can be applied. It can be Always, or WAN Block.

  • Page 128: Chapter 3 Object Definition

    4G PoE-WAN Extender Chapter 3 Object Definition 3.1 Scheduling Scheduling provides ability of adding/deleting time schedule rules, which can be applied to other functionality. 3.1.1 Scheduling Configuration Go to Object Definition > Scheduling > Configuration tab. Button description Item Value setting Description Click the Add button to configure time schedule rule Delete...
  • Page 129 4G PoE-WAN Extender Time Period Definition Item Value Setting Description Week Day Select from menu Select everyday or one of weekday Start Time Time format (hh :mm) Start time in selected weekday End Time Time format (hh :mm) End time in selected weekday Save Click Save to save the settings Undo...

  • Page 130: User (Not Supported)

    4G PoE-WAN Extender 3.2 User (not supported) Not supported feature for the purchased product, leave it as blank.

  • Page 131: Grouping

    4G PoE-WAN Extender 3.3 Grouping The Grouping function allows user to make group for some services. 3.3.1 Host Grouping Go to Object Definition > Grouping > Host Grouping tab. The Host Grouping function allows user to make host group for some services, such as QoS, Firewall, and Communication Bus.
  • Page 132 4G PoE-WAN Extender to Join. Note: The available Group Type can be different for the purchased model. Add the members to the group in this field. You can enter the member information as specified in the Member Type above, Member to Join and press the Join button to add.

  • Page 133: External Server

    4G PoE-WAN Extender 3.4 External Server Go to Object Definition > External Server > External Server tab. The External Server setting allows user to add external server. Create External Server When Add button is applied, External Server Configuration screen will appear.
  • Page 134 4G PoE-WAN Extender External Server Configuration Item Value setting Description 1. String format can be Sever Name any text Enter a server name. Enter a name that is easy for you to understand. 2. A Must filled setting Specify the Server Type of the external server, and enter the required settings for the accessing the server.
  • Page 135 4G PoE-WAN Extender TACACS+ Server (A Must filled setting) : When TACACS+ Server is selected, the following settings are also required. Shared Key (String format: any text) Session Timeout (String format: any number) The values must be between 1 and 60. SCEP Server (A Must filled setting) : When SCEP Server is selected, the following settings are also required.

  • Page 136: Certificate

    4G PoE-WAN Extender 3.5 Certificate In cryptography, a public key certificate (also known as a digital certificate or identity certificate) is an electronic document used to prove ownership of a public key. The certificate includes information about the key, information about its owner's identity, and the digital signature of an entity that has verified the certificate's contents are genuine.

  • Page 137: My Certificate

    4G PoE-WAN Extender 3.5.2 My Certificate My Certificate includes a Local Certificate List. Local Certificate List shows all generated certificates by the root CA for the gateway. And it also stores the generated Certificate Signing Requests (CSR) which will be signed by other external CAs.
  • Page 138 HQRootCA Key Type: RSA Key Length: 1024-bits Subject Name Country(C): TW State(ST): Taiwan Location(L): Tainan Organization(O): AMITHQ Organization Unit(OU): HQRD Common Name(CN): HQRootCA E-mail: hqrootca@amit.com.tw Configuration Path [My Certificate]-[Local Certificate Configuration] Name HQCRT Self-signed: ■ Key Type: RSA Key Length: 1024-bits...
  • Page 139 [My Certificate]-[Local Certificate Configuration] BranchCRT Self-signed: □ Name Key Type: RSA Key Length: 1024-bits Subject Name Country(C): TW State(ST): Taiwan Location(L): Tainan Organization(O): AMITBranch Organization Unit(OU): BranchRD Common Name(CN): BranchCRT E-mail: branchcrt@amit.com.tw Configuration Path [IPSec]-[Configuration] ■ Enable IPSec Configuration Path [IPSec]-[Tunnel Configuration] ■...
  • Page 140 4G PoE-WAN Extender Remote Netmask 255.255.255.0 Remote Gateway 203.95.80.22 Configuration Path [IPSec]-[Authentication] Key Management IKE+X.509 Local Certificate: BranchCRT Remote Certificate: HQCRT User Name Network-B Local ID Remote ID User Name Network-A Configuration Path [IPSec]-[IKE Phase] Negotiation Mode Main Mode X-Auth None Scenario Operation Procedure In above diagram, "Gateway 1"...
  • Page 141 4G PoE-WAN Extender My Certificate Setting Go to Object Definition > Certificate > My Certificate tab. The My Certificate setting allows user to create local certificates. In "My Certificate" page, there are two configuration windows for the "My Certificate" function. The "Local Certificate List" window shows the stored certificates or CSRs for representing the gateway.
  • Page 142 4G PoE-WAN Extender Local Certificate Configuration Item Value setting Description Name 1. String format can be any Enter a certificate name. It will be a certificate file name text If Self-signed is checked, it will be signed by root CA. If Self-signed is not 2.
  • Page 143 4G PoE-WAN Extender When Import button is applied, an Import screen will appear. You can import a certificate from an existed certificate file, or directly paste a PEM encoded string as the certificate. Import Item Value setting Description Import A Must filled setting Select a certificate file from user’s computer, and click the Apply button to import the specified certificate file to the gateway.

  • Page 144: Trusted Certificate

    4G PoE-WAN Extender 3.5.3 Trusted Certificate Trusted Certificate includes Trusted CA Certificate List, Trusted Client Certificate List, and Trusted Client Key List. The Trusted CA Certificate List places the certificates of external trusted CAs. The Trusted Client Certificate List places the others' certificates what you trust. And the Trusted Client Key List places the others’ keys what you trusted.
  • Page 145 4G PoE-WAN Extender For Network-A at HQ Following tables list the parameter configuration as an example for the "Trusted Certificate" function used in the user authentication of IPSec VPN tunnel establishing, as shown in above diagram. The configuration example must be combined with the ones in "My Certificate" and "Issue Certificate" sections to complete the setup for the whole user scenario.
  • Page 146 4G PoE-WAN Extender Import the obtained BranchCRT certificate (the derived BranchCSR certificate after Gateway 1’s root CA signature) into the "Trusted Client Certificate List" of the Gateway 1 and the "Local Certificate List" of the Gateway 2. For more details, refer to the Network-B operation procedure in "My Certificate" section of this manual.
  • Page 147 4G PoE-WAN Extender Trusted Certificate Setting Go to Object Definition > Certificate > Trusted Certificate tab. The Trusted Certificate setting allows user to import trusted certificates and keys. Import Trusted CA Certificate When Import button is applied, a Trusted CA import screen will appear. You can import a Trusted CA certificate from an existed certificate file, or directly paste a PEM encoded string as the certificate.
  • Page 148 4G PoE-WAN Extender Instead of importing a Trusted CA certificate with mentioned approaches, you can also get the CA certificate from the SECP server. If SCEP is enabled (Refer to Object Definition > Certificate > Configuration), you can click Get CA button, a Get CA Configuration screen will appear.
  • Page 149 4G PoE-WAN Extender Trusted Client Certificate List Item Value setting Description Import from a A Must filled setting Select a certificate file from user’s computer, and click the Apply button to import the specified certificate file to the gateway. File Import from a 1.
  • Page 150 4G PoE-WAN Extender Trusted Client Key List Item Value setting Description Import from a A Must filled setting Select a certificate key file from user’s computer, and click the Apply button to import the specified key file to the gateway. File Import from a 1.

  • Page 151: Chapter 4 Field Communication (Not Supported)

    4G PoE-WAN Extender Chapter 4 Field Communication (not supported) Not supported feature for the purchased product, leave it as blank.

  • Page 152: Chapter 5 Security

    4G PoE-WAN Extender Chapter 5 Security 5.1 VPN A virtual private network (VPN) extends a private network across a public network, such as the Internet. It enables a computer to send and receive data across shared or public networks as if it were directly connected to the private network, while benefitting from the functionality, security and management policies of the private network.

  • Page 153: Ipsec

    4G PoE-WAN Extender 5.1.1 IPSec Internet Protocol Security (IPSec) is a protocol suite for securing Internet Protocol (IP) communications by authenticating and encrypting each IP packet of a communication session. IPSec includes protocols for establishing mutual authentication between agents at the beginning of the session and negotiation of cryptographic keys to be used during the session.
  • Page 154 4G PoE-WAN Extender IPSec Setting Go to Security > VPN > IPSec tab. The IPSec Setting allows user to create and configure IPSec tunnels. Enable IPSec Configuration Window Item Value setting Description IPsec Unchecked by default Click the Enable box to enable IPSec function. Max.
  • Page 155 4G PoE-WAN Extender Tunnel Configuration Window Item Value setting Description Tunnel Unchecked by default Check the Enable box to activate the IPSec tunnel 1. A Must fill setting Enter a tunnel name. Enter a name that is easy for you to identify. Tunnel Name 2.
  • Page 156 4G PoE-WAN Extender Local & Remote Configuration Window Item Value setting Description Specify the Local Subnet IP address and Subnet Mask. Click the Add or Delete button to add or delete a Local Subnet. Note_1: When Dynamic VPN option in Tunnel Scenario is selected, there will be A Must fill setting Local Subnet List only one subnet available.
  • Page 157 4G PoE-WAN Extender Select Key ID for Local ID and enter the Key ID (English alphabet or number). Specify the Remote ID for this IPSec tunnel to authenticate. Select User Name for Remote ID and enter the username. The username may include but can’t be all numbers.
  • Page 158 4G PoE-WAN Extender IKE Phase Window Item Value setting Description Main Mode is set by Specify the Negotiation Mode for this IPSec tunnel. Select Main Mode or Negotiation Mode Aggressive Mode. default default Specify the X-Auth role for this IPSec tunnel. Select Server, Client, or None. Selected None no X-Auth authentication is required.
  • Page 159 4G PoE-WAN Extender IPSec Phase Window Item Value setting Description 1. A Must fill setting 2. 28800s is set by Specify the Phase2 Key Life Time in second. Phase2 Key Life Time default Value Range: 30 ~ 86400. 3. Max. 86400s IPSec Proposal Definition Window Item Value setting...

  • Page 160: Openvpn

    4G PoE-WAN Extender 5.1.2 OpenVPN OpenVPN is an application that implements virtual private network (VPN) techniques for creating secure point-to-point or site-to-site connections in routed or bridged configurations and remote access facilities. It uses a custom security protocol that utilizes SSL/TLS for key exchange. It is capable of traversing network address translators (NATs) and firewalls.
  • Page 161 4G PoE-WAN Extender assigned a virtual IP (10.8.0.2) which is belong to a virtual subnet that is different to the local subnet in Control Center. With such connection, the local networked devices will get a virtual IP 10.8.0.x if its traffic goes through the OpenVPN TUN connection when Redirect Internet Traffic settings is enabled;...
  • Page 162 4G PoE-WAN Extender Open VPN Setting Go to Security > VPN > OpenVPN tab. The OpenVPN setting allows user to create and configure OpenVPN tunnels. Enable OpenVPN Configuration Item Value setting Description OpenVPN The box is unchecked by Check the Enable box to activate the OpenVPN function. default Client Client...
  • Page 163 4G PoE-WAN Extender OpenVPN Client Configuration Item Value setting Description OpenVPN Client A Must filled setting The OpenVPN Client Name will be used to identify the client in the tunnel list. Name Value Range: 1 ~ 32 characters. Interface 1. A Must filled setting Define the physical interface to be used for this OpenVPN Client tunnel.
  • Page 164 4G PoE-WAN Extender 2. The box is checked by default. Authorization Mode 1. A Must filled setting Specify the authorization mode for the OpenVPN Server. 2. By default TLS is • TLS selected. ->The OpenVPN will use TLS authorization mode, and the following items CA Cert., Client Cert.
  • Page 165 4G PoE-WAN Extender When Advanced Configuration is selected, an OpenVPN Client Advanced Configuration screen will appear. OpenVPN Advanced Client Configuration Item Value setting Description TLS Cipher 1. A Must filled setting. Specify the TLS Cipher from the dropdown list. 2. TLS-RSA-WITH- It can be None / TLS-RSA-WITH-RC4-MD5 / TLS-RSA-WITH-AES128-SHA / TLS- AES128-SHA is selected RSA-WITH-AES256-SHA / TLS-DHE-DSS-AES128-SHA / TLS-DHE-DSS-AES256-...
  • Page 166 4G PoE-WAN Extender Client IP Address By default Dynamic IP is Specify the virtual IP Address for the OpenVPN Client. selected It can be Dynamic IP/Static IP. Tunnel MTU 1.A Must filled setting Specify the value of Tunnel MTU. 2.The value is 1500 by Value Range: 0 ~ 1500.

  • Page 167: L2Tp

    4G PoE-WAN Extender 5.1.3 L2TP Layer 2 Tunneling Protocol (L2TP) is a tunneling protocol used to support virtual private networks (VPNs) or as part of the delivery of services by ISPs. It does not provide any encryption or confidentiality by itself. Rather, it relies on an encryption protocol that it passes within the tunnel to provide privacy.
  • Page 168 4G PoE-WAN Extender Certainly, those packets come through the L2TP tunnel. L2TP Setting Go to Security > VPN > L2TP tab. The L2TP setting allows user to create and configure L2TP tunnels. Enable L2TP Enable L2TP Window Item Value setting Description L2TP Unchecked by default...
  • Page 169 4G PoE-WAN Extender When Add/Edit button is applied, a series of configuration screen will appear. You can add up to 8 L2TP Clients. L2TP Client Configuration Item Setting Value setting Description Enter a tunnel name. Enter a name that is easy for you to identify. Tunnel Name A Must filled setting Value Range: 1 ~ 32 characters.
  • Page 170 4G PoE-WAN Extender default Enter the User Name for this L2TP tunnel to be authenticated when connect to User Name A Must filled setting L2TP server. Value Range: 1 ~ 32 characters. Enter the Password for this L2TP tunnel to be authenticated when connect to Password A Must filled setting L2TP server.
  • Page 171 4G PoE-WAN Extender Undo Click X button to cancel the settings and back to last page.

  • Page 172: Pptp

    4G PoE-WAN Extender 5.1.4 PPTP Point-to-Point Tunneling Protocol (PPTP) is a method for implementing virtual private networks. PPTP uses a control channel over TCP and a GRE tunnel operating to encapsulate PPP packets. It is a client-server based technology. There are various levels of authentication and encryption for PPTP tunneling, usually natively as standard features of the Windows PPTP stack.
  • Page 173 4G PoE-WAN Extender any packets from the PPTP client peer. Certainly, those packets come through the PPTP tunnel. PPTP Setting Go to Security > VPN > PPTP tab. The PPTP setting allows user to create and configure PPTP tunnels. Enable PPTP Enable PPTP Window Item Value setting...
  • Page 174 4G PoE-WAN Extender When Add/Edit button is applied, a series PPTP Client Configuration will appear. PPTP Client Configuration Window Item Value setting Description A Must fill setting Enter a tunnel name. Enter a name that is easy for you to identify. Tunnel Name Value Range: 1 ~ 32 characters.
  • Page 175 4G PoE-WAN Extender security gateway at PPTP client peer. If you entered 0.0.0.0/0 in the Remote Subnet field, it will be treated as a default gateway setting for the PPTP client peer, all packets, including the Internet accessing of PPTP Client peer, will go through the established PPTP VPN tunnel.

  • Page 176: Gre

    4G PoE-WAN Extender 5.1.5 GRE Generic Routing Encapsulation (GRE) is a tunneling protocol developed by Cisco Systems that encapsulates a wide variety of network layer protocols inside virtual point-to-point links over an Internet Protocol internetwork. Deploy a M2M gateway for remote site and establish a virtual private network with control center by using GRE tunneling.
  • Page 177 4G PoE-WAN Extender GRE Setting Go to Security > VPN > GRE tab. The GRE setting allows user to create and configure GRE tunnels. Enable GRE Enable GRE Window Item Value setting Description GRE Tunnel Unchecked by default Click the Enable box to enable function.
  • Page 178 4G PoE-WAN Extender GRE Rule Configuration Window Item Value setting Description Enter a tunnel name. Enter a name that is easy for you to identify. Tunnel Name A Must fill setting Value Range: 1 ~ 9 characters. 1. A Must fill setting Select the interface on which GRE tunnel is to be established.
  • Page 179 4G PoE-WAN Extender Internet accessing of GRE client peer, will go through the established GRE tunnel. That means the remote GRE server peer controls the flow of any packets from the GRE client peer. Certainly, those packets come through the GRE tunnel.

  • Page 180: Firewall

    4G PoE-WAN Extender 5.2 Firewall The firewall functions include Packet Filter, URL Blocking, Content Filter, MAC Control, Application Filter, IPS and some firewall options. The supported function can be different for the purchased gateway. 5.2.1 Packet Filter...
  • Page 181 4G PoE-WAN Extender "Packet Filter" function can let you define some filtering rules for incoming and outgoing packets. So the gateway can control what packets are allowed or blocked to pass through it. A packet filter rule should indicate from and to which interface the packet enters and leaves the gateway, the source and destination IP addresses, and destination service port type and port number.
  • Page 182 4G PoE-WAN Extender When Deny those match the following rules is selected, as the name suggest, Deny those match the Black List / packets specified in the rules will be blocked –black listed. In contrast, with following rules is set by White List Allow those match the following rules, you can specifically white list the default...
  • Page 183 4G PoE-WAN Extender 2. By default Any is If the packets to be filtered are coming from LAN to WAN then select LAN for selected this field. Or VLAN-1 to WAN then select VLAN-1 for this field. Other examples are VLAN-1 to VLAN-2. VLAN-1 to WAN. Select Any to filter packets coming into the router from any interfaces.
  • Page 184 4G PoE-WAN Extender Value Range: 1 ~ 65535 for Source Port, Destination Port. For Protocol, select ICMPv4 to filter ICMPv4 packets For Protocol, select TCP to filter TCP packets Then for Source Port, select a predefined port dropdown box when Well-known Service is selected, otherwise select User-defined Service and specify a port range.

  • Page 185: Url Blocking

    4G PoE-WAN Extender 5.2.2 URL Blocking "URL Blocking" function can let you define blocking or allowing rules for incoming and outgoing Web request packets. With defined rules, gateway can control the Web requests containing the complete URL, partial domain name, or pre-defined keywords. For example, one can filter out or allow only the Web requests based on domain input suffixes like .com or .org or keywords like “bct”...
  • Page 186 4G PoE-WAN Extender URL Blocking Setting Go to Security > Firewall > URL Blocking Tab. In "URL Blocking" page, there are three configuration windows. They are the "Configuration" window, "URL Blocking Rule List" window, and "URL Blocking Rule Configuration" window. The "Configuration"...
  • Page 187 4G PoE-WAN Extender When Add button is applied, the URL Blocking Rule Configuration screen will appear. URL Blocking Rules Configuration Item Value setting Description 1. String format can be any Specify an URL Blocking rule name. Enter a name that is easy for you to Rule Name text understand.

  • Page 188: Mac Control

    4G PoE-WAN Extender 5.2.3 MAC Control "MAC Control" function allows you to assign the accessibility to the gateway for different users based on device’s MAC address. When the administrator wants to reject the traffics from some client hosts with specific MAC addresses, he can use the "MAC Control"...
  • Page 189 4G PoE-WAN Extender MAC Control Setting Go to Security > Firewall > MAC Control Tab. The MAC control setting allows user to create and customize MAC address policies to allow or reject packets with specific source MAC address. Enable MAC Control Configuration Window Item Value setting...
  • Page 190 4G PoE-WAN Extender Create/Edit MAC Control Rules The gateway supports up to a maximum of 20 filter rule sets. Ensure that the MAC Control is enabled before we can create control rules. When Add button is applied, Filter Rule Configuration screen will appear. MAC Control Rule Configuration Item Value setting...

  • Page 191: Content Filter (Not Supported)

    4G PoE-WAN Extender 5.2.4 Content Filter (not supported) Not supported feature for the purchased product, leave it as blank.

  • Page 192: Application Filter (Not Supported)

    4G PoE-WAN Extender 5.2.5 Application Filter (not supported) Not supported feature for the purchased product, leave it as blank.

  • Page 193: Ips

    4G PoE-WAN Extender 5.2.6 IPS To provide application servers in the Internet, administrator may need to open specific ports for the services. However, there are some risks to always open service ports in the Internet. In order to avoid such attack risks, it is important to enable IPS functions.
  • Page 194 4G PoE-WAN Extender IPS Setting Go to Security > Firewall > IPS Tab. The Intrusion Prevention System (IPS) setting allows user to customize intrusion prevention rules to prevent malicious packets. Enable IPS Firewall Configuration Window Item Value setting Description The box is unchecked by Check the Enable box to activate IPS function default The box is unchecked by...
  • Page 195 4G PoE-WAN Extender Setup Intrusion Prevention Rules Item Name Value setting Description SYN Flood Click Enable box to activate this intrusion prevention rule and Defense enter the traffic threshold in this field. 1. A Must filled setting UDP Flood 2. The box is unchecked by default. Click Enable box to activate this intrusion prevention rule and Defense 3.
  • Page 196 4G PoE-WAN Extender Attack 1. A Must filled setting 2. The box is unchecked by default. Click Enable box to activate this intrusion prevention rule and ARP Spoofing 3. Traffic threshold is set to 300 by default enter the traffic threshold in this field. Defence 4.

  • Page 197: Options

    4G PoE-WAN Extender 5.2.7 Options There are some additional useful firewall options in this page. “Stealth Mode” lets gateway not to respond to port scans from the WAN so that makes it less susceptible to discovery and attacks on the Internet. ”SPI” enables gateway to record the packet information like IP address, port address, ACK, SEQ number and so on while they pass through the gateway, and the gateway checks every incoming packet to detect if this packet is valid.
  • Page 198 4G PoE-WAN Extender Enable SPI Scenario As shown in the diagram, Gateway has the IP address of 118.18.81.200 for WAN interface and 192.168.1.253 for LAN interface. It serves as a NAT gateway. Users in Network-A initiate to access cloud server through the gateway. Sometimes, unknown users will simulate the packets but use different source IP to masquerade.
  • Page 199 4G PoE-WAN Extender Firewall Options Setting Go to Security > Firewall > Options Tab. The firewall options setting allows network administrator to modify the behavior of the firewall and to enable Remote Router Access Control. Enable Firewall Options Firewall Options Item Value setting Description...
  • Page 200 4G PoE-WAN Extender Remote Administrator Host Definition Item Value setting Description Protocol HTTP is set by default Select HTTP or HTTPS method for router access. This field is to specify the remote host to assign access right for remote access. Select Any IP to allow any remote hosts A Must filled setting Select Specific IP to allow the remote host coming from a specific subnet.

  • Page 201: Chapter 6 Administration

    4G PoE-WAN Extender Chapter 6 Administration 6.1 Configure & Manage Configure & Manage refers to enterprise-wide administration of distributed systems including (and commonly in practice) computer systems. Centralized management has a time and effort trade-off that is related to the size of the company, the expertise of the IT staff, and the amount of technology being used.

  • Page 202: Command Script

    4G PoE-WAN Extender 6.1.1 Command Script Command script configuration is the application that allows administrator to setup the pre-defined configuration in plain text style and apply configuration on startup. Go to Administration > Command Script > Configuration Tab. Enable Command Script Configuration Configuration Item Value setting...
  • Page 203 4G PoE-WAN Extender Edit/Backup Plain Text Command Script You can edit the plain text configuration settings in the configuration screen as above. Plain Text Configuration Item Value setting Description Clean Clean text area. (You should click Save button to further clean the configuration already saved in the system.) Backup Backup and download configuration.
  • Page 204 4G PoE-WAN Extender OPENVPN_PING_TOUT seconds Specify the timeout value for OpenVPN Client keep-alive checking. OPENVPN_COMP Adaptive Specify the LZO Compression algorithm for OpenVPN client. OPENVPN_AUTH Static Key/TLS Specify the authorization mode for the OpenVPN tunnel. • TLS ->The OpenVPN will use TLS authorization mode, and the following items CA Cert., Client Cert.
  • Page 205 4G PoE-WAN Extender commit a existing file Commit the configuration content to database. (ex: txtConfig commit /tmp/config) enable Enable plain text system config. (ex: txtConfig enable) disable Disable plain text system config. (ex: txtConfig disable) run_immediately Apply the configuration content that has been committed in database. (ex: txtConfig run_immediately) run_immediately a existing file...

  • Page 206: 206

    4G PoE-WAN Extender 6.1.2 TR-069 TR-069 (Technical Report 069) is a Broadband Forum technical specification entitled CPE WAN Management Protocol (CWMP). It defines an application layer protocol for remote management of end-user devices, like this gateway device. As a bidirectional SOAP/HTTP-based protocol, it provides the communication between customer-premises equipment (CPE) and Auto Configuration Servers (ACS).
  • Page 207 4G PoE-WAN Extender Following tables list the parameter configuration as an example for the Gateway 1 in above diagram with "TR-069" enabling. Use default value for those parameters that are not mentioned in the tables. Configuration Path [TR-069]-[Configuration] TR-069 ■ Enable ACS URL http://qa.acslite.com/cpe.php ACS User Name...
  • Page 208 4G PoE-WAN Extender TR-069 Setting Go to Administration > Configure & Manage > TR-069 tab. In "TR-069" page, there is only one configuration window for TR-069 function. In the window, you must specify the related information for your security gateway to connect to the ACS. Drive the function to work by specifying the URL of the ACS server, the account information to login the ACS server, the service port and the account information for connection requesting from the ACS server, and the time interval for job inquiry.
  • Page 209 4G PoE-WAN Extender The box is unchecked by TR-069 Check the Enable box to activate TR-069 function. default When you finish set basic network WAN-1 ~ WAN-n, you can choose WAN-1 ~ WAN-n WAN-1 is selected by Interface When you finish set Security > VPN > IPSec/OpenVPN/PPTP/L2TP/GRE, you default.
  • Page 210 4G PoE-WAN Extender STUN Settings Configuration Item Value setting Description The box is checked by STUN Check the Enable box to activate STUN function. default 1. String format: any Specify the IP address for the expected STUN Server. Server Address IPv4 address 2.

  • Page 211: Snmp

    4G PoE-WAN Extender 6.1.3 SNMP In brief, SNMP, the Simple Network Management Protocol, is a protocol designed to give a user the capability to remotely manage a computer network by polling and setting terminal values and monitoring network events. In typical SNMP uses, one or more administrative computers, called managers, have the task of monitoring or managing a group of hosts or devices on a computer network.
  • Page 212 4G PoE-WAN Extender the Intranet and manage all devices that support SNMP protocol in the Intranet. Another one is the Remote NMS to manage some devices whose WAN interfaces are connected together by using a switch or a router with UDP forwarding. If you want to manage some devices and they all have supported SNMP protocol, use either one application scenario, especially the management of devices in the Intranet.
  • Page 213 4G PoE-WAN Extender At first stage, the NMS manager prepares related information for all managed devices and records them in the NMS system. Then NMS system gets the status of all managed devices by using SNMP get commands. When the manager wants to configure the managed devices, the NMS system allows him to do that by using SNMP set commands.
  • Page 214 4G PoE-WAN Extender SNMP Setting Go to Administration > Configure & Manage > SNMP tab. The SNMP allows user to configure SNMP relevant setting which includes interface, version, access control and trap receiver. Enable SNMP SNMP Item Value setting Description Select the interface for the SNMP and enable SNMP functions.
  • Page 215 4G PoE-WAN Extender port number You can fill in any port number. But you must ensure the port number is not to 2. The default SNMP be used. Value Range: 1 ~ 65535. port is 161. 3. A Must filled setting Specify the Remote Access IP for WAN and check the box to enable it as well.
  • Page 216 4G PoE-WAN Extender Undo Click the Undo button to cancel the settings. Back Click the Back button to return to last page. Create/Edit User Privacy The SNMP allows you to custom your access control for version 3 user. The router supports up to a maximum of 128 User Privacy sets.
  • Page 217 4G PoE-WAN Extender Privacy Mode 1. noAuthNoPriv is Specify the Privacy Mode for this version 3 user. selected by default Selected the noAuthNoPriv. You do not use any authentication types and encryption protocols. Selected the authNoPriv. You must specify the Authentication and Password. Selected the authPriv.
  • Page 218 4G PoE-WAN Extender When you selected v2c, the configuration screen is exactly the same as that of v1, except the version. When you selected v3, the configuration screen will provide more setting items for the version 3 Trap. Trap Event Receiver Rule Configuration Item Value setting Description...
  • Page 219 4G PoE-WAN Extender The configuration screen will provide the version 1 must filled items. Selected the v2c. The configuration screen will provide the version 2c must filled items. Selected the v3. The configuration screen will provide the version 3 must filled items. 1.
  • Page 220 4G PoE-WAN Extender Specify SNMP MIB-2 System If required, you can also specify the required information for the MIB-2 System. SNMP MIB-2 System Configuration Item Value setting Description sysContact 1. An Optional filled Specify the contact information for MIB-2 system. setting Value Range: 0 ~ 64 characters.
  • Page 221 4G PoE-WAN Extender 2. A Must filled setting 3. String format: any number 1. The default value is Specify the Enterprise OID for the particular private MIB. 1.3.6.1.4.1.12823.4.4.9 (Default Enterprise OID) The range of the each OID number is 1-2080768. Enterprise OID 2.

  • Page 222: Telnet & Ssh

    4G PoE-WAN Extender 6.1.4 Telnet & SSH A command-line interface (CLI), also known as command-line user interface, and console user interface are means of interacting with a computer program where the user (or client) issues commands to the program in the form of successive lines of text (command lines).
  • Page 223 4G PoE-WAN Extender Parameter Setup Example Following table lists the parameter configuration as an example for the Gateway in above diagram with "Telnet with CLI" enabling at LAN and WAN interfaces. Use default value for those parameters that are not mentioned in the table. Configuration Path [Telnet &...
  • Page 224 4G PoE-WAN Extender Telnet & SSH Setting Go to Administration > Configure & Manage > Telnet & SSH tab. The Telnet & SSH setting allows administrator to access this device through the traditional Telnet or SSH Telnet program. Before you can telnet (login) to the device, please configure the related settings and password with care.
  • Page 225 4G PoE-WAN Extender Configuration Item Value setting Description root Type old password and specify new password to change root password. 1. String: any text but no Note_1: You are highly recommended to change the default telnet password with blank character yours before the device is deployed.

  • Page 226: System Operation

    4G PoE-WAN Extender 6.2 System Operation System Operation allows the network administrator to manage system, settings such as web-based utility access password change, system information, system time, system log, firmware/configuration backup & restore, and reset & reboot. 6.2.1 Password & MMI Go to Administration >...
  • Page 227 4G PoE-WAN Extender Username Configuration Item Value setting Description 1. The default Username Username for web-based MMI is Display the current MMI login account (Username). ‘admin’. New Username String: any text Enter new Username to replace the current setting. Enter current password to verify if you have the permission to change the Password String: any text username setting.
  • Page 228 4G PoE-WAN Extender is disabled, the system won’t logout the administrator automatically. MMI Configuration Item Value setting Description Enter the login trial counting value. Value Range: 3 ~ 10. If someone tried to login the web GUI with incorrect password for more Login 3 times is set by default than the counting value, an warning message “Already reaching maximum...
  • Page 229 4G PoE-WAN Extender Save Click Save button to save the settings Undo Click Undo button to cancel the settings...

  • Page 230: System Information

    4G PoE-WAN Extender 6.2.2 System Information System Information screen gives network administrator a quick look up on the device information for the purchades gateway. Go to Administration > System Operation > System Information tab. System Information Item Value Setting Description Model Name It displays the model name of this product.

  • Page 231: System Time

    4G PoE-WAN Extender 6.2.3 System Time The gateway provides manually setup and auto-synchronized approaches for the administrator to setup the system time for the gateway. The time supported synchronization methods can be Time Server, Manual, PC, Cellular Module, or GPS Signal. Select the method first, and then configure rest settings. Instead of manually configuring the system time for the gateway, there are two simple and quick solutions for you to set the correct time information and set it as the system time for the gateway.
  • Page 232 4G PoE-WAN Extender Check the Enable button to activate the daylight saving function. Daylight Saving 1. It is an optional item. When you enabled this function, you have to specify the start date and end date Time 2. Un-checked by default for the daylight saving time duration.
  • Page 233 4G PoE-WAN Extender its local connected devices. Save Click the Save button to save the settings. Synchronize with PC System Time Information Item Value Setting Description 1. A Must-filled item. Synchronization Select PC as the synchronization method for the system time to let system 2.
  • Page 234 4G PoE-WAN Extender Synchronize with Cellular Time Service System Time Information Item Value Setting Description Select Cellular Module as the synchronization method for the system time to let 1. A Must-filled item. Synchronization system synchronize its date and time to the time provided from the connected 2.
  • Page 235 4G PoE-WAN Extender Synchronize with GPS Time Service System Time Information Item Value Setting Description Select GPS Signal as the synchronization method for the system time to let 1. A Must-filled item. Synchronization system synchronize its date and time to the time provided from the GNSS 2.

  • Page 236: System Log

    4G PoE-WAN Extender 6.2.4 System Log System Log screen contains various event log tools facilitating network administrator to perform local event logging and remote reporting. Go to Administration > System Operation > System Log tab. View & Email Log History View button is provided for network administrator to view log history on the gateway.
  • Page 237 4G PoE-WAN Extender Web Log List Window Item Value Setting Description Time column It displays event time stamps Log column It displays Log messages Web Log List Button Description Item Value setting Description Previous Click the Previous button to move to the previous page. Next Click the Next button to move to the next page.
  • Page 238 4G PoE-WAN Extender Email Alert Email Alert screen allows network administrator to select the type of event to log and be sent to the destined Email account. Email Alert Setting Window Item Value Setting Description Check Enable box to enable sending event log messages to destined Email Enable Un-checked by default account defined in the E-mail Addresses blank space.
  • Page 239 4G PoE-WAN Extender Syslogd Syslogd screen allows network administrator to select the type of event to log and be sent to the designated Syslog server. Syslogd Setting Window Item Value Setting Description Enable Un-checked by default Check Enable box to activate the Syslogd function, and send event logs to a syslog server Select one syslog server from the Server dropdown box to sent event log to.
  • Page 240 4G PoE-WAN Extender Log to Storage Button Description Item Value setting Description Download log Click the Download log file button to download log files to a log.tar file. file Clear Logs Click the Clear logs button to delete the log files from the storage.

  • Page 241: Backup & Restore

    4G PoE-WAN Extender 6.2.5 Backup & Restore In the Backup & Restore window, you can upgrade the device firmware when new firmware is available and also backup / restore the device configuration. In addition to the factory default settings, you can also customize a special configuration setting as a customized default value.

  • Page 242: Reboot & Reset

    4G PoE-WAN Extender 6.2.6 Reboot & Reset For some special reason or situation, you may need to reboot the gateway or reset the device configuration to its default value. In addition to perform these operations through the Power ON/OFF, or pressing the reset button on the device panel, you can do it through the web GUI too.

  • Page 243: Ftp (Not Supported)

    4G PoE-WAN Extender 6.3 FTP (not supported) Not supported feature for the purchased product, leave it as blank.

  • Page 244: Diagnostic

    4G PoE-WAN Extender 6.4 Diagnostic This gateway supports simple network diagnosis tools for the administrator to troubleshoot and find the root cause of the abnormal behavior or traffics passing through the gateway. There can be a Packet Analyzer to help record the packets for a designated interface or specific source/destination host, and another Ping and Tracert tools for testing the network connectivity issues.

  • Page 245: Packet Analyzer

    4G PoE-WAN Extender 6.4.2 Packet Analyzer The Packet Analyzer can capture packets depend on user settings. User can specify interfaces to capture packets and filter by setting rule. Ensure the log storage is available (either embedded SD-Card or external USB Storage), otherwise Packet Analyzer cannot be enabled.
  • Page 246 4G PoE-WAN Extender Therefore, it can only be selected when specific field communication protocol, like Modbus, is enabled. Select Binary mode or String mode for the serial interface. VAP: This means the virtual AP. When WiFi and VAP are enabled, ...
  • Page 247 4G PoE-WAN Extender Packets which match the rule will be captured. Up to 10 IPs are supported, but they must be separated with “;”, e.g. 192.168.1.1; 192.168.1.2 The packets will be captured when match any one IP in the rule. Source Ports Optional setting Define the filter rule with Source Ports, which means the source port of packets.

  • Page 248: Chapter 7 Service

    4G PoE-WAN Extender Chapter 7 Service 7.1 Cellular Toolkit Besides cellular data connection, you may also like to monitor data usage of cellular WAN, sending text message through SMS, changing code card, communicating with carrier/ISP by USSD command, or doing a cellular network scan for diagnostic purpose.

  • Page 249: Data Usage

    4G PoE-WAN Extender 7.1.1 Data Usage Most of data plan for cellular connection is with a limited amount of data usage. If data usage has been over limited quota, either you will get much lower data throughput that may affect your daily operation, or you will get a ‘bill shock’...
  • Page 250 4G PoE-WAN Extender Data Usage Setting Go to Service > Cellular Toolkit > Data Usage tab. Before finished settings for Data Usage, you need to know bill start date, bill period, and quota limit of data usage according to your data plan. You can ask this information from your carrier or ISP. Create / Edit 3G/4G Data Usage Profile When Add button is applied, 3G/4G Data Usage Profile Configuration screen will appear.
  • Page 251 4G PoE-WAN Extender Connection Un-Checked by default. Check the Enable box to activate the connection restriction function. Restrict During the specified cycle period, if the actual data usage exceeds the allowable data limitation, the cellular connection will be forced to disconnect. Enable Un-Checked by default.

  • Page 252: Sms

    4G PoE-WAN Extender 7.1.2 SMS Short Message Service (SMS) is a text messaging service, which is used to be widely-used on mobile phones. It uses standardized communications protocols to allow mobile phones or cellular devices to exchange short text messages in an instant and convenient way. SMS Setting Go to Service >...
  • Page 253 4G PoE-WAN Extender SMS Summary Show Unread SMS, Received SMS, Sent SMS, Remaining SMS, and edit SMS context to send, read SMS from SIM card. SMS Summary Item Value setting Description If SIM card insert to router first time, unread SMS value is zero. When received the Unread SMS new SMS but didn’t read, this value plus one.
  • Page 254 4G PoE-WAN Extender New SMS You can set the SMS setting from this screen. New SMS Item Value setting Description Write the receivers to send SMS. User need to add the semicolon and compose Receivers multiple receivers that can group send SMS. Write the SMS context to send SMS.
  • Page 255 4G PoE-WAN Extender Click the Detail button to read the SMS detail; Click the Reply / Forward button The box is unchecked by to reply/forward SMS. Action Besides, you can check the box(es), and then click the Delete button to delete default the checked SMS(s).

  • Page 256: Sim Pin

    4G PoE-WAN Extender 7.1.3 SIM PIN With most cases in the world, users need to insert a SIM card (a.k.a. UICC) into end devices to get on cellular network for voice service or data surfing. The SIM card is usually released by mobile operators or service providers.
  • Page 257 4G PoE-WAN Extender SIM PIN Setting Go to Service > Cellular Toolkit > SIM PIN Tab With the SIM PIN Function window, it allows you to enable or disable SIM lock (which means protected by PIN code), or change PIN code. You can also see the information of remaining times of failure trials as we mentioned earlier.
  • Page 258 4G PoE-WAN Extender Enable / Change PIN Code Enable or Disable PIN code (password) function, and even change PIN code function. SIM function Window Item Setting Value setting Description SIM lock Depend on SIM card Click the Enable button to activate the SIM lock function. For the first time you want to enable the SIM lock function, you have to fill in the PIN code as well, and then click Save button to apply the setting.
  • Page 259 4G PoE-WAN Extender Otherwise, it may result in wrong SIM PIN trials with invalid (old) PIN code. Unlock with a PUK Code The PUK Function window is only available for configuration if that SIM card is locked by PUK code. It means that SIM card is locked and needs additional PUK code to unlock.

  • Page 260: Ussd

    4G PoE-WAN Extender 7.1.4 USSD Unstructured Supplementary Service Data (USSD) is a protocol used by GSM cellular telephones to communicate with the service provider's computers. USSD can be used for WAP browsing, prepaid callback service, mobile-money services, location-based content services, menu-based information services, and as part of configuring the phone on the network.
  • Page 261 4G PoE-WAN Extender USSD Setting Go to Service > Cellular Toolkit > USSD tab. In "USSD" page, there are four windows for the USSD function. The "Configuration" window can let you specify which 3G/4G module (physical interface) is used for the USSD function, and system will show which SIM card in the module is the current used one.
  • Page 262 4G PoE-WAN Extender USSD Profile Configuration Item Value setting Description Profile Name Enter a name for the USSD profile. Enter the USSD command defined for the profile. Normally, it is a command string composed with numeric keypad “0~9”, “*”, USSD Command and “#”.

  • Page 263: Network Scan

    4G PoE-WAN Extender 7.1.5 Network Scan "Network Scan" function can let administrator specify the device how to connect to the mobile system for data communication in each 3G/4G interface. For example, administrator can specify which generation of mobile system is used for connection, 2G, 3G or LTE. Moreover, he can define their connection sequence for the gateway device to connect to the mobile system automatically.
  • Page 264 4G PoE-WAN Extender Save Click Save to save the settings The second window is the "Network Provider List" window and it appears when the Manually Scan Approach is selected in the Configuration window. By clicking on the "Scan" button and wait for 1 to 3 minutes, the found mobile operator system will be displayed for you to choose.

  • Page 265: Sms & Event

    4G PoE-WAN Extender 7.2 SMS & Event SMS & Event handling is the application that allows administrator to setup the pre-defined events, handlers, or response behavior with individual profiles. With properly configuring the event handling function, administrator can easily and remotely obtain the status and information via the purchased gateway. The supported events are categorized into two groups: the managing events and notifying events.

  • Page 266: Configuration

    4G PoE-WAN Extender 7.2.1 Configuration Go to Service > SMS & Event > Configuration Tab. Event handling is the service that allows administrator to setup the pre-defined events, handlers, or response behavior with individual profiles. Enable Event Management Configuration Item Value setting Description Event...
  • Page 267 4G PoE-WAN Extender Physical Interface Choose a cellular interface (3G/4G-1 or 3G/4G-2) to configure the SMS The box is 3G/4G-1 by management setting. default. Note: 3G/4G-2 is only available for for the product with dual cellular module. SIM Status Show the connected cellular service (identified with SIM_A or SIM_B). Delete Managed Check the Enable box to delete the received managing event SMS after it has The box is unchecked...
  • Page 268 4G PoE-WAN Extender format: “Device received a SMS with command xxxxx.” Enable The box is unchecked by Click Enable box to activate this account. default. Save Click the Save button to save the configuration. Create / Edit Email Service Account Setup the Email Service Account for event notification.
  • Page 269 4G PoE-WAN Extender Create / Edit Remote Host Profile Setup the Remote Host Profile. It supports up to a maximum of 10 profiles. You can click the Add / Edit button to configure the profile. Remote Host Configuration Item Value setting Description Host Name 1.

  • Page 270: Managing Events

    4G PoE-WAN Extender 7.2.2 Managing Events Managing Events allow administrator to define the relationship (rule) among event trigger, handlers and response. Go to Service > SMS & Event > Managing Events Tab. Enable Managing Events Configuration Item Value setting Description Managing The box is unchecked by Check the Enable box to activate the Managing Events function.
  • Page 271 4G PoE-WAN Extender Managing Event Configuration Item Value setting Description Event None by default Specify the Event type (SMS, or SNMP Trap) and an event identifier / profile. Up to 3 event conditions can be specified for defining an event, and the event will be triggered when all the conditions hold simutaneously (AND relation).
  • Page 272 4G PoE-WAN Extender Action All box is unchecked by Specify Network Status, or at least one rest action to take when the expected default. event is triggered. Network Status: Select Network Status Checkbox to get the network status as the action for the event; LAN&VLAN: Select LAN&VLAN Checkbox and the interested sub-items (Port link On/Off), the gateway will change the settings as the action for the event;...

  • Page 273: Notifying Events

    4G PoE-WAN Extender 7.2.3 Notifying Events Go to Service > SMS & Event > Notifying Events Tab. Notifying Events Setting allows administrator to define the relationship (rule) between event trigger and handlers. Enable Notifying Events Configuration Item Value setting Description Notifying Events The box is unchecked by Check the Enable box to activate the Notifying Events function.
  • Page 274 4G PoE-WAN Extender Notifying Event Configuration Item Value setting Description Event None by default Specify the Event type and corresponding event configuration. Up to 3 event conditions can be specified for defining an event, and the event will be triggered when all the conditions hold simutaneously (AND relation). The supported Event Type could be: Power Change: Select Power Change and a trigger condition to specify the event on a certain power source.

  • Page 275: Location Tracking

    4G PoE-WAN Extender 7.3 Location Tracking Location tracking applications are usually referred to applications that take benefits from Global Navigation Satellite System (GNSS). GNSS is the infrastructure that allows devices to determine its position, velocity, and time by processing satellites signals from outer space. GNSS includes varieties of satellite systems and Satellite-Based Augmentation Systems (SBAS).

  • Page 276: Gnss

    4G PoE-WAN Extender • Retrieve GNSS data from satellites and send to remote operation center periodically or save in local storage. • Global positioning with multiple GNSS systems, including GPS, and optional for GLONASS, Galileo, or BeiDou. • Mandatory for varieties of LBS (Location-Based Service) applications, such as advertisement, emergent call.
  • Page 277 4G PoE-WAN Extender Detailed Satellite Data $GPGSV,2,1,08,01,40,083,46,02,17,308,41,12,07,344,39,14,22,228,45*75 Recommended $GPRMC,123519,A,4807.038,N,01131.000,E,022.4,084.4,230394,003.1,W*6A Minimum Data Vector Track and $GPVTG,054.7,T,034.4,M,005.5,N,010.2,K*48 Speed Over the Ground Please note this option is hardware dependent. The available options of GPS message type show on this page is according to product specification. You may not see all options if your product doesn’t support all of them. SBAS ...
  • Page 278 4G PoE-WAN Extender Scenario of location tracking for fleet management  A fleet owner would like to see the locations of his trucks in real time. He also likes to know where his trucks have been passed through with time information. In his operation office, there is a server (IP: 100.100.100.1) which can interpret NMEA RMC data format and shows truck’s location and track on map.
  • Page 279 4G PoE-WAN Extender GNSS Setting Go to Service>Location Tracking> GNSS Tab. The GNSS allows user to set the configuration of GNSS, log NMEA data to storage, and send data to remote host.Ensure GNSS is enabled and saved Setup GNSS Configuration GNSS Configuration Item Value setting...
  • Page 280 4G PoE-WAN Extender by default Check Enable box to activate data to storage function. Select Device (A Must filled setting)  Select Internal or External device to store log data. Interval (A Must filled setting)  Specify the time interval between two continuous data log. By default, 5 second is set.
  • Page 281 4G PoE-WAN Extender Remote Host Configuration Item Value setting Description Host Name String format: any text Enter the host name for the designated remote host. Value Range:-1 ~ 64 characters. Host IP A Must filled setting Specify the IP Addressof remote host. It will be use as destination IP for sending NMEA packets.

  • Page 282: Chapter 8 Status

    4G PoE-WAN Extender Chapter 8 Status 8.1 Dashboard 8.1.1 Device Dashboard The Device Dashboard window shows the current status in graph or tables for quickly understanding the operation status for the gateway. They are the System Information, System Information History, and Network Interface Status.
  • Page 283 4G PoE-WAN Extender System Information History The System Information History screen shows the statistic graphs for the CPU and memory. Network Interface Status The Network Interface Status screen shows the statistic information for each network interface of the gateway. The statistic information includes the Interface Type, Upload Traffic, Download Traffic, and Current Upload / Download Traffic.

  • Page 284: Basic Network

    4G PoE-WAN Extender 8.2 Basic Network 8.2.1 WAN & Uplink Status Go to Status > Basic Network > WAN & Uplink tab. The WAN & Uplink Status window shows the current status for different network type, including network configuration, connecting information, modem status and traffic statistics. The display will be refreshed on every five seconds.
  • Page 285 4G PoE-WAN Extender Status are Connected or disconnected. This area provides functional buttons. Renew button allows user to force the device to request an IP address from the DHCP server. Note: Renew button is available when DHCP WAN Type is used and WAN connection is disconnected.
  • Page 286 4G PoE-WAN Extender configuration page. (Basic Network > IPv6 > Configuration.) LAN Interface Network Status LAN Interface Network Status screen shows IPv4 and IPv6 information of LAN network. LAN Interface Network Status Item Value setting Description It displays the current IPv4 IP Address of the gateway IPv4 Address This is also the IP Address user use to access Router’s Web-based Utility.
  • Page 287 4G PoE-WAN Extender Card It displays the vendor’s 3G/4G modem model name. Information It displays the 3G/4G connection status. The status can be Connecting, Connected, Link Status Disconnecting, and Disconnected. Signal It displays the 3G/4G wireless signal level. Strength Network It displays the name of the service network carrier.

  • Page 288: Lan & Vlan Status

    4G PoE-WAN Extender 8.2.2 LAN & VLAN Status Go to Status > Basic Network > LAN & VLAN tab. Client List The Client List shows you the LAN Interface, IP address, Host Name, MAC Address, and Remaining Lease Time of each device that is connected to this gateway. LAN Client List Item Value setting...

  • Page 289: Wifi Status

    4G PoE-WAN Extender 8.2.3 WiFi Status Go to Status > Basic Network > WiFi tab. The WiFi Status window shows the overall statistics of WiFi VAP entries. WiFi Virtual AP List The WiFi Virtual AP List shows all of the virtual AP information on each WiFi module. The Edit button allows for quick configuration changes.
  • Page 290 4G PoE-WAN Extender WiFi IDS Status The WiFi IDS Status shows all the WIDS statistics on each WiFi module. WiFi IDS Status Item Value setting Description Authentication It displays the receiving Authentication Frame count. Frame Association It displays the receiving Association Request Frame count. Request Frame Re-association It displays the receiving Re-association Request Frame count.
  • Page 291 4G PoE-WAN Extender WiFi Traffic Statistic The WiFi Traffic Statistic shows all the received and transmitted packets on each WiFi module. WiFi Traffic Statistic Item Value setting Description Op. Band It displays the Wi-Fi Operation Band (2.4G or 5G) of VAP. It displays the VAP ID.

  • Page 292: Ddns Status

    4G PoE-WAN Extender 8.2.4 DDNS Status Go to Status > Basic Network > DDNS tab. The DDNS Status window shows the current DDNS service in use, the last update status, and the last update time to the DDNS service server. DDNS Status DDNS Status Item...

  • Page 293: Security

    4G PoE-WAN Extender 8.3 Security 8.3.1 VPN Status Go to Status > Security > VPN tab. The VPN Status widow shows the overall VPN tunnel status. The display will be refreshed on every five seconds. IPSec Tunnel Status IPSec Tunnel Status windows show the configuration for establishing IPSec VPN connection and current connection status.
  • Page 294 4G PoE-WAN Extender Conn. Time It displays the connection time for the IPSec tunnel. It displays the Status of the VPN connection. The status displays are Status Connected, Disconnected, Wait for traffic, and Connecting. Click on Edit Button to change IPSec setting, web-based utility will take you Edit Button to the IPSec configuration page.
  • Page 295 4G PoE-WAN Extender It displays the L2TP Server’s Public IP address (the WAN IP address) or Remote IP/FQDN FQDN. It displays the specified IP address of the gateway device used to connect to Default the internet to connect to the L2TP server –the default gateway. Or other Gateway/Remote specified subnet if the default gateway is not used to connect to the L2TP Subnet...

  • Page 296: Firewall Status

    4G PoE-WAN Extender 8.3.2 Firewall Status Go to Status > Security > Firewall Status Tab. The Firewall Status provides user a quick view of the firewall status and current firewall settings. It also keeps the log history of the dropped packets by the firewall rule policies, and includes the administrator remote login settings specified in the Firewall Options.
  • Page 297 4G PoE-WAN Extender Addresses The Source IP (IPv4) of the logged packet. The Date and Time stamp of the logged packet. Date & time format. ("Month" Time "Day" "Hours":"Minutes":"Seconds") Note: Ensure MAC Control Log Alert is enabled. Refer to Security > Firewall > MAC Control tab. Check Log Alert and save the setting. IPS Status IPS Firewall Status Item...
  • Page 298 4G PoE-WAN Extender IP : "Source IP", User Name: "Login User Name", Time: "Date time" Example: IP: 192.168.127.39, User Name: admin, Time: Mar 3 01:34:13 Note: Ensure Firewall Options Log Alert is enabled. Refer to Security > Firewall > Options tab. Check Log Alert and save the setting.

  • Page 299: Administration

    4G PoE-WAN Extender 8.4 Administration 8.4.1 Configure & Manage Status Go to Status > Administration > Configure & Manage tab. The Configure & Manage Status window shows the status for managing remote network devices. The type of management available in your device is depended on the device model purchased. The commonly used ones are the SNMP, TR-069, and UPnP.
  • Page 300 4G PoE-WAN Extender TR-069 Status TR-069 Status screen shows the current connection status with the TR-068 server. TR-069 Status Item Value setting Description It displays the current connection status with the TR-068 server. The connection Link Status status is either On when the device is connected with the TR-068 server or Off when disconnected.

  • Page 301: Log Storage Status

    4G PoE-WAN Extender 8.4.2 Log Storage Status Go to Status > Administration > Log Storage tab. The Log Storage Status screen shows the status for selected device storage. Log Storage Status Log Storage Status screen shows the status of current the selected device storage. The status includes Device Description, Usage, File System, Speed, and status.

  • Page 302: Gnss Status

    4G PoE-WAN Extender 8.4.3 GNSS Status Go to Status > Administration > GNSS tab. The GNSS Information screen shows the status for current GNSS positioning information for the gateway. The available GNSS information includes GNSS Condition, No. of Satellites, Satellites ID / Signal Strength, Position (Lat., Long.), Altitude (meters), True Course, and the equivalent Ground Speed (km/h).

  • Page 303: Statistics & Report

    4G PoE-WAN Extender 8.5 Statistics & Report 8.5.1 Connection Session Go to Status > Statistics & Reports > Connection Session tab. Internet Surfing Statistic shows the connection tracks on this router. Internet Surfing Statistic Item Value setting Description Previous Click the Previous button; you will see the previous page of track list. Next Click the Next button;...

  • Page 304: Network Traffic (Not Supported)

    4G PoE-WAN Extender 8.5.2 Network Traffic (not supported) Not supported feature for the purchased product, leave it as blank.

  • Page 305: Login Statistics

    4G PoE-WAN Extender 8.5.3 Login Statistics Go to Status > Statistics & Reports > Login Statistics Login Statistics shows the login information. Device Manager Login Statistic Item Value setting Description Previous Click the Previous button; you will see the previous page of login statistics. Next Click the Next button;...

  • Page 306: Cellular Usage

    4G PoE-WAN Extender 8.5.4 Cellular Usage Go to Status > Statistics & Reports > Cellular Usage tab. Cellular Usage screen shows data usage statistics for the selected cellular interface. The cellular data usage can be accumulated per hour or per day.

  • Page 307: Appendix A Gpl Written Offer

    4G PoE-WAN Extender Appendix A GPL WRITTEN OFFER This product incorporates open source software components covered by the terms of third party copyright notices and license agreements contained below. GPSBabel Version 1.4.4 Copyright (C) 2002-2005 Robert Lipe<robertlipe@usa.net> GPL License: https://www.gpsbabel.org/ Curl Version 7.19.6 Copyright (c) 1996-2009, Daniel Stenberg, <daniel@haxx.se>.
  • Page 308 4G PoE-WAN Extender socat - Multipurpose relay Version: 2.0.0-b8 GPLv2 http://www.dest-unreach.org/socat/ LibModbus Version: 3.0.3 LGPL v2 http://libmodbus.org/news/ LibIEC60870 GPLv2 Copyright (C) 1989, 1991 Free Software Foundation, Inc. 59 Temple Place, Suite 330, Boston, MA 02111- 1307 USA https://sourceforge.net/projects/mrts/ Openswan Version: v2.6.38 GNU GENERAL PUBLIC LICENSE Version 2, June 1991 Copyright (C) 1989, 1991 Free Software Foundation, Inc.
  • Page 309 4G PoE-WAN Extender Copyright (C) 1989, 1991 Free Software Foundation, Inc. 675 Mass Ave, Cambridge, MA 02139, USA Everyone is permitted to copy and distribute verbatim copies of this license document, but changing it is not allowed. http://pptpclient.sourceforge.net/ PPTPServ Version: 1.3.4 GNU GENERAL PUBLIC LICENSE Version 2, June 1991 Copyright (C) 1989, 1991 Free Software Foundation, Inc.
  • Page 310 4G PoE-WAN Extender CoovaChilli is an open-source software access controller for captive portal (UAM) and 802.1X access provisioning. Version: 1.3.0 Copyright: (C) 2007-2012 David Bird (Coova Technologies) <support@coova.com> Krb5: Kerberos is a network authentication protocol. It is designed to provide strong authentication for client/server applications by using secret-key cryptography.
  • Page 311 4G PoE-WAN Extender Version: 20080615 Copyright (C) 1998-2004 WIDE Project. BSD License: https://sourceforge.net/projects/wide-dhcpv6/ Python version 2.7.12 This Python distribution contains no GNU General Public Licensed (GPLed) code so it may be used in proprietary projects just like prior Python distributions. There are interfaces to some GNU code but these are entirely optional OpenPAM Radula This software was developed for the FreeBSD Project by ThinkSec AS and...
