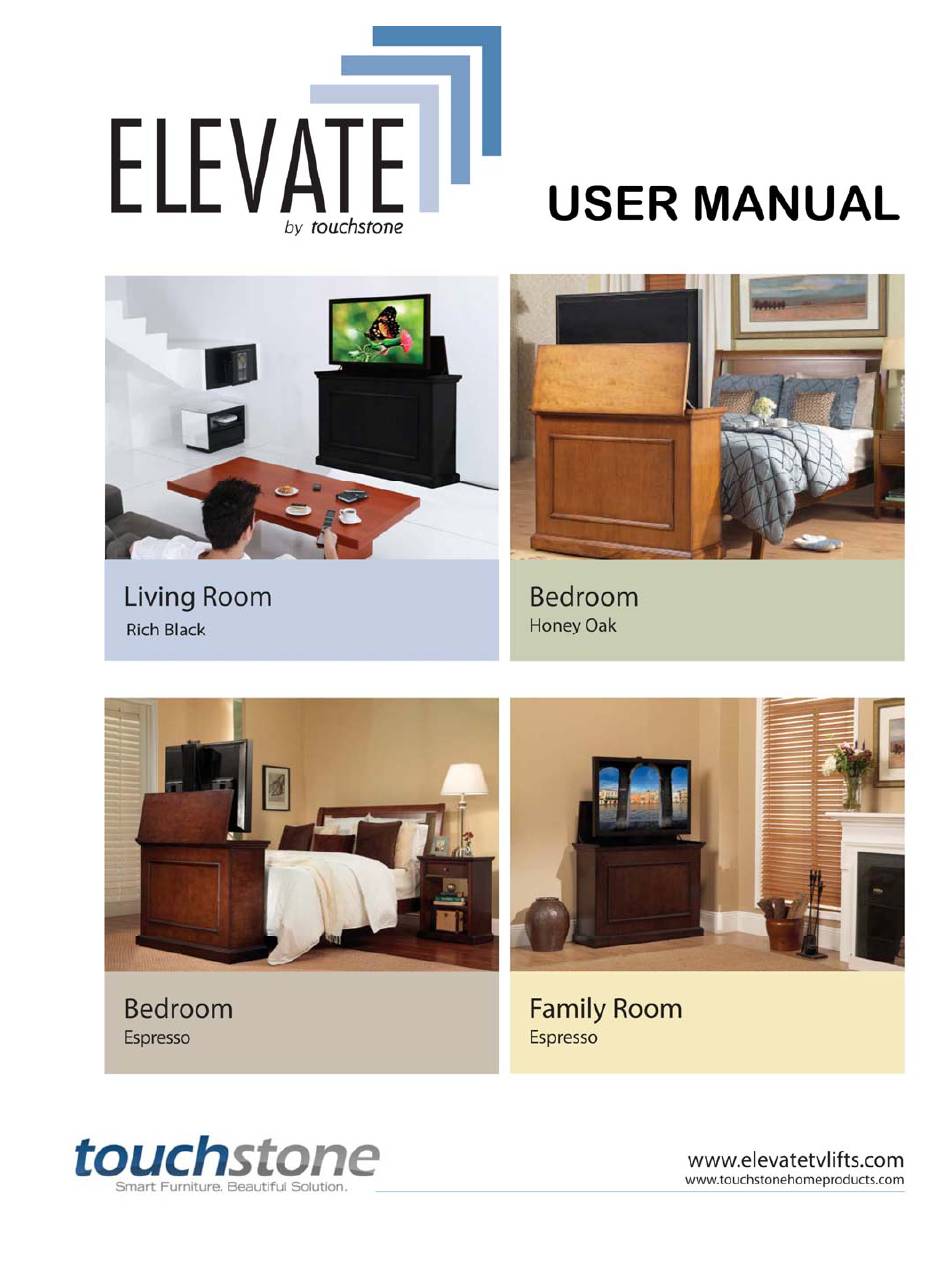

Touchstone Elevate Series User Manual

Hide thumbs
Table of Contents

Advertisement

Quick Links

Download this manual

Advertisement

Table of Contents
loading
Need help?

Need help?

Do you have a question about the Elevate Series and is the answer not in the manual?

Questions and answers

Summary of Contents for Touchstone Elevate Series

  • Page 2 Touchstone Elevate www.touchstonehomeproducts.com 800.215.1990...

  • Page 3: Table Of Contents

    Touchstone Elevate Table of Contents Contents Safety .................................... 5   Lift Components & TV Installation Hardware......................6     Components ................................6 Hardware ................................... 6   Tools ..................................6   Installing Adjustable Feet ............................7   Assembling Your Whisper Lift II ..........................8  ...
  • Page 4 Cabinet Features - The Elevate TV Lift Cabinet features Touchstone’s new Whisper Lift II technology in a fully finished wood cabinet that fully cycles up or down in under 30 seconds at the push of a button.

  • Page 5: Safety

    Touchstone Elevate Safety Installing your Flat Screen TV in your Touchstone Elevate TV lift cabinet is fast and easy. Operating your lift is very straightforward. However, to avoid the risk of personal injury and to insure optimum performance of your TV lift mechanism, please pay particular attention to the warnings and safety notices throughout this manual.

  • Page 6: Lift Components & Tv Installation Hardware

    Touchstone Elevate Lift Components & TV Installation Hardware Components Hardware - Lift Mounting Screws - located in a orange back taped to the outside bottom of the cabinet. - includes 6 hex bolts, washers, and locking washers - TV Mounting Screws ->...

  • Page 7: Installing Adjustable Feet

    Touchstone Elevate Installing Adjustable Feet The hardware pack included with your Elevate TV Lift Cabinet will come with 4 adjustable feet. To install the feet, turn the cabinet over and follow the instructions below: 1. On the bottom of the cabinet locate the 4 holes on the bottom of the cabinet for the feet 2.

  • Page 8: Assembling Your Whisper Lift Ii

    Touchstone Elevate Assembling Your Whisper Lift II Adjusting Lift Mounting Supports Tools Needed: - adjustable wrench Instructions: The Whisper Lift II ships with 2 mounting brackets pre-installed on the back of the lift as shown in the picture below: Typically, these brackets do not require any adjusting by the customer. Should you need to adjust these brackets to level the lift, loose the nuts holding the bracket to the lift and move the bracket accordingly.

  • Page 9: Installing Crossbrackets On Tv Lift

    Touchstone Elevate Installing Crossbrackets on TV Lift Tools Needed: - adjustable wrench - size 5 metric hex wrench Parts Needed During This Step: - TV Lift - 2 cross brackets - 4 large hex screws- size 5 - 4 large lock nuts Instructions: 1.
  • Page 10 Touchstone Elevate Installing Crossbrackets on TV Lift – cont 3. Mount the bottom crossbracket 7 holes down from the top crossbracket. Use the remaining 2 large hex screws and 2 lock nuts to secure the crossbracket to the lift. **NOTE: Make sure that the brackets are secured tightly to the lift prior to operation.

  • Page 11: Fasten Lift To Elevate Cabinet

    Touchstone Elevate Fasten Lift To Elevate Cabinet Tools Needed: Hex wrench (provided) level Parts Needed During This Step: 2 long hex bolts (provided) 6 hex bolts (provided) Instructions: 1. Remove front panel from cabinet. See page 20 for instructions on removing the front panel.
  • Page 12 Touchstone Elevate Fasten Lift To Elevate Cabinet - cont 5. After mounting the lift to the back of the cabinet, push the lift toward the back wall of the cabinet. The holes in the bottom of the lift will match up with the 6 holes in the floor of the cabinet (fig A).
  • Page 13 Touchstone Elevate Fasten Lift To Elevate Cabinet - cont 7. Install 6 bolts to fasten the lift to the floor of the cabinet. Fasten screws tightly to secure lift to floor of the cabinet. www.touchstonehomeproducts.com 800.215.1990...

  • Page 14: Hookup Lift Control Box And Power Supply

    Touchstone Elevate Hookup Lift Control Box and Power Supply Tools Needed: none Parts Needed During This Step: - Control box - Power supply - Wired remote Instructions: Installing Control Box 1. Remove the backing from the Velcro on the back of the control box.

  • Page 15: Mounting And Installing The Tv

    Please consult your TV manufacturer for the size of the mounting holes in the back of your TV and use the appropriate size screws. Touchstone Home Products assumes no liability for damage to a TV.
  • Page 16 Touchstone Elevate Attaching TV Mounting Brackets to Flat Panel TV- cont 3. Align TV mounting brackets so that brackets are centered on the back of the TV. Place the TV mounting bracket so that the slotted holes are toward the top of the TV, while the round holes are toward the bottom of the TV.

  • Page 17: Installing Tv On Lift

    Touchstone Elevate Installing TV on Lift 1. Using the internal wired control, move the lift to the up position. The UP button is the button opposite of the cable side of the wired remote. DOWN 2. Hang TV on top crossbracket.

  • Page 18: Installing Locking Brackets On Whisper Lift Ii Tv Lift

    Touchstone Elevate Installing Locking Brackets on Whisper Lift II TV Lift Tools Needed: - Philips-head screwdriver Instructions 1. Locate the bag with the Locking Bracket Kit included with your lift. In this bag, there will be 2 brackets and 2 philips-head screws.
  • Page 19 Touchstone Elevate Installing Locking Brackets on Whisper Lift II TV Lift – cont. 3. Place the angled end of the bracket into the slots in the TV mounting bracket just below the bottom cross bracket on the lift, as shown in the diagram below.

  • Page 20: Setting Height Of Adjustable Roller Assembly

    Touchstone Elevate Setting Height of Adjustable Roller Assembly Each Whisper Lift II comes with an adjustable roller assembly that allows you to set the maximum height of the lift. Tools Needed: - adjustable wrench or 4mm socket wrench - size 4 metric hex wrench Instructions: 1.

  • Page 21: Removing Front Access Panel

    Touchstone Elevate Removing Front Access Panel The front access panel can easily be removed for access to the inside of the unit. 1. Raise lid and brace the lid so that it stays open ***CAUTION: Lid will not stay up on its own. Brace the lid by placing something between the lid hinge and the cabinet to stop the lid from falling or have another person hold the lid while you work inside of the cabinet.

  • Page 22: Operating The Whisper Lift Ii

    Operating the Whisper Lift II Operating the Wireless Remote The remote control for your Touchstone Whisper Lift II is controlled via radio frequency. You do not need to point the remote control directly at the cabinet to operate the lift.
  • Page 23 Touchstone Elevate www.touchstonehomeproducts.com 800.215.1990...

  • Page 24: Optional Whisper Lift Ii Accessories

    Touchstone Elevate Optional Whisper Lift II Accessories Assembling Component Shelf (Optional) Tools Needed: - adjustable wrench - size 5 metric hex wrench - size 4 metric hex wrench Component Shelf Parts Instructions: 1. Using 4 small nuts and bolts (D), attach the shelf support (B) to the underside of the component shelf (A). Orient the shelf support so that the ridge near the center of the shelf, away from the cutout in the shelf.
  • Page 25 Touchstone Elevate Assembling Component Shelf – cont 2. Using the 2 remaining small nuts and bolts (D), attach the shelf brackets (C) to the lift. The shorter end of the shelf bracket attaches underneath of the shelf. Shelf Brackets Shelf Brackets 3.

  • Page 26: Ir Repeater Kit (Optional)

    IR Repeater Kit (optional) The Touchstone Infrared Repeater allows the customer to install a small satellite TV/cable box in the bottom of the cabinet. The Touchstone Infrared Repeater allows the you to change the channel on their box without having direct line of sight to the component.

  • Page 27: Warranty Registration

    Touchstone Elevate Warranty Registration To register your Touchstone TV Lift cabinet, please go to our website at http://www.touchstonehomeproducts.com/warranty-registration.html Prior to registering, make note of your cabinet serial number which can be found on the 3x3 white rectangular label affixed prominently on the inside of the cabinet under the lid. The bottom line set of numbers on this label is the cabinet serial number.
  • Page 28 Touchstone Elevate www.touchstonehomeproducts.com 800.215.1990...
