17760 Rowland St.
City of Industry, CA 91748
626/968-5666

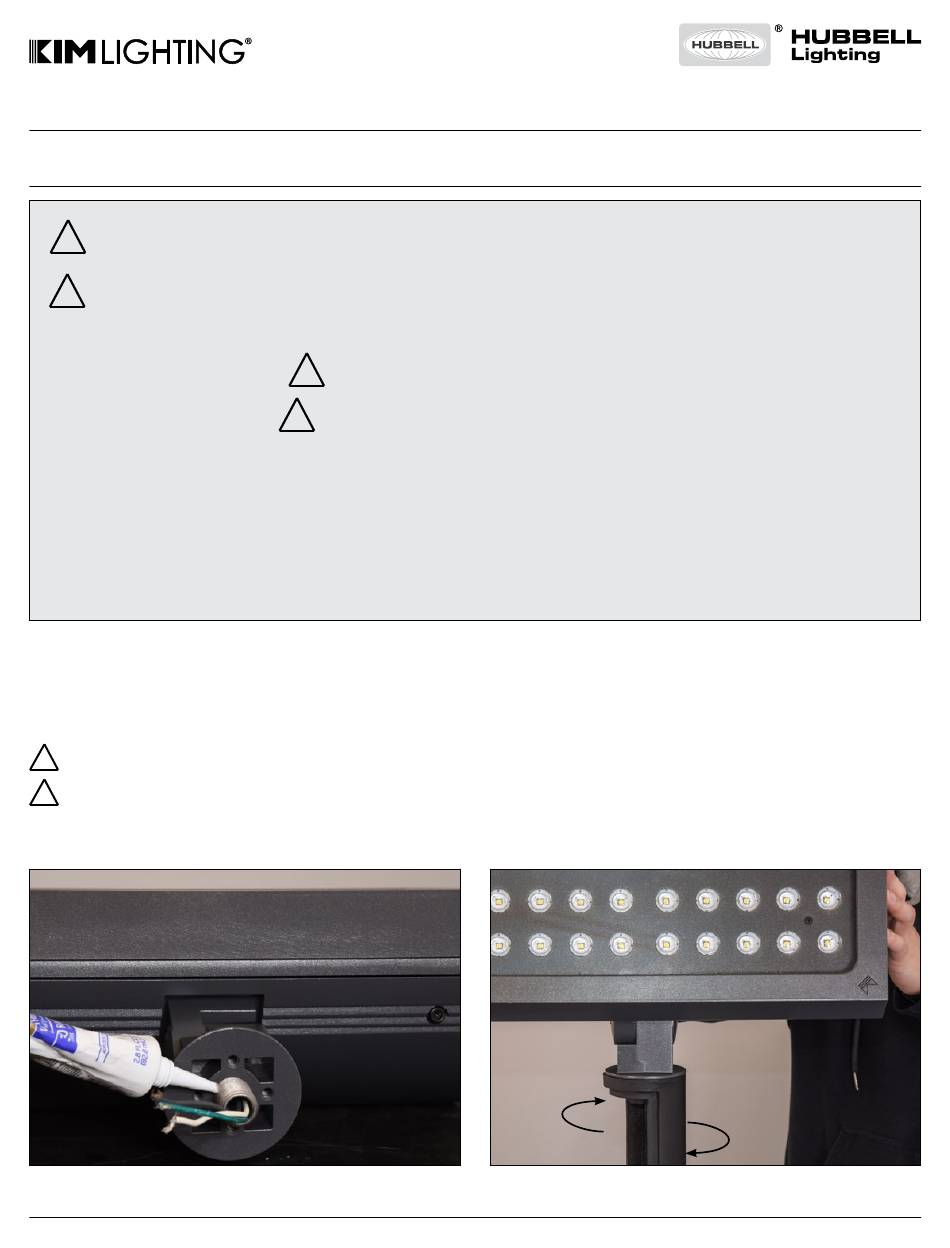

Kim Floodlight Installation Instructions
WARNING: Fixtures must be grounded in accordance with local codes or the National Electrical Code.
!
Failure to do so may result in serious personal injury. See back page for additonal safety warnings and cautions.
AVERTISSEMENT: Les appareils doivent être mis à la terre conformément aux codes locaux ou au Code national de
!
l'électricité. Ne pas le faire peut entraîner des blessures graves. Reportez-vous à la page précédente pour obtenir
des avertissements et des mises en garde supplémentaires.
MAINTENANCE INSTRUCTIONS:
INSTRUCTIONS D'ENTRETIEN:
1. For opening and closing of the fixture, refer to instructions and diagrams on instructions.
2. A regularly scheduled maintenance program should be established to retain optimum light output and
reduce heat retention. Dusting with a soft, clean, dry cloth is normally sufficient for the optics.
Do not use alkaline or acid cleaners on reflector surfaces.
NOTE: All wiring must be done by a qualified electrician.
KEEP THIS SHEET FOR FUTURE REFERENCE.
Tools Required: q 3/16" Allen Wrench
NOTE: Your fixture is equipped with a variable voltage driver which will accept input voltages
from 120 thru 277 volts or 347 thru 480 volts depending on driver voltage specified.
STANDARD MOUNTING:
Make certain electrical supply is OFF before starting fixture installation.
!
Assurez-vous que l'alimentation électrique est à l'arrêt avant de commencer l'installation du luminaire.
!
The standard Architectural Floodlight mounts to any 1/2" N.P.T. or 1/2" N.P.S.M. female thread.
Refer to junction box or other mounting device instructions for attachment to conduit system.
1. Apply silicone thread sealant to keep moisture out of J-Box.
06/10/19
EC 190423101757
Make certain electricity is off before beginning maintenance procedures.
!
Assurez-vous que l'électricité est éteinte avant de commencer
!
les procédures d'entretien.
q Silicone Thread Sealant
Rev A
2. Attach by turning fixture until snug on ring gasket and orient
fixture. Do not overtighten.
Part No. 93101452

Advertisement

loading
Need help?

Need help?

Do you have a question about the Kim Lighting Floodlight and is the answer not in the manual?

Questions and answers

Summary of Contents for HUBBELL LIGHTING Kim Lighting Floodlight

  • Page 1 17760 Rowland St. City of Industry, CA 91748 626/968-5666 Kim Floodlight Installation Instructions WARNING: Fixtures must be grounded in accordance with local codes or the National Electrical Code. Failure to do so may result in serious personal injury. See back page for additonal safety warnings and cautions. AVERTISSEMENT: Les appareils doivent être mis à...
  • Page 2 Kim Floodlight Installation Instructions STANDARD MOUNTING (Continued) 3. Attach fixture leads to circuit leads observing polarity; i.e., 4. Adjust fixture to desired angle. Adjustments are in 5° intervals. green-to-ground, white-to-common, and black-to-voltage. HEAVY DUTY SLIPFITTER KNUCKLE MOUNTING For mounting to any 2" pipe tenon (2-3/8" O.D.) Observe warnings on page 1.
  • Page 3 Kim Floodlight Installation Instructions YOKE MOUNT FOR SIZE 1 & 2 For mounting to any 2" pipe tenon (2-3/8" O.D.) Observe warnings on page 1. Observez les avertissements à la page 1. Tools Required: q 9/16" Hex Socket & Ratchet q 3/16"...
  • Page 4 Kim Floodlight Installation Instructions BARN DOORS For mounting to any 2" pipe tenon (2-3/8" O.D.) Observe warnings on page 1. Observez les avertissements à la page 1. Tools Required: q 9/16" Hex Socket & Ratchet q 3/16" Allen Wrench Make certain electrical supply is OFF. Assurez-vous que l’alimentation électrique est OFF.
  • Page 5 Kim Floodlight Installation Instructions HALF GLARE SHIELD For mounting to any 2" pipe tenon (2-3/8" O.D.) Observe warnings on page 1. Observez les avertissements à la page 1. Tools Required: q 9/16" Hex Socket & Ratchet q 3/16" Allen Wrench Make certain electrical supply is OFF.

  • Page 6: Wiring Diagram

    Kim Floodlight Installation Instructions WIRING DIAGRAM DMX/ROM 0–10V DIMMING STANDARD WIRING DAISY CHAIN LAYOUT To Fixture To Fixture To Fixture To Next Fixture To Next (Optional) Fixture From CBX From third (Optional) Power Power input or previous party Power input input or previous fixture...

  • Page 7: Apple Ios

    Apple device supporting Bluetooth low energy (BLE). This includes iPhone 4S and above, iPad 3 and above and iPad mini. To Set Up And Enable Wireless Controlled Optics: 1. For Apple iOS devices, go to the Apple App Store, search for Hubbell Lighting, and download the Hubbell RGBW Connect App. 2. Check your device “Settings” and make sure your Bluetooth is turned on.
  • Page 8 Kim Floodlight Software Instructions (For RGBW only) Continued (Cont. from previous page) APPLE iOS Three Ways to Select Color: 15. From “Color Wheel” Tap on the “House/Home” symbol in the bottom left side of the screen on the navigation bar. Rotate your finger around the color wheel until you find your desired color.
  • Page 9 Kim Floodlight Software Instructions (For RGBW only) Continued (Hubbell RGBW BT Remote App) - (Refer to device compatibility chart to insure that your device is ANDROID OS compatible). KFL RGBW luminaire can be controlled wirelessly via Bluetooth using the Hubbell RGBW BT Remote app. ®...
  • Page 10 Kim Floodlight Software Instructions (For RGBW only) Continued (Cont. from previous page) ANDROID OS Three Ways to Select Color: 15. From “Color Wheel” Tap on the “House/Home” symbol in the bottom left side of the screen on the navigation bar. Rotate your finger around the color wheel until you find your desired color.
  • Page 11 Kim Floodlight Installation Instructions Installation warnings and cautions for standard product Avertissements d’installation et mises en garde WARNING: Make certain all electrical supply is OFF before CAUTION: Lighted lamp is HOT! Do not touch hot lens, staring installation or beginning maintenance procedures. guard or enclosure.

  • Page 12: Additional Warnings

    Kim Floodlight Installation Instructions Continued Installation warnings and cautions for standard products (Continued) Avertissements d’installation et misse en garde.. CAUTION: Do not alter, relocate, or remove wiring, Pour appareils d’aménagement paysager lampholders, ballasts, or any other electrical components. AVERTISSEMENT: Selon le Code national de l’électricité, les appareils portatifs de type lance ou pour montage dans les ATTENTION: Ne pas modifier, deplacer ni enlever de arbres qui sont munis de cordon et fiche, doivent être branchés...
