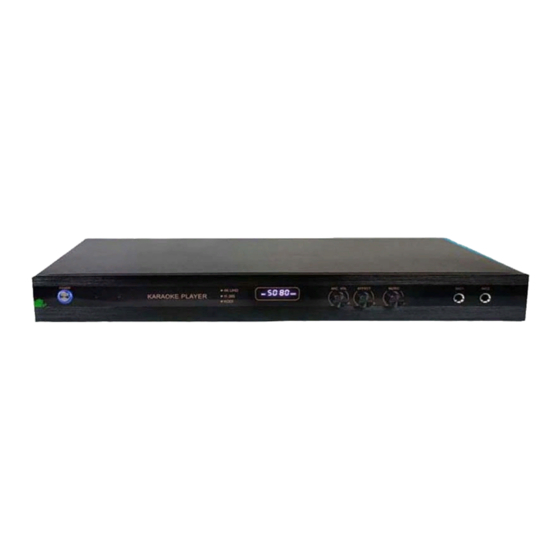

- Page 1 ANDROID KARAOKE USER MANUAL ULTRA HD 4K HARD DISK KARAOKE PLAYER KARAOKE SYSTEM...
-
Page 2: Table Of Contents
CONTENTS 1. SAFETY INSTRUCTION........3 2. PRODUCT INTRODUCTION.........4 2.1 Main Functions................4 2.2Accessories List ................5 2.3 Input / output Jack................5 2.4 Remote Control Button ..............6 3. CONNECTION & DISPLAY OPERATION.....7 3.1 Making the connections..............7 3.2 Main Interface Function Instruction..........8 Karaoke function instructions ....9 4.1 Karaoke system structure..............9 4.2 Add Songs instructions..............10... -
Page 3: Safety Instruction
1 SAFETY To ensure safe and correct use, do not operate the device without reading this operation manual carefully, if not will cause equipment damaged. Cleaning Used for cleaning by soft cloth, not by solvent material, e.g. alcohol….. Power Supply Voltage To be sure the power supply certain same voltage with local, if not please consults to dealer. -
Page 4: Product Introduction
2 PRODUCT INTRODUCTION 2.1. Main Functions: This is one HD hard disk Karaoke Song Order machine and android player, with the ability to decode and video output both coming genuinely to ultra HD 4k, namely 3840 X 2160 video resolutions; else to support almost all of the multimedia files formats. -
Page 5: Accessories List
D: User-friendly operation : file type filtering, various plug-in subtitles and DVD subtitle, multiple subtitles switching, breakpoint memory play and other humanized operations. E: Equipped with luminous type remote control with big buttons, all functions support remote operation, with over 8 meters remote control distance. F: Built-in DSP reverb effects processor with 10 band Music EQ and 10 band microphone EQ, making your song more charming,user can adjust microphone volume,music volume,effect volume,key tone by remote or... -
Page 6: Remote Control Button
2.4. Remote Control Button description 1.The remote controller MUTE: Turn off / on sound; POWER：On/Off Switch machine, it comes to standby mode when power off VOL+, VOL-: Turn up,Turn down the player sound,the best sound quality of volume is setting to 3/4 position REPLAY: Restart the song or movie. -
Page 7: Connection & Display Operation
3 CONNECTION & OPERATION INSTRUCTION 3.1. MAKING THE CONNECTIONS Due to mismatching the video output model, it used to make image display unavailable in initial installation, so please be patient to check under the following connection ways. 1. HDMI Interface HDMI connection way can work on lossless telecommunication with HD television;... -
Page 8: Main Interface Function Instruction
3.2. FUNCTION DESCRIPTION OF MAIN INTERFACE Confirm the machine and TV is correctly connected and connect the power supply.then turn on,the power light of front panel will be on. After boot-up image is displayed, the machine will enter android desktop. I. -
Page 9: Karaoke Function Instructions
IV. Local:including File browser and playing function When accessing by “file browser” , the system can display all playable files., user can select a file and press “enter” button to confirm to play the file. Also can select files by remote controller or mouse to copy,delete,share and rename. -
Page 10: Add Songs Instructions
The Description Of File System: Folder Definition Description Song list management program,it is the tool Song. exe to manage the file songlist.txt,should operate on computer. To place all artists photos which used in photo The artists photos artist search interface 000~998 000.xxx~999.xxx, Placed the song file to each directory,... - Page 11 3. There are three kinds of way to edit the songlist.txt (must be UNICODE), as following: 1) Use the song list management software tool is in the CD disc provided by factory to edit,,can edit the Songlist.txt file, like create /edit/sort/search/ number replace etc., And with powerful function is that check the songlist.txt).
-
Page 12: Song Book Printing
(8)Song's code: consists of 5-digit numbers, they are folder name + song file name in hard disk. (9)Spell of artist: The initial letter of artist name (10)Artist classification (Fill in 1~3 numbers):1-Male 2-Female 3-Bands (11)Song type:(Fill in 1~20 numbers),fill CHORAL with 1, OPERA-2, ARMY-3 ,BIRTHDAY-8,DANCE-4,POPULAR-5,CHILDREN SONG-10,MOVIES-6, NATIONAL-7,CONCERT-11 etc. - Page 13 [OSD_ENGLISH]=ENGLISH;1 [OSD_CHINESE]=CHINESE;2 [OSD_CANTONESE]=CANTONESE;3 [OSD_TAIWAN]=TAIWANESE;6 [OSD_THAI]=THAI;9 [OSD_FRENCH]=FRENCH;17 [OSD_CAMBODIA]=CAMBODIA;11 [OSD_MYANMAR]=MYANMAR;12 [OSD_RUSSIAN]=RUSSIAN;8 --[OSD_PARENT_SONGTYPE]=TYPE [OSD_CHORAL]=CHORAL;1 [OSD_OPERA]=OPERA;2 [OSD_ARMY]=ARMY;3 [OSD_BIRTHDAY]=BIRTHDAY;8 --[OSD_ARTIST]=ARTIST [OSD_ALL_ARTIST]=ALL [OSD_MALE_ARTIST]=MALE ARTIST,1 [OSD_FEMALE_ARTIST]=FEMALE ARTIST,2 [OSD_GROUP_ARTIST]=BAND,3 [OSD_FOURTH_ARTIST]=FOREIGN ARTIST,4 --[OSD_SPELLING]=SPELLING --[OSD_CODE]=NUMBER --[OSD_FAV]=FAVORITE --[OSD_SEARCH]=PHONE --[OSD_RANKING]=RANKING --[OSD_ORDER]=SELECTED --[OSD_SETTING]=SETTINGS ==================================================== [OSD_STATUS_0]=MENU [OSD_STATUS_1]=PLAY ..1) AZMENU.txt file define the OSD option, prompt sentences in operational interface. 2) “--”means the option that display on OSD main Menu.
- Page 14 So the OSD menu will display: Collect a song in a new language option of OSD: For example: A song name: ”LÒÌ CUÔI CHO EM”,language is Vietnamese. So you can define language option in AZMENU1.txt as: Open AZMENU1.txt Language option Language name [OSD_VIETNAMESE]=VIETNAMESE;7 Language No., can define 1~15...
-
Page 15: Song Order Operation
--[OSD_PARENT_SONGTYPE]=TYPE [OSD_CHORAL]=CHORAL;1 [OSD_OPERA]=OPERA;8 [OSD_ARMY]=ARMY;2 [OSD_BIRTHDAY]=BIRTHDAY;3 [OSD_DANCE]=DANCE;4 [OSD_NATIONAL]=NATIONAL;7 [OSD_CHILDREN]=CHILDREN;10 Song type item No. ( must be 1~20) Song type name Song type option Open Songlist.txt : Fill number 10 in Song type field of songlist.txt Add song name information in Songlist.txt The song“MY BONNIE”... - Page 16 recall numeral interface. The system supports the operation by remote controller or mouse, or the combination of both. When system detects the connection of a wired or wireless mouse, or when remote controller opens soft mouse mode, a mouse cursor will appear and the interface will change to the way suitable for mouse operation.
- Page 17 user can press “DEL” to backspace,then press ENTER button to select the song,or press priority button to insert the required song to the first position. If the number in front of a code is “0”,such as “000018”, user can only input “18”,then press ENTER button to select the song, If user wants to set the song as favorite, user just needs to press FAVORITE button before selection.
-
Page 18: Ordering Songs By Mobile
subtitle display the song being played and next song, as well as the text message (such as “happy birthday”) from mobile phone. When receives the message, the machine will show it on TV adding the fun. 6. Advanced functions: functions available for dealers,set encryption key of songs. -
Page 19: Machine Breakdown Treatment
applause:machine will play the sound which is applause booting:machine will play the sound which is booting message:you can input some words and send to the machine as message,such as congratulation,praise,joke ,etc.,the machine will display the message on the screen like subtitle. 5 Machine breakdown treatment Sometime machine shown error it not mean the machine breakdown, please self-checking before send to repair... - Page 20 2．Please check if the remote controller battery is adequate in electricity supply 3. Hand the remote controller in direction to the signal receiver of media player in less 10 meters distance. Image playing stop or unable to display Please make sure that encryption key is set correctly if song file is encrypted. Please check if the hard disk file exist problem Please check if hard disk is ruined System response slowly...
