for Living 043-7334-2 Assembly Instructions Manual

for Living 043-7334-2 Assembly Instructions Manual

45-pint dehumidifier

Advertisement

45-PINT DEHUMIDIFIER
Product No. 043-7334-2
Assembly Instructions
Toll-free: 1-877-483-6759
Before operating this product, please read the instructions
carefully and save this manual for future use.

Advertisement

Table of Contents
loading
Need help?

Need help?

Do you have a question about the 043-7334-2 and is the answer not in the manual?

Questions and answers

Dan Smith
April 20, 2025

I have lost my external drain kit. Can I get a new one? If not, what size tubing will I need to make it work?

1 comments:
Mr. Anderson
May 10, 2025

The tubing needed for the For Living external drain kit part number 043-7334-2 is plastic tubing with an inside diameter (I.D.) of 8 mm (5/16").

This answer is automatically generated

Subscribe to Our Youtube Channel

Summary of Contents for for Living 043-7334-2

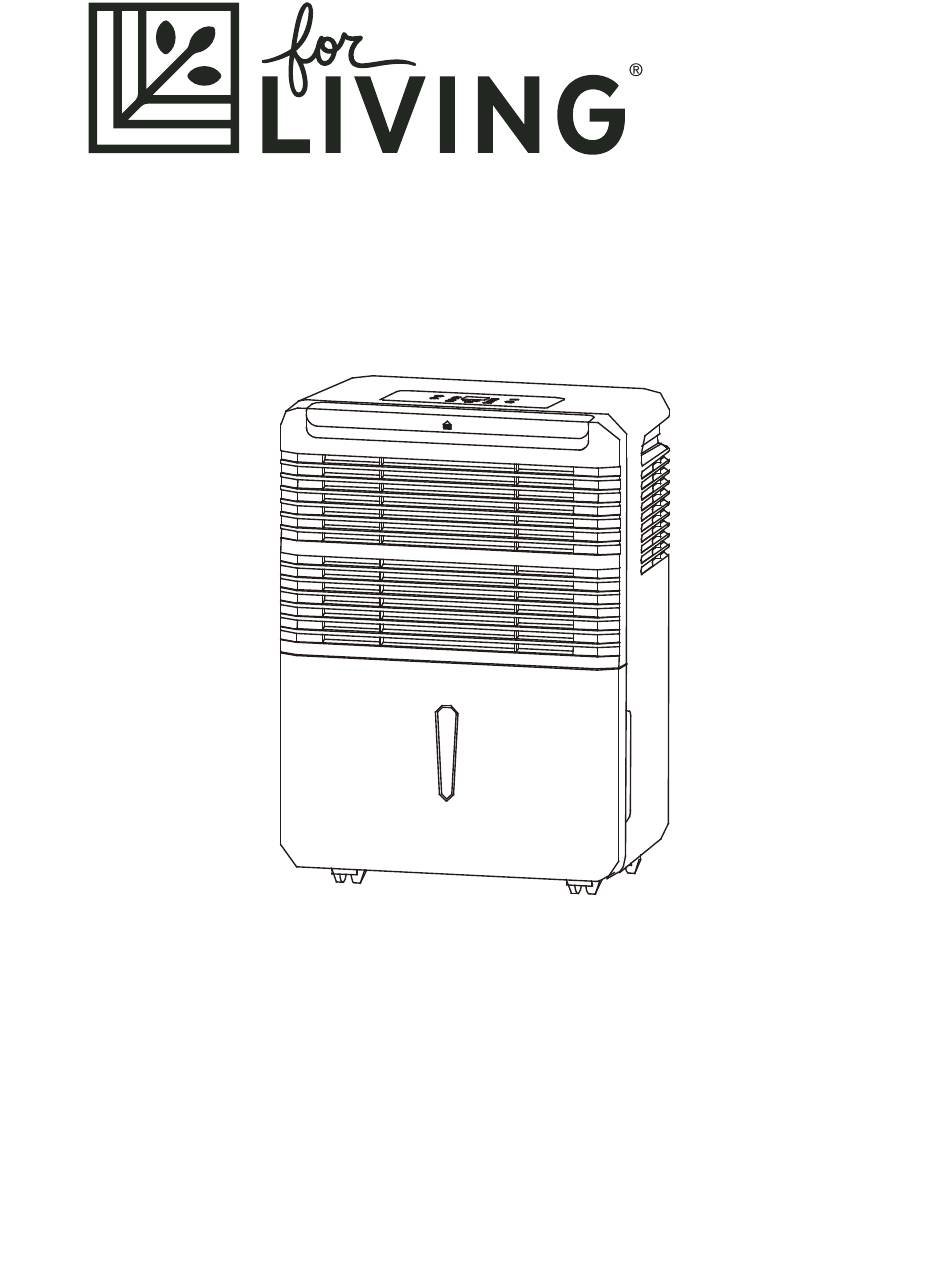

  • Page 1 45-PINT DEHUMIDIFIER Product No. 043-7334-2 Assembly Instructions Toll-free: 1-877-483-6759 Before operating this product, please read the instructions carefully and save this manual for future use.
  • Page 2 Imported for Trileaf Distribution Trifeuil Toronto, Canada M4S 2B8...
  • Page 3 Safety Precautions Control Panel Parts Identification Operation Care and Maintenance Troubleshooting Limited Warranty...
  • Page 4 Product No. 043-7334-2 To prevent injury to the user or other people and property damage, the following instructions must be followed. Incorrect operation due to ignoring of instructions may cause bodily harm or damage. The seriousness is classified by the following indications.
  • Page 5 CAUTION Do not use in areas where Care should be taken when using Do not cover the intake or exhaust the unit in a room with the chemicals are handled. openings with clothes or towels. following persons: A lack of airflow can lead to Infants, children, elderly people, This will cause the unit to overheating and fire.
  • Page 6 Product No. 043-7334-2 NOTE: The control panel of the unit you purchased may be slightly different depending on its model . Filter Filtre Filter Comfort Full Filtre Ventilateur Confort Plein Cont. Auto defrost Continu Marche Arrêt Auto-dégivrage Mode Power Alimentation...
  • Page 7: Other Features

    Display Shows the set % humidity level from 35 to 85% or auto start/stop time (0 to 24 hours) while setting, then shows the actual (± 5% accuracy) room % humidity level in a range of 30% RH (Relative Humidity) to 90% RH (Relative Humidity). Error Codes and Protection Codes AS—Humidity sensor error: Unplug the unit and plug it back in.
  • Page 8: Parts Identification

    Product No. 043-7334-2 Parts Identification Front Control panel Air intake grille Air outlet grille Air filter (behind the grille) Water bucket Handle (both sides) Fig. 2 Rear Drain hose outlet Castors Power cord and plug Band (Used only when storing the unit.)
  • Page 9: Positioning The Unit

    Positioning the unit A dehumidifier operating in a basement will have little or no effect in drying an adjacent enclosed storage area, such as a closet, unless there is adequate circulation of air in and out of the area. Do not use outdoors. 15"...
  • Page 10: Removing The Collected Water

    Product No. 043-7334-2 Removing the collected water 1. Pull out the bucket a little. There are two ways to remove collected water. 1. Use the bucket When the unit is off, if the bucket is full, the unit will beep 8 times and the Full indicator light will flash. The digital display shows P2.
  • Page 11: Care And Cleaning Of The Dehumidifier

    Care and cleaning of the dehumidifier Turn the dehumidifier off and remove the plug from the wall outlet before cleaning. 1 . Clean the grille and case Use water and a mild detergent. Do not use bleach or abrasives. Do not splash water directly onto the main unit. Doing so may cause an electrical shock, cause the insulation to deteriorate, or cause the unit to rust.
  • Page 12 Product No. 043-7334-2 Before calling customer service, review the chart below first. Problem What to check Make sure the dehumidifer's plug is pushed completely into the outlet. Unit does not start Check the house fuse/circuit breaker box. Dehumidifier has reached its preset relative humidity level or bucket is full.
  • Page 13 This For Living product carries a one (1) year warranty against defects in workmanship and materials. Trileaf Distribution agrees to replace the defective product free of charge, within the stated warranty period, when returned by the original purchaser with proof of purchase. This product is not guaranteed against wear or...
