Summary of Contents for Trojan HYDROLINK SNAKE

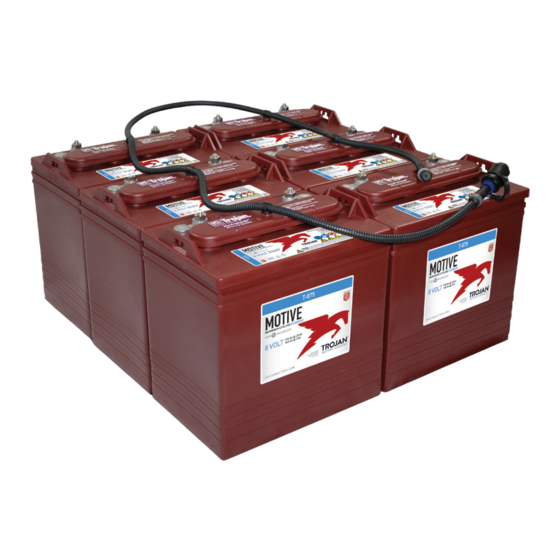

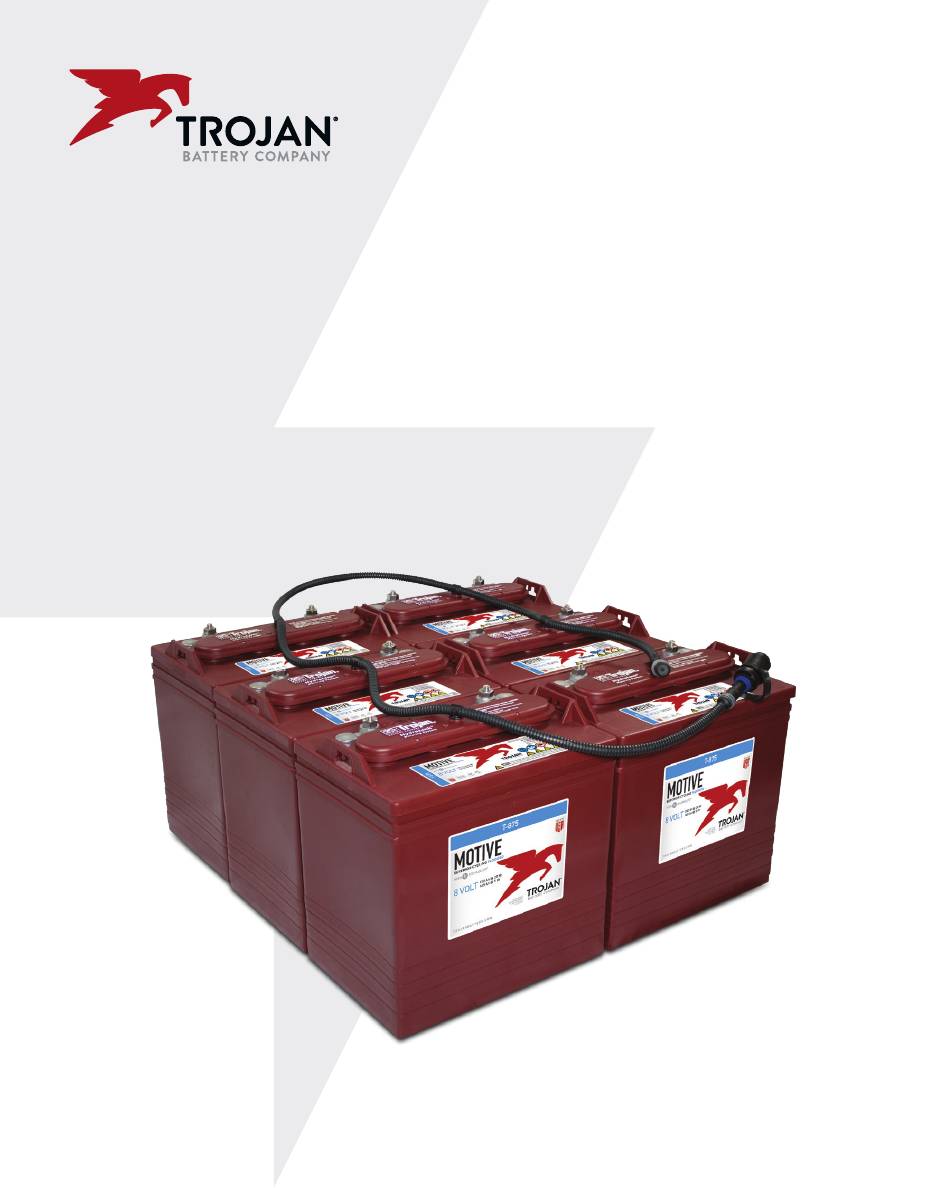

- Page 1 HYDROLINK ™ WATERING SYSTEM WITH SNAKE™ TUBING...
-
Page 2: Table Of Contents
This manual provides detailed instructions for safely installing, operating and maintaining the HydroLink Watering System and/or related water supply Thoroughly ™ review this document before installing or using the HydroLink Watering System CONTENTS SAFETY INSTRUCTIONS AND WARNINGS GENERAL INFORMATION AND PRECAUTIONS GENERAL SAFETY WARNINGS HYDROLINK WATERING SYSTEM CONTENTS BEFORE INSTALLING YOUR HYDROLINK WATERING SYSTEM KIT... -
Page 3: Safety Instructions And Warnings
SAFETY INSTRUCTIONS AND WARNINGS Please read and comply with all of the following safety-related instructions and warnings prior to installing, operating and maintaining the HydroLink Watering System Failure to comply with these instructions may result in serious personal injury, death and/or property damage DANGER! - EXPLOSIVE GASES î... -
Page 4: General Safety Warnings
GENERAL SAFETY WARNINGS î Follow the procedures exactly as stated in these instructions, and heed all danger and warning statements in these instructions, as well as those on the vehicle, battery, watering system, and battery charger î Only trained technicians should service or repair the HydroLink Watering System The instructions in this manual must be followed when installing, operating and maintaining the HydroLink Watering System and/or related water supply î... -
Page 5: Before Installing Your Hydrolink Watering System Kit
2 Check electrolyte level: a) If electrolyte level is below the plates: Manually add enough water to cover the plates (Refer to Trojan Battery’s User Guide, Table 4 for Water Impurity Limits, available at www trojanbattery com ) Charge batteries to 100% full charge, before using the HydroLink Watering System WARNING! DO NOT OVERFILL THE CELL. -
Page 6: Hydrolink Installation
HYDROLINK INSTALLATION IF PRE-INSTALLED ON YOUR TROJAN BATTERIES If you purchased your Trojan batteries pre-installed with HydroLink vents, then you have one simple step below: STEP 1 - INSTALL SNAKE TUBING Review the diagrams on www trojanbattery com/pdf/TRJN_InstallationDiagram pdf for proper Snake tube routing... - Page 7 INSTALLING A HYDROLINK WATERING SYSTEM ON YOUR TROJAN BATTERIES IMPORTANT: Make sure to follow instructions on Page 5 before installing. STEP 1 - REMOVE CURRENT VENT CAPS AND INSERT HYDROLINK VENTS. STEP 2 - FIRMLY PRESS HYDROLINK VENTS DOWN. Ensure HydroLink vents are completely seated...
-
Page 8: Watering
Use only distilled or deionized water Tap water can contain contaminants that will damage the battery Also, be aware that water can pick up impurities from containers, piping, and fixtures Table 4 in the Trojan Battery User’s Guide, available at trojanbattery com/pdf/TrojanBattery_UsersGuide pdf contains the limits for... -
Page 9: Operation
IMPORTANT: Use of unapproved water supply or modification of approved water supply can lead to system failure and will void your HydroLink warranty. 2 Always follow Trojan Battery’s required battery watering procedures 3 Perform regular scheduled maintenance WARNING! ONLY FILL BATTERIES AFTER THEY HAVE BEEN FULLY CHARGED, AND REQUIRE WATER. - Page 10 NOTE: If light indicates unacceptable water quality, cartridge must be replaced STEP 2 - REMOVE DUST COVER FROM THE HYDROLINK SNAKE STEP 3 - MALE COUPLERS Insert the male coupler on the HydroLink Watering System into the female coupler on...
-
Page 11: Hand Pump
INITIAL INSPECTION ELECTROLYTE LEVELS Trojan recommends checking the electrolyte level in each cell for accuracy after the system has been installed and operational for three months REGULAR MAINTENANCE Your HydroLink Watering System requires regular preventative maintenance on at least a quarterly basis 1. -
Page 12: Seasonal Maintenance
Temperature Range: 33 - 150°F/1 - 65 5°C All product specifications must be met for proper operation of your Trojan HydroLink Watering System Contact Trojan Battery if you have any questions regarding HydroLink (www trojanbattery com) If you have questions on Flow-Rite water supplies, contact Flow-Rite Control (www flow-rite com) -
Page 13: Hydrolink Warranty
If a HydroLink Watering System covered under this limited warranty is installed on a Trojan battery during the battery’s limited warranty period and is determined to be the cause of the failure of such Trojan battery (unable to deliver 50% of rated capacity), Trojan will repair or replace the damaged Trojan battery and... - Page 14 To submit a claim, customers must send the following, at their own expense, to the local Trojan Battery distributor from whom they originally purchased the Trojan products: 1 Copy of original proof of purchase for both the HydroLink Watering System and Trojan battery...
- Page 15 The customer installed a HydroLink Watering System covered by its limited warranty during the battery limited warranty period (in this case within 12 months), thus Trojan will repair or replace the battery and HydroLink Watering System, subject to the terms and conditions of the Trojan battery limited warranty and...
- Page 16 © 2019 Trojan Battery Company, LLC All rights reserved Trojan Battery Company is not liable for direct, indirect, special, exemplary, incidental or consequential damages that may result from any information provided in or omitted from this manual, under any circumstances Trojan Battery Company reserves the right to make adjustments to this...
