Vital 108075521 Instruction Manual

The Bluetooth word mark and logos are registered trademarks owned by Bluetooth
®
such marks by The Source (Bell) Electronics Inc. is under license. Other trademarks and trade names are those
of their respective owners.
FEATURES:
1. Bluetooth 4.0 supports A2DP
®
2. Hands-free calling
3. Plug and play, no driver or software
required
4. Built-in rechargeable battery
5. Up to 7 hours of playback

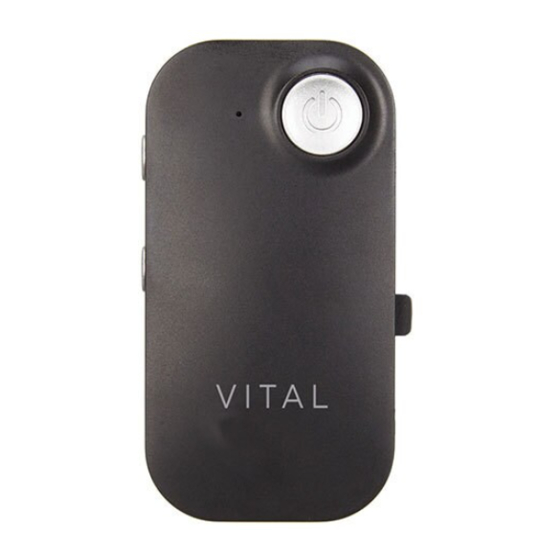

PRODUCT OVERVIEW

Pair your Bluetooth®-enabled device and connect this receiver to your
car. Wirelessly stream music and take hands-free calls from your
smartphone or Bluetooth®-enabled device.

CHARGING

When you use this receiver for the first time, or you haven't used it
for a long period of time, charge the battery. It will take approximately
2 hours to fully charge.
• The LED will flash red when the battery gets low
• Charge the receiver with the included USB charging cable.
Use a suitable port or 5V/1A power adapter (sold separately)
• The LED will turn red while charging, and turn OFF when charging
is complete

PAIRING

This receiver must be paired to a Bluetooth
plug it in to your car. Pair first, then connect it to your vehicle's AUX IN.
Pairing range is approximately 10m (33ft.), and obstacles between the
receiver and the Bluetooth device may reduce this range.
®
1. Turn your receiver ON by pressing the MFB button. The LED will flash
blue and red. After ten seconds, it will enter pairing mode.
2. Enable the Bluetooth function on your device and find and select
®
"VITAL 8075521" in the detected device list. Enter "0000" when
prompted for a password (If necessary). When your device is
successfully paired, the LED indicator will flash blue slowly.
NOTE: The receiver will automatically connect to your paired device on
the next use, as long as your device is ON and within range. If no
Bluetooth connects within ten minutes, the receiver will automatically
®
turn OFF to save power.

HANDS-FREE CALLS

When a smartphone is paired to this receiver, you can make and receive
phone calls through this device.
• Press the MFB to answer an incoming call and press it again to end
• Press and hold the MFB button to reject an incoming call
• Double press the MFB to redial the last number called
NOTE: If music is playing and you receive an incoming call, the music
will stop. It will resume playing when the call ends.
WIRELESS AUDIO RECEIVER
Instruction Manual
COMPONENT IDENTIFICATION:
1. USB charging port
2. LED indicator
3. Volume up/Next track
4. Volume down/Previous track
5. MFB (multi-function button)
6. 3.5mm audio plug
-enabled device before you
®
SIG, Inc. and any use of
®
OPERATING INSTRUCTIONS
TO
Power ON
Power OFF
Adjust the volume
Next track
Previous track
Bluetooth pairing
®
Answer a call
End a call
Reject a call
PLAYBACK
1. To start playback, press the MFB. Press the MFB to pause playback.
A passenger may also play and pause the music through the
Bluetooth -connected device.
®
2. Press and hold both the MFB and the + button simultaneously to
switch the receiver into standby mode.

SPECIFICATIONS

Bluetooth
®
Range
Bluetooth Protocol
®
Mic sensitivity
Frequency
Battery
Playback
Talk time
WARNINGS
• DO NOT use this apparatus near water or moisture
• DO NOT install near any heat sources such as radiators, stoves, or
other apparatus (including amplifiers) that produce heat
• DO NOT block any ventilation openings
• DO NOT install equipment in a confined space
• Clean only with a dry cloth
• Only use attachments/accessories specified by the manufacturer
• Refer all servicing to qualified personnel
WHAT'S INCLUDED:
• Wireless audio receiver
• Micro USB charging cable
• Instruction manual
DO THIS
Press and hold the MFB.
Press and hold the MFB.
Press the +/- buttons.
Press and hold the + button.
Press and hold the - button.
Automatically enters pairing mode when powered ON.
Press the MFB.
Press the MFB again.
Press and hold the MFB.
V 4.0
10m (33ft.)
A2D v1.2, AVRCP v1.0, HFP v1.5
-42dB ± 3dB
20Hz-20kHz
3.7V/170mAh
Approx. 7 hours
Approx. 8 hours
8075521A
