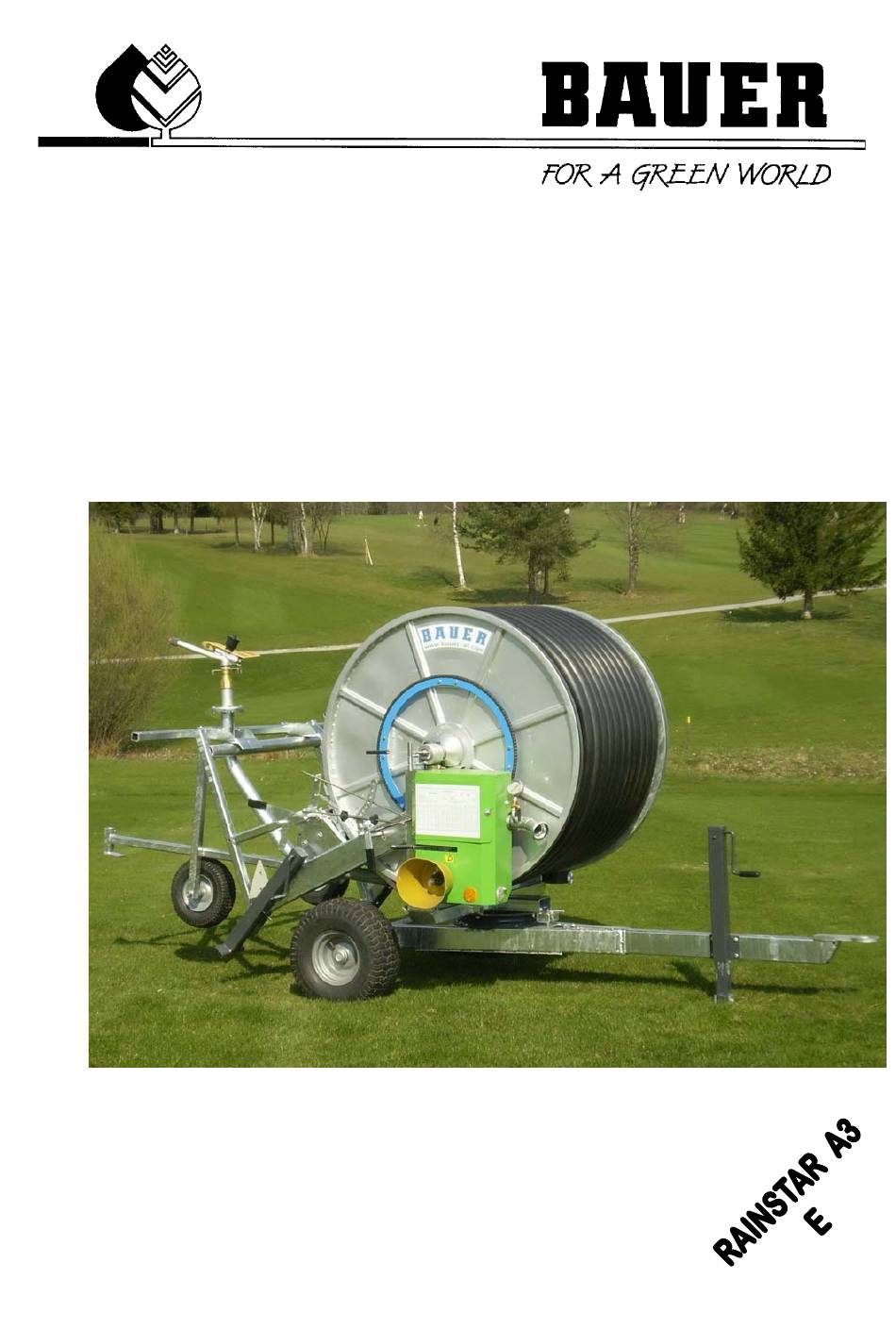

OPERATIING MANUAL
for
A
RAINSTAR
3
Version VII-2009
Art. No. 827 9978

Advertisement

Table of Contents
loading
Need help?

Need help?

Do you have a question about the RAINSTAR A3 and is the answer not in the manual?

Questions and answers

Subscribe to Our Youtube Channel

Related Manuals for Bauer RAINSTAR A3

Summary of Contents for Bauer RAINSTAR A3

  • Page 1 OPERATIING MANUAL RAINSTAR Version VII-2009 Art. No. 827 9978...
  • Page 2 Non-observance of this manual may cause personal injury or damage the equipment! This manual is to be considered an integral part of BAUER RAINSTAR A3. Suppliers of both new and used systems are advised to put down in writing that they delivered the manual together with the system.
  • Page 3 Address: ph. / fax: Note: Please make a note of the type and serial number of your RAINSTAR A3 and accessories. Be sure to specify these details every time you contact your dealer. In all warranty claims and correspondence relating to this machine it is essential to specify the full serial number group including all letters.
  • Page 4 Intended use also includes compliance with the manufacturer’s operating, maintenance and service instructions. • The BAUER RAINSTAR A3 may be used and operated only by persons who are familiar with the device and aware of the hazards involved. • All rules for accident prevention as well as any other generally valid specifications and regulations relating to safety, work medicine and traffic law must be strictly observed.

  • Page 5: Table Of Contents

    Index GENERAL INSTRUCTIONS FOR SAFETY AND ACCIDENT PREVENTION ......2 GENERAL ..........................7 SAFETY PRECAUTIONS FOR THE RAINSTAR A3 ............8 DESCRIPTION ........................9 PUTTING INTO OPERATION ................... 10 STEPS TO BE CARRIED OUT ONCE OR FROM TIME TO TIME ....10 OPERATING MODE I: PE-PIPE PULL-OFF ...............

  • Page 6: General Instructions For Safety And Accident Prevention

    Inspect the hydraulic lines at regular intervals and replace them immediately in case of defects or ageing. Replaced hoses must comply with the technical specifications of the implement manufacturer! When looking for leaks use only suitable equipment because of the injury hazard involved! Manual for BAUER RAINSTAR A3...
  • Page 7 Before electric welding on the tractor and mounted machines the generator and battery cables must be disconnected! Spare parts must meet manufacturer’s minimum technical specifications! This is the case for instance with original spare parts for instance! Manual for BAUER RAINSTAR A3...
  • Page 8 H = 1 m Up to 30.000 V H = 2,5 m Up to 110.000 V H = 3 m Up to 220.000 V H = 4 m Up to 380.000 V H = 5 m Manual for BAUER RAINSTAR A3...
  • Page 9 2. This applies to both the use of wide-range sprinklers and boom carts AS 26 / 32. The water jet of the nozzles and the sprinkler must not reach any electric lines. Manual for BAUER RAINSTAR A3...
  • Page 10 WARNING! Safety covers must not be removed during operation. For repairs, make sure that the reel of the RAINSTAR A3 cannot move. Slacken the PE pipe. WARNING! 1 Do not stay at rear of the RAINSTAR A3 Operator is in danger of being crushed by the retracted sprinkler cart. Keep...

  • Page 11: General

    Individual pipe sets are no longer laid down by hand; system set-up, repositioning, and operation are all done with the tractor only. The BAUER RAINSTAR A3 is a universal machine suitable of covering fields of varying lengths and widths. There is no need for supervision while the system is operating.

  • Page 12: Safety Precautions For The Rainstar A3

    The RAINSTAR A3 is licensed for transport in agricultural operation only. For transportation on public roads, all applicable traffic requirements must be strictly observed. For safety reasons, it is not allowed to transport the RAINSTAR A3 by pulling it with WARNING!

  • Page 13: Description

    2 DESCRIPTION The RAINSTAR A3 is a universal irrigation machine for varying lengths and widths of fields and it is best suited for sprinkling seed crops and horticultures, parks, vegetable plantations as well as any kind of grassland. The main components are a two-wheel undercarriage, the swiveling turntable and the reel with the special PE-pipe, the compact gearbox and the Ti 7-A turbine as well as the high-rise cart that is ideal particularly for high crops with the BAUER wide-range gun.

  • Page 14: Putting Into Operation

    Mechanical regulation: To keep the retraction speed constant on all layers independent of the pipe length still lying on the field, the RAINSTAR A3 is equipped with a layer compensating device. It is actuated by the shut-off frame that is always resting against the PE-pipe and acts on the regulating flap of the turbine via control rods.

  • Page 15: Operating Mode I: Pe-Pipe Pull-Off

    Adjust the undercarriage in a level position with the jack. When positioning the RAINSTAR A3, make sure that the machine's vertical axis of rotation is in the middle of the driving lane or centered between two crop rows.

  • Page 16: Lowering The Cart

    3.1.2 LOWERING THE CART Unlock the cart mechanically in working position. Pull up the locking lever. Now loosen the reel brake. SWITCHING POSITIONS OF THE SHUT-OFF LEVER Working position PE-pipe retraction PE-pipe pull-off Tractor rewind 834 9274 Manual for BAUER RAINSTAR A3...

  • Page 17: Pulling Off The Pe-Pipe

    If the PE-pipe was exposed to the sun for a longer period or if its surface WARNING! temperature rose above 35°C, you will have to cool the pipe by water flow before rewinding it. Couple the pressure hose. Open the water supply. Manual for BAUER RAINSTAR A3...

  • Page 18: Speed Adjustment With Mechanical Regulation

    In the table you find the hole position. Hole 1 is the bottom hole. Note: Smalls corrections deviating from the chart could be necessary, because the friction resistance of the Pipe on the ground is equal. Manual for BAUER RAINSTAR A3...
  • Page 19 Manual for BAUER RAINSTAR A3...
  • Page 20 At the end of irrigation, the cart is lifted automatically and the drive is shut off by means of rods. The water supply is stopped by the optional "overpressure shut-off valve". Once the PE-pipe retraction has been finished, withdraw the supports by means of the winch. Manual for BAUER RAINSTAR A3...

  • Page 21: Operating Mode Ii: Laying Down The Pe-Pipe

    PE-pipe length. Moreover, the laying down method allows to use smaller tractors because no pulling forces are applied on the pipe. Drive into the field with the RAINSTAR A3 taking into consideration the sprinkler's distance of throw. *) W = distance of throw of the sprinkler Lower the cart as described under Operating Mode I, item "Lowering the Cart"...
  • Page 22 Removal of the drive cover for service jobs or change of transmission only is WARNING! permitted when the PE-pipe has been slackened completely! Move the gear shift lever to shut-off position! This shut-off position also must be used for the transport of the machine on the roads! Manual for BAUER RAINSTAR A3...
  • Page 23 When driving the reel with the PTO, the automatic shut-off system is inactive. Therefore you must stop the PTO in time and wind up the end of the PE-pipe with the hand wheel. This will prevent damage to cart, shut-off system, gearbox etc. Manual for BAUER RAINSTAR A3...

  • Page 24: Mechanical Regulation

    By fixing the bolt of the control rod one hole up, regulation will be reduced so that the retraction speed increases up to the last layer. By fixing the bolt of the control rod one hole down, regulation will be increased so that the retraction speed is reduced up to the last layer. Manual for BAUER RAINSTAR A3...

  • Page 25: Quick Stop

    This step is essential for trouble-free operation of the winding mechanism. 7 SHUT-OFF AND SAFETY EQUIPMENT Unattended operation of the RAINSTAR A3 is ensured by a final- and safety shut-off device. The final shut-off device is actuated when the sprinkler cart pushes against the shut-off frame which in turn operates the gearbox shut-off lever through a system of rods stopping thus the drive.

  • Page 26: Cart

    For retraction, the cart is lifted automatically. OVERPRESSURE SHUT-OFF VALVE With an overpressure shut-off valve, the water supply to the machine is interrupted completely at the end of the irrigation run. When the valve closes, pressure rises in the supply line. Manual for BAUER RAINSTAR A3...

  • Page 27: Winterization – Draining

    Turn out the drain plug on the bottom of the TI 7 turbine. We recommend to turn it in again only when you start up the machine again at the beginning of the next season. Clean the RAINSTAR A3 and regrease all appropriate points.

  • Page 28: Winding Mechanism – Starting Position

    Loosen the winding chain (1) between the reel and the helically grooved spindle (2). Step 3: By turning the helically grooved spindle (2), the winding carriage (3) is moved to the right outer reversing point of the groove value: 13 mm. 13 mm Manual for BAUER RAINSTAR A3...
  • Page 29 At this point, the winding carriage moves from the reversing point to the left (direction A). Step 5: Mount the winding chain (1), the reel remains unchanged with the inlet bend pointing down. Tighten the winding chain (1). Manual for BAUER RAINSTAR A3...

  • Page 30: Setting The Gearbox Shut-Off Device

    Turn the drive shaft at the gearbox (pulley). With the value of 2 mm at the gearbox and the value of "X" at the shut-off frame, the PTO must not turn anymore. (Put a hand wheel on the PTO for easier checking of the turning movement.) Manual for BAUER RAINSTAR A3...

  • Page 31: Testing The Shut-Off Device

    Put the shut-off frame (13) against the PE-pipe (last layer). Move the shut-off lever (9) to position "PE-pipe retraction". Pull the shut-off frame (13) to shut-off position (= mm off the reel). The shut-off lever must jump to shut-off position! Manual for BAUER RAINSTAR A3...

  • Page 32: Speedometer

    STEP 3 Set the blinking minutes by means of the MODE key. (Keep the key pressed for fast run). STEP 4 Keep the SET key pressed for approx. 3 seconds in order to finish the setting procedure and to return to the CLK display. Manual for BAUER RAINSTAR A3...

  • Page 33: Service And Maintenance

    We cannot emphasise often enough that proper service at the right time is essential for the operating reliability and service life of a machine. At the end of every irrigation season, the RAINSTAR A3 should be checked and cleaned thoroughly and all parts should be greased carefully.

  • Page 34: Trouble-Shooting

    Incorrect drive transmission. Select proper gear transmission. not reached. Blocked sprinkler nozzle. Remove blockage. General: Compare connecting pressure and water flow with performance chart values. Cart is not lifted. Incorrect belt transmission. Select proper belt transmission Manual for BAUER RAINSTAR A3...
  • Page 35 Hitch height - standard Weight incl. PE-pipe with water Cart track width Weight incl. empty PE-pipe Cart tires Overall length incl. cart Cart tire pressure Max. width of largest track Overall height Length of machine without cart Manual for BAUER RAINSTAR A3...
  • Page 36 63 - 150 mm x m 55 x 170 63 x 125 63 x 150 m³ 4,8 - 20 3,2 - 8 8 - 16 3550 1730 1690 2890 1250 18x9.50-8 4PR 1000 - 1500 13x5.00/6 Manual for BAUER RAINSTAR A3...

  • Page 37: Conformity Certificate

    Declaration of Conformity in accordance with the General EC Practices for Machinery 98/37/EC, Annex II A Röhren- und Pumpenwerk BAUER Gesellschaft m.b.H. Kowaldstraße 2, A - 8570 Voitsberg - Austria Tel. +43 3142 200 - 0, Telefax: +43 3142 200 –320 /-340...
