Panasonic EY76A1 Service Manual
Hide thumbs Also See for EY76A1:

Advertisement

Quick Links

TABLE OF CONTENTS

1 Warning -------------------------------------------------------------- 2
2 Specifications ----------------------------------------------------- 2
3 Troubleshooting Guide ----------------------------------------- 3
Model No.
Europe
PAGE
© Panasonic Corporation 2019. All rights reserved.
Unauthorized copying and distribution is a violation
of law.
ORDER NO. PTD1909E04CE

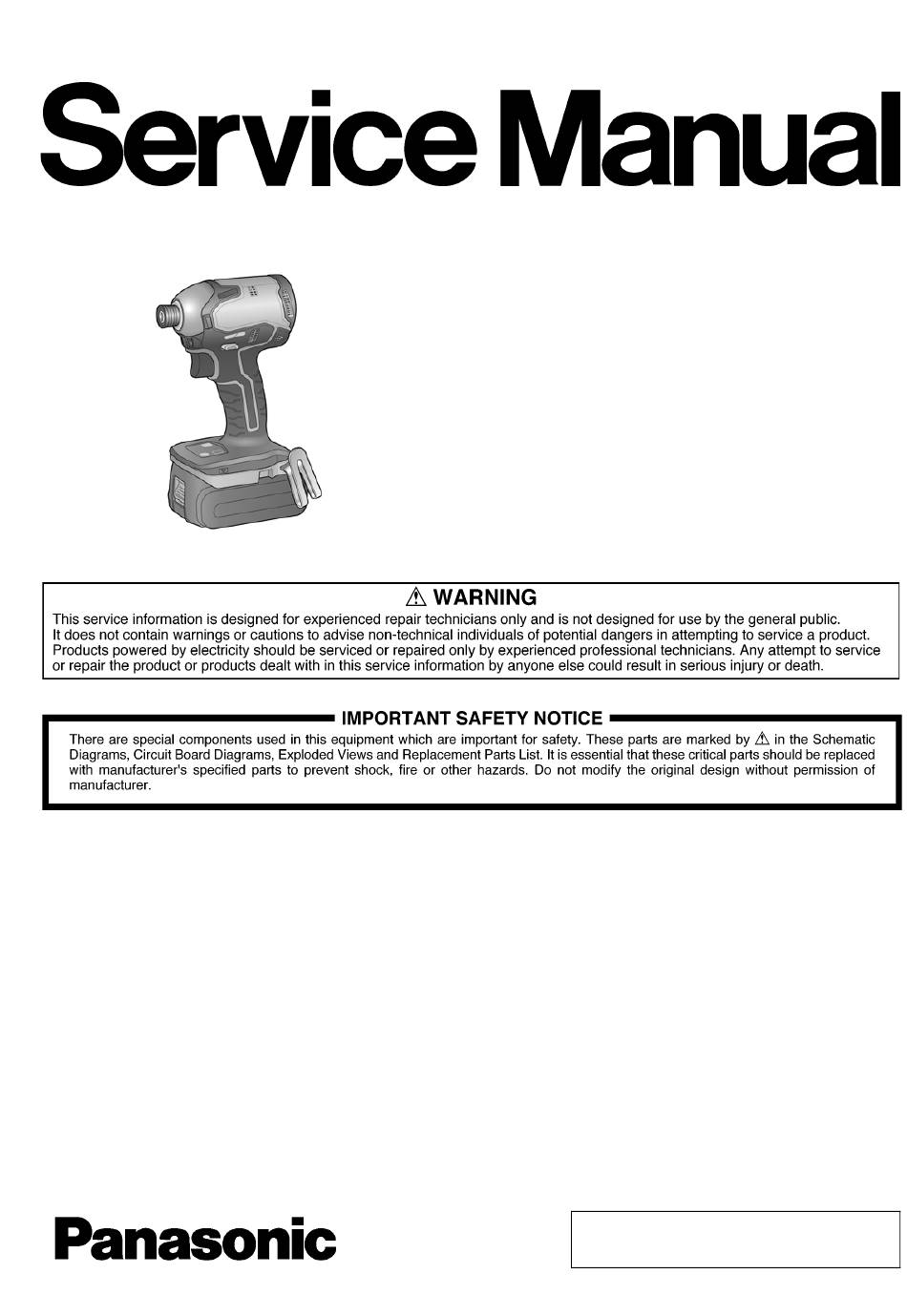

Cordless Impact Driver
EY76A1
PAGE

Advertisement

loading

Summary of Contents for Panasonic EY76A1

  • Page 1: Table Of Contents

    2 Specifications ----------------------------------------------------- 2 3 Troubleshooting Guide ----------------------------------------- 3 4 Disassembly and Assembly Instructions ---------------- 6 5 Exploded View and Replacement Parts List -----------10 © Panasonic Corporation 2019. All rights reserved. Unauthorized copying and distribution is a violation of law.
  • Page 2: Warning

    1 Warning Caution: • Pb free solder has a higher melting point that standard solder; Typically the melting point is 50 - 70 °F (30 - 40 °C) higher. Please use a soldering iron with temperature control and adjust it to 750 ± 20 °F (400 ± 10 °C). In case of using high temperature soldering iron, please be careful not to heat too long.
  • Page 3: Troubleshooting Guide

    3 Troubleshooting Guide 3.1. Troubleshooting Guide...
  • Page 5 3.2. Trial Operation (after checking Troubleshooting Guide). 3.2.1. Assembly • Confirm if there is no gap between housing A and B by pinching lead wires. • There is no dust or deformation on battery terminals. • Confirm all screws are tightened firmly. •...
  • Page 6: Disassembly And Assembly Instructions

    4 Disassembly and Assembly Instructions * To reduce the risk of injury, always remove battery pack before removing/installing the tool. * To assemble the tool, start with 4-4 and proceed to 4-1 4.1. How to remove the Housing. 1. After removing the plate hook, remove 9 housing screws. 2.
  • Page 7: Protector

    4.3. How to remove the Fixation cover assembly and Driving shaft assembly. 1. Remove the protector. 2. Remove the interior components from the fixation cover assembly. Note: (when assembling)
  • Page 8: Switch Assembly

    4.4. How to remove the Switch assembly, LED harness assembly and Battery terminal. 1. Remove the connector(6-pin/2-pin) covers. 2. Disconnect the connecters or lead wires in order to (1) to (4). Note: Exercise care not to bend the terminal fitting. Note: (when assembling) The connect cover cannot be reused after being repaired.
  • Page 9 4.5. Wiring and Assembly Points.
  • Page 10: Exploded View And Replacement Parts List

    5 Exploded View and Replacement Parts List Model No. : EY76A1 Exploded View...
  • Page 11 Model No. : EY76A1 Parts List Ref. Change Safety Part No. Part Name & Description Q'ty Remarks WEY76A1K3102 HOUSING AB SET WEY75A7H3247 F/R SELECTOR HANDLE WEY76A1L3202 OPERATION PLATE WEY7543K3187 PLATE HOOK WEY76A1L1111 PROTECTOR WEY76A1L1201 BIT HOLDER ASSEMBLY WEY76A1L1101 FIXATION COVER ASSEMBLY...
