Summary of Contents for 2N Telekomunikace NetSpeaker

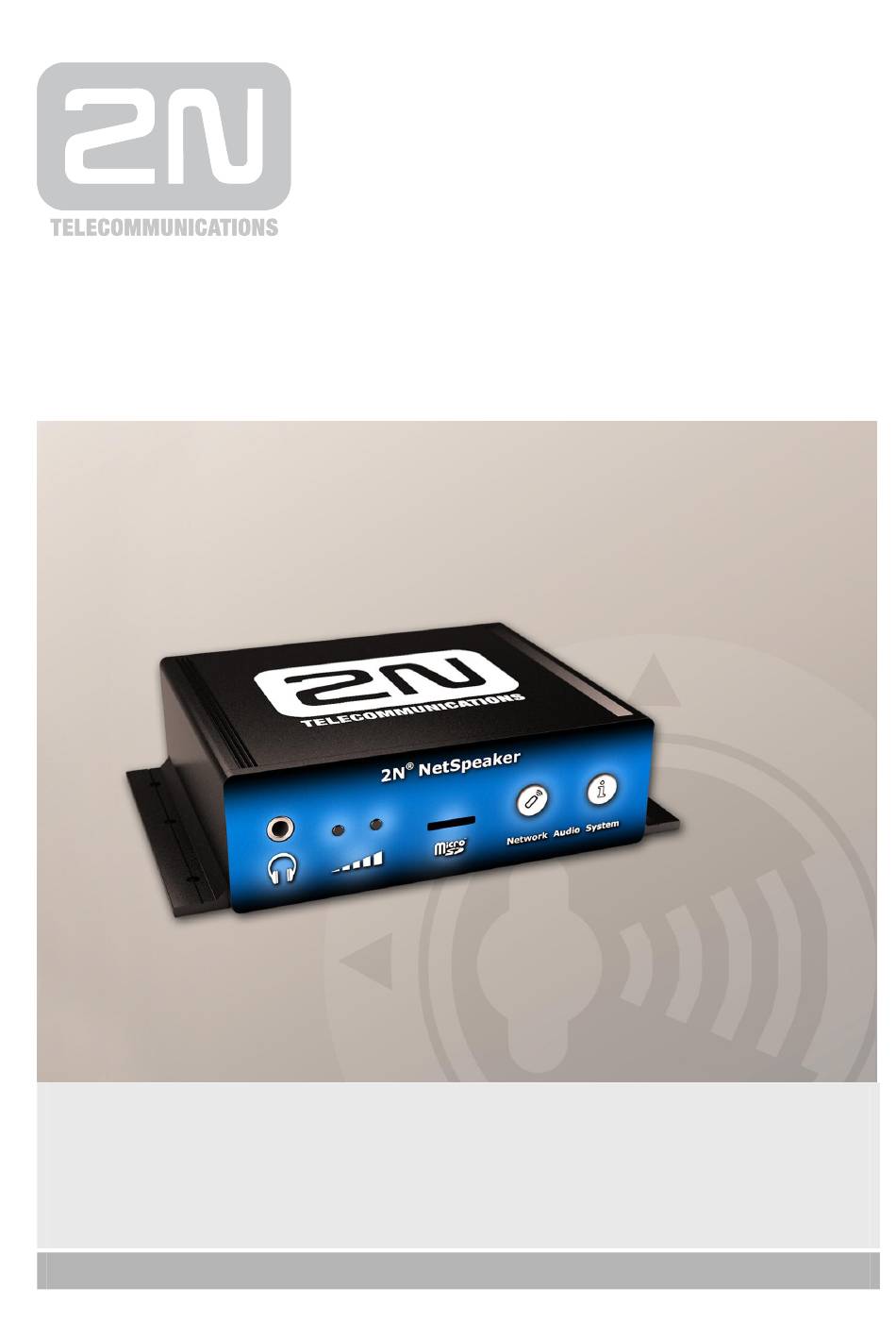

- Page 1 ® NetSpeaker Audio Decoder with Amplifier User Manual Version 1.0.0 www.2n.cz Firmware 1.0.0...
- Page 2 1999/5/EC directive. For the full wording of the Declaration of Conformity see the CD-ROM enclosed and at www.2n.cz. The 2N TELEKOMUNIKACE company is the holder of the ISO 9001:2000 certificate. All development, production and distribution processes of the company are managed by this standard and guarantee a high quality, technical level and professional aspect of all our products.
-
Page 3: Table Of Contents
1. Product Overview............... 5 Product Description ....................... 6 Basic Features........................6 Optional Accessories ......................7 ® NetSpeaker Components and Associated Products ........... 8 Basic Unit ......................... 8 Accessories ........................8 Associated Products ......................9 Changes in Documentation ..................10 Terms and Symbols Used ................... 11 Symbols Used in Manual .................... - Page 4 Basic Functions ......................30 ® NetSpeaker Button Control ..................30 ® NetSpeaker Remote Control ................... 30 ® NetSpeaker Status Signalling.................. 31 5. Technical Parameters ............33 Technical Parameters ....................34 Mechanical and Electrical Parameters ................34 6. Supplementary Information ..........37...
-
Page 5: Product Overview
Product Overview ® In this section, we introduce the 2N NetSpeaker product, outline its application options and highlight the advantages following from its use. The section also includes safety precautions. Here is what you can find in this section: Product Description ... -
Page 6: Product Description
® NetSpeaker is a stand-alone sound decoder and converter with an amplifier ® ® working as a terminal audio device for the 2N NetSpeaker System. -
Page 7: Optional Accessories
Product Description Optional Accessories 12V DC/2A Power Supply Adapter ® Universal power supply adapter for 2N NetSpeaker. With it, you can make the best of the integrated amplifier power. PoE 802.3af Injector ® Universal PoE injector for the 2N NetSpeaker power supply. -
Page 8: Netspeaker Components And Associated Products
2N® NetSpeaker Components and Associated Products ® 1.2 2N NetSpeaker Components and Associated Products Basic Unit 914010E ® NetSpeaker with Amplifier Accessories 91378100 914102E 914101E PoE Injector 12V DC/2A Adapter Remote Controller... -
Page 9: Associated Products
2N® NetSpeaker Components and Associated Products Associated Products 914020E 914110E 914120E ® NetSpeaker with Flush Mounting Box Wall Mounting Loudspeaker for Soffit Mounting... -
Page 10: Changes In Documentation
Changes in Documentation 1.3 Changes in Documentation ® The manufacturer reserves the right to modify 2N NetSpeaker in order to improve its qualities. Manual Changes in Documentation Version ® 1.0.0 The User Manual corresponds to 2N NetSpeaker FW version ... -
Page 11: Terms And Symbols Used
Terms and Symbols Used 1.4 Terms and Symbols Used Symbols Used in Manual Safety Warning Always abide by this information to prevent injury of persons. Warning Always abide by this information to prevent damage to the device. Caution Important information for system functionality. -
Page 13: Description And Installation
Description and Installation ® This section describes the 2N NetSpeaker product and its installation. Here is what you can find in this section: Product Description Before You Start Mounting ... -
Page 14: Product Description
NetSpeaker is equipped with an integrated 14W amplifier for direct loudspeaker connection. ® NetSpeaker can be controlled by two front panel buttons or an infrared remote controller. ® NetSpeaker is equipped with a digital input and output, which extend the converter options and may be helpful in special applications. -
Page 15: Netspeaker Front And Back Panels
Product Description ® NetSpeaker Front and Back Panels ® Fig. 2.1 - 2N NetSpeaker Front Panel ® Fig. 2.2 - 2N NetSpeaker Back Panel 1. 12V DC/2A power supply adapter connector 2. Alternative power supply connection terminals 3. Relay output with galvanic isolation for external 24V/1A AC/DC load switching 4. -
Page 16: Before You Start
CD-ROM with User Manual and Software Certificate of Warranty Installation Conditions ® NetSpeaker is to be connected to the LAN. ® NetSpeaker is designed for indoor use. ® NetSpeaker may not be operated in damp environments. -
Page 17: Mounting
2.3 Mounting ® If you intend to use your 2N NetSpeaker unit in various interiors, please stick the four feet included in the delivery onto the bottom side of the device to avoid scratching of the underlying surface. Surface Mounting ®... -
Page 18: Electric Installation
1 x 8W ® Use the 2N NetSpeaker back panel terminals marked L + and L – for the left channel and R + and R – for the right channel. Use the left channel terminals for the MONO mode. -
Page 19: Headphone/External Amplifier Connection
Digital Input Use ® NetSpeaker is equipped with a digital input for an optional button, sensor of movement or other applications. This input is available on the LOGIC IN terminal. Up to 5 to 24V DC voltage can be applied to the input against the ground terminal... -
Page 20: Memory Card Use
TELEKOMUNIKACE Technical Support staff please for more information. Memory Card Use ® NetSpeaker is equipped with a MicroSD card slot for storing music or voice in case the equipment is not connected to the LAN permanently or temporarily. ® The MicroSD card slot is available on the 2N NetSpeaker front panel. -
Page 21: Power Supply Connection
Power Supply Connection ® NetSpeaker can be fed using active network elements or PoE injectors via the LAN interface. In case this option is unavailable, use a 12V DC/2A (Part No. 914102E) power supply, or another power supply on condition that you keep the nominal values included in the Chyba! Nenalezen zdroj odkazů. -
Page 23: Netspeaker Configuration
® NetSpeaker Configuration ® This section describes the 2N NetSpeaker configuration. Here is what you can find in this section: Default Setting Basic Parameter Settings Firmware Upgrade ... -
Page 24: Netspeaker Configuration
NetSpeaker Configuration Default Setting ® In some cases, it may be useful to reset the 2N NetSpeaker factory values using the ® RESET button on the back panel. Do this, for example, if 2N NetSpeaker ceases to respond, which may be caused by incorrect LAN settings, LAN configuration changes, forgotten password and so on. -
Page 25: Basic Parameter Settings
The default password is admin. ® Telnet Commands to 2N NetSpeaker ® NetSpeaker can be controlled using the commands included in the table below. Enter LC characters only, separate parameters, if any, with a space and confirm every row with Enter. - Page 26 Automatic network parameter obtaining is enabled. Default setting: ipaddr ® NetSpeaker static IP address. Use this setting if dhcpclient is set to 0. Default setting: 192.168.1.100 netmask Network mask for static IP address setting. Use this setting if dhcpclient is set to Default setting: 255.255.255.0...
- Page 27 ® connection is initiated by 2N NetSpeaker. Default setting: srvipaddr ® NetSpeaker Server IP address. Use the setting in the active mode, i.e. if activemode=1. Default setting: 192.168.1.1 srvport ® NetSpeaker Server communication port. Use the setting in the active mode, i.e.
-
Page 28: Firmware Upgrade
® ® NetSpeaker firmware upgrade runs automatically whenever 2N NetSpeaker gets ® connected to the 2N NetSpeaker Server. This guarantees that all connected devices have identical and latest firmware versions. Refer to www.2n.cz for the latest firmware version. Firmware Installation ®... -
Page 29: Function And Use
Function and ® This section provides the basic and extended functions of the 2N NetSpeaker product. Here is what you can find in this section: ® NetSpeaker Button Control ® NetSpeaker Remote Control ® NetSpeaker LED Status Signalling ... -
Page 30: Basic Functions
4.1 Basic Functions ® NetSpeaker Button Control ® NetSpeaker is equipped with two buttons on the front panel. Use these buttons to adjust volume or change the channel number. Select the button ® ® control mode in the configuration menu for each 2N NetSpeaker unit in the 2N ®... -
Page 31: Netspeaker Status Signalling
Basic Functions ® NetSpeaker Status Signalling ® NetSpeaker is equipped with colour LEDs on its front panel, which indicate operational statuses. Refer to the table below for the list of available operational statuses: Signalling Status Supply voltage application status - Green (permanent light) ®... -
Page 33: Technical Parameters
Technical Parameters ® This section describes the technical parameters of the 2N NetSpeaker product. -
Page 34: Technical Parameters
Technical Parameters 5.1 Technical Parameters Mechanical and Electrical Parameters Parameter Value Dimensions 105 x 34 x 86 mm Dimensions (incl. L-profiles) 130 x 34 x 86 mm Weight 300 g External power supply 12V DC / 2A LAN supply PoE IEEE 802.3af Status signalling 1 RGB LED on front panel Local control... - Page 35 Technical Parameters Parameter Value Digital output 24V 1A AC/DC relay output, galvanically isolated Digital input 5 to 24V DC digital input, galvanically non- isolated Memory capacity extension MicroSD card slot on front panel Sou8nd compression MPEG-1 Audio Layer III (MP3) Bandwidth 32-320kbps...
-
Page 37: Supplementary Information
Supplementary Information ® This section provides supplementary information on the 2N NetSpeaker product. Here is what you can find in this section: Applicable Directives, Laws and Regulations List of Figures Trouble shooting List of Abbreviations ... -
Page 38: List Of Abbreviations
6.1 List of Abbreviations FW (Firmware) Software responsible for system function. HW (Hardware) For this purpose, hardware means an electronic device, circuit, board, component, etc.. LAN (Local Area Network) PC (Personal Computer) IBM PC compatible personal computer. SW (Software) ... - Page 39 2N TELEKOMUNIKACE a.s. Modřanská 621, 143 01 Prague 4, Czech Republic Tel.: +420 261 301 500, Fax: +420 261 301 599 E-mail: sales@2n.cz Web: www.2n.cz...
