SPECIFICATIONS

Electrical rating: 120/240 volts AC 60 HZ @ 50amperes.
ETL listed for US and Canadian applications.
Maximum generator: 12KW
Enclosure: UL Type 1, 16 GA Steel.
Dimensions:
Model
Height
Width
ATS 501
3.75 in.
8.70 in.
Not ignition protected.
SPECIFICATIONS SUBJECT TO CHANGE WITHOUT PRIOR NOTICE.

Wiring Instructions

The ATS should be installed by a qualified electrician.
CAUTION:
Observe the polarity and torque specifications per the installation label
included on the inside cover of each unit.
WARRANTY STATEMENT
Parallax warrants each ATS to be free from defects in materials and workmanship
under normal use and service and limits the remedies to repair or replacement. This
warranty extends for two years from the date of purchase and only valid to the
original owner and within the continental limits of the United States and Canada. If a
problem should occur within the first 24 months of purchase, please contact a dealer
that handles warranty on your brand of boat or RV.
No user serviceable parts inside. This warranty does not cover damage due to
improper installation, abuse or accidents.
Depth
Weight
11.05 in.
6.0 lbs.
th
100 West 11
Street, Suite 100
ANDERSON, IN 46016
www.parallaxpower.com
MODEL ATS 501 Series
AUTOMATIC
LINE / GENERATOR
SWITCH
FOR RECREATIONAL VEHICLE USE ONLY!
NOT FOR LIFE SUPPORT!

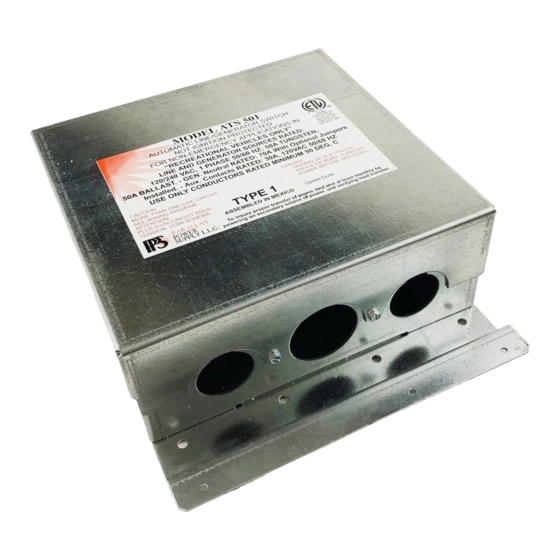

ATS 501
PN # 011-5171-001
REV B
