Summary of Contents for Toto GP0133-A50-01

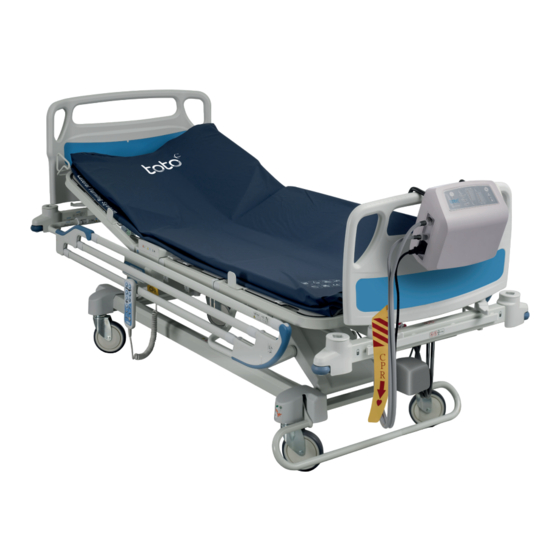

- Page 1 Toto Lateral Turning System, with Toto Touch Control Unit ® ® User Guide www.frontier-group.co.uk...
-
Page 2: Kit Contents
! IMPORTANT - This indicates a hazardous situation that could result in damage to property if +44 (0) 1495 235800. it is not avoided. Toto Touch Control Unit Toto Lateral Turning System Platform Toto® Touch Lateral Turning System Labelling • 1x Toto Touch Control Unit. • 1x Platform. -
Page 3: Product Specifications
Contents Product Specifications Page 5 Product specifications Toto Lateral Turning System - Standard: Fully customisable Page 6 Intended use control unit with a 30° degree tilt. Toto Lateral Turning System - 45: Fully customisable control unit with a 45° degree tilt. -
Page 4: Intended Use
The system should not be used without a mattress. Toto lateral turning system is suitable for the prevention of pressure ulcers for the following • Do not strap the mattress to the bed frame as this will prevent Toto lateral turning system from patients: operating. - Page 5 5. Fit the cover and close zip, ensuring the air cell hoses are fed through the apertures at the foot For patients lying on their side, if they can self-support and they are in the middle of the bed, Toto end of the cover.
- Page 6 4. Air cell rest time - Length of time the air cells are deflated and the platform is supine; minimum 30 minutes, maximum 240 minutes. 5. Mute and interface lock mode activation. Turning the Toto Touch Control Unit On • Press and hold the start / stop button for 3 seconds.
- Page 7 Changing the Air Cell Inflation Time Therapy Pause Mode • Press the inflate time button to scroll through the five available options: The Therapy pause mode temporarily deactivates all Control Unit functions, returning the platform to a flat position allowing for patient interactions such as feeding and hygiene requirements. 30 minutes •...
-
Page 8: Alarms And Alerts
The alarm can be muted for up to 10 minutes while trouble shooting is conducted. After 10 minutes, The Toto Touch Control Unit has five integrated system error indicators if the fault has not been rectified, the alarm will reactivate. - Page 9 The Toto lateral turning system features a quick release CPR deflation valve which allows for rapid assistance. deflation for emergency procedures. The CPR deflation valve can be found on the air hoses between the Toto Touch Control Unit and Service LED •...
- Page 10 Torn covers should be withdrawn from service, and replacements sought. When not in use, the Toto lateral turning system should be stored in a secure location away from the public. Regularly inspect the interior and exterior of the platform, ensuring that the hinges and air cells remain intact.
- Page 11 Heavy Soiling ! IMPORTANT In cases of gross contamination, the Toto lateral turning system platform cover should be cleaned first with detergent and water and then with a 0.1% hypochlorite solution (1,000ppm). Rinse well with clean water and wipe down with a single use, non-abrasive cloth and thoroughly dry.
-
Page 12: Warranty
Warranty Technical Specification The Toto lateral turning system warranty is valid for one year from time of shipping. If a defect or fault is discovered, please contact Frontier Therapeutics Ltd Customer Services on Toto Touch Technical Specifications Tel: +44 (0) 1495 235800 or email: info@frontier-group.co.uk immediately. - Page 13 +44 (0) 1495 235800 Email: info@frontier-group.co.uk Toto lateral turning system is covered by UK patent no. GB 2449318 Toto lateral turning system is a registered trade mark of Frontier Therapeutics Ltd www.frontier-group.co.uk © November 2017 Frontier Therapeutics Limited. All rights reserved. GP0133_A50_01...
