Summary of Contents for MOHOS LASO

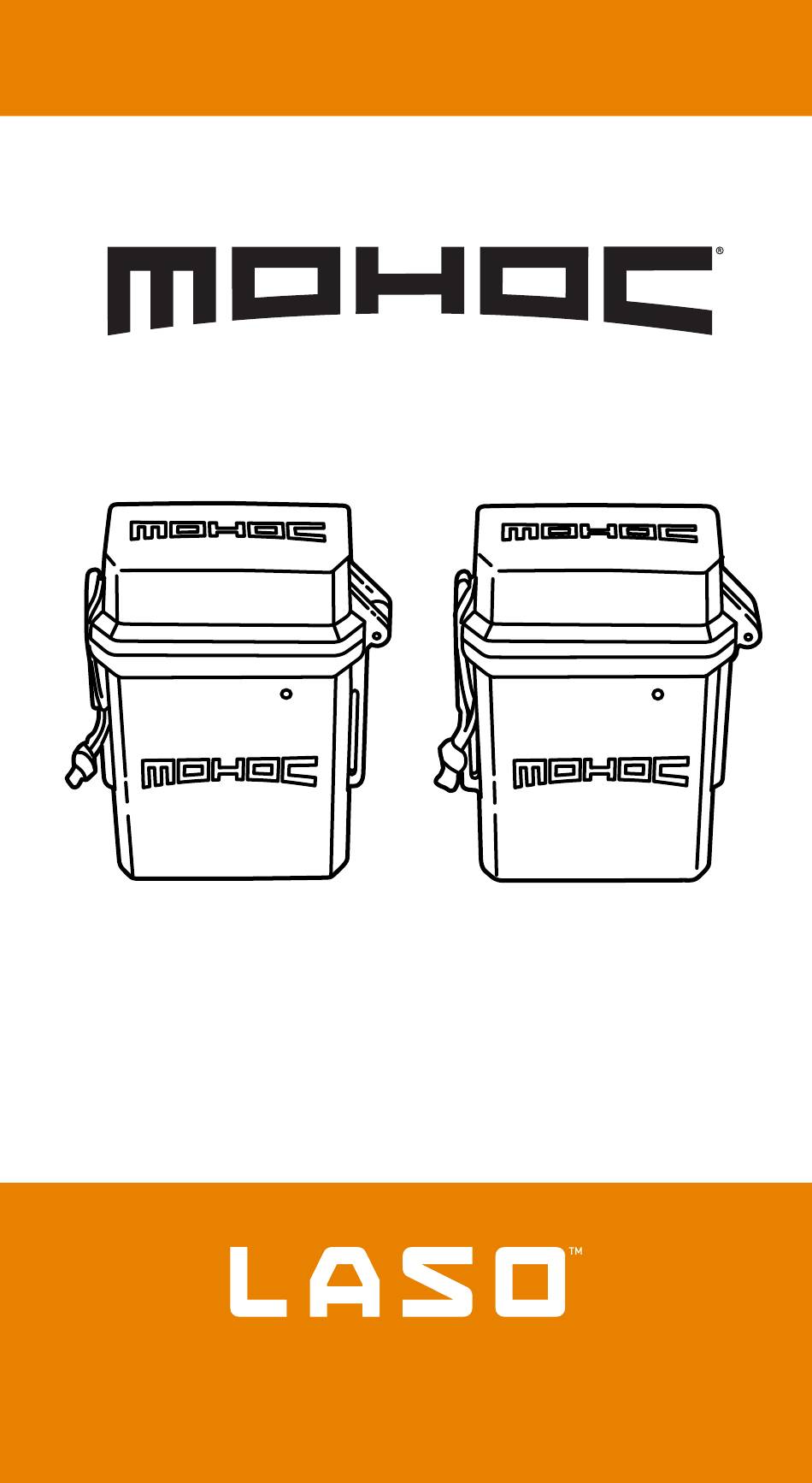

- Page 1 QUICK START GUIDE...
- Page 2 OVERVIEW MOHOC BELIEVES THE WORLD’S TOUGHEST WARRIORS DESERVE ELITE, CUSTOM-BUILT GEAR TO GUARANTEE MISSION SUCCESS. EVERYTHING WE DO IS DESIGNED TO SURPASS THE EXPECTATIONS OF OPERATORS WORKING IN THE HARSHEST ENVIRONMENTS IMAGINABLE. MOHOC.COM...
- Page 3 OVERVIEW Included in the box: • 1 LASO Transmitter • 1 LASO Viewer • 2 Li-Ion rechargeable batteries • 2 USB charging cables The LASO Tactical Video Transmitter LASO Transmitter LASO Viewer Rechargeable battery USB charging cable Connection Indicator light...
- Page 4 OVERVIEW...
- Page 5 OVERVIEW Introduction • LASO Transmitter connects to the MOHOC ® Camera and is recognizable by the orange camera icon: • LASO Viewer connects to a smartphone or tablet and is recognizable by the orange phone icon: • For best live streaming performance keep the LASO Transmitter near the MOHOC Camera ® (body worn) and keep the LASO Viewer near the phone/tablet being used for viewing.
- Page 6 OVERVIEW • Follow the steps in this Quick Start Guide to connect and livestream from your MOHOC ® Camera, via the LASO Transmitter/ LASO Viewer to your phone or tablet, increasing the video range of your MOHOC Camera by 10x. ® Before pairing with your phone or tablet: • Download the MOHOC app to your phone or ® tablet (Android or iOS ® ® • If you purchased the LASO separately from the camera, skip ahead to PAIR MOHOC WITH ® LASO TRANSMITTER. • If you purchased a MOHOC or MOHOC IR ®...
- Page 7 TURN WIFI ON 1. Squeeze both latch releases. 2. Pull the lower latch out. 3. Release the upper latch and remove the door. 4. Insert Micro SD card (Class 10, UHS-1 or higher required). Sold separately.
- Page 8 TURN WIFI ON 5. Insert MOHOC rechargeable battery. ® 6. Turn MOHOC Camera ® toggle to ON position. 7. Change camera WIFI/BT setting to ON by pressing the far left Menu button twice until the WIFI/BT screen is reached. Scroll right to reach the ON option and press SELECT 8. Power OFF the MOHOC Camera. ® 9. Close the door (reversing steps 1 to 3). Ensure lower latch clicks shut completely. 10. Proceed to CONNECT & STREAM WITH LASO instructions.
- Page 9 PAIR MOHOC WITH LASO TRANSMITTER ® Introduction • Follow these steps if you already own a MOHOC Camera and purchased the LASO ® without the camera or if you want to pair a different MOHOC Camera to any LASO ® Transmitter. 1. Turn MOHOC Camera ® toggle to ON position with WIFI ON. 2. Open phone/tablet’s WiFi setting and connect to the MOHOC WIFI network (default password is Eliteops). 3. Open MOHOC App and connect to the ® camera to see the live video preview. 4. Choose the settings gear icon in top right corner of live preview screen. Select WIFI Settings.
- Page 10 PAIR MOHOC WITH LASO TRANSMITTER ® 5. Change the SSID and Password to match LASO Transmitter. The LASO Transmitter SSID & Password are found under the lid of the Transmitter. Both are case sensitive. LASO SSID: LasoXXX Password: Eliteops 6. Power camera OFF for the changes to take effect. 7. Close MOHOC App. ® 8. Go to Connect and Stream with LASO...
- Page 11 CONNECT & STREAM WITH LASO 1. Power ON the LASO Transmitter by plugging in the Micro USB power cable from the battery to the LASO power port. Micro USB power cable LASO power port 2. Power ON the LASO Viewer by plugging in the Micro USB power cable from the battery to the LASO power port (same as pictured above for LASO Transmitter). 3. Power MOHOC camera ON with WIFI ON. ® 4. Allow 20-30 seconds for all 3 devices to pair. Once the external light on the front of both the Transmitter and Viewer are solid Green, then all devices are connected. If either Green...
- Page 12 CONNECT & STREAM WITH LASO 5. Connect to LasoXXX Viewer: a) Open phone/tablet’s wireless network settings and choose network LasoXXX_Viewer. Then enter password Eliteops. b) Open the MOHOC App and add the ® LasoXXX_Viewer (re-enter password if prompted). See Helpful Tip #5 if the live preview screen does not open. Live video should now be streaming. See Helpful Tips to understand all LASO features, troubleshoot, and improve performance.
-
Page 13: Helpful Tips
HELPFUL TIPS 1. To live preview the video on a phone/tablet and simultaneously record to the MOHOC ® Camera’s Micro SD card, set your cameras video setting to 720p 30FPS or 720p 60FPS. The higher resolutions and frame rates (1080p 30FPS for example) are unable to wirelessly livestream video and record simultaneously. 720p 30FPS/60FPS are the only options capable of steaming and recording at the same time. 2. The camera WIFI ONLY turns on when you have the camera toggle in the ON position. When operating the camera in the RECORD position ( ) WIFI does not turn on. 3. To pair a different MOHOC Camera to a ® LASO Transmitter, update the SSID & Password of the new camera to match the SSID & Password of the LASO Transmitter you wish to connect. See Pairing MOHOC ® Camera to LASO Transmitter Instructions. 4. Blinking green light on the front of either LASO means it is not connected to its paired device:... - Page 14 HELPFUL TIPS a) LASO Transmitter blinking - either the LASO Transmitter is no longer in range of its paired MOHOC camera, or the ® paired MOHOC Camera has turned OFF/ ® BATTERY IS DEAD. b) LASO Viewer blinking - either the LASO Viewer is out of range of the LASO Transmitter, or the LASO Transmitter has turned OFF/BATTERY IS DEAD. 5. If the App is not displaying the live video screen even though both LASO Transmitter and LASO Viewer lights are solid green, confirm the wireless network connections. The phone/tablet must connect to the “LasoXXX_Viewer” wireless network, not the “LasoXXX” network, for the LASO to work. Also check the MOHOC App is connected to ®...
-
Page 15: Rechargeable Batteries
LASO RECHARGEABLE BATTERIES 1. The LASO batteries are removable and can be replaced quickly with a fully charged battery. Pull the battery up from the battery bay to remove and replace. 2. Charging: Plug the included Micro USB cable into the side battery port and a USB power source. 3. Battery Light Indicator: the light on the back of the battery indicates power level: Green = Full Yellow = Medium Red = Low a) While charging the light will flash in the color of its power level. b) Solid Green while charging means battery full. -
Page 16: Contact Details
CONTACT DETAILS Contact info@mohoc.com or visit www.mohoc.com for assistance, additional product information and features. +1.208.806.1391 info@mohoc.com www.mohoc.com Part Number: MH-LAS1 © 2019 MOHOC Inc. All rights reserved. Rev 01.19...
