Summary of Contents for Pathos Acoustics Musiteca

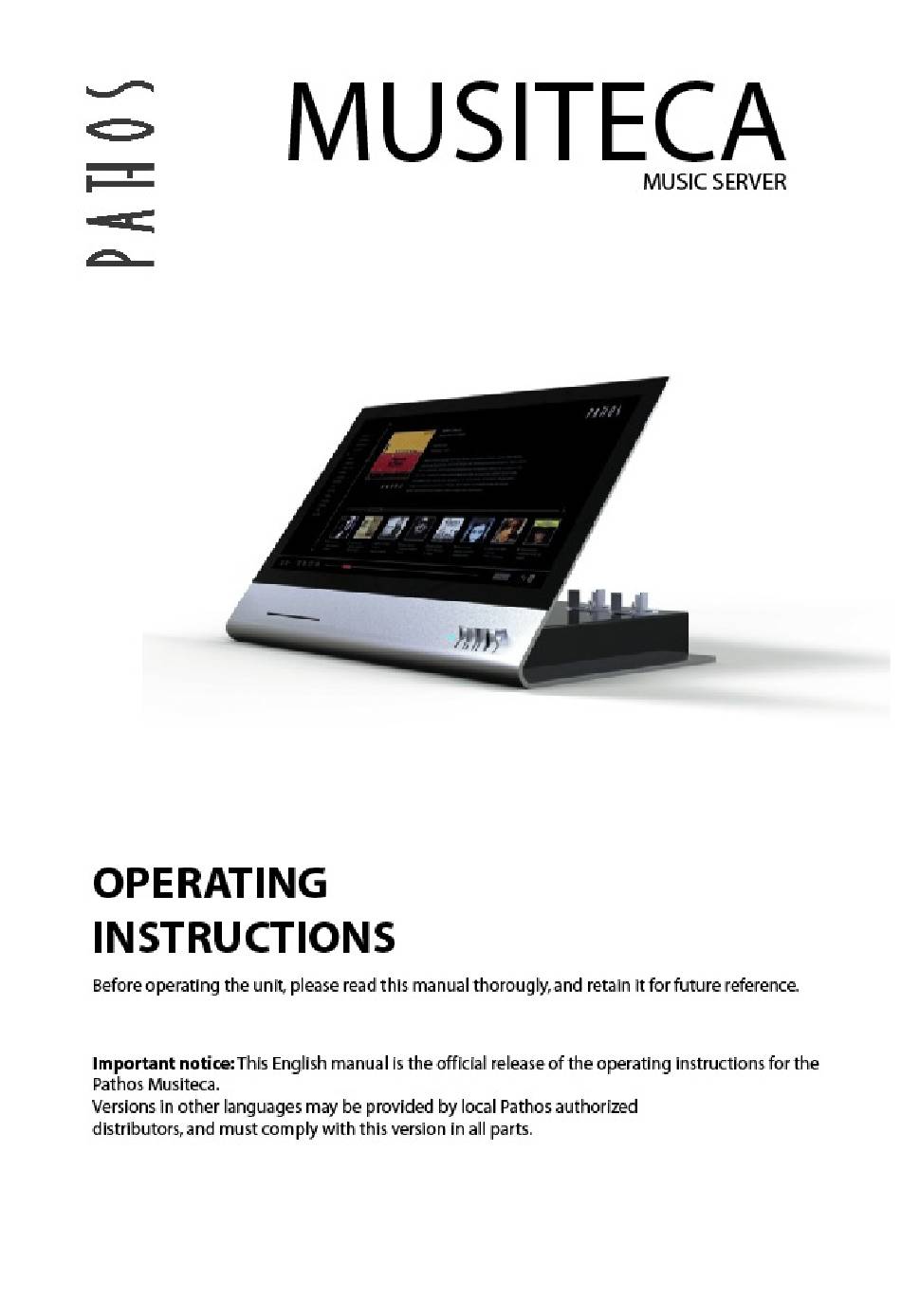

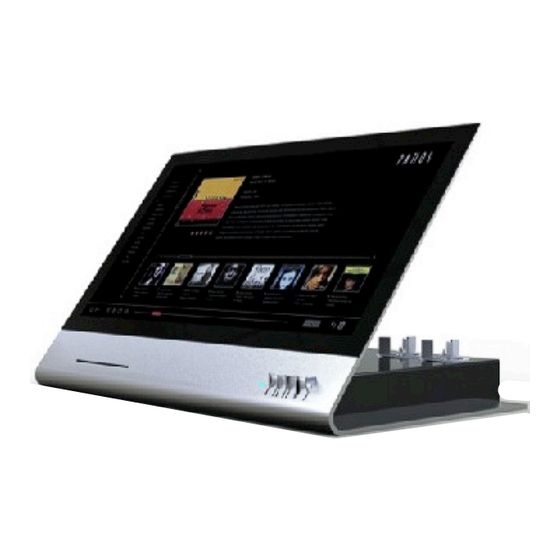

- Page 2 Congratulations Congratulations on your purchase of the Pathos MUSITECA Musiteca is Pathos’ ultimate source of music that puts together massive storage, uncompromised audio quality and user- friendly operation. Its hard disk is capable of storing up to 25,000 tracks, approximately 2,500 CDs, with uncompressed quality. Digital music can be captured and stored either by ripping CDs via the built-in transport, or by copying files from any digital storage device—computer hard drive, USB drive, digital music player...
-
Page 3: Important Safety Instructions
Important Safety Instructions Any changes or modifications not expressly approved in this manual void the warranty and your authority to operate this equipment. Always disconnect the unit from the AC outlet before connecting or disconnecting any cables, or when cleaning any component. This unit contains voltages that can cause serious injury or death. -
Page 4: About Your Unit
10cm from the top will ensure a sufficient air flow to cool down the unit. Vacuum Tubes Your Musiteca is provided with a pair of ECC88 / 6922 tubes. In case you need to replace vacuum tubes, always use same type. - Page 5 Dimensions...
-
Page 6: Connections And Controls
3) AC Main Inlet, Main switch, Main fuse: This IEC-standard AC mains receptacle is used with the removable AC power cord to supply the Musiteca with power. Connect the power cord to this receptacle and the AC mains outlet in the wall. - Page 7 Through this switch is possible to turn off internal DAC to use one external. NOTE: if you switch on when Musiteca is already active, this take about 30 second for tubes warm up. After this period you can hear a click who signal that analog outputs are active.
-
Page 8: Main Specification
MAIN SPECIFICATION Converter D/A Conversion: Differential 24bit 192KHz delta sigma DAC Analog stage: Fully balanced, class A, tubes , zero feedback Conversion rate: up to 192KHz Dynamic range: 120dB THD+N: -110dB Analog output: one Balanced XLR, one Unbalanced RCA line Max output level: unbalanced RCA 3V RMS Balanced XLR 1,5V + 1,5V RMS... - Page 9 Press the switch on the rear panel to turn the unit on. the power LED (4) will be light for one second then it's switch off. This mean that Musiteca is in standby mode. To Switch on MUSITECA push lightly the Pathos's logo on the front.
- Page 10 Listen music stored.: To listen music previously stored inside Musiteca touch the icon “music library”. It will appear two icon, “music list” and “playlist” “music list” “playlist” - Music list Touch "music list" icon to view all music stored on Musiteca.
-
Page 11: Music Library
MUSITECA USER INTERFACE MAIN MENU’ 1-MUSIC LIBRARY 1.1.1 alnum cover 1.1.2 album list 1.2.1 Play list detail 1.2.2 Playlist summary 2-READ CD AND RIPPING Listen cd Ripping 3-SETTING Network About... - Page 25 INDEX Congratulation Important safety instruction About your unit Dimension Connection & control Main specification Get started User Interface...
- Page 26 Pathos Acoustics srl Via Palù 50/52 36040 Grumolo delle Abbadesse Vicenza ITALIA www.pathosacoustics.com...
