ORATOR AUDIO
Supplied By:
Audio Visual Engineering Pty Ltd
Ph: (02) 8207 3141
info@audiovisualengineering.com.au
SB002 SOUNDBAR
User's Guide
A Brighter Image
Unit H/134-140 Old Pittwater Rd, Brookvale NSW 2100
PO Box 7289, Warringah Mall NSW 2100 Australia
T: 02.9938.6866
F: 02.9938.6899
W: www.abimage.com.au
E: info@abimage.com.au
Advertisement
Summary of Contents for Orator Audio SB002

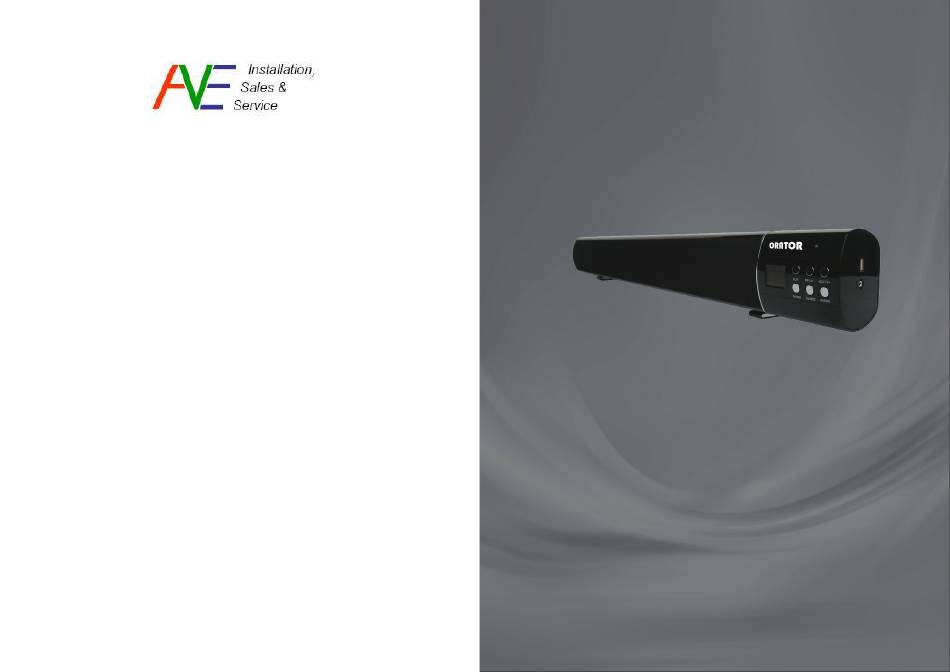

- Page 1 ORATOR AUDIO Supplied By: Audio Visual Engineering Pty Ltd Ph: (02) 8207 3141 info@audiovisualengineering.com.au SB002 SOUNDBAR User’s Guide A Brighter Image Unit H/134-140 Old Pittwater Rd, Brookvale NSW 2100 PO Box 7289, Warringah Mall NSW 2100 Australia T: 02.9938.6866 F: 02.9938.6899 W: www.abimage.com.au...
- Page 2 USER’S GUIDE Specifi cations: Power Input: DC 16V Output (RMS): 60W Please read this user’s guide before using your new Soundbar. Frequency Response: 60 Hz -20 kHz Speaker Units: 3” Bass x 2 + 2.5” Mid-Tweeter x 2 + 3” Bass x 1 For any technical enquiries, contact ABI Pty Ltd on: Audio Input: Aux in/Line in/USB &...
- Page 3 Remote Control Instructions Important Safety Instructions 1. Read & follow these instructions. Keep these instructions as a reference. 2. Heed all warnings. 3. The power source must supply 16V DC. Its centre tip must be set to positive 3D Sound Mode and its plug must fi...
- Page 4 Soundbar Operation Play/Pause Short Press for Previous Track (MP3) Line In audio for Long Press for Volume - “Headphone” (amplifi ed) signal (from Smartphone, Notebook, TV, Tablet, etc). InfraRed Remote Receiver USB Port (plays MP3 audio) Short Press for Next Track (MP3) Long Press for Volume + Display Press to Select &...
