Residual current circuit-breaker
Residual current circuit-breaker
2844 01
Operation and installation instructions
Safety instructions
Electrical equipment may only be installed and assembled by qualified electricians.
Failure to comply with these instructions may result in damage to the device, fire, or oth-
er hazards.
Function
The residual-current circuit-breaker is used to protect persons against residual electrical cur-
rents.
The residual-current circuit-breaker is a safety protective device with voltage-independent resid-
ual-current triggering as per VDE 0664.
The residual-current protected outgoing feeders (see Figure 5) are used to connect socket-out-
lets or other loads.
The residual-current protection encompasses all devices and cables connected to the residu-
al-current circuit-breaker.
The electrical wiring upstream of the device is not protected.
Operation
Getting the system ready for operation

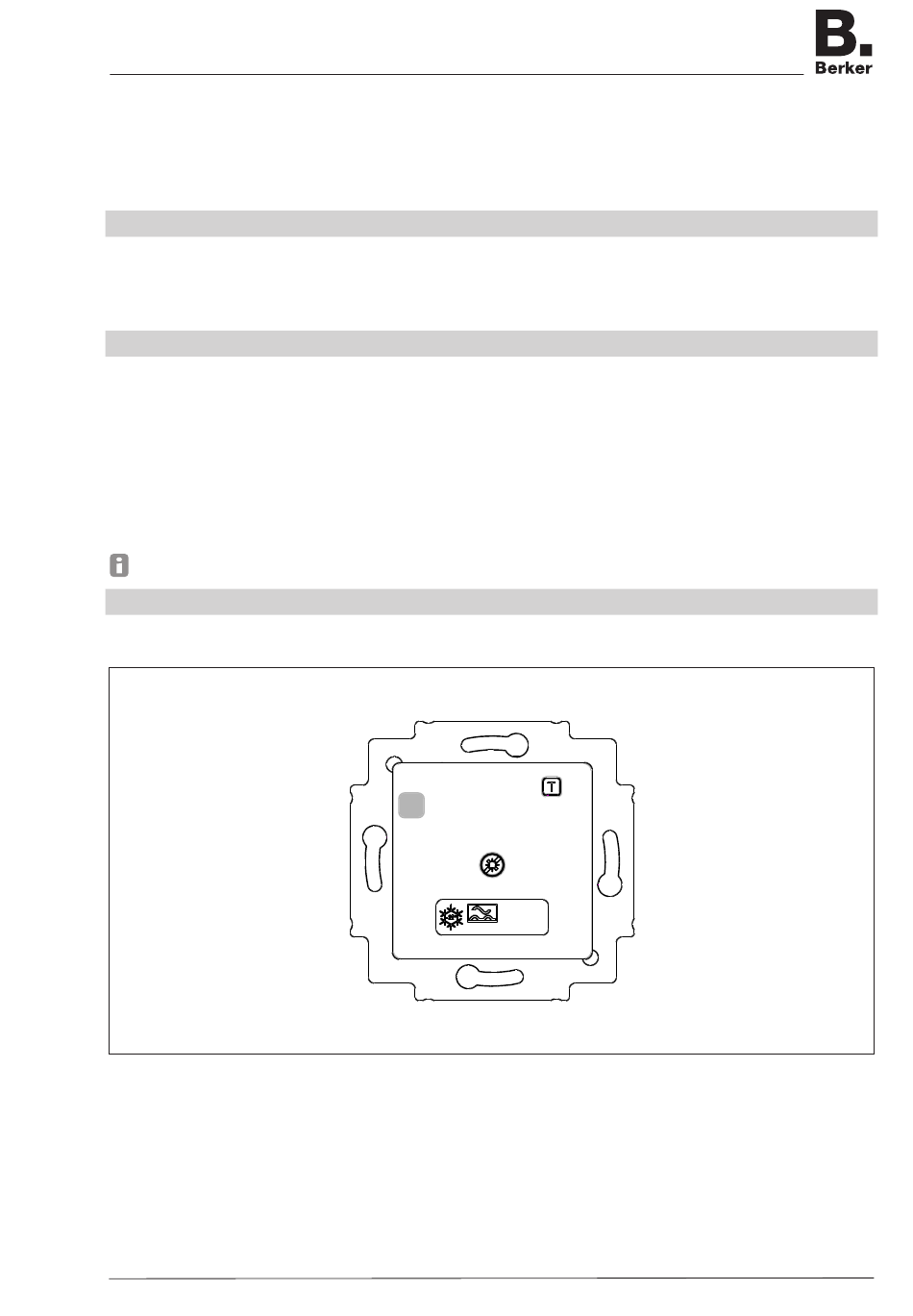

Press push-button ((a), Figure 1).
„
6LE002821A
(a)
(b)
Figure 1
Page 1/5
01-2017
Advertisement
Related Manuals for Berker 2844 01
Summary of Contents for Berker 2844 01
- Page 1 Residual current circuit-breaker Residual current circuit-breaker 2844 01 Operation and installation instructions Safety instructions Electrical equipment may only be installed and assembled by qualified electricians. Failure to comply with these instructions may result in damage to the device, fire, or oth- er hazards.
- Page 2 Residual current circuit-breaker Performing a functional test The functional test must be carried out at regular intervals. Recommendation: 1 x per month The operating voltage is connected. Switch on residual-current circuit-breaker with push-button ((a), Figure 1). „ Voltage is present at the downstream socket-outlets and loads. Press test button T ((b), Figure 1).
- Page 3 Residual current circuit-breaker Connecting the residual-current circuit-breaker The connection mode must be selected according to the design of the power mains. TN-S Figure 3 Figure 4 Connect the residual-current circuit-breaker (see Figure 3, 4). „ Connect additional socket outlets/consumers to the output terminals. „...
- Page 4 Residual current circuit-breaker Disconnecting the terminal leads Figure 5 Press the release buttons ((a), Figure 5) for the corresponding plug-in terminal and pull out „ the terminal leads. Installing the residual-current circuit-breaker The residual-current circuit-breaker is intended for installation in a standard commercial flush-mounted device-connection box according to DIN 49073, part 1.
-
Page 5: Troubleshooting
If you have a warranty claim, please contact the point of sale or ship the device postage free with a description of the fault to the appropriate regional representative. Address of manufacturer Berker GmbH & Co. KG Klagebach 38 58579 Schalksmühle/Germany...
