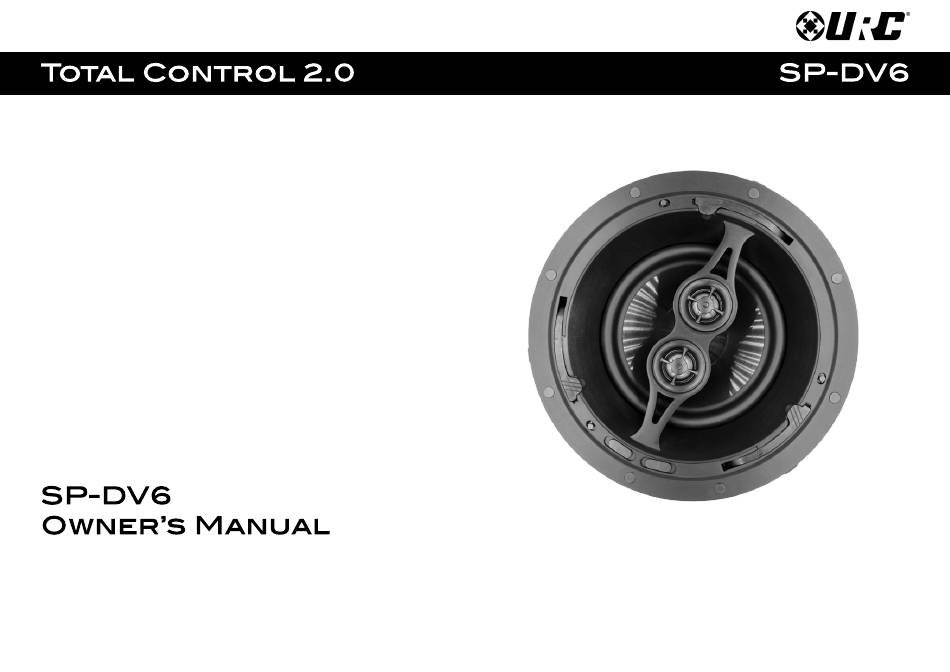

Summary of Contents for URC Total Control 2.0 SP-DV6
-
Page 2: Preliminary Inspection
The following instructions provide detailed procedures for expert installation of URC's architectural speaker systems for maximum performance. URC's architectural speakers have been carefully crafted for easy installation in a variety of residential applications. By following this step-by-step process you will soon enjoy the signature sound that is the hallmark of all URC's architectural audio products. - Page 3 Clamp Design: The SP-DV6 speakers use a clamping lock mechanism that makes installing them into any ceiling quick and easy. Locking Clamps Locking Clamps Release Mechanism Dog Ears...
- Page 4 After you have selected the best speaker location, locate the framing studs or ceiling joists. This is to avoid obstructions when making your speaker cut-outs. Each URC's architectural in-ceiling speaker includes a cut-out template with an outline of the exact hole size.
-
Page 5: Final Installation
Final Installation: Confirm that connecting wires are present at the speaker locations you’ve chosen. You’re now ready for the final installation. It is usually best to turn the speaker over (grill down) and securely hold the outer flange for support. Then return the dog ears to their previous position so they are tight against the frame and won’t interfere when pushing the speaker into the cut-out. -
Page 6: Mission Statement
This warranty covers free parts and and then match them with the desired bass output. labor on all components with the obligation that URC's will repair or replace any component found defective in materials or workmanship. This warranty does not... -
Page 7: Installation Instructions
Template Diameter: Installation Instructions: Prior to installing URC architectural speakers, assure that speaker wire has been run from the equipment or volume control location to each potential speaker location: 1. Determine and select a location for each speaker. Location Considerations:... - Page 8 3. Strip the insulation on each speaker wire approximately ¼” - ½”and insert into the banana plug speaker terminal . Confirm that the positive (+) and negative (-) lines are connected to the appropriate location. Assure that there are no loose wires protruding from the terminal. 4.
- Page 9 5. Insert the speaker into the ceiling. 6. Push the clamps into the speaker. This tightens the dog ears (page 2) and locks the speaker in place.
-
Page 10: Removing The Speakers
Removing the Speakers: The clamp mechanism makes removing these speakers simple: 1. Locate the Release Switch on the front of the speaker, each clamp has a Release Switch. 2. Flip down the Release Switch associated to each clamp. Then pull the clamp away from the speaker, this pushes the dog ears away from the ceiling loosening the speaker. -
Page 11: Speaker Specifications
Speaker Specifications: Speaker Type: In-ceiling, 2-way Woofer: 6.5” injection polypropylene cone Tweeters: Dual, ¾” silk, swivel Power Handling: 5-100 watts Impedance: 8 ohms Frequency Response: 50-20KHz Sensitivity: 91dB EQ Adjustments: Tweeter & woofer -3, 0, +3 Grill Type: Micromesh, Iron Finish Dimensions: 9.45”... -
Page 12: Limitation Of Liability
A. IN NO EVENT WILL URC BE LIABLE FOR ANY DAMAGES RELATING TO THE DEALER’S OR ANY OTHER PARTY’S FAILURE TO PERFORM ITS RESPONSIBILITIES. B. THE LIABILITY OF URC, IF ANY, FOR DAMAGES FOR ANY CLAIMS OF ANY KIND WHATSOEVER AND REGARDLESS OF THE LEGAL THEORY WITH REGARD TO ANY ORDER PLACED BY THE DEALER HEREUNDER, REGARDLESS OF THE DELIVERY OR NON-DELIVERY OF SUCH PRODUCTS, OR WITH RESPECT TO THE PRODUCTS COVERED HEREBY, SHALL NOT BE GREATER THAN THE ACTUAL PURCHASE PRICE OF PRODUCTS WITH RESPECT TO WHICH SUCH CLAIM IS MADE.
