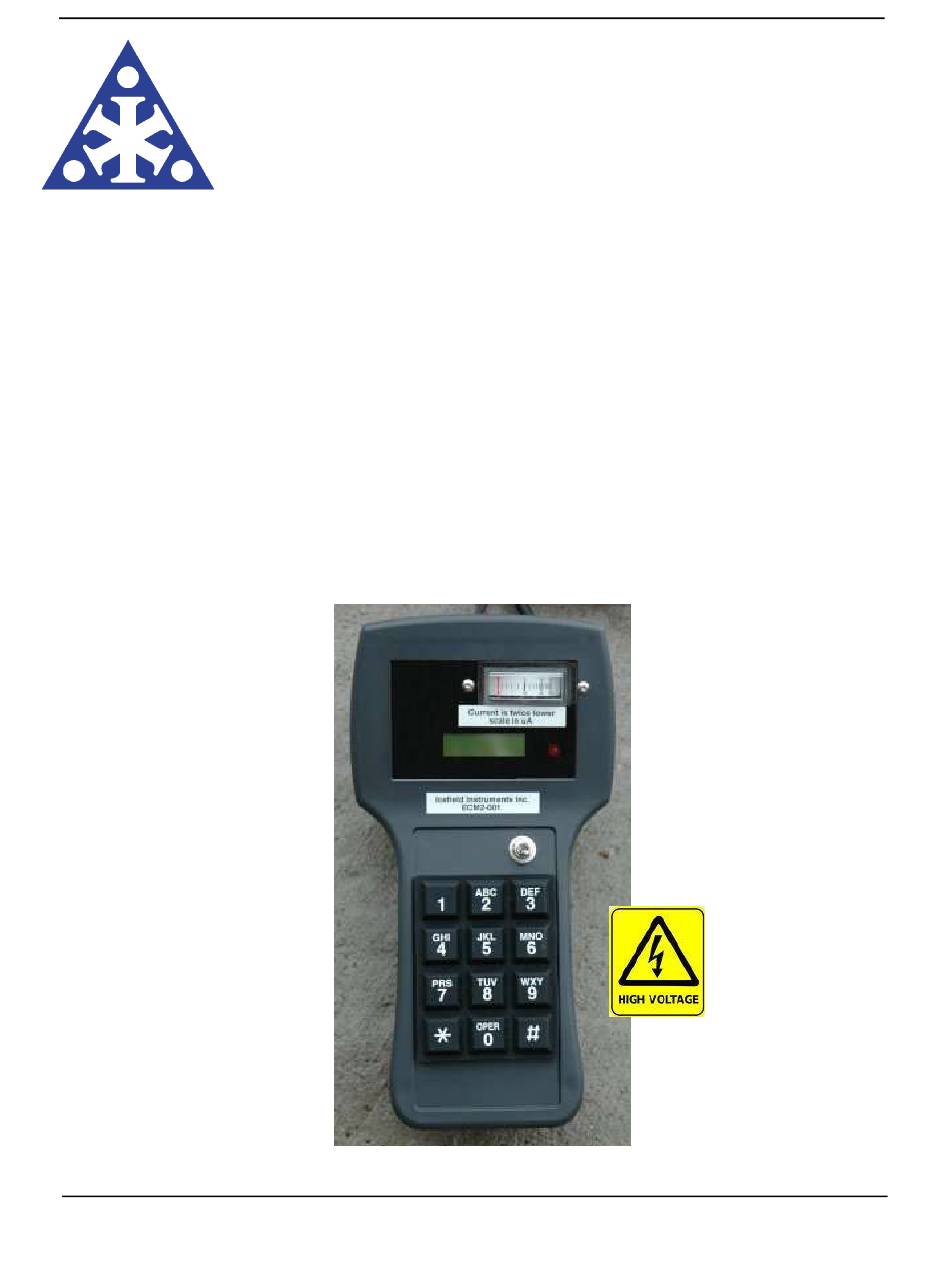

Handheld ECM Unit, Revision 2 and 3
1
Handheld ECM Unit, Version 3
Designed, manufactured and programmed by:
Icefield Instruments Inc.
P.O. Box 30036
Whitehorse, Yukon
Y1A 5M2
tel: +1 (867) 633-4264
fax: +1 (867) 633-4217
e-mail: info@icefield.yk.ca
www: http://www.icefield.yk.ca
rev. 23 January 2019
Icefield Instruments Inc.
www.icefield.yk.ca
23 January 2019
Advertisement
Table of Contents
Subscribe to Our Youtube Channel
Summary of Contents for Icefield Instruments ECM2 Series
- Page 1 Handheld ECM Unit, Revision 2 and 3 Handheld ECM Unit, Version 3 Designed, manufactured and programmed by: Icefield Instruments Inc. P.O. Box 30036 Whitehorse, Yukon Y1A 5M2 tel: +1 (867) 633-4264 fax: +1 (867) 633-4217 e-mail: info@icefield.yk.ca www: http://www.icefield.yk.ca rev. 23 January 2019 Icefield Instruments Inc.
-
Page 2: Table Of Contents
Set clock ........................13 5.2.2 Check battery ......................13 5.2.3 Collect Data ....................... 13 5.2.4 Clear Memory ......................14 The r3 ECM software ......................14 Battery data ..........................15 Lifetime .......................... 15 Transport ........................15 Icefield Instruments Inc. www.icefield.yk.ca 23 January 2019... -
Page 3: Introduction
The maximum ECM current that can be measured by this unit is: r2 ECM: 50 μA. r3 ECM: 100μA (analogue meter limited to 50μA) • The sampling rate for the ECM is as follows: r2: approximately 5Hz r3: 6.25Hz Icefield Instruments Inc. www.icefield.yk.ca 23 January 2019... -
Page 4: Operating Instruction
The keys 2-9 have their letters printed on them (as on a North American telephone keypad). Additional characters are associated with the 1 and 0 keys (punctuation and other letters, respectively) as per the following table: Icefield Instruments Inc. www.icefield.yk.ca 23 January 2019... -
Page 5: Serial Port
These commands perform the following operations: • display clock • set clock • set line frequency rejection mode (r2 only) • configure encoder (r3 only) • clear data storage memory • retrieve data Icefield Instruments Inc. www.icefield.yk.ca 23 January 2019... -
Page 6: Special Commands
WARNING: The electrode voltage is potentially lethal – take extreme caution. r2, r3 Turn off high voltage r2, r3 Set time using keyboard r2, r3 Collect ECM data r2, r3 Clear ECM memory Icefield Instruments Inc. www.icefield.yk.ca 23 January 2019... -
Page 7: Ecm Setup
Syncromesh® cable through the encoder and idle pulleys such that the cable is on the other side of the encoder (and the encoder therefore turns in the opposite direction). Icefield Instruments Inc. www.icefield.yk.ca 23 January 2019... - Page 8 For the factory-installed wheel, the value is 57150μm (57.15mm). After entering these values, the stored values will be echoed back to you. Note that the ECM will automatically multiply the pulses-per-revolution value by 4. Icefield Instruments Inc. www.icefield.yk.ca 23 January 2019...
-
Page 9: Running An Ecm Survey
Note that the encoder is always zeroed when a survey is started, so this black reset button does not normally need to be used. Icefield Instruments Inc. www.icefield.yk.ca 23 January 2019... -
Page 10: R3 Wand Wiring
The wiring for the r3 ECM wand is as follows: Function Encoder phase B Encoder phase A Ground Normally-open high voltage button, grounded when pressed. +5VDC encoder supply voltage Normally-open encoder zero button, grounded when pressed. Wand LED (no series resistor) Icefield Instruments Inc. www.icefield.yk.ca 23 January 2019... -
Page 11: The R2 Ecm Program
5 The r2 ECM program The ECM program is used to download data from the ECM unit. It can also be used to set the clock on the ECM unit and to clear its memory. Icefield Instruments Inc. www.icefield.yk.ca 23 January 2019... -
Page 12: Setup
“Prolific USB-to-Serial Comm Port” (in this case COM18). The “Select Driectory” button lets you select the directory where you want data to be stored on your computer when it is downloaded Icefield Instruments Inc. www.icefield.yk.ca 23 January 2019... -
Page 13: Operation
The heading information is clear (numbers in brackets indicate raw digitizer values). The columns of data represent: Column Meaning Position in m Current in micro-Amps Error flag (should be zero) Raw current digitizer value Icefield Instruments Inc. www.icefield.yk.ca 23 January 2019... -
Page 14: Clear Memory
To clear the memory, you must answer YES to the first question and NO to the second. There is a confirmation message that memory has been cleared. 6 The r3 ECM software Documentation not complete. Icefield Instruments Inc. www.icefield.yk.ca 23 January 2019... -
Page 15: Battery Data
(International Commercial Aviation Organization) special provision A67. • Marine transport: IMO (International Maritime Organization) and IMDG (International Maritime Dangerous Goods) special provision 238. • Transport by truck and rail (USA): Meet the requirements of DOT 49 CFR 173.159(d). Icefield Instruments Inc. www.icefield.yk.ca 23 January 2019...
