Summary of Contents for Badeloft AT-05

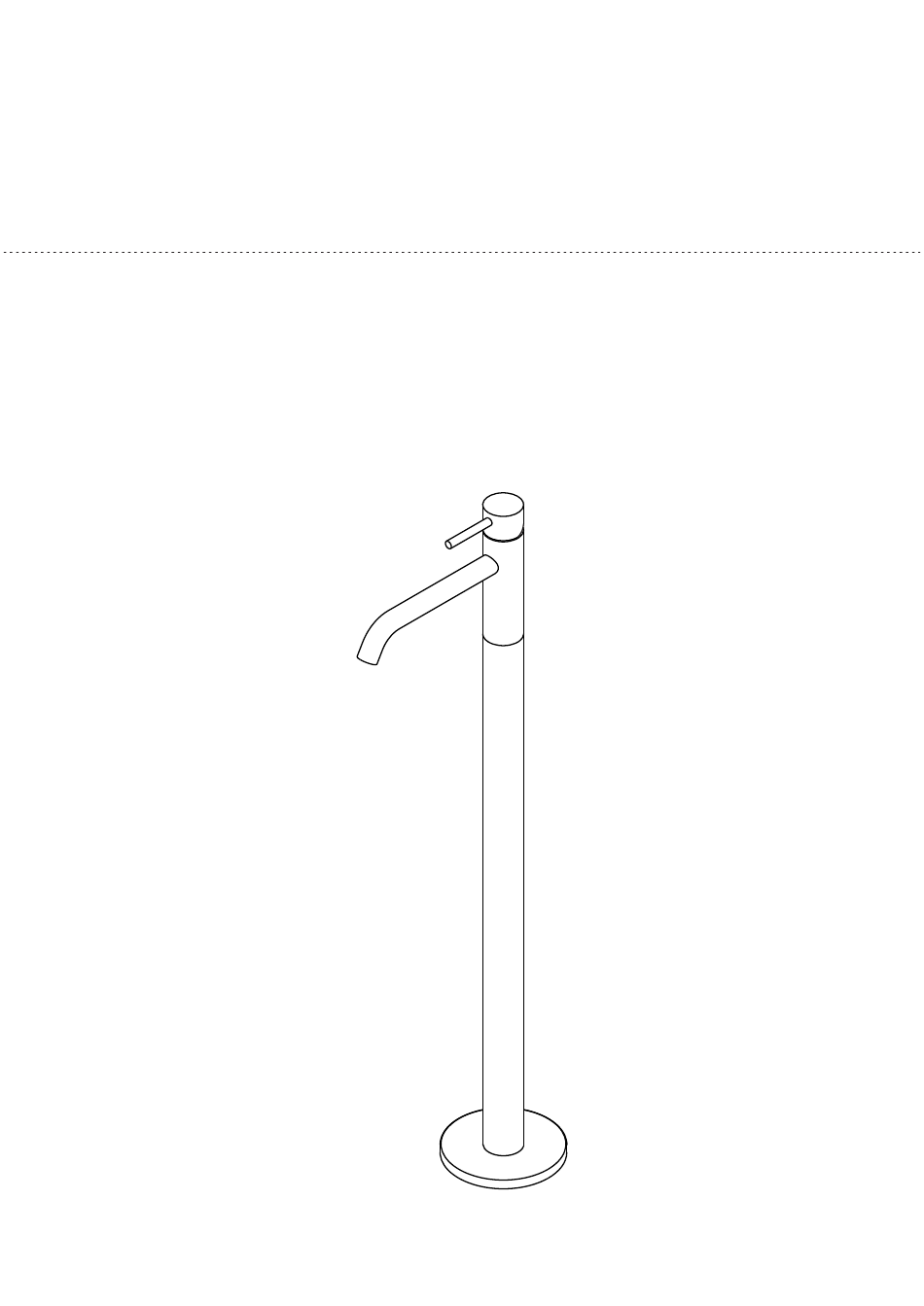

- Page 1 Installation Instructions Badeloft AT-05...
-
Page 4: Checking List
Checking List Name QTY. body connection pipe S2.5mm hex.wrench water inlet pipe M5x15 hex bolt M5 washer water test base rubber ring rubber water stop dustproof cover fixing nut rosette expansion anchor bolts underground box manual water pipe S4mm hex wrench specifications: water pipe thread: G1/2 working pressure: 0.1Mpa~0.5Mpa... - Page 5 disassemble and take out put the dustproof cover on hot water cold water fix the position of the tap basin underground parts installation...
- Page 6 Ø10 depth 40 fix the screw position cold connect water pipes highest underground level lowest underground level fasten the bolts after adjusted the level underground parts installation...
- Page 7 adjust again the level after fasten the bolts. cold take off the cover cold install water test spareparts underground parts installation...
- Page 8 turn the water on under pressure 0.8Mpa, keep for 30min to be sure no water leak. Caution: please decompress the water before unfasten the screw. turn off the water, take off the testing spare parts. install pipe cleaning spare parts. underground parts installation...
- Page 9 turn on the valve to let water flush to clean the water pipes turn off the valve, take out the pipe cleaning spare parts. cold put on the cover underground parts installation...
- Page 10 paving tiles, use silicon to close the gaps. after everything dried, cut off the upper ground parts. take off the cover underground parts installation...
- Page 11 ① put on the rosette be careful to avoid scratches. ② Fasten the brass nut onto the body, use thread glue if necessary. ① ② ② ① insert the 2 water pipes in the tap into the holes in the plastic box ①...
- Page 12 push the rosette smoothly down to the ground Lift up the handle to turn on the tap. turn left to hot water. turn right to cold water. taps installation...
