On/off ac line switch kit

Advertisement

RSMKOOS ON/OFF AC LINE SWITCH KIT (STOCK NO. 136-3127)
Read the Safety Warning, on page 5, in the RSMK24DF Installation and Operation Manual, before proceeding.

Items Included in this Package

On/Off AC Line Switch (prewired and containing a Hex Nut), Hardware Bag (containing an Open Ended Wrench and a Knurled Ring Nut), and
Installation Instructions.

DESCRIPTION

The On/Off AC Line Switch is used to turn the power on and off to the drive. The switch assembly is designed to be mounted inside the drive,
on the mounting bracket provided. The switch has a hex nut, installed at the base of the bushing, which is not to be removed, but may be
adjusted, if desired, to set the amount of bushing that protrudes through the cover when the switch is installed. The round switch nut, provided,
is used to secure the switch onto the mounting bracket before connecting it to the terminals on the drive's PC board. The instructions below
outline the installation of the On/Off AC Line Switch.
Tools Required: #2 Phillips Screwdriver and 9/16" Open Ended Wrench (supplied).
DISCONNECT MAIN POWER TO THE DRIVE BEFORE PROCEEDING WITH INSTALLATION
1

REMOVING THE COVER

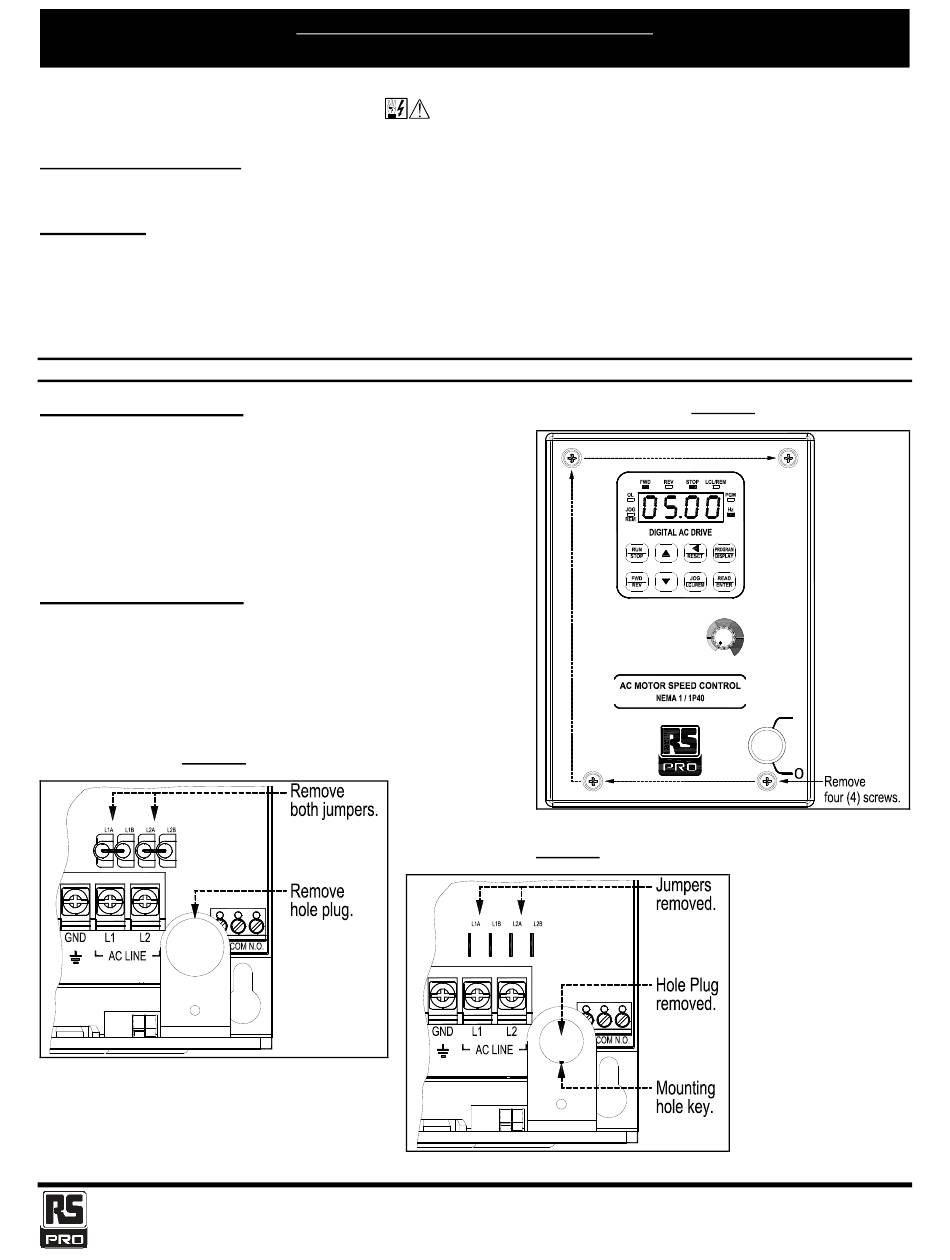

Use the Phillips screwdriver to remove the four (4) 6-32 X 3/8" cover screws,
shown in Figure 1.
Carefully slide the cover off until it is disengaged from the base. Lay the cover
upside down on the left side of the base.
Note: The drive contains a ribbon cable which connects the drive's PC board
to the keypad. When removing the cover, use care so the ribbon cable does
not get pulled off its connector.
2

PREPARING THE DRIVE

Remove the hole plug that is installed in the mounting bracket. Remove both
line jumpers that are installed on the drive's PC board Terminals L1A / L1B and
L2A / L2B.
Figure 2 shows the location of the hole plug and the line jumpers.
Figure 3 shows the hole in the mounting bracket with the orientation key and
location of the terminals to connect the switch.
FIGURE 2
LOCATION OF HOLE PLUG AND LINE JUMPERS
RS Components Ltd.
PO Box 99, Corby, Northants. NN17 9RS
United Kingdom
www.RSPro.com
INSTALLATION INSTRUCTIONS
– For Use with Drive Model RSMK24DF (Stock No. 136-3112) –
SAFETY WARNING!
HOLE PLUG AND LINE JUMPERS REMOVED
FIGURE 1
FRONT COVER
FIGURE 3
(A40340) – Rev. A00 – 6/19/2017
I
© 2017 RS Components Ltd.
Page 1 of 2

Advertisement

Table of Contents
loading
Need help?

Need help?

Do you have a question about the RSMKOOS 136-3127 and is the answer not in the manual?

Questions and answers

Summary of Contents for RS PRO RSMKOOS 136-3127

  • Page 1 INSTALLATION INSTRUCTIONS RSMKOOS ON/OFF AC LINE SWITCH KIT (STOCK NO. 136-3127) – For Use with Drive Model RSMK24DF (Stock No. 136-3112) – SAFETY WARNING! Read the Safety Warning, on page 5, in the RSMK24DF Installation and Operation Manual, before proceeding. Items Included in this Package On/Off AC Line Switch (prewired and containing a Hex Nut), Hardware Bag (containing an Open Ended Wrench and a Knurled Ring Nut), and Installation Instructions.
  • Page 2 INSTALLATION INSTRUCTIONS RSMKOOS ON/OFF AC LINE SWITCH KIT (STOCK NO. 136-3127) – For Use with Drive Model RSMK24DF (Stock No. 136-3112) – MOUNTING THE SWITCH FIGURE 4 Before mounting the switch, use the 9/16" wrench to loosen the hex nut, located at the PARTS AND MOUNTING ASSEMBLY base of the switch bushing.
