BAS -6104 Venus Quick User Manual

TV Antenna Outdoor
Omnidirectional for Vehicles

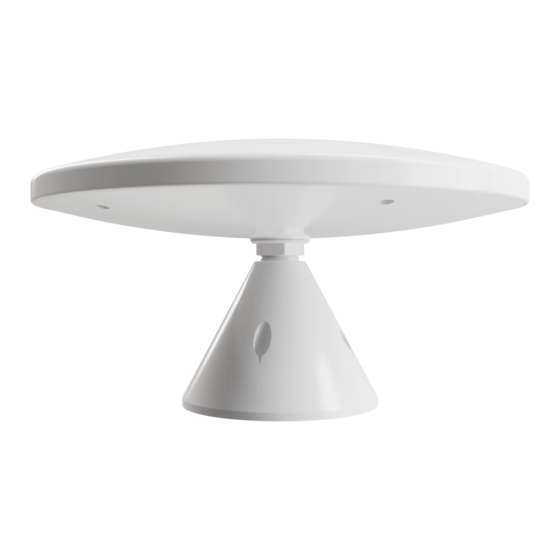

BAS-6104 Venus VHF&UHF + FM
QUICK USER GUIDE
Thank you for choosing our TV outdoor antenna BAS-6104 Venus VHF&UHF!
This model is developed by a team of engineers striven to continue the traditions of excellence
and innovation of REMO-Technologii products. Based on a thoroughly thought through design
the antenna is made only of high-quality materials.

Features:

- Compatible with HDTV (DVB-T, DVB-T2, ATSC, ISDB-T, FreeTV, etc.) and FM radio.
- Built-in high-gain low-noise ampli er, shielded to eliminate radio interference.
- VHF&UHF TV-signal reception from every direction regardless of where you are traveling.
- SMD technology and micro-electronics ensure excellent antenna performance.
- Built-in ltering of signals 2G, 3G, LTE, WiFi and other radio-frequency interference.
- Waterproof design, made of UV resistant ABS material
- Receiving range of TV signal is up to 80 miles
Technical Speci cations:
Band: VHF — 170..230MHz, UHF — 470..790MHz, FM — 64..108MHz
Gain: VHF — 12dB, UHF — 30dB, FM — 12dB
Direction — omnidirectional
Power Supply — DC 11..28V 100mA
Size — 320x320x165mm
Weight — 0.850kg

In Box:

Antenna (with cable) — 1 pc.
Mount Stand — 1 pc.
Locking Nut — 1 pc.
Sealing Cup — 1 pc.
Sealing Ring — 1 pc.
Mounting Screw — 4 pc.
F-F connector — 1 pc.
Injector — 1 pc.
User Guide — 1 pc.

Installation:

Step 1: Decide on location of power supply before mounting your antenna. Antenna and
power supply location will determine where and how you run the cables.
DO NOT install the antenna before you read this instruction.
Step 2: Drill a hole thru the roof to run cable from the antenna into your vehicle. Or if your
vehicle have a cable hole already, run the cable thru the hole to the antenna.
Step 3: Use 4 mounting screws to securely fasten the antenna mount to the roof. Do not over
tighten the screws to avoid damage to the mounting stand or the roof.
Step 4: Use cable tool to drive the cable into the mounting bracket on the bottom side of the
antenna, aligning the end of the connector with the F connector on the antenna.
Step 5: Slide antenna onto the mount. Gently pull back any extra cable inside the vehicle.
Step 6: Fasten antenna to mount and tighten hex nut. Tighten rmly to prevent antenna
from turning on mount.
Step 7: Run the coaxial cable (Type RG-6/U, SAT-50, SAT-703 etc.) inside the vehicle.
Step 8: Connect the coaxial cable to the antenna and to the power injector.
Step 9: Connect power injector to your power supply: red wire to the positive (+) terminal of
power supply 11-28 Volts DC, black wire - to ground or negative (-) terminal of the power
supply.
Step 10: Connect coaxial cable (with label "TV set") from the power injector to TV set.
Step 11: Connect coaxial cable (with label "Radio") from the power injector to car radio.

Uninstalling the antenna and retaining the antenna mount:

Step 1: Disconnect the coaxial cable and F-F connector.
Step 2: Loosen hex nut and remove the antenna from the mount.
Step 3: Gently pull an extra cable out of the vehicle.
Step 4: Fasten the cup to mount and tighten hex nut.
REMO-Technologii, LLC., P.O.Box 500, Saratov, 410052, Russia
www.remo-electronics.com, info@remo-electronics.com, +7 (8452) 495-232, 495-242

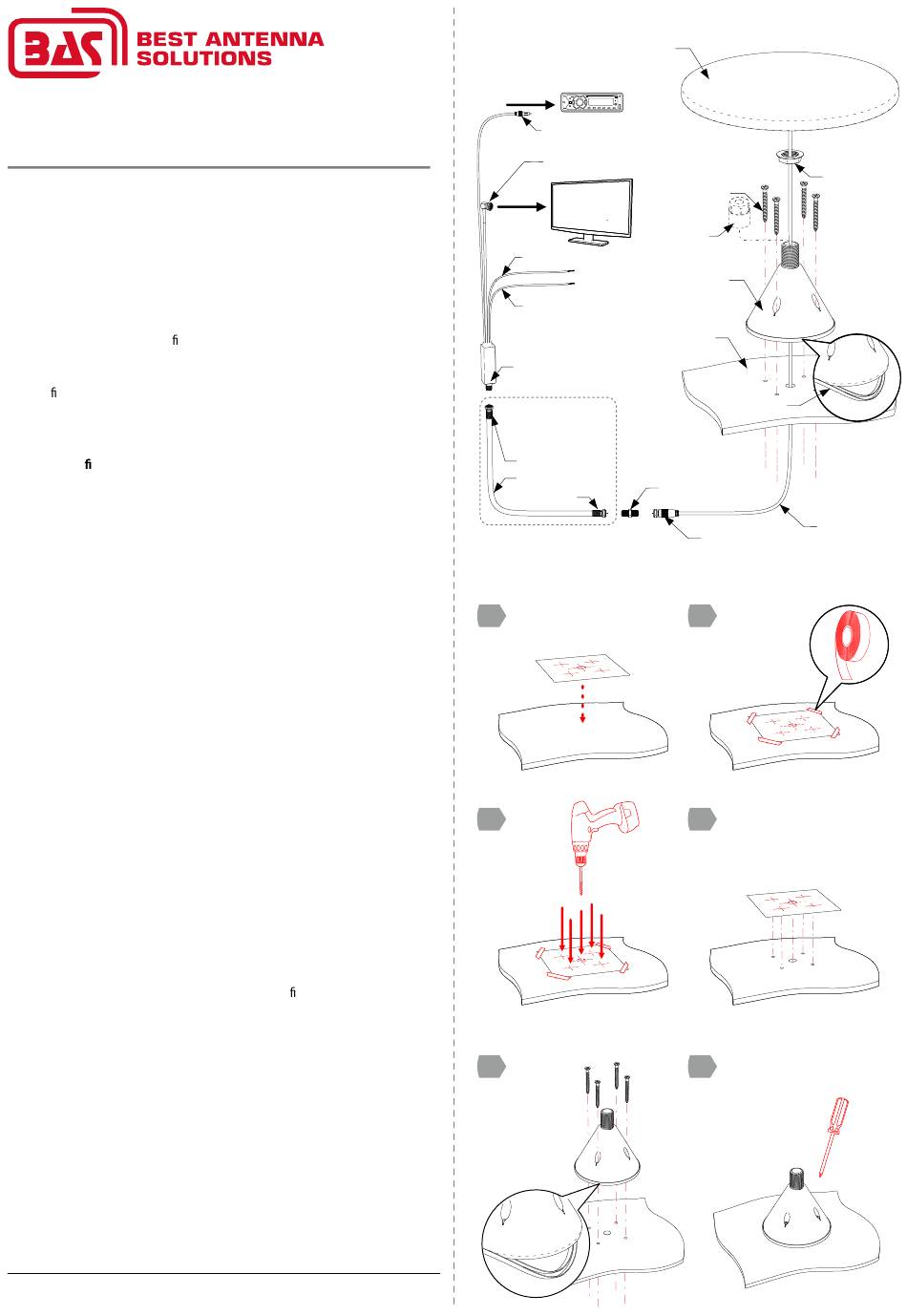

Antenna Installation & Connections Diagram
Antenna
to Car Radio
DIN 41585 (male)
F-connector (for USA)
TV-plug (for EU and other countries)
to TV-set
Red Wire - 11..28V DC
Mounting Stand
Black Wire - Ground
Injector
Purchased
Separately
F-connector
Coaxial Cable
F-connector
1
Set the template
3
5
Check the presence
of the sealing ring!
Mounting Screw
Sealing Cup
Vehicle Roof
Sealing Ring
F-F connector
F-connector

Installation Antenna Mount Diagram

2
4
Remove the template
6
Fasten antenna mount
to the roof
Locking Nut
Coaxial Cable
