CONFIGURATION AND INSTALLATION MANUAL
GENPLEX 3G, 10G & 12G REPEATER
REGEN REPEATER
MultiDyne Product for Single and Double Fiber Solutions
MultiDyne
Harnessing The Power of Light
10 NEWTON PLACE
HAUPPAUGE, NY 11788 USA
(877) 685-8439 / (516) 671-7278 / FAX (516) 671-3362
sales@multidyne.com
www.multidyne.com
Advertisement
Table of Contents
Summary of Contents for MultiDyne GENPLEX Series

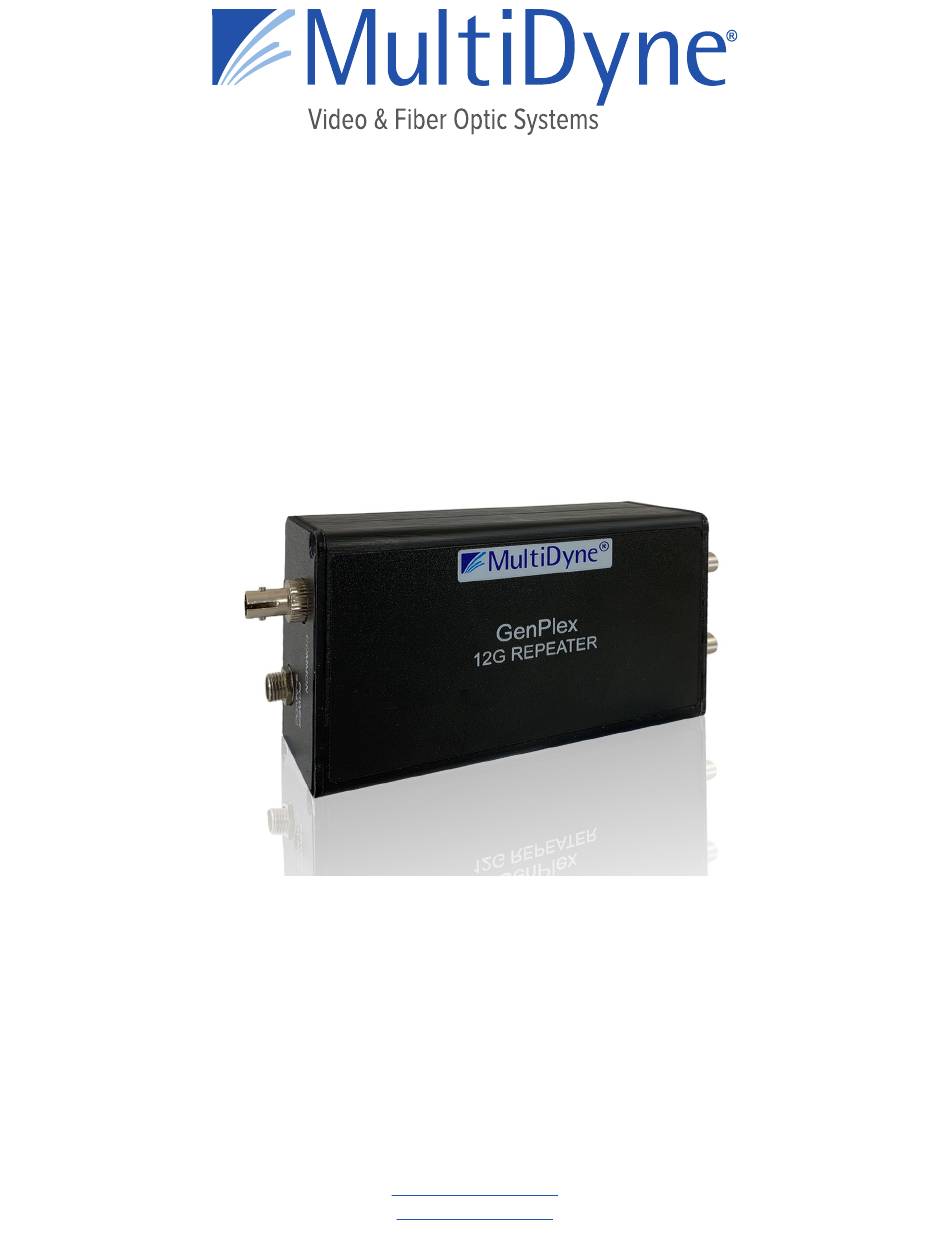

- Page 1 CONFIGURATION AND INSTALLATION MANUAL GENPLEX 3G, 10G & 12G REPEATER REGEN REPEATER MultiDyne Product for Single and Double Fiber Solutions MultiDyne Harnessing The Power of Light 10 NEWTON PLACE HAUPPAUGE, NY 11788 USA (877) 685-8439 / (516) 671-7278 / FAX (516) 671-3362 sales@multidyne.com...
- Page 2 MULTIDYNE, the Multidyne logo, are registered trademarks of MULTIDYNE Electronics, Inc. Copyright 2019 MULTIDYNE Electronics, Inc., Hauppauge, New York. Printed in the United States of America. All Rights Reserved. Contents of this publication may not be reproduced in any form without the written permission of MULTIDYNE Electronics, Inc.
-
Page 3: Important Safety Information
Local or State Inspector. • All servicing of MultiDyne equipment must be perform at the factory by a MultiDyne trained service technician or engineer. • Throughout this manual, a number of Warnings and Cautions and Notes may be presented to alert the user to important safety or operating information. -
Page 4: Table Of Contents
INSTALLATION ........................3 Tools and Equipment Needed ..................... 3 Network Configuration ....................... 3 Mounting ..........................4 Optical Budget ........................4 Connections ........................4 TECHNICAL SPECIFICATIONS ....................5 GenPlex Mechanical, Environmental ................... 5 © 2019 MultiDyne, Inc. Made in the USA November 2019... -
Page 5: Introduction
Bag of connectors and connecting hardware needed to complete installation. Carefully remove the repeaters from packaging and place onto stable flat surface. Packaging material should be recycled as appropriate to local area requirements. © 2019 MultiDyne, Inc. Made in the USA November 2019... -
Page 6: Fuctional Description
Regen repeater is shown in the table below. Model External Internal Number Connections Configuration 2 1310 SFP Camera/HUT Side RGX-10G-40-ST4-A 1 WDM 35km Distance 2 1310 SFP CCU/HUT Side RGX-10G-40-ST4-B 1 WDM 15km Distance © 2019 MultiDyne, Inc. Made in the USA November 2019... -
Page 7: Installation
AMP OUT CONNECTION HUT CP GenPlex GenPlex HUT BS OPTICAL IN OPTICAL IN SMPTE SMPTE CONNECTION HUT CP ReGen ReGen HUT BS SMPTE SMPTE CONNECTION HUT CP ReGen HUT BS © 2019 MultiDyne, Inc. Made in the USA November 2019... -
Page 8: Mounting
Plug the AC/DC Power Cord Converter connector into the GenPlex unit at POWER 9-24VDC and secure. Plug the other end of the converter cord into wall or suitable Power Strip/Surge Suppressor. HUT CAMERA SIDE ReGen Model A ReGen Model B HUT BASE SIDE TO CCU TO CAMERA FROM CCU FROM CAMERA © 2019 MultiDyne, Inc. Made in the USA November 2019... -
Page 9: Technical Specifications
TECHNICAL SPECIFICATIONS Mechanical, Environmental Dimensions L 5.625 x W 2.625 x H 1.625 inches Operating Temperature 0 to 50 deg C Power Requirement 9 – 18 VDC Optical Connectors 3 ST © 2019 MultiDyne, Inc. Made in the USA November 2019...
