Koso BA045100 Instructions

● Thank you for purchasing KOSO GPS Lap Timer. Before operating this unit, please read the instruction thoroughly and retain them for
future reference.
Notice
● This product only functions with DC 12 V.
●Any damages caused by faulty installation shall be imputed to the users.
●To avoid a short circuit from occuring, do not pull or modify the wires during installation.
●Disassembling the instrument will void any warranty. Maintenance and repairs should be executed by our professionals only.
◎ About GPS
●Global Positioning System, GPS is a system that developed and managed by the United States Department of Defense. The system consists of
24 GPS satellites. Only 3 of which are needed in order to provide accurate positioning, speed detection and high precision time for most
locations. The more satellites received, the more accurate each location will be decoded.
●Positioning accuracy control and system functions: due to policy consideration and national security, the U.S. reserves the right to
control the systems functions and positioning accuracy without advanced notice or any notification at all. Weather conditions, as well as,
environment and terrain will affect normal reception of satellite signal.
●Satellite signal cannot be received in the following environmental and terrain conditions: at the bottom of hills, tunnels, underpasses,
between high buildings and in dense forests.
◎ MARK SYMBOL:
Some procedures must be followed in order to avoid faulty installation.
WARNING! Some procedures must be followed in order to avoid damages from occuring to yourself and others.
CAUTION! Some procedures must be followed in order to avoid damages from occuring to the vehicle.

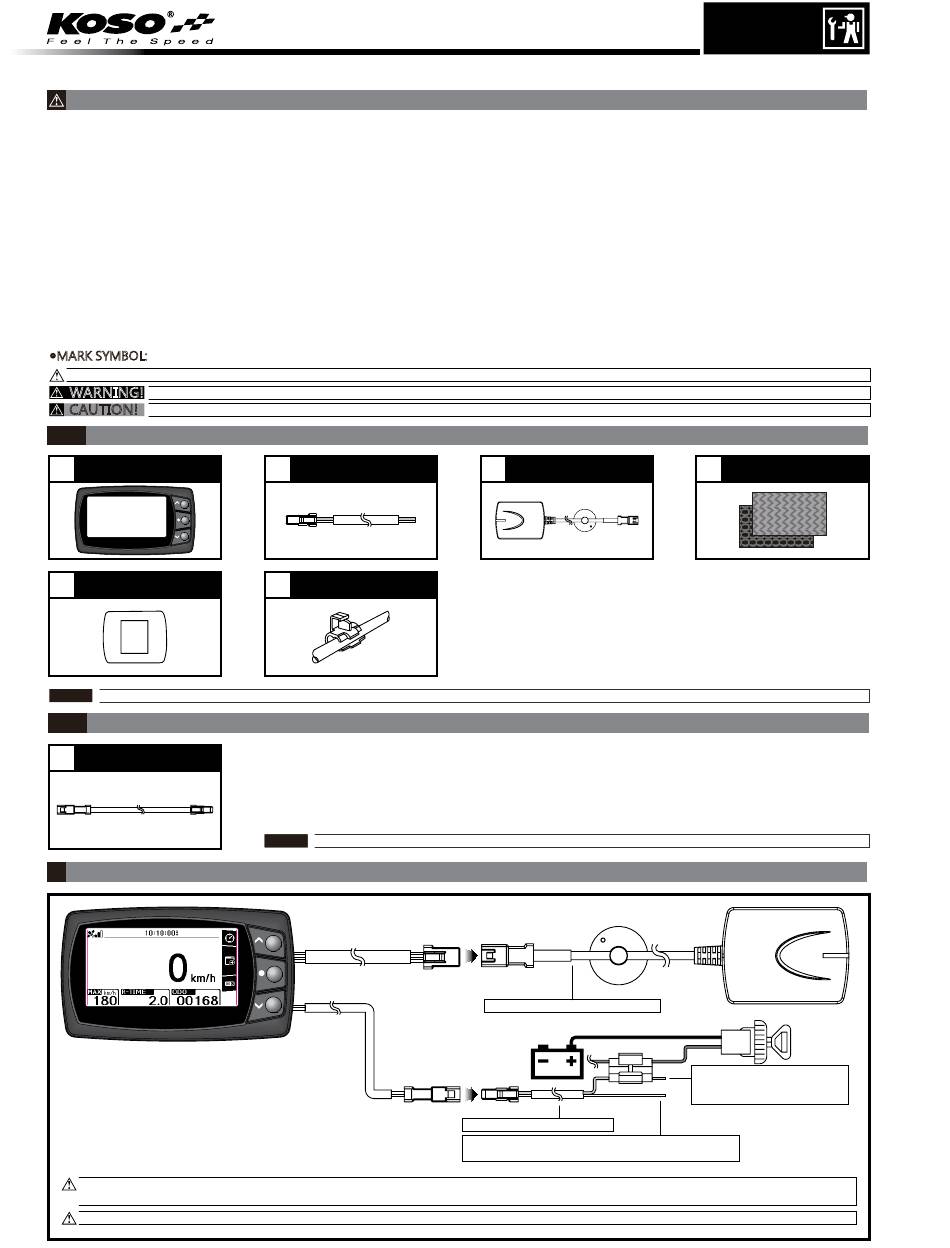

1-1 Accessories
1

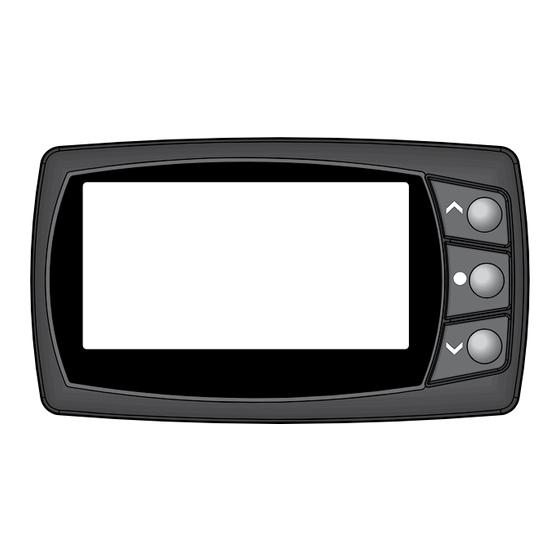

Meter X 1
5 GPS double sided tape
for antenna X 1
Contact your local distributor if the items you received are not the same as the items listed above.
NOTE
1-2 Optional accessor ies
GPS antenna signal
1
cable (2M)
2 Wiring installation instructions
Do not install the GPS antenna inside the vehicle, because windshield heat isolation film will result in poor signal reception. It is
recommended to be installed on top of the vehicle.
GPS antenna should not be in contact with cell phones and transceivers, because that could cause signal reception problems.
I N S T R U C T I O N S
2
Power wire X 1
6
Mid-way connect X 2
For more information on the optional accesories, contact your local distributor.
NOTE NOTE
3
GPS antenna X 1
GPS antenna (Accessory 3)
Power wire (Accessory 2)
Black / Ground wire connect to the vehicle
body or the engine (It must be a good ground)
4
Velcro X 1
Power wire (Accessory 2)
Red / Postive pole (Connect
to the battery DC 12V)
3-1
Cloc
●Se
●A
zo
GPS
AVE
●Re
●Re
Top
Re
●
●Re
3-2
●Sp
○D
○O
○Tr
○AV
○Ri
○To
●G
○Co
●Ti
●Ca
●Cl
●Vo
●D
●Ba
ad
3-3
