OPERATING INSTRUCTIONS (Circular Motion)

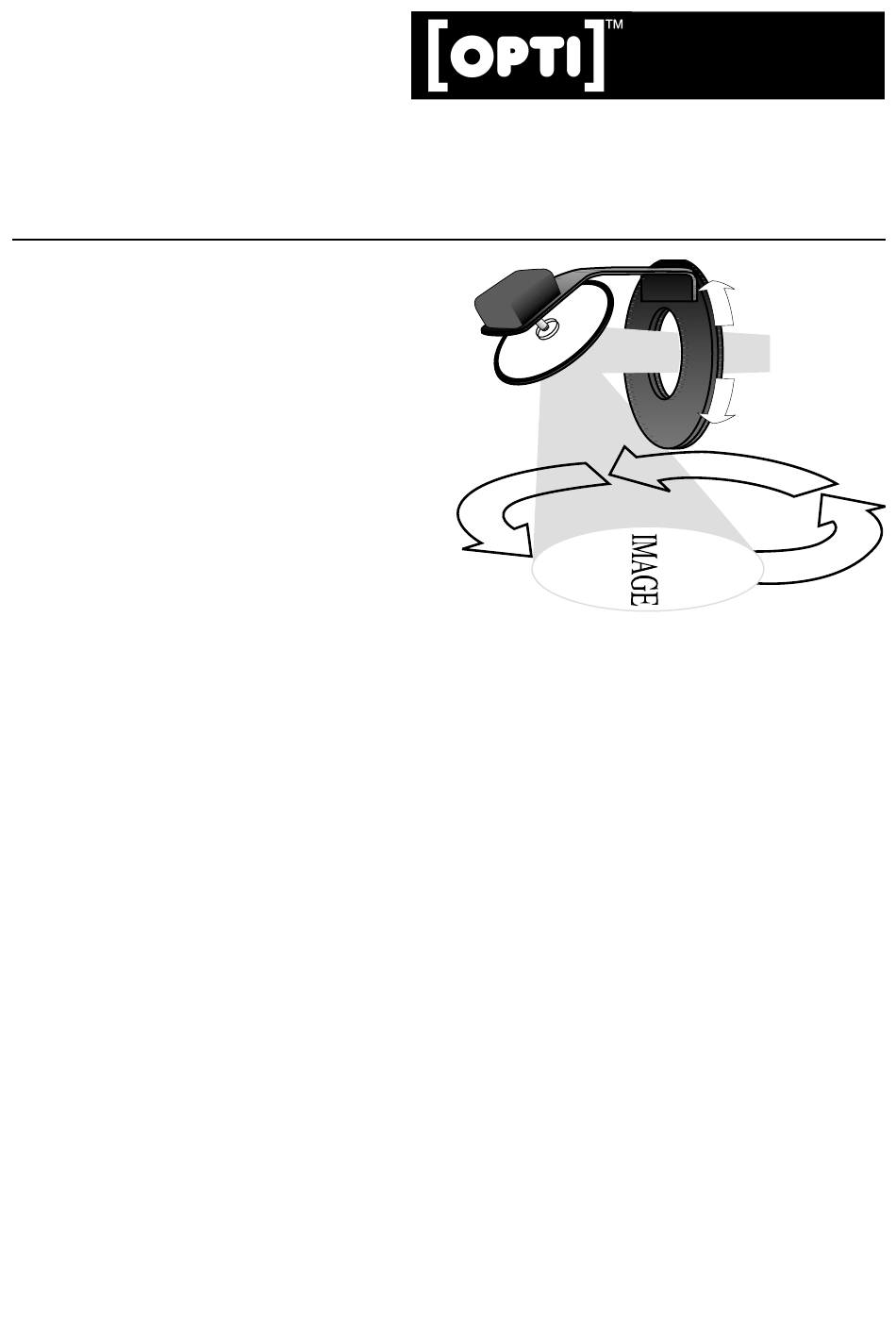

The OPTI K Range Circular Motion Mirror moves an
image in an adjustable circular orbit which can be
positioned at any angle through 360°.
POWER SUPPLY
PROJECTORS
The K range of Effect Projectors. K2, K2+, K4 and K1 if
fitted with adjustable rails. Also fits the Solar 250 with
K Mirror Mounting Brackets (FG2029).
LENSES
60mm, 85mm, 100mm and zoom lenses. Wider angle
lenses like the 45mm and 25mm are not suitable.
FITTING TO A PROJECTOR
1a. K Range
i) Check length of rails on projector. If necessary,
adjust to appropriate length to accommodate the
mirror by loosening the rail knobs.
ii) Loosen knobs on the angled legs of the mirror
cradle.
iii) Insert angled sections into the 'T' section of
the projector's rails. Re-tighten knobs.
1b. Solar 250
i) Fix mounting brackets to side of projector.
ii) Substitute flat ended nylon spacers for the
scooped saddle washers supplied with the mirror.
iii) Insert thread of knobs on angled legs into the
'U' section of the mounting brackets with the
angled metal sections above and spacers below.
iv) Tighten knobs.
2. Loosen the adjuster knob on the 'ring cradle' to
rotate whole mirror assembly to desired position
and then re-tighten.
3. Switch on projector with effect in the gate.
4. Tilt mirror by hand to approximately 45° and
focus the projected image by adjusting lens.
5. Tighten rails, lens and mirror fixings.
6. Fit plug into one of the 12V~ sockets on the side
of the Effects Projector. The mirror will now
start to operate.
7. Tilt mirror, by hand, to achieve the desired orbit.
12V~
K Mirror
IMPORTANT NOTES
AN EFFECT MUST ALWAYS BE IN THE GATE OF
THE PROJECTOR WHEN IN USE.
READ THE EFFECT PROJECTOR MANUAL OR
INSTRUCTIONS AND THIS INSTRUCTION
SHEET BEFORE USE.
IF SUSPENDED ATTACH A SAFETY CHAIN TO
THE EFFECTS PROJECTOR AND MIRROR.
DO NOT OPERATE IN DAMP OR WET CONDITIONS
OR ALLOW WATER TO ENTER.
DO NOT OPERATE IF GLASS IS CRACKED.
DO NOT ATTEMPT TO SERVICE THE MIRROR
OR PROJECTOR UNLESS YOU ARE QUALIFIED
AND WORKING UNDER THE DIRECTION OF
THE MANUFACTURER OR THEIR AGENT.
CLEANING
Cleaning can be done in-situ but is best done with the
mirror removed from the projector with the rubber
beading around the mirror also removed. Use a soft
tissue or lens cloth with a little methylated spirit or
pure alcohol.
CHANGING
1. Remove screw from back of mirror which attaches
it to the motor arm.
2. Replace with new mirror in reverse procedure.
360°
