Summary of Contents for TechniSat DigitRadio 100

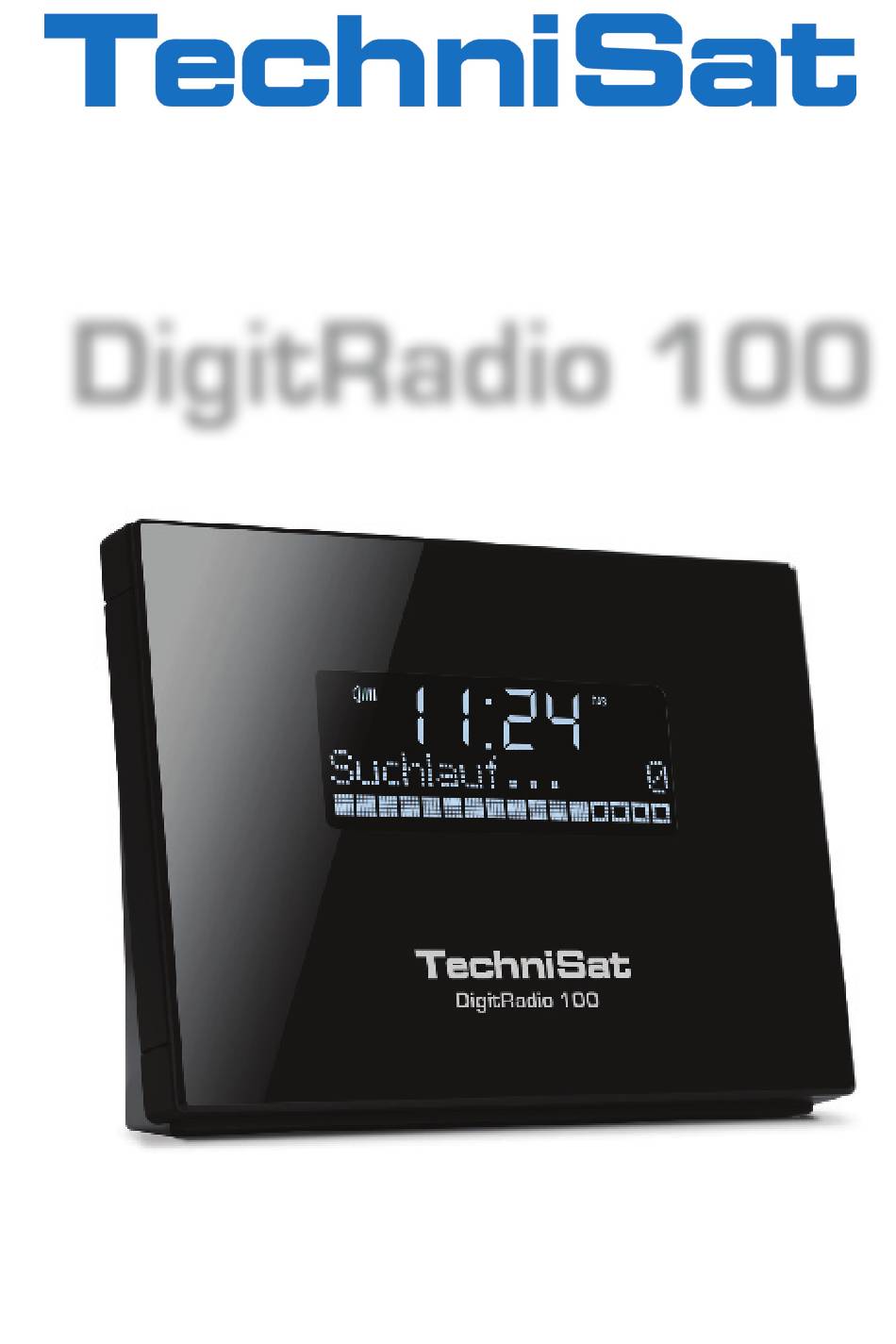

- Page 1 Manual DigitRadio 100 Digitalradio Adapter for DAB/DAB+...
-
Page 2: Table Of Contents
Contents Pictures Safety of the appliance Security Setting up the device Disposal Guidelines and standards Properties of the device Preparing the device for operation Improve antenna reception Usage of headphones The way of replace batteries: DAB mode What is DAB? DAB Mode Turn on Shift to another DAB/DAB+ Station... - Page 3 Bluetooth Mode Shift to Bluetooth mode Pairing with Bluetooth devices To perform pairing with a Bluetooth device To pair additional devices Clearing memory General Settings Set Sleep Set Time Set Alarm Postpone Alarm: Turn off Alarm: To cancel the Alarm: Set Language SW Version Factory Reset...
-
Page 4: Pictures
Pictures Line out It is for inserting 3.5mm earphone. socket: Connect to DC adaptor. Power cord Socket: Please use the power adaptor provided by manufacturer only. Antenna Connect to the provided antenna. socket: Press to turn on radio, press again to standby mode. Power button... - Page 5 Control mode Overview Press to turn on radio, press again to enter standby mode When alarm sounds, press to turn alarm off SNOOZE When alarm is sounding, press to postpone alarm ALARM 1, Press to enter Alarm 1 or Alarm 2 setting ALARM 2 SLEEP Press to enter sleep time setting...
-
Page 6: Safety Of The Appliance
Safety of the appliance Please read all the safety instructions carefully and save this manual for future refer- ence. Always follow all warnings and instructions in this manual and on the back of the device. Security • The device should be connected only through the AC adapter to a mains voltage of 230 V, 50 Hz power. Never attempt to operate the unit with a different voltage. -
Page 7: Disposal
Disposal Risk of suffocation • Risk of suffocation due to the Packaging and its parts for children. Disposal of packaging • The packaging of your device consists entirely of recyclable materials. Please follow these sorted according to the “Dual System”. • About current means of disposal contact your dealer or at your community waste facility. -
Page 8: Guidelines And Standards
Guidelines and standards • This product meets guidelines and standards the Low Voltage Directive ( 2006/95/EC ), the EMC Directive (2004/108/EC ) and the CE Mark Directive. Your unit carries the CE mark and complies with all relevant EU standards. Package Contents Please make sure that all items shown below are available : •... -
Page 9: Usage Of Headphones
the end of the wired antenna to fix this in the required position for a better reception. Usage of headphones Using headphones may damage your hearing! Do not listen to the radio at high volume through headphones. This can lead to per- manent hearing damage. Before using headphones adjust the sound volume to the minimum level if you (not supplied ) to connect a pair of headphones, the internal speaker is muted. >Use only headphones with 3.5mm stereo plug. >Plug the headphones into the headphone jack (page 5 # 6 ) of the device. The sound reproduction is now done exclusively through the headphones. >If you want to listen through the speakers again, unplug the headphones from the headphone jack of the device. -
Page 10: Dab Mode
below the so-called hearing threshold can be filtered out of the signal to be transmit- ted. This leads to a reduction of the transmitted data stream, without any noticeable difference in sound to the listener ( MUSICAM ) process. Audio Stream Audio streams are continuous data flows, MPEG 1 Audio Layer 2 frames contain and thus represent acoustic information in digital radio. Thus, familiar radio programs can be transferred and listen at the receiver side. For Digital radio the MUSICAM format is used, which provides two MPEG compliant PADs. This is referred to as PAD data services. Digital Radio brings you not only radio wit for additional data. The excellent Digital radio does not only offer perfect sound quality but also additional information. This may relate to the current program (e.g. title, artist) or might be independent (e.g., news, weather, traffic tips). DAB Mode Turn on Connect your antenna to ANTENNA socket on the back of radio. -
Page 11: Update Stations List
SELECT to confirm and then your radio will connect the selected station. Update Stations List Simply press SCAN, or, press MENU, then press or to ‘Full scan’, press SELECT to confirm. To Show the Signal Strength During playing a DAB/DAB+ program, repeatedly press INFO until the LCD screen display shows a signal bar with the strength of the current station. -
Page 12: View Station Information
Press DRC button repeatedly, and press SELECT to confirm while your preferred option is appeared. View Station Information It is possible to view the information that is displayed on the second line of the display when listening to a DAB/DAB+ or FM program by pressing INFO repeatedly. FM Mode Tune in FM Mode Press... -
Page 13: Station Presets (For Dab/Dab+ And Fm Mode)
Bluetooth device list. From the Bluetooth device list, select the device named “ DigitRadio 100”. If your device asks for a passkey, enter digits 0000 (four zeros) and press OK. Some devices also ask you to accept the connection. -
Page 14: General Settings
eight devices and an additional device is paired, the earliest paired device is deleted from memory. Do factory reset will clear Bluetooth memory. General Settings Set Sleep Press MENU press or to < Sleep >, then press SELECT to confirm. Press ... -
Page 15: Postpone Alarm
On Time : 00:00 (alarm sound time ) Duration Time : 15/30/45/60/90 mintues Note: The alarm will sound until the selected duration time is finished if nobody stop it.. Source : DAB, FM and Buzzer Set Days : Daily, Once, Weekends or Weekdays ... -
Page 16: Specification
130mm x 42mm x 95mm x H): Notes Your device bears the CE symbol and complies with all requisite EU standards. Subject to change for amendments and pushing errors Version 2013 Duplication and reproduction only with the publisher’s approval TechniSat and DigitRadio are registered trademarks of TechniSat Digital AG Postfach 560 D-54541 Daun Germany www.technisat.com Technical Hotline +49 (0) 180/5 00 59 07 Mon. - Fri. 8am - 7pm...
