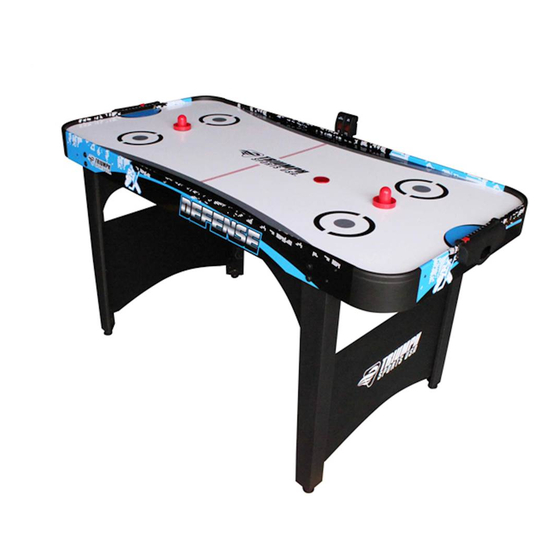

- Page 1 60” Air Powered Hockey Please keep this instruction manual for future reference If you have any problems with your new product, please contact Triumph Sports USA at 1-866-815-4173, or e-mail us at csr@triumphsportsusa.com for any technical support or warranty issues.
- Page 2 90-Day Triumph Sports USA, Inc. (TSU) Game Warranty All TSU games have a 90-day from date of purchase warranty. This warrants the retail purchaser for any TSU game purchased to be free from any defect in materials and construction for 90 days from the date of purchase. Normal play wear and usage is not covered under the warranty, nor is wear or damage due to improper use of the TSU game.
- Page 3 IMPORTANT SAFETY INSTRUCTIONS Read all instructions Read all instructions-All the safety and operating instructions should be read carefully before this hockey game is played. Caution-This is not a toy and is intended for use by or under the supervision of adults. Adults should review safety guidelines with children to avoid possible risk of electric shock or other injuries.
-
Page 4: Parts List
45-6061 PARTS LIST 3.5 x 12mm Screw 3.5 x 16mm Screw LEG LEVELER FELT PAD 4 Pieces 2 Pieces WARNING: Adult Assembly Required. WARNING: CHOKING HAZARD -- This item contains small parts or / and small balls. Not suitable for children under 3 years. - Page 5 Assembly Instructions 1. Find a clean, level place to begin the assembly of your Air Hockey Table. The table will be assembled upside down and then turned over on its legs once the assembly completed. This game table is heavy, and turning it over will require at least two adults.
- Page 6 8. Thread the wire from Goal Box (#12) through the openings of the end aprons and support of the playfield to the opening of side apron. See FIG.2A. 9. Attach the Goals (#12) to each End Apron using four Screws (#8). See FIG.2. 10.
- Page 7 Score Keeper Operation 1. Remove the battery cover and insert 2 AAA Batteries into the battery box. (2 AAA Batteries Not Included.) When HOME/VISITOR indicates “0”, therewith starting the game. Reminding: Batteries must be installed according to the correct polarization (+ and -) required. b.
