- Page 1 ART 4x4 SERIES POWER CONDITIONERS WITH FILTERING USER'S MANUAL...
-
Page 3: Important Safety Instructions - Read First
IMPORTANT SAFETY INSTRUCTIONS - READ FIRST This symbol, wherever it appears, This symbol, wherever it appears, alerts alerts you to the presence of uninsulated you to important operating and dangerous voltages inside the enclosure maintenance instructions in the that may be sufficient to constitute a risk. accompanying literature. - Page 4 Please read all instructions carefully before operating. ART 4x4 Series Power Distribution Systems feature a unique "4x4" AC jack layout on the back of the unit where four of the eight rear outlets are 1.25-inches apart, allowing the user to plug in wide power supplies and devices.
- Page 5 Feature All 4X4 Models (Power Base, Smart Power and Power Station) Feature: • Front-Mounted Circuit Breaker Reset Switch • Surge & Spike Protection • EMI & RFI Filtering • Unique “4X” Distribution on the Back- Four of the Eight Rear Switched Outputs are wider for Wall Wart Devices •...

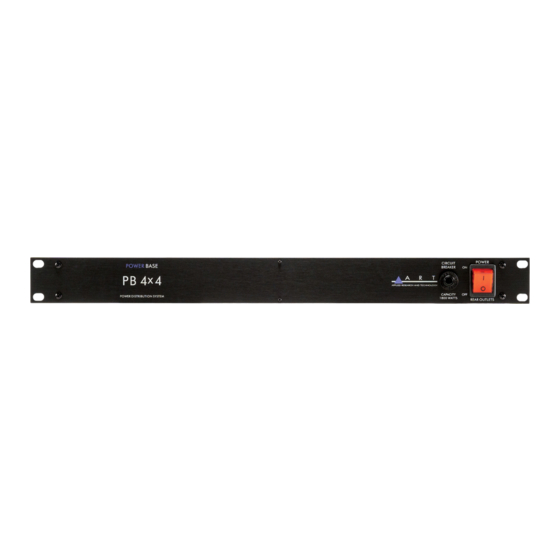

- Page 6 ART 4x4 Series Family Domestic units (shown) Export metering configured accordingly Rear layout (Domestic) the rear panel is the same for all three 4x4's. Rear layout (Export) the rear is the same for all three 4x4's.
-
Page 7: Power Switches
OPERATION MAXIMUM LOAD The eight circuit breaker protected outlets are rated at 15 amps, which is equivalent to 1800 watts at 120 volts. If the total load on the 4x4 POWER DISTRIBUTION Unit's outlets (and rack lights on the SP & PS) exceed 15 amps, the circuit breaker will trip, cutting off power to your rack. If this happens, reduce the load by unplugging one or more units from the 4X4 POWER DISTRIBUTION UNIT. -
Page 8: Warranty Information
This warranty is void if the serial number is altered, defaced, or removed. ART reserves the right to make changes in design or make additions to or improvements upon this product without any obligation to install the same on products previously manufactured. - Page 9 You may want to consult with your dealer for assistance in troubleshooting or testing your particular configuration. 2. If you believe that the ART unit is at fault, go to www.artproaudio.com. Select "Support", then "Return Authorization Request" to request a return authorization number.
-
Page 10: Specifications
1.75-inch x 19-inch x 6.5-inch 44mm x 482mm x 165mm Weight 5.5 lbs. (2.5 kg) PB4x4 6.3 lbs. (2.8 kg) SP4x4 6.6 lbs. (3.0 kg) PS4x4 ART maintains a policy of constant product improvement. Therefore, specifications are subject to change without notice. - Page 12 E-mail: support@artproaudio.com © 2016 Applied Research & Technology ART 4x4 Series 4x4-5004-102 POWER CONDITIONERS WITH FILTERING...
