Summary of Contents for ELSYS.se ELT Lite

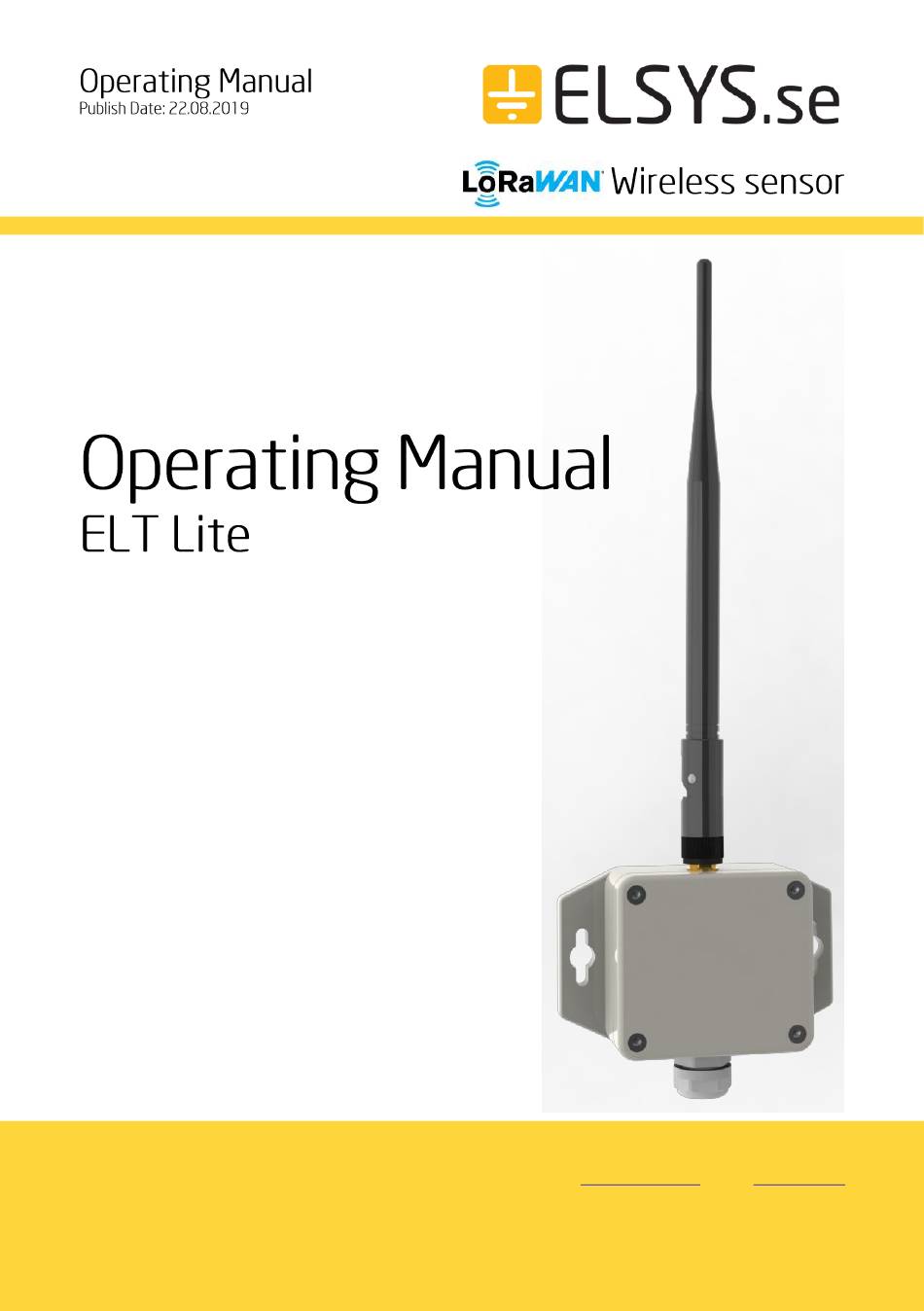

  • Page 1 Elektroniksystem i Umeå AB Industrivägen 12, 90130 Umeå, Sweden E-mail: support@elsys.se ǀ Web: www.elsys.se Specifications in this document are subject to change without notice. ©Elektroniksystem i Umeå AB 2019...
  • Page 2: Important Safety Information

    For additional information and how to carry out disposal, please contact the certified disposal service providers. The sensors contain a lithium battery, which must be disposed of separately. Elektroniksystem i Umeå AB Industrivägen 12, 90130 Umeå, Sweden E-mail: support@elsys.se ǀ Web: www.elsys.se...
  • Page 3: Table Of Contents

    Contents Description............................5 Main features of ELT Lite ......................6 Installation ............................7 Installing external sensors ......................8 External temperature sensor ....................8 Analog input 0 – 3 or 0 – 10 Voltage ................8 Powered analog input 0 – 10V ................... 9 Pulse count (Pull up) ......................
  • Page 4 Legal Notices ..........................18 Federal Communication Commission Interference Statement .......... 18 Non-modifications Statement ....................19 Caution ............................19 Industry Canada Statement ..................... 19 Declaration of conformity ......................19 Elektroniksystem i Umeå AB Industrivägen 12, 90130 Umeå, Sweden E-mail: support@elsys.se ǀ Web: www.elsys.se...
  • Page 5: Description

    ELT Lite is a universal outdoor device for LoRaWAN® wireless network. It is enclosed in an IP67 box and is designed to be in extreme conditions. ELT Lite can measure analog or digital signals. Use it together with electricity meters, flow meters, analog sensors, moisture sensors and other external sensors.
  • Page 6: Main Features Of Elt Lite

    Main features of ELT Lite • Compatible with LoRaWAN® specification 1.0.3 • Analog 0 – 10 V input • Digital input • Pulse counter • Direct connection to various external sensors and equipment • Easy installation • Easy configuration •...
  • Page 7: Installation

    Installation 1. Remove the front lid of the sensor by removing the four screws. 2. Install the battery. The ELT Lite requires one AA battery. The battery type is 3.6V Lithium Battery (ER14505). Caution: Using batteries other than the ones provided may result in loss of performance and battery life, and also damage to the device.
  • Page 8: Installing External Sensors

    Input signal between input and ground. Select “Analog input 0-3V” or ”Analog input 0 – 10V” in the application “Sensor Settings”. ELT input is internally pulled down. / 0-10V / 0-10V Elektroniksystem i Umeå AB Industrivägen 12, 90130 Umeå, Sweden E-mail: support@elsys.se ǀ Web: www.elsys.se...
  • Page 9: Powered Analog Input 0 - 10V

    Input signal between input and ground. Select “Pulse input (pull up)” in the application “Sensor Settings”. ELT input is internally pulled up by ~50 k Ω*. Elektroniksystem i Umeå AB Industrivägen 12, 90130 Umeå, Sweden E-mail: support@elsys.se ǀ Web: www.elsys.se...
  • Page 10: Pulse Count (Pull Down)

    Input signal between input and GND. Pulse signal from 3 to 12 voltage. Select “Pulse input (pull down)” in the application “Sensor Settings”. ELT input is internally pulled down by ~50 kΩ*. Elektroniksystem i Umeå AB Industrivägen 12, 90130 Umeå, Sweden E-mail: support@elsys.se ǀ Web: www.elsys.se...
  • Page 11: Pulse Count (Pull Up) - S0 Input

    Select “Analog input” in the application “Sensor Settings”. Connect resistor parallel to the input. Value of R can be calculated as �� = �� ∙ ��. For full range, use 500Ω resistor. (20mA will then read as 10V). Elektroniksystem i Umeå AB Industrivägen 12, 90130 Umeå, Sweden E-mail: support@elsys.se ǀ Web: www.elsys.se...
  • Page 12: Water Leak Input

    Connect the Meter (Decagon) sensor 10HS, EC-5 or ECH20 5TE according to the diagram. Try to use a short cable. Select “Meter (Decagon)” in application “Sensor Settings” or “Meter (Decagon) ECH20 5TE” if you have connected ECH20 5TE. Elektroniksystem i Umeå AB Industrivägen 12, 90130 Umeå, Sweden E-mail: support@elsys.se ǀ Web: www.elsys.se...
  • Page 13: Sensor Configuration

    7. Wait for the sensor to reboot (5 sec), indicated by the LED flashing. Sensor settings have been updated. See the section “Help” in the application for more information. Elektroniksystem i Umeå AB Industrivägen 12, 90130 Umeå, Sweden E-mail: support@elsys.se ǀ Web: www.elsys.se...
  • Page 14: Over The Air Configuration

    When you have written data to the sensor, let the sensor reboot and restart before trying to write again. You should always validate your settings by reading the NFC data after the sensor has restarted. Elektroniksystem i Umeå AB Industrivägen 12, 90130 Umeå, Sweden E-mail: support@elsys.se ǀ Web: www.elsys.se...
  • Page 15: Sensor Startup

    After successful connection to a network, the sensor sends a settings packet and enters sampling mode. Elektroniksystem i Umeå AB Industrivägen 12, 90130 Umeå, Sweden E-mail: support@elsys.se ǀ Web: www.elsys.se...
  • Page 16: Sampling Mode / Periodic Measurement

    If external startup time is set to > 1000000 ms, the external sensor output will be constantly on. This will affect the battery life. Elektroniksystem i Umeå AB Industrivägen 12, 90130 Umeå, Sweden E-mail: support@elsys.se ǀ Web: www.elsys.se...
  • Page 17: Specifications

    Up to 10 years** *Measured with settings: SF10, 868 Mhz. The range can be greater or less, depending on terrain and building structure. **Depending on settings and environmental factors. Elektroniksystem i Umeå AB Industrivägen 12, 90130 Umeå, Sweden E-mail: support@elsys.se ǀ Web: www.elsys.se...
  • Page 18: Regulations

    Connect the equipment into an outlet on a circuit different from that to • which the receiver is connected. Consult the dealer or an experienced radio/TV technician for help. • Elektroniksystem i Umeå AB Industrivägen 12, 90130 Umeå, Sweden E-mail: support@elsys.se ǀ Web: www.elsys.se...
  • Page 19: Non-Modifications Statement

    Declaration of conformity å Hereby, Elektroniksystem i Ume AB declares that ELT Lite complies with the essential requirements and other relevant provisions of Directive 1999/5/EC. Elektroniksystem i Umeå AB Industrivägen 12, 90130 Umeå, Sweden E-mail: support@elsys.se...
