KNX
Stand: Apr-09
825 565 03
Operating Instructions

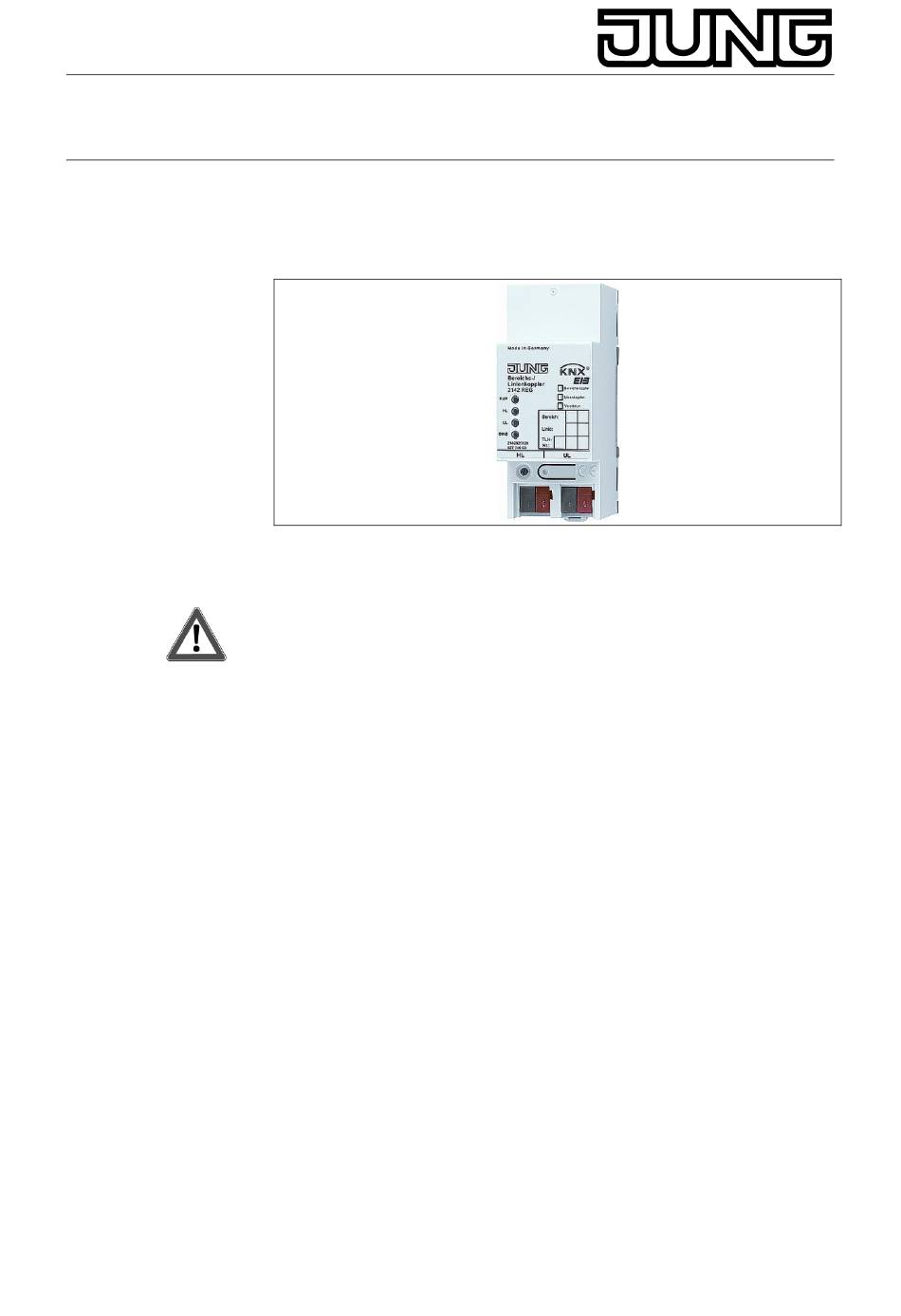

Area / Line Coupler
1. Safety instructions
Attention: Electrical equipment must be installed and fitted only by
qualified electricians and in strict observance of the relevant
accident prevention regulations. Failure to observe any of the
installation instructions may result in fire and in other hazards.
2. System Information
This device is a product of the KNX/EIB-EIB system and complies with
KNX directives. Detailed technical knowledge obtained in
KNX/EIBtraining courses is a prerequisite to proper understanding. The
functionality of this device depends on the software. Detailed information
on loadable software and attainable functionality as well as the software
itself can be obtained from the manufacturer's product database.
Planning, installation and commissioning of the unit is effected by means
of KNX-certified software. An updated version of the product database
and the technical descriptions are available in the Internet at
www.jung.de.
Area/Line Coupler
Ref.-no.: 2142 REG
Advertisement
Table of Contents
Summary of Contents for Jung 2142 REG
-
Page 1: Safety Instructions
Area/Line Coupler Ref.-no.: 2142 REG Operating Instructions Area / Line Coupler 1. Safety instructions Attention: Electrical equipment must be installed and fitted only by qualified electricians and in strict observance of the relevant accident prevention regulations. Failure to observe any of the installation instructions may result in fire and in other hazards. - Page 2 Area /Line Coupler Ref.-no..: 2142 REG 3. Function The coupler connects two KNX/EIB data lines and ensures the electrical separation of these lines from one another. The definite functions of the device are defined by addressing and parameterization. See figures B and C.
- Page 3 Area /Line Coupler Ref.-no..: 2142 REG Amplifier V: physical address X.Y.Z Handling and repetition of telegrams on a line, no filter function. Division of a line into max. 4 independent line segments => max. 3 line amplifiers connected in parallel per line (FIG. C).
-
Page 4: Technical Data
Area /Line Coupler Ref.-no..: 2142 REG Function of diagnosis LED („DIAG“) red LED off: Telegrams are filtered or blocked (both directions) LED on: Telegrams are retransmitted without being filtered (at least one direction) Function of operation LED („RUN“) green LED off: device off, no voltage on superordinate line... - Page 5 Our products are under guarantee within the scope of the statutory provisions. Please return the unit postage paid to our central service department giving a brief description of the fault: ALBRECHT JUNG GMBH & CO. KG Service-Center Kupferstr. 17-19 D-44532 Lünen Service-Line: +(49) 23 55 .
