PULSESTAR
Installation Guide
This installation guide provides instructions for installing the PULSESTAR
illuminators & Controller
Installation Steps
1. Mount Illuminator(s) adjacent to camera
2. Mount PSU/ Controller Unit
3. Connect Illuminator(s) to Controller
4. Connect input trigger to controller
(UNIT WILL NOT FUNCTION WITHOUT
APPROPRIATE INPUT TRIGGER)
5. Connect Controller to power
6. Optional network connectivity for trouble shoot or
use by experienced and expert users
Set Up Steps
1. Align illuminator towards scene
2. Adjust vertical angle
3a. Adjust horizontal angle via Adaptive Illumination
(AI) (if required)
3b. Change angle of diffuser if required
4. Tighten all fixings
Eye Safety
EN62471 Risk Group 2: Do NOT stare at the lamps.
Use appropriate protection. Hazardous distance is
1,840mm. Max. Exposure Hazardous Value : 68%
of Risk Group 2 Limit at 200mm from the lamp.
Golden Rules:
1. Ensure Controller orientation has the cable
glands at the bottom underneath the enclosure
2. Do not input Mains Voltage into Low Voltage
versions
3. Enclosure is fully water tight
4. Ensure there is a trigger input to the controller
Raytec Global Tel: +44 (0) 1670 520055
Americas Tel: +1 613 270 9990

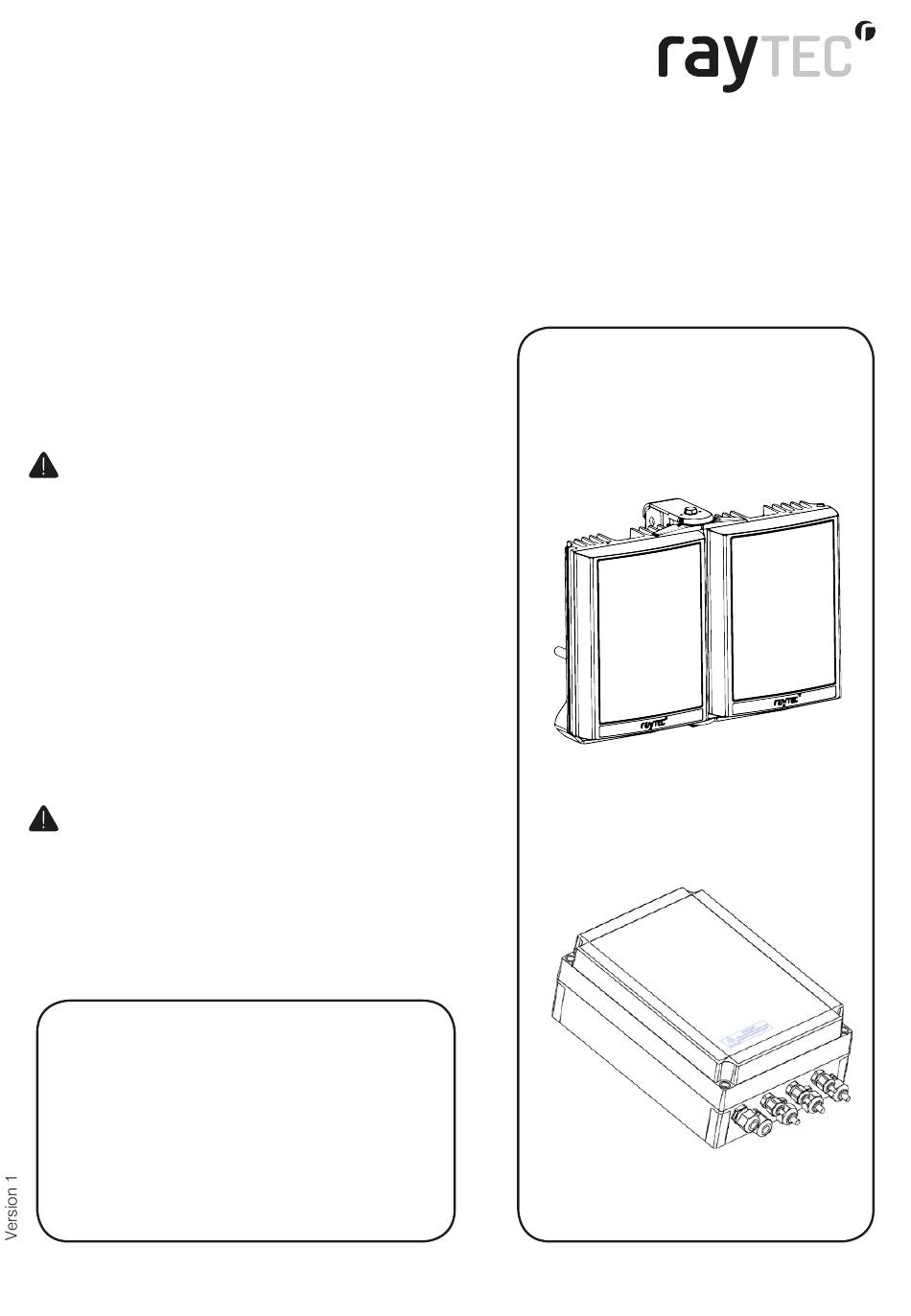

Package Contents
PULSESTAR illuminator
PSU/ Controller
Spare Lamp Diffuser
1
www.rayteccctv.com

Advertisement

Table of Contents
loading

Summary of Contents for Raytec PULSESTAR Series

  • Page 1 2. Do not input Mains Voltage into Low Voltage versions 3. Enclosure is fully water tight Spare Lamp Diffuser 4. Ensure there is a trigger input to the controller Raytec Global Tel: +44 (0) 1670 520055 www.rayteccctv.com Americas Tel: +1 613 270 9990...
  • Page 2 Do not continually removing cover flat surface ventilated area stare at lamp Specifications subject to change without notice. Installation to be carried out by suitable trained and qualified personnel. www.rayteccctv.com Raytec Global Tel: +44 (0) 1670 520055 Americas Tel: +1 613 270 9990...
  • Page 3: Lens Selection

    To alter to 20° x 10°, replace with other ILS lens supplied. Black Wire = Negative (-ve) Other angle ILS lenses are available to order, please contact Raytec. Red Wire = Positive (+ve) White & Yellow wires = Photocell following contact, Volt free output, Non polarity...
  • Page 4: Installation

    Connect Controller to power Optional network connectivity Lamp 3 Lamp 4 CAUTION: Ensure correct polarity of all connectivity Input (see diagrams on page 8 for further detail) www.rayteccctv.com Raytec Global Tel: +44 (0) 1670 520055 Americas Tel: +1 613 270 9990...
  • Page 5 Best performance For ANPR applications we recommend locating the illuminator as closely as possible to the camera for retroreflective plates, to ensure maximum amount of light is used. The angle of camera/ light should also be less that 35° in all axes Raytec Global Tel: +44 (0) 1670 520055 www.rayteccctv.com Americas Tel: +1 613 270 9990...
  • Page 6: Specifications

    Specifications www.rayteccctv.com Raytec Global Tel: +44 (0) 1670 520055 Americas Tel: +1 613 270 9990...
  • Page 7 NOTE: Ensure operating voltage is correct for unit being installed. DO NOT INPUT MAINS VOLTAGE INTO LOW VOLTAGE CONTROLLERS. Raytec Global Tel: +44 (0) 1670 520055 www.rayteccctv.com Americas Tel: +1 613 270 9990...
  • Page 8 (if fitted) Mains Input, 100V to 230V AC Auto-Sensing NOTE: Trigger Input - 3.3V to 24V DC. LED Output - Polarity Sensitive Rising edge +ve = pulse www.rayteccctv.com Raytec Global Tel: +44 (0) 1670 520055 Americas Tel: +1 613 270 9990...
  • Page 9 Trigger 1 Lamp 1 Lamp 2 Mains Input, 100V to 230V AC Auto-Sensing NOTE: Trigger Input - 3.3V to 24V DC. LED Output - Polarity Sensitive Raytec Global Tel: +44 (0) 1670 520055 www.rayteccctv.com Americas Tel: +1 613 270 9990...
  • Page 10: Troubleshooting

    • Camera make and model • Lens make and model If the Raytec lamp is still not delivering the required performance, please contact us for further assistance. www.rayteccctv.com Raytec Global Tel: +44 (0) 1670 520055 Americas Tel: +1 613 270 9990...
  • Page 11: Technical Drawings

    PulseStar x24 115mm 72mm 140mm 52mm 36mm 33mm (1.2”) 8.5mm PulseStar x32, 48, 96 PulseStar x72 Optional Bracketry Pole Mount VUB Universal Wall Mount Ptz Mount Bracket Raytec Global Tel: +44 (0) 1670 520055 www.rayteccctv.com Americas Tel: +1 613 270 9990...
  • Page 12: Additional Information

    This product must be installed by a person familiar with the construction and operation of the product and the hazards involved, in accordance with the applicable installation code. Raytec Warranty Please register your Raytec LED Illuminator(s) for its 5 year warranty by visiting www.rayteccctv. com/products/warranty-card UK / Europe T: +44 (0) 01670 520055 hazsales@raytecled.com...
