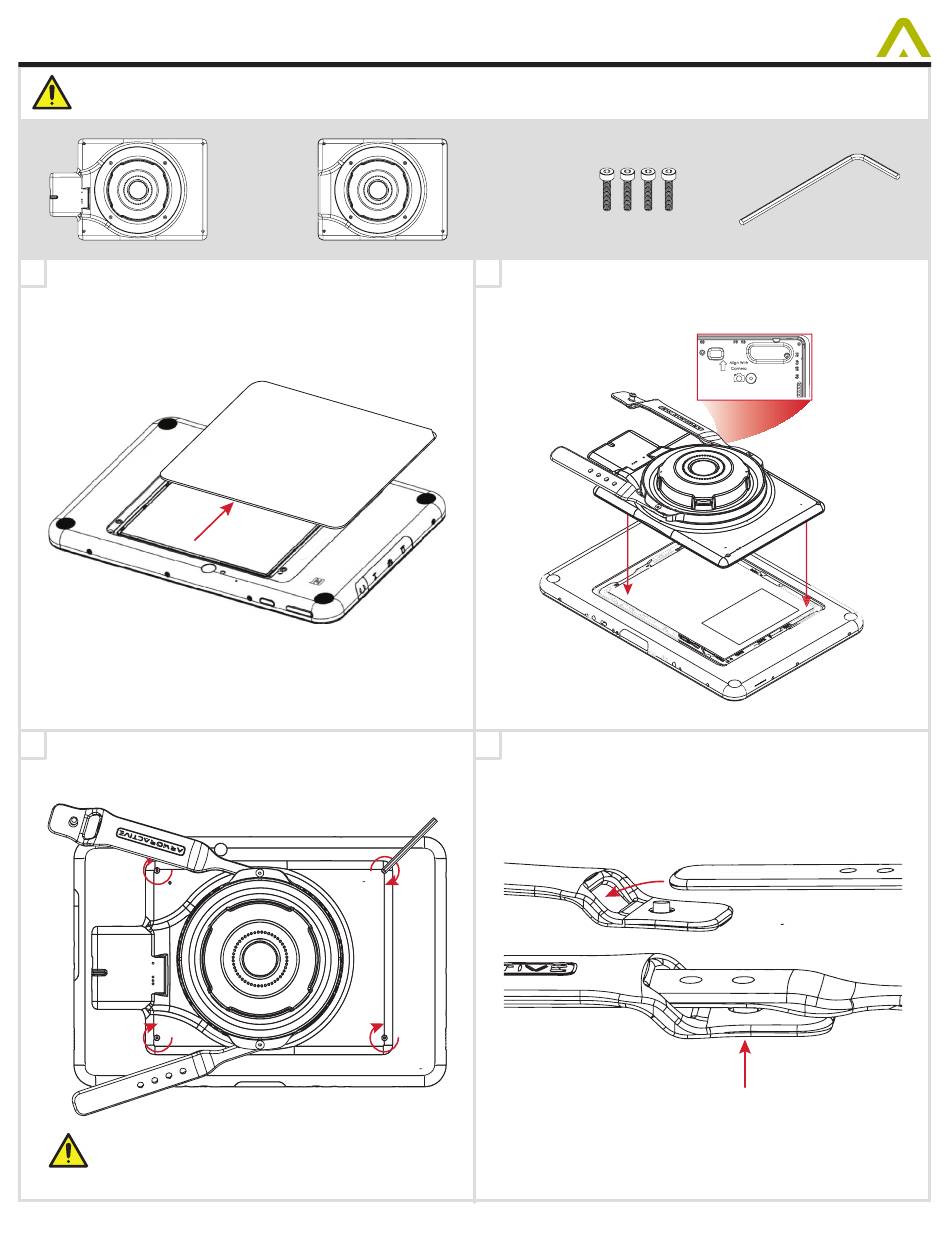

RAPIDDOC™ SMARTBACK
NOTES BEFORE INSTALLING: Do not overtighten screws. Using excessive force when tightening screws can damage the threads on
devices and damage product.
1
Lift the existing battery cover by pulling the notch on the
lower left corner and completely remove it.
3
Very carefully secure the SmartBack to the tablet,
applying light force to the Hex Key to tighten the 4
corner screws.
If you have access to a torque screw-driver, Aava recommends
setting the driver to 1.23 inch-pounds of torque, or 14
newton centimeters.
www.armoractive.com | T: 801.653.3807
SmartBack
with
Accessory Dock
185-00513
RAPIDDOC™ SMARTBACK USER GUIDE
SmartBack
without
Accessory Dock
185-00224
Hex Screws
2
Place the RapidDoc SmartBack into the battery opening.
Make sure that the arrow on the inside of the SmartBack
points to the Tablet Camera.
4
Adjust hand strap to desired tightness.
MTI P/N 063-00215 rev A ©2018 MTI All Rights Reserved
Hex Key
1
Advertisement
Table of Contents
Summary of Contents for MTI RAPIDDOC SMARTBACK
- Page 1 Hex Key to tighten the 4 corner screws. If you have access to a torque screw-driver, Aava recommends setting the driver to 1.23 inch-pounds of torque, or 14 newton centimeters. www.armoractive.com | T: 801.653.3807 MTI P/N 063-00215 rev A ©2018 MTI All Rights Reserved...
- Page 2 (Minimal Cables) If lost or stolen, contact customer Mounting Screws (4) service for replacement. Mounting Plate 185-00528 Through-Hole Mounting Accessory (Sold separately) Adhesive Threaded Screws (5) Pipe www.armoractive.com.com | T:800.426.6844 MTI P/N 063-00180 rev B ©2018 MTI All Rights Reserved...
-
Page 3: Removing The Lid
With the lid off of the kiosk base, place the Cable Press until it clicks into place. Access Cover into the opening from the inside. Cut-away side view www.armoractive.com.com | T:800.426.6844 MTI P/N 063-00180 rev B ©2018 MTI All Rights Reserved... -
Page 4: Baseplate Mounting
Lock the kiosk into place by rotating it counter Secure the kiosk to the mounting plate using the two clockwise on the plate. security screws and the Red Handle Tool. www.armoractive.com.com | T:800.426.6844 MTI P/N 063-00180 rev B ©2018 MTI All Rights Reserved... - Page 5 Lock the security screws and the Red Handle Tool. kiosk into place by rotating it counter clockwise on the plate. www.armoractive.com.com | T:800.426.6844 MTI P/N 063-00180 rev B ©2018 MTI All Rights Reserved...
-
Page 6: Cable Routing
Turn the Red Handle Tool clockwise until resistance is felt (about halfway) and hold. NOTE: Do not grab the tablet until after you twist the Red Handle Tool. www.armoractive.com.com | T:800.426.6844 MTI P/N 063-00180 rev B ©2018 MTI All Rights Reserved... -
Page 7: Led Indicators
If no Access Card is detected, the Base will return to normal condition waiting for registered Access Card to unlock the Base. If the case is removed: www.armoractive.com.com | T:800.426.6844 MTI P/N 063-00180 rev B ©2018 MTI All Rights Reserved... - Page 8 Then re-register the remaining cards plus the new one ordered through Customer Service. Example: Example: ACCESS006 ACCESS005 IF AUTHORIZATION CARD IS LOST OR STOLEN, CONTACT CUSTOMER SERVICE FOR REPLACEMENT. ACCESS004 ACCESS002 ACCESS001 www.armoractive.com.com | T:800.426.6844 MTI P/N 063-00180 rev B ©2018 MTI All Rights Reserved...
-
Page 9: Fcc Statement
You are cautioned that changes or modifications not expressly approved by the party responsible for compliance could void your authority to operate the equipment. www.armoractive.com.com | T:800.426.6844 MTI P/N 063-00180 rev B ©2018 MTI All Rights Reserved... -
Page 10: Mounting Plate Template
Print this document at 100% (or ‘Actual Size’) to assist in placing the RapidDoc Mounting Plate. Drill Hole FRONT 3” hole for Optional 3.9376 in Through-Hole Mounting Accessory 3.9376 in www.armoractive.com.com | T:800.426.6844 MTI P/N 063-00180 rev B ©2018 MTI All Rights Reserved...
