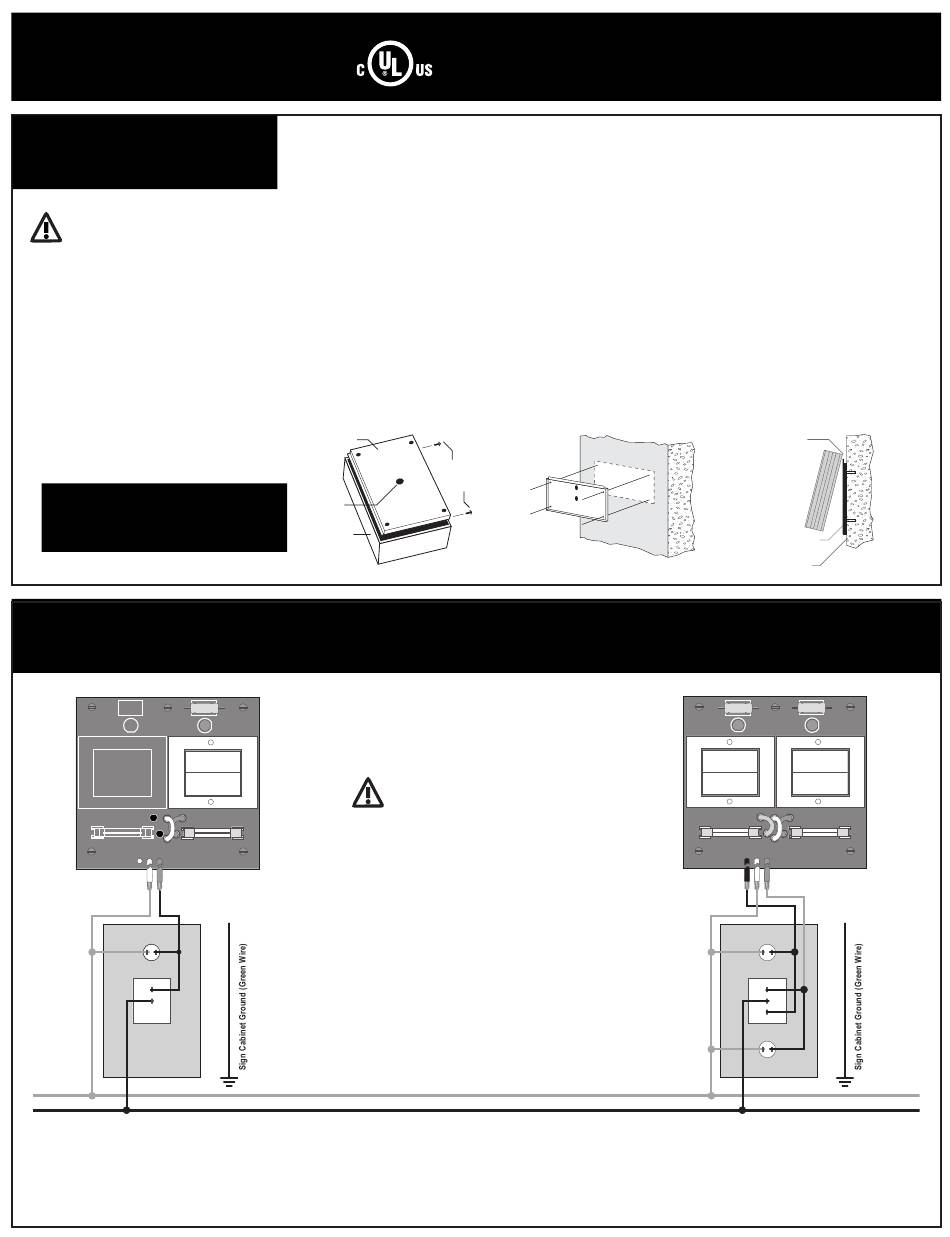

Signaltech TCL LED Series Installation Instructions

TCL LED SERIES
Installation Instructions
Wall Mount
Standard Install Instructions
Note: Do not overtighten fasteners
or distort back panel.
Note: Clear any metal chips from
inside sign cabinet, failure to do
so may void warranty.
Note: This sign is intended to be
installed in accordance with the
requirements of Article 600 of the
National Electric Code and/or other
applicable local codes. This includes
proper grounding and bonding of
the sign.
See other side for dimensions
of the back mounting panel.
TCL Single Message
Wiring Diagram
D1
1 AMP 1 AMP
F1
Com
A B
Neutral Lead Message B Lead
(White Wire) (Red Wire)
Green Light
2 Position
Switch
To Wire Single Message
• Connect Red Message B wire to top switch pole.
• Connect White Neutral wire opposite switch pole & to supply circuit.
• Connect Green Ground wire
To mount the sign to a wall surface using the included Lift'n Shift wall mount.
Step 1. Place sign cabinet face down on a scratch free surface to protect the face. Locate and remove the Philips
head screws on the bottom of the sign and gently pry the hinged back panel.
Step 2. To mount the sign to a wall surface remove the four mounting knockouts and the large power knockout on the
back panel. Be aware of any metal chips and remove them. Failure to do so may cause a short and void the warranty.
Step 3. Level the back panel and mount to wall surface using appropriate fasteners (not included).
Step 4. Route electrical wiring through knockout following local code. Attention! If electrical is routed any other way into
sign cabinet, ie. through a hole drilled into frame, the integrity of the cabinet must be maintained.
Failure to do so may cause a short and void the warranty.
Step 5. To make electrical connections, place sign cabinet top edge on the lip of the back panel on the wall and allow the
sign to hang in place. Follow the wiring diagram for your specific sign series.
Back Panel
Knockouts
Sign Cabinet
D2
F2
Call the number on the inside of the Cabinet Back to
Order mounting made specifically for your sign.
Philips Head
Screws
Back Panel
Mounts to Surface
Note: Make appropriate wiring
connections per local code.
Note: Any holes drilled into sign cabinet
MUST be sealed. Failure to do so may
cause a short and void warranty.
Note: This sign is intended to be
installed in accordance with the
requirements of Article 600 of the
National Electric Code and/or other
applicable local codes. This includes
proper grounding and bonding of
the sign.
120VAC ONLY
Neutral from Source
Load from Source
To Wire Dual Message
• Connect Red Message B wire to top switch pole.
• Connect Black Message A wire to bottom switch pole.
• Connect White Neutral wire to opposite switch pole & supply circuit.
• Connect Green Ground wire.
Pivot Point
Sign
Cabinet
Cabinet Hangs
On Lip of Back
Panel
Fasteners
(Not Included)
Sign Back
TCL Dual Message
Wiring Diagram
D2
D1
1 AMP 1 AMP
F1 F2
Com
A B
Message A Lead Message B Lead
(Black Wire) (Red Wire)
Neutral Lead
(White Wire)
Green Light
3 Position
Switch
Red Light
Side View
Wall Surface
TCL1013 KAM
