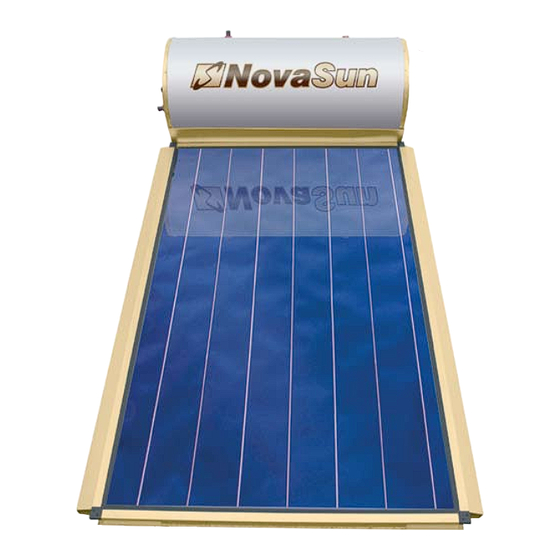

Summary of Contents for Helioakmi NovaSun Series
- Page 1 TECHNICAL MANUAL INSTALLATION, MAINTENANCE AND USE INSTRUCTIONS ENGLISH...
- Page 2 It is a whole phi- losophy. A philosophy that has taken HELIOAKMI to the top of the world’s hot water technology from the sun, in over 60 countries, in all climatic conditions and for all types of water qualities.
-
Page 3: Table Of Contents
C O N T E N T S TECHNICAL SPECIFICATIONS AND DIMENSIONS - ALL MODELS ……………………………………………………… Page 4 PACKING OF THE SOLAR WATER HEATER ……………… Page 5 WHAT YOU SHOULD KNOW ABOUT THE NOVASUN SOLAR WATER HEATER ……………… Page 6 INSTALLATION INSTRUCTIONS …………………………... -
Page 4: All Models
2,10 530x1320 2050x1275x90 2,60 570x1320 2050x1275x90 2,60 200E 570x1320 2050x1010x90 4,20 530x2050 2050x1010x90 4,20 570x2050 2050x1010x90 4,20 300E 570x2050 2050x1275x90 5,20 • HELIOAKMI S.A. reserves the right to change the specifications of the product and/or their accessories without prior notice. -
Page 5: Packing Of The Solar Water Heater
PACKING OF THE SOLAR WATER HEATER All NOVASUN appliances (storage tank, collector, support All the parts of the support base, the plastic bag with the base and connection accesories), are delivered well packed connection fittings, the thermal fluid and other accessories are to the customer. -
Page 6: What You Should Know About The Novasun Solar Water Heater
It is very important to choose with the local weather conditions. Under fa vou- Solar water heaters use a closed local representative of “HELIOAKMI”, rable weather conditions, the energy circuit of natural circulation. The spe- the right size of the solar water heater, saving may reach up to 100%. -
Page 7: Installation Instructions
Advice customer to mail immediately the expected snow. The same attention typhoons, hurricanes and heavy winds. the coupon of the warranty to Helioakmi must be paid, for regions with heavy S.A. • For the safer installation of the solar winds and storms. -
Page 8: On A Flat Surface
Assembly diagram of the support base on a flat surface Support base for 200, 260 & 300 (with 2 collectors) - Page 9 ASSEMBLY INSTRUCTIONS Before choosing the location and the installation point, ensure that it is not shaded by any obstacle (trees, buildings… etc, see obstacle diagram page 10). The same support base is used for either sloping or flat sur- faces. Connect the plates A, B, C, D, U and Z by screwing them tight as shown in the drawings.
- Page 10 Assembly diagram of the support base on a surface with maximum inclination of 32° Attention: Exclusively and only for the solar water heater NOVASUN 120 and for its installation on a tiled rood, two additional plates “E” (840mm length) are required.
- Page 11 ASSEMBLY INSTRUCTIONS Before choosing the location and the ins- Screw tightly the parallelogram frame attention: tallation point, ensure that it is not shaded (A)+(C) on the plates (D). Plumb the sup- The top plate (E) is fixed after the place- by any obstacle (trees, buildings…...
-
Page 12: Analytical Description Of The Storage Tank's And Collector's Components
03 04 05 06 Analytical description of the storage tank’s and collector’s components Storage tank 01A+B Storage tank’s suspension point (used only in production process, ignore them) Handles Filling pipe (for the closed circuit) Safety valve 3 BAR Elbow raccord (4 pcs) Thermal fluid inlet pipe (to the storage tank from the collector) (indi- cation “jacket”) Small connection tube... - Page 13 17 17A 19 03 07 07 18 20...
-
Page 14: Installation Instructions Of
Installation instructions of the storage tank and collector Before the placement of the collectors on the support base, loose the screws of the bottom plate E, so that the bottom fin of the collector can pass easy between the plates E and B. The top plate (E) is fixed after the pla- cement of the collector(s). - Page 15 on the support base Place the face-plate (20A) on the U, and secure it under the collector(s). Then place the storage tank on the two U. attention a. Before placing the storage tank on the two U, check carefully if the plates U and Z are screwed tightly to the plates B.
-
Page 16: Connection Instructions Of The Storage Tank, Collector And Components
Connection instructions of the storage tank, collector and models 200, 300, which have two collectors, connect them by using the collector connector (pipe unions) (12), supplied with each applian- Put the plug (17A) on the pipe (17) which is located on the top right hand side of the collector (13) and the plug (13A) on the pipe (13) which is located on the bot- tom left hand side of the collector, and... - Page 17 components Screw the elbow raccords (03) on the pipes of the storage tank (04) and (16) with the indication “jacket” and on the pipes of the collector(s) (10) and (19) respectively. Afterwards join the small connection tube (05) onto (04) and (10) and the big connection tube (18) onto (16) and (19) respectively.
-
Page 18: With Thermal Fluid
The responsibility for the correct use of the antifreeze liquid quantity is for the account of the installer and in no case of Helioakmi S.A. The use of water only or other liquid may cancel the validity of the warranty. - Page 19 (for the solar water heaters of closed circuit) ANTIFREEZE PROTECTION RATIO TABLE FOR SOLAR WATER HEATERS MODEL NOVASUN NOVASUN NOVASUN NOVASUN NOVASUN NOVASUN NOVASUN 120 x 2.10m 160 x 2.60m 200 x 2.60m 200E x 4.20m 260 x 4.20m 300 x 4.20m 300E x 5m CLOSED CIRCUIT 9 lt...
-
Page 20: Description Of The Parts Of The Electric Resistance
Description of the parts of the electric resistance and thermostat Plastic cover Electric resistance Thermostat’s socket Resistance’s cover Base of multiple plug (for the elec- tric lines) Metal wires for the connections of the resistance with the thermostat Rubber flange for water tightness Central nut Tightening nuts Grounding lug... - Page 21 5. Connect the lug 2 of the thermostat to the lug “N” of the power line connector (blue cable). Connect the lug 3 of the thermostat to the lug “L” of the power line connector (black cable) – see diagram 6.
-
Page 22: Special Climatic Conditions
4. Long screws - small step nuts the concrete. necessary to use the special TYPHOON 5. Tape of metal belt. SET, provided by HELIOAKMI. 6. Rubber profile • For installation on a sloping roof, addi- 7. Moly plugs - screw nuts... - Page 23 When the TYPHOON SET is used, the face-plate (20A) is not placed When you have to install the appliance on a flat roof, you must use the two pla- tes J, screwing them on the plates C. Screw the short plates L on the plates J.
-
Page 24: Instructions After The Installation
WITH THE SUN one. HELIOAKMI S.A. in no case is liable for any damages 5. Check the resistance for any damage caused to third parties for any reason, such as wrong 6. Check the main power supply. -
Page 25: Parallel Connection Of Multiple Systems
PARALLEL CONNECTION OF MULTIPLE SYSTEMS COLD WATER 25mm (1”) ∅ INLeT 20mm (3/4”) 15mm (1/2”) ∅ ∅ ∅ 25mm (1”) ∅ 20mm (3/4”) WATER OUTLET notes 1. All the branch lines to the sto- 2. Pressure drop (¢p) must be rage tanks must have same almost the same in hot and length and geometry (diame-... -
Page 26: Typical Installation Of Multiple Units
TYPICAL INSTALLATION OF MULTIPLE UNITS COLD WATER INLeT 25mm (1”) notes ∅ 25mm (1”) ∅ 1. All the branch lines to the storage ∅ 20mm (3/4”) tanks must have same length and geo metry (diameter of tube, curves… etc) 2. Pressure drop (¢p) must be almost the same in hot and cold-water tubes 3. -
Page 27: Parallel Connection Of Systems In Series
PARALLEL CONNECTION OF MULTIPLE SYSTEMS IN SERIES COLD WATER INLeT WATER OUTLET notes 1. All the piping in 20 mm diameter. For this kind of installation (or for more than three solar water heaters connected in a row) you have to make a special request for 3/4”... - Page 28 Tel.: (+30) 210 5595 624 - 210 5595 625 - 210 5595 626, Fax: (+30) 210 5595723 web-site: www.helioakmi.gr • e-mail: megasun@helioakmi.gr NOTE: HELIOAKMI S.A reserves the right to change any specifications of the product and their accessories without prior notice.
