EGL-12VX Oil-less Compressor 2018 USER MANUAL/Installation Instructions 1953 W. Gulf To Lake Hwy, Lecanto, FL 34461 Toll Free: 800-240-5677 FAX: 352-513-4801 Email Address Website: SierraDentalProducts@Outlook.com www.Dentalvacuums.com... -
Page 2: Table Of Contents
Preventative Maintenance Maintenance Cont. Troubleshooting On the Purchase of your Eagle 12 VX oil-less dental compressor. Our Eagle 12 VX oil-less dental compressors provide clean dry air to each chair flawlessly, requiring less maintenance than traditional compressors. Now that’s peace of mind you can stand behind! -
Page 3: Customer Support
(352) 527-1975 David Rolerad Owner/Quality control (603) 493-3635 Matthew Ball Operations Manager (352) 201-2770 Toll Free 24/7 (800) 240-5677 SierraDentalProducts@outlook.com DentalVacuums.com Look for us… on social media! Sierra Dental Products LLC 1953 W. Gulf to Lake Hwy Lecanto, FL 34461... -
Page 4: Warranty Policy
Sierra Dental Products Limited Warranty Warranty for the EAGLE12 VX oil-less compressor is limited to the original purchaser of the unit. Sierra Dental Products is only obligated under this warranty to the repair or replacement of defective parts or materials. The defect(s) must be reported to Sierra Dental Products within the valid warranty period. -
Page 5: Safety
SAFETY Use of the Eagle VX not in compliance with the instructions specified in this manual may result in permanent failure and voided warranty of the unit. WARNING To prevent fire or electrical shock, do not expose this unit to rain or moisture, excessive heat or improper ventilation. -
Page 6: Safety Continued
If there is any leakage, crack, or corrosion, immediately stop operating the equipment and contact your authorized dealer for Sierra Dental Products. Air compression is a heat generating process. The pump unit and tubes are subject to high temperatures. -
Page 7: System Layout

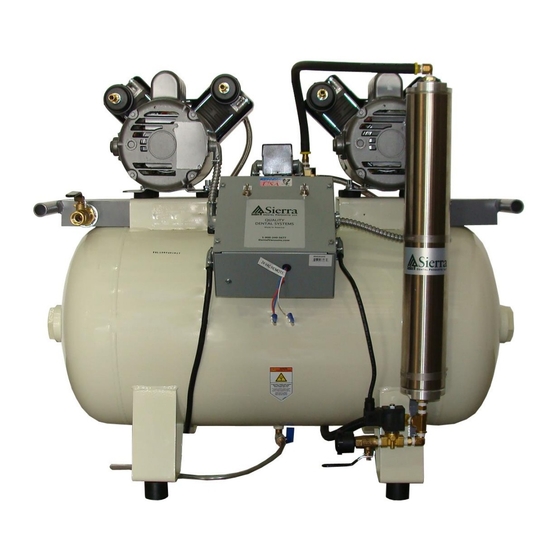

SYSTEM LAYOUT Inlet Filters (x4) Compressor heads Pressure switch Desiccant dryer On/off switches Tank Low voltage control box Power cord Remote wires Drain petcock Air muffler & Auto purge Purge silencer ½” Discharge connection Purge shut off valve... -
Page 8: System Layout Cont
SYSTEM LAYOUT Fan shroud Handle Coalescing filter Stainless steel braided air hose Rubber feet ASME Safety valve Pressure switch Pressure gauge Tank inlet check valve... -
Page 9: Specifications
SPECIFICATIONS SITE REQUIREMENTS Voltage 230 V AC Circuit breaker rating 20 Amp Minimum wire size 14 Gauge ½” Minimum trunk line size 104° F Max ambient temp. 41° F Minimum ambient temp. This equipment must be installed in a well ventilated mechanical room to prevent over heating and failure not covered by the warranty. -
Page 10: Installation
INSTALLATION 1. Location: Install the compressor in a covered, well ventilated area, free of dust, gases, toxic gases, humidity, or any other kind of pollutant. The maximum ambient temperature recommended during operation is 104 degrees Fahrenheit. a. IMPORTANT: Avoid installation in small places such as a storeroom or closet.. 2. -
Page 11: Installation Cont
INSTALLATION 5. The electrical input wires must be in accordance to the motor power, voltage and distance from electrical energy source. 6. Before installing the product, verify that the product voltage is compatible to the local electrical power supply (230 Volts plus or minus 10%) – Use of a Buck Booster may be necessary if voltage is inadequate. -
Page 12: Start-Up Procedure
START-UP PROCEDURE After installation is complete, perform the following start up procedure: Completely open discharge connection (ball valve located on the handle) Turn both of the compressor heads on. The compressor will automatically turn off when the pressure gauge shows maximum pressure around 115 psig. The compressor will automatically restart when the pressure gauge shows pressure around 85 psig. -
Page 13: Preventative Maintenance
Dental Products d. Check the intake filters. When an intake filters are clogged it is necessary that they be replaced. Contact your local authorized dealer for Sierra Dental Products for replacement filters – Do Not Wash the Filter Element 2. Quarterly a. -
Page 14: Maintenance Cont
PREVENTATIVE MAINTENANCE Date of Working Ambient Additional Servicer Services Provided Service Hours Temp. Remarks Signature... -
Page 15: Troubleshooting
WHAT TO DO Check the installation and/or wait for the electric supply Voltage drop or electric supply is out stabilization Contact your local authorized dealer for Sierra Dental Damaged motor Products, LLC Motor will re-start as soon as temperature decreases. If Motor doesn’t start or doesn’t restart...
