These instructions are to be fully examined and understood, prior to installation and/or using the
hand diaphragm pump. Non compliance of the instructions can cause damage to the property and
possible result in serious injury.
1. ERIKS operating companies
ECON hand diaphragm pumps are being delivered by several ERIKS operating companies on a
worldwide basis. In this manual these will be referred to as 'ERIKS', the individual terms of
delivery of the ERIKS operating company having executed the order are applicable.
2. Product description
The ECON hand diaphragm pumps are designed according the information on our website,
www.eriks.com
and should be used in accordance with the applicable pressure-temperature rating
as stated on this website. Hand diaphragm pumps are provided with following marking. The
marking makes the identification and operation of the level indicator easier and contains:
-
"S" suction side
-
"D" pressure side
3. Requirements for maintenance staff
The staff assigned to assembly, operating and maintenance tasks should be qualified to carry out
such jobs and in any circumstance, ensure personal safety.
4. Transport and storage
During transport and storage the hand diaphragm pump should be protected against external
forces, influence and damage of the painting layer as well. The purpose of the painting layer is to
protect the pump against corrosion, during transport and storage. The hand diaphragm pump
should be stored in an unpolluted space and should also be protected against all atmospheric
circumstances. There should be taken care of the temperature and humidity in the room, in order
to prevent condensate formation.
5. Function
ECON hand diaphragm pumps are designed for suction/transportation of fluids, but not aggressive
fluids. When connected, this can be done by moving the handle up and down with man power.
The hand diaphragm pump is self-priming. We have got one type, with inside threaded connection
G = 1.1/2" on the suction side and on the pressure side.

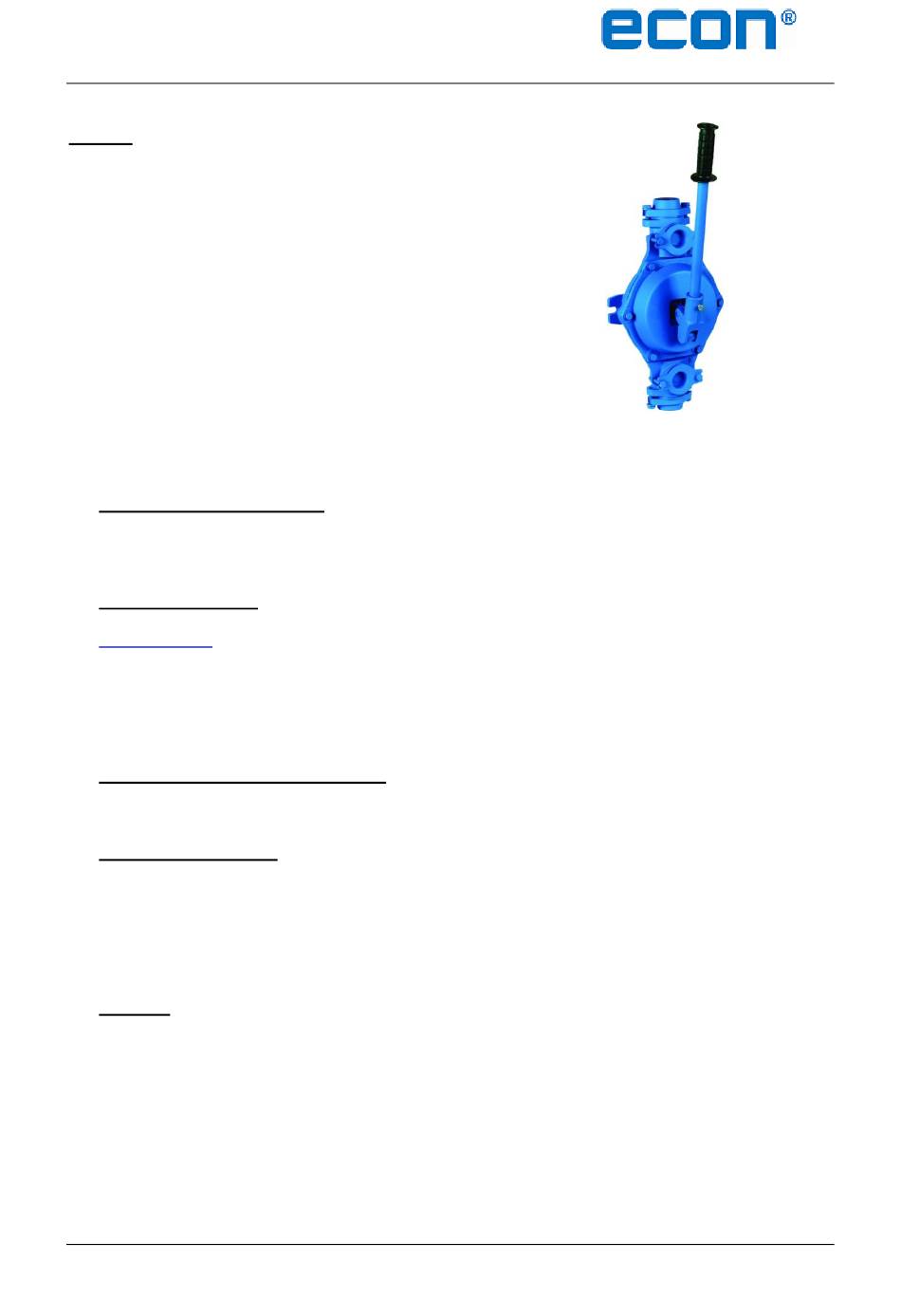

ECON hand diaphragm pump Fig.951
Rev.
Proven Quality since 1892
www.eriks.com
