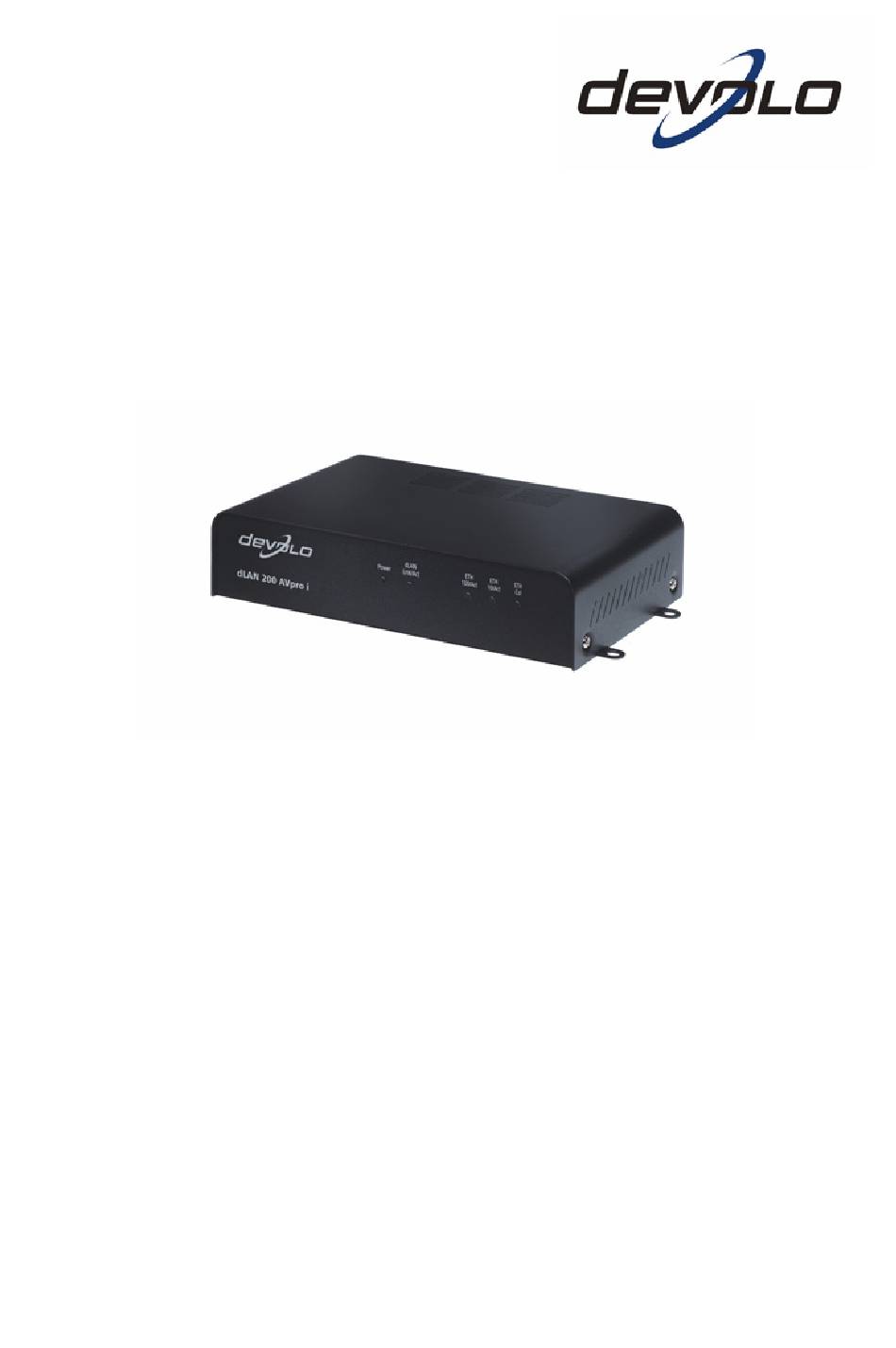

- Page 1 ® dLAN 200 AVpro i...
- Page 2 The reproduction and distribution of the documentation and software supplied with this product and the use of its contents is subject to written authorization from devolo. We reserve the right to make any alterations that arise as the result of technical development.
- Page 3 Preface Thank you for placing your trust in this devolo product! The dLAN 200 AVpro i is a network device that uses power and coaxial cables which have already been installed in order to provide data communication for applications such as HDTV streaming, Internet telephony, and fast Internet con- nection.
- Page 4 Coaxial adapter Printed information leaflet CD containing software and online documentation devolo AG reserves the right to change the package contents without prior notice. Description of the symbols Here we briefly describe the meaning of the symbols used in this manual.
-
Page 5: Table Of Contents
Communication in the network using devolo EasyShare ........18 3.5.1... -
Page 6: Introduction
In order to transmit data over the power supply grid or the coaxial network, the dLAN 200 AVpro i is used in conjunction with Standard HomePlug AV. Home- Plug AV uses the domestic power or coaxial infrastructure to transmit data, audio and video in just the same way as the proven HomePlug 1.0 technology. -
Page 7: What Does The Dlan 200 Avpro I Have To Offer
What does the dLAN 200 AVpro i have to offer? Powerful and flexible The dLAN 200 AVpro i offers a transfer rate of up to 200 Mbps which makes it ideal for the high requirements of applications, such as HDTV streaming, Internet telephony and fast Internet. - Page 8 That's it! Connections and status displays The dLAN 200 AVpro i is equipped with an Ethernet port for connection to a network device and with a coaxial port for connection to a coaxial socket. The 5 control lamps (LEDs) of your dLAN 200 AVpro i display the connection status and provide status regarding the function of the data transmission.
-
Page 9: Connection And Startup
Please note that your computer or other device must feature a network adapter with an Ethernet port. To set up a dLAN 200 AVpro i network, you need at least two dLAN 200 AVpro i devices. dLAN 200 AVpro i type devices are based on the HomePlug AV standard and cannot be used in a shared network with adapters, which are based on another standard than HomePlug. -
Page 10: Connection And Display Elements
Connection and Startup Connection and display elements The dLAN 200 AVpro i features 5 control LEDs as well as an Ethernet, coaxial, and a power connection: Power Lit steady when the dLAN 200 AVpro i is ready for operation; flashes when the dLAN 200 AVpro i is in Power Save mode. - Page 11 As soon as the device that is connected to the Ethernet port is switched on again, your dLAN 200 AVpro i is available again via the power supply grid or the coaxial network.
-
Page 12: Connecting The Dlan 200 Avpro I
In this section, we will show you how to connect and start the dLAN 200 AVpro i. Use the included AC adapter cable to connect the dLAN 200 AVpro i to a power supply grid. Use the supplied Ethernet cable to connect the dLAN 200 AVpro i to the Ethernet connector on the computer that is switched on. -
Page 13: Devolo Dlan 200 Av Software
The dLAN Configuration Wizard is designed to assist you in setting up and mod- ifying your encrypted dLAN 200 AVpro i network. With its help, you can add the desired dLAN 200 AVpro i adapters to your network. All dLAN 200 AVpro i devices that are on the network can be configured from one central location, i.e. -
Page 14: Devolo Easyclean
Configuring the dLAN 200 AV network with the devolo dLAN Configuration Wizard Make sure that the Security IDs for the dLAN 200 AVpro i devices you noted ear- lier are available for reference. The dLAN Configuration Wizard needs these in order to configure the network. - Page 15 If a device that has been switched off (e.g. a computer) is connected to the Eth- ernet port, a dLAN 200 AVpro i device switches to Power Save mode after about 20 minutes. In Power Save mode, the dLAN 200 AVpro i device cannot be accessed via the power supply grid or the coaxial network.
-
Page 16: Overview Of The Dlan With The Devolo Informer
Overview of the dLAN with the devolo Informer With the Informer you can maintain a constant watch over all dLAN 200 AVpro i devices in your dLAN 200 AV network. The Informer shows the dLAN 200 AVpro i device that is connected directly to the computer and also all dLAN 200 AV devices that belong to the same dLAN 200 AVpro i network and can be accessed across it. - Page 17 200 AV software dLAN 200 AVpro i network. If a device (e.g. computer) that is connected to the Ethernet port has been switched off, the dLAN device switches to Power Save mode after about 20 minutes. dLAN 200 AVpro i devices that are in Power Save mode do not appear in the Informer.
-
Page 18: Communication In The Network Using
EasyShare is started, or by using the sharing wizard. You can open the sharing wizard by clicking the Add share button, or by select- ing File Add share from the menu. devolo dLAN 200 AVpro i... - Page 19 (right mouse button). Chatting The lower left window functions as a chat room, which is visible and accessible to all EasyShare users on the local network. Users can "chat" by writing mes- sages and clicking Send. devolo dLAN 200 AVpro i...
-
Page 20: Maintain Your Privacy With Devolo Easyclean
200 AV software Maintain your privacy with devolo EasyClean With EasyClean, you can delete the cached files listed below. Select the check- boxes of the file types you would like to remove, then click Delete. Cookies—Many websites store small files on your computer, so-called cookies. - Page 21 Sensitive information such as this should only be stored locally in special programs designed for this purpose. Document history—Internet Explorer maintains lists of open documents and visited websites. This information is generally no longer needed. Please note that EasyClean only supports Microsoft Internet Explorer. devolo dLAN 200 AVpro i...
-
Page 22: All About The Network
H y b Networking a building dLAN 200 AVpro i devices are able to make flexible use of the circuits that are already present in the rooms. The dLAN 200 AVpro i devices can connect all network subscribers over both circuit types even if the conditions within the... -
Page 23: Example Of Networking In A Hotel
– power circuit and coaxial circuit – can be used in a data network. To do this, one dLAN 200 AVpro i adapter for transmitting data over the power circuit, and one dLAN 200 AVpro i adapter for transmitting over the coaxial circuit are con- nected directly via an Ethernet cable (see Figure Apartment 3). -
Page 24: Example Of Networking In A Hospital
In this case, it is advisable to use a filter. It is recommended to use a filter to decouple the dLAN 200 AVpro i signals from the transfer point of the TV signal. The filter can be accquired from devolo. A fil-... -
Page 25: Appendix
TCP/IP support CE conformity CE conformity in accordance with the technical requirements for all EU countries and Switzerland Construction Plastic; 170 x 107 x 40 mm (Width x Depth x Height) Warranty 3 years devolo dLAN 200 AVpro i... -
Page 26: Important Safety Instructions
Slits and apertures in the case are intended to provide ventilation and must not be blocked or covered. The dLAN 200 AVpro i must not be set up in close proximity to a radiator. The dLAN 200 AVpro i should only be set up in locations where adequate ventilation is assured in accordance with the manufacturer's instructions. -
Page 27: Ce Conformity
Terminal Equipment Act), and is designed for use in the EU and Switzerland. This product is class A equipment. This equipment may cause interference with radio waves in home use; if this occurs the operator may be required to take cor- rective action. devolo dLAN 200 AVpro i... -
Page 28: Declaration Of Conformity
Expert Opinion vom Competent Body EMV Emission requirements: and Expert Opinion by Competent Body EMC Diese Erklärung wird verantwortlich abgegeben durch: This declaration is submitted by: Aachen, 06. November 2006 Heiko Harbers Aachen, 6 November 2006 Vorstandsvorsitzender devolo dLAN 200 AVpro i... -
Page 29: Warranty Conditions
Warranty period The warranty period for this devolo product is three years. This period begins at the day of delivery from the devolo dealer. Warranty services rendered by devolo do not result in an extension of the warranty period nor do they initiate a new warranty period. The warranty period for installed replacement parts ends with the warranty period of the device as a whole. - Page 30 Claims for compensation of lost profits, indirect or consequential detriments, are excluded. devolo is not liable for lost data or retrieval of lost data in cases of slight and ordinary negli- gence.
-
Page 31: Troubleshooting
The Ethernet LED does not light up Make sure that the dLAN 200 AVpro i is connected to a device with an Eth- ernet port by an RJ-45 cable, and that both devices are switched on.
