Safety Precautions
WARNING! P
lease read these warnings carefully and follow all applicable local codes and regulations.
TO AVOID SERIOUS PERSONAL INJURY AND PROPERTY DAMAGE:
P
rotective clothing and eyewear when dispensing chemicals or other materials, when working in the vicinity
WEAR
of chemicals, and when filling or emptying equipment.
R
ead and follow all safety instructions in safety data sheets (SDS) for all chemicals.
O
bserve all safety and handling instructions of chemical manufacturer.
D
ilute and dispense chemicals in accordance with chemical manufacturer's instructions.
ALWAYS
D
irect discharge away from you and other persons and into approved containers.
R
egularly inspect equipment and keep equipment clean and properly maintained.
U
se a locally approved back-flow prevention device - not provided - as required for safe, legal operation.
M
ix incompatible chemicals that pose hazards.
NEVER
O
nly to water tap outlets at 0.2 MPa / 1.7 Bar / 25 PSI Min., 0.6 MPa / 6 Bar / 85 PSI Max. and maximum
ATTACH
water temperature 60°C / 140°F. Operating outside of these parameters will void manufacturer's warranty
I
NOTE
t is recommended to flush with a dedicated COLD water supply only, when possible.
introduction
Package Contents
•

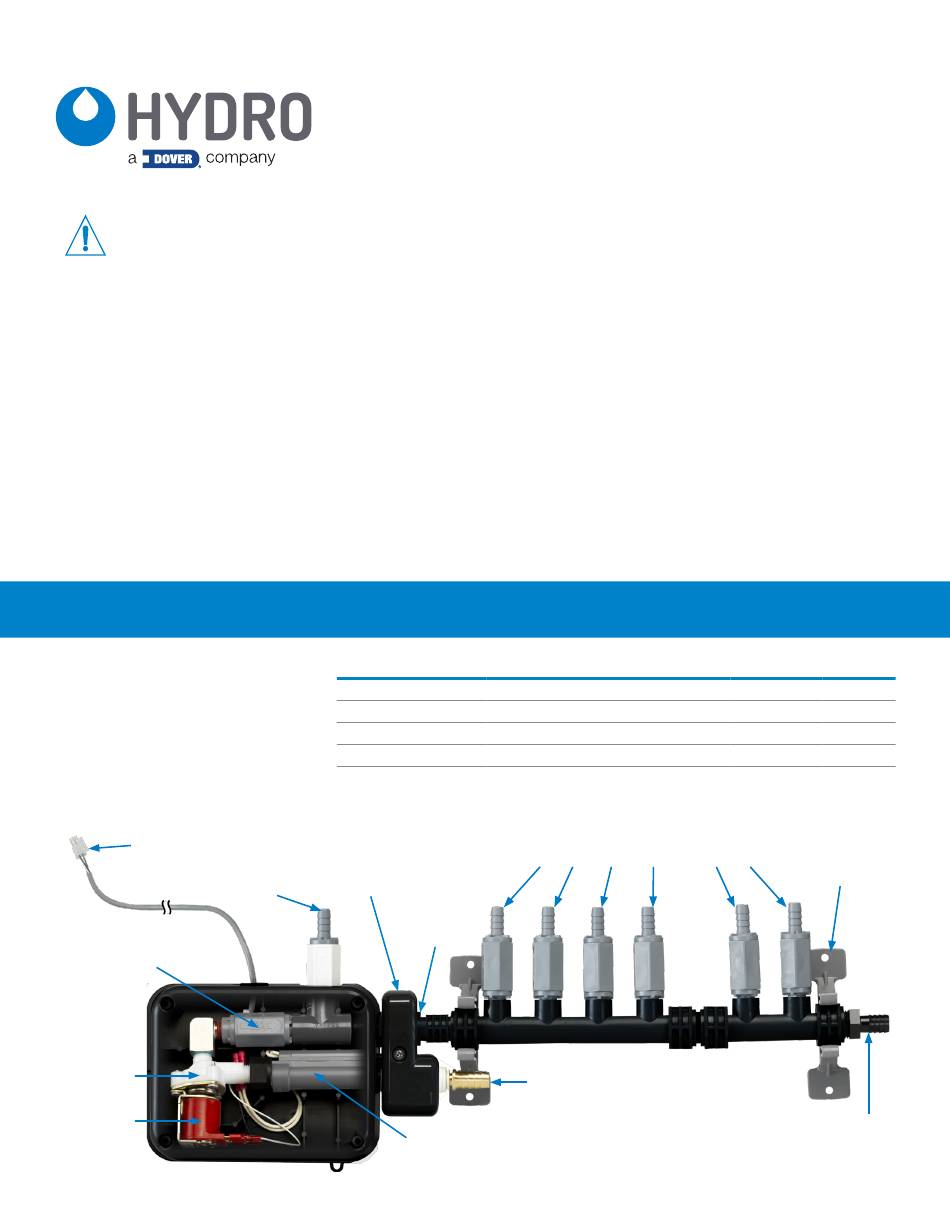

FM-800 Flush Manifold Assembly
w/Brackets (P/N varies by model)
•
Hardware Kit
•
3/8" Braided Tubing (A 2-foot
section for each port)
connection to pump stand
inline check valve
water
valve
solenoid
THANK YOU FOR YOUR INTEREST IN OUR PRODUCTS!
Model Numbers
HYD00-03608-02XT FM-800, 2 Product Flush Manifold
HYD00-03608-04XT FM-800, 4 Product Flush Manifold
HYD00-03608-06XT FM-800, 6 Product Flush Manifold
HYD00-03608-08XT FM-800, 8 Product Flush Manifold
HYD00-03608-01XT FM-800, 2 Product Add-on Kit
vent
inlet
port
support
manifold
swivel
flow
switch
user manual
FM-8OO Flush Manifold
Description
chemical ports with check valves
water
inlet
Chemical Port
Discharge
Barb Size
Barb Size
3/8"
1/2"
3/8"
1/2"
3/8"
1/2"
3/8"
1/2"
3/8"
1/2"
wall
hangers
discharge
to laundry
Advertisement
Subscribe to Our Youtube Channel
Summary of Contents for Hydro FM-800 Flush Manifold
- Page 1 Chemical Port Discharge Package Contents Model Numbers Description Barb Size Barb Size • FM-800 Flush Manifold Assembly HYD00-03608-02XT FM-800, 2 Product Flush Manifold 3/8” 1/2” w/Brackets (P/N varies by model) HYD00-03608-04XT FM-800, 4 Product Flush Manifold 3/8” 1/2” •...
- Page 2 Overview The FM-800 Flush Manifold is intended for use with our LM-100, LM 200, Electrolux SDS, and LL-6000 liquid laundry dispensing systems. This is a single unit that includes a water valve, manifold and integrated flow switch all in one convenient assembly. This FM- 800 Flush Manifold is designed to provide the easiest and most cost-effective means of flushing liquid laundry products.
- Page 3 The Flush Manifold is a Class III Appliance and has an electrical power cable for the flush solenoid, with a connector that will fit any Hydro Systems’ pump stand. A Class III appliance is designed to be supplied from a separated/safety extra-low voltage (SELV) power source.
- Page 4 Turn on a pump with the prime function and collect the fluid coming out the discharge hose in a one gallon container. If the output is less 1 gallon per minute, proceed to step l. If the output is 1 gallon per minute or more, call Hydro Systems Technical Support for assistance.
