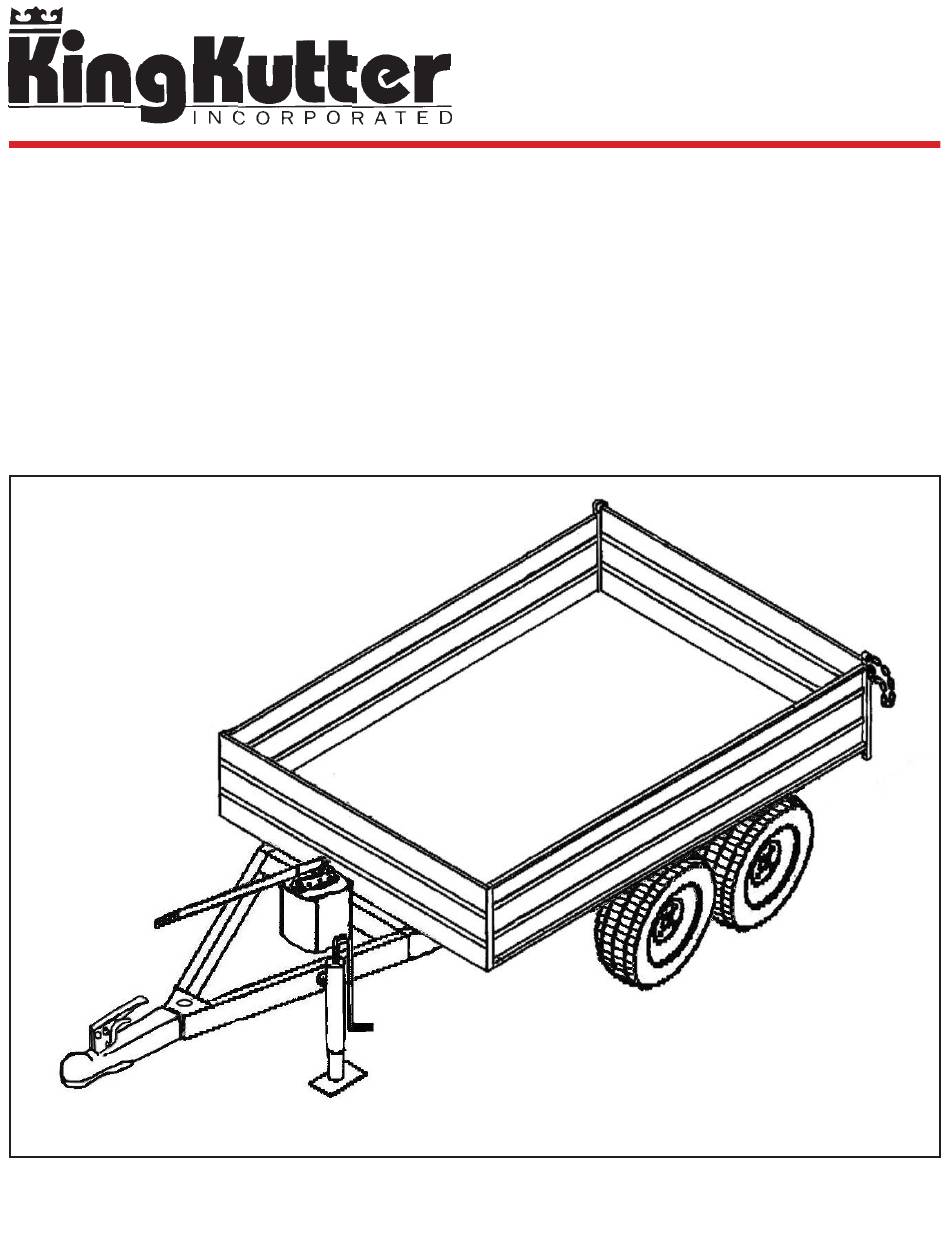

- Page 1 PO Box 1200 305 Commerce Drive Winfield, Alabama 35594 1.5 TON XB DUMP TRAILER www.kingkutter.com...
- Page 3 TO THE PURCHASER This manual contains valuable information about your new King Kutter XB- Dump Trailer. It has been carefully prepared to give you helpful suggestions for operating, adjusting, servic- ing and ordering repair parts. Keep this manual in a convenient place for quick and easy reference.
- Page 4 It is the purchaser and/or operator’s responsibility to…. Read and understand the information contained in this manual. Operate, lubricate, assemble and maintain the equip- ment in accordance with all instructions and safety pro- cedures in this manual. Inspect the equipment and replace or repair any parts that are damaged or worn which under continued opera- tion would cause damage, wear to other parts, or cause a safety hazard.
-
Page 5: Table Of Contents
CONTENTS ITEM PAGE Safety ................. 6 Assembly Instructions ..........8 Maintainence .............. 8 Attaching to Vehicle ........... 8 Maintenance Safety ........... 9 Storage & Storage Safety........... 9 Safety Training ............10 Transport Safety ............11 Operational Safety ........... 12 Safety Decal's ............13 Replacement Parts........... -
Page 6: Safety
It may also be used to alert against unsafe practice. If you have any questions not answered in this manual or require additional copies or the manual is damaged, please contact your dealer or King Kutter, Inc. P.O. Box 1200 Winfield, AL 35594 (205) 487-3202 or www.kingkutter.com... - Page 7 EQUIPMENT SAFETY GUIDELINES Safety of the operator and bystanders is one of the main concerns in designing and developing a dump trailer. However, every year accidents occur which could have been avoided by a few seconds of thought and a more careful approach to handling equipment.
-
Page 8: Assembly Instructions
ASSEMBLY INSTRUCTIONS Your XB - Dump Trailer is shipped fully assembled. Usually shipped with the ball hitch attached, the clevis hitch is bolted to frame under the front of the dump bed. BEFORE OPERATING INSTRUCTIONS (1) Tighten all loose hardware. Replace any missing hardware. On new trailers, all hardware must be rechecked after first few hours of use. -
Page 9: Maintenance Safety
MAINTENANCE SAFETY Good maintenance is your responsibility. Poor maintenance is an invitation to trouble. Follow good shop practices. Keep service area clean and dry. Be sure electrical outlets and tools are properly grounded. Use adequate light for the job at hand. Make sure there is plenty ventilation. -
Page 10: Safety Training
SAFETY TRAINING Safety is a primary concern in the design and manufacture of our product. Unfortunately, our efforts to provide safe equipment can be wiped out by a single careless act of an operator or bystander. In addition to the design and configuration of equipment, hazard control and accident prevention are dependent upon the awareness, concern, prudence and proper training of personnel involved in the operation, trans- port, maintenance and storage of this equipment. -
Page 11: Transport Safety
PREPARTION Never operate the tractor and trailer until you have read and completely under- stand this manual, the Tractor Operator’s Manual, and each of the safety mes- sages found on the safety signs on the tractor and trailer. Personal protection equipment including hardhat, safety glasses, safety shoes, and gloves are recommended during assembly, installation, operation, adjust- ment, maintenance, repairing, removal, or moving the implement. -
Page 12: Operational Safety
OPERATIONAL SAFETY Always stop the tractor, set brake, shut off the tractor engine, and remove the ignition key before dismounting tractor. Never leave equipment unat- tended with the tractor running. Do not reach or place any part of your body under equipment until it is blocked securely. -
Page 13: Safety Decals
SAFETY DECALS ATTENTION! BECOME ALERT! YOUR SAFETY IS INVOLVED Replace Immediately If Damaged The following safety decals are located on your implement. Read them and follow their instructions. Keep all decals in place and legible. If safety signs have been damaged, removed, become illegible or parts have been replaced without signs, new safety signs must be applied. -
Page 16: Replacement Parts
XB - DUMP TRAILER... - Page 17 Ref. Part Name Part Number Panel / Rear 906001 Bolt Pkg. HHS 3/8 x 3/4 grade 5, 3/8 Flat washer(4 ea.) 580100 Rear Panel Latch Panel / Left Side 906002 Bolt Pkg. HHCS 3/8 x 2 grade 5, 3/8 Locknut (8ea.) 580110 Panel / Front 906003...
-
Page 18: Tire & Wheel Hub Replacement Parts
1-1/2 TON TIRE & WHEEL HUB Ref. Part Number Part Name Bearing Pkg. (1)Seal, (2)Bearings L44643, (2)L44610 906021 Hub Wheel 4-Bolt 906015 1" Slotted Hex Nut & Cotter Pin(5/32 x 1-1/4) Pkg. 906023 Cap Hub 906017 Rim & Tire 8.5 x 8 Turf Saver 906018 Lugnut 1/2"... -
Page 19: Dump Trailer Specifications
DUMP TRAILER SPECIFICATIONS 1.5-DT-XB MODEL CAPACITY - TON 1-1/2 35 CU. FT. CAPACITY REAR DUMP HITCH SWIVEL TANDEM AXLE 18 X 8-1/2 X 8 TIRE SIZE NO. OF TIRES 600 LBS. WEIGHT 50" BED WIDTH 21" BED HEIGTH 70" BED LENGTH 12 GA. -
Page 20: Warranty
1. Limited Warranty. King Kutter, Inc. (“King Kutter”), P.O. Box 1200, Winfield, Alabama 35594, warrants to the original retail purchaser (“Purchaser”) that the product that is the subject of this sale is free from defects in material and workmanship at the time of sale. Under this warranty, King Kutter will repair the defective product free of charge to the Purchaser, with either new or used and reconditioned replacement parts.
