Description

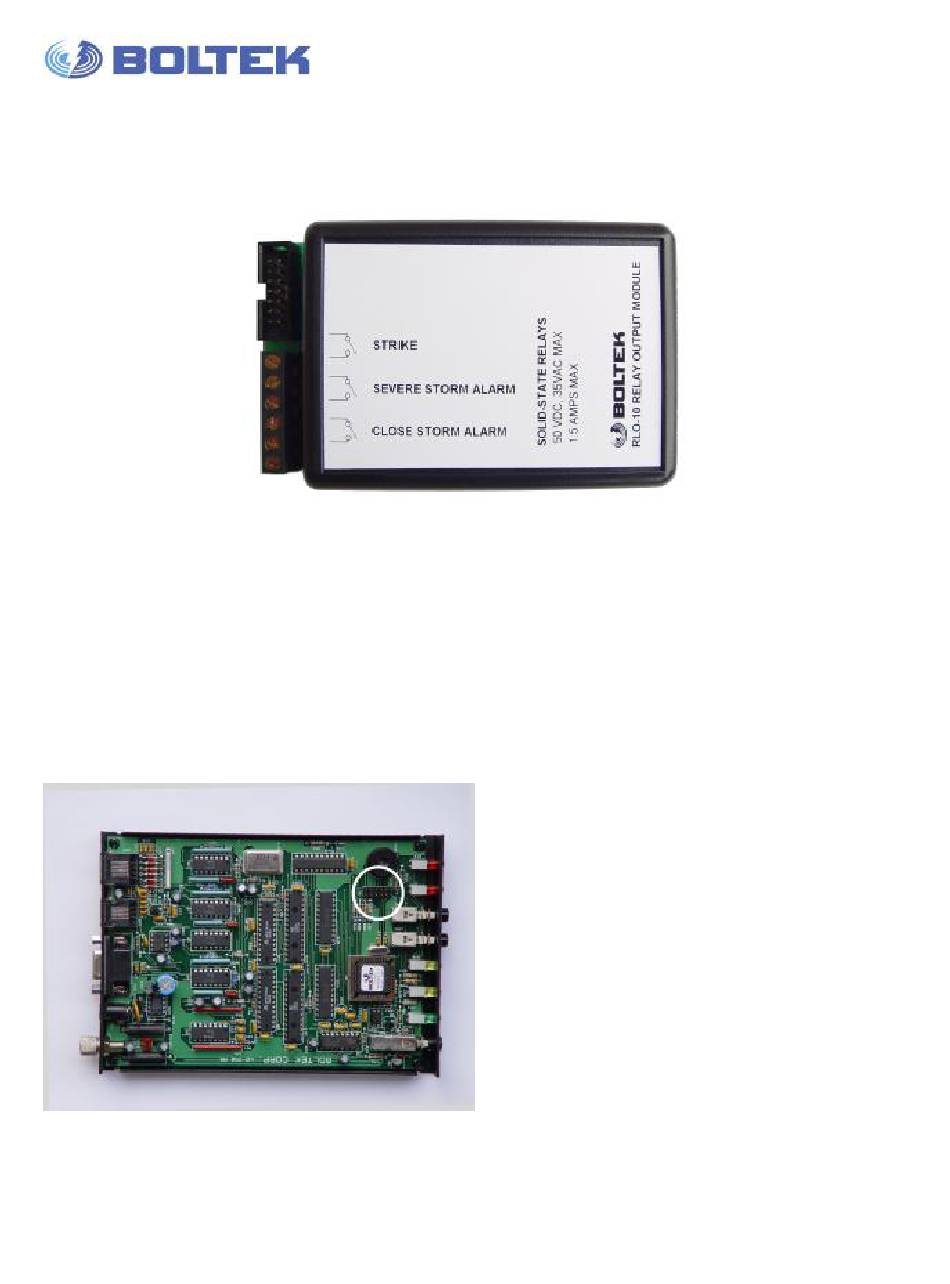

The RLO-10 is an optional relay output module for the Boltek LD-250 Lightning Detector. The RLO-10
provides a means for connecting customer supplied equipment to the LD-250's Close Storm Alarm,
Severe Storm Alarm, and Strike indicator. Each of the three relay outputs is a normally open solid-state
contact which closes whenever the respective alarm is activated, as indicated by the LD-250's front panel
LED's. The RLO-10 uses solid-state relays capable of switching up to 50VDC or 35VAC at up to 1.5
Amps.
Installation
RLO-10 Relay Output Module
For the Boltek LD-250 Lightning Detector
Remove the top cover of the LD-250 by
removing the four cover screws. Locate the
relay connector at the front of the unit near the
red alarm indicators.
Advertisement
Table of Contents
Summary of Contents for Boltek RLO-10
- Page 1 Severe Storm Alarm, and Strike indicator. Each of the three relay outputs is a normally open solid-state contact which closes whenever the respective alarm is activated, as indicated by the LD-250’s front panel LED’s. The RLO-10 uses solid-state relays capable of switching up to 50VDC or 35VAC at up to 1.5 Amps.
- Page 2 Locate pin 1 of the relay connector. Pin 1 is towards the rear of the LD-250. The female ribbon cable connector has 14 holes (2 x 7) while the LD-250 only has 12 pins (2 x 6). It is important that pin 1 is inserted into the connector holes closest to the ribbon cable’s red stripe and that the unused ribbon cable holes are towards the front of the LD-250.
- Page 3 Peel the paper backing from the double-sided tape on the bottom of the RLO-10 relay unit. Stick the relay unit to the top cover of the LD- 250 as shown. Plug the ribbon cable connector into the ribbon cable connector on the RLO-10 as shown.
