Det-Tronics W8067S Instructions

APPLICATION

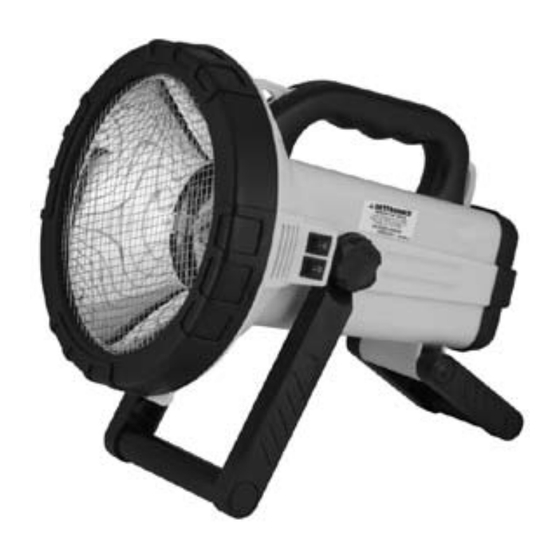

The Det-Tronics W8067S Ultraviolet/Infrared (UV/IR)
Test Lamp is a portable, battery operated source of
ultraviolet and infrared radiation for periodic testing of
single frequency IR and UV/IR flame detection systems.
The test lamp produces UV and IR radiation to verify
response of the flame detection system without the
need for an open flame, and is suitable for use in non-
hazardous (de-classified) areas.
The W8067S Test Lamp can be powered by a
rechargeable, removable internal battery pack, making
it ideal for applications where detectors are mounted in
high or hard to reach locations. Alternatively, the test
lamp can be powered by the W1212 Portable Battery
Pack, which provides substantially longer operating
times between recharges. Both battery packs are
easily recharged from a 120 volt AC power source.
Internal battery pack, charger and adapter are included.
The optional W1212 portable battery pack is highly
recommended.

SPECIFICATIONS

ENCLOSURE—
Rugged, weatherproof, ABS construction.
For use in non-hazardous (de-classified) locations only.
Test lamp is not explosion-proof.
POWER SOURCE—
Cordless: Uses a rechargeable, removable battery.
Corded: Uses the W1212 portable battery pack or any
other supply with a 12 volt DC universal cigarette lighter
receptacle.

BattERy ChaRgiNg—

120 vac, 50/60 Hz. using adapters provided.
(220 vac adapters available. See "Ordering Information.")
tEMPERatURE RaNgE—
Operating: –15°C to +50°C (+5°F to +122°F).
Charge: 0°C to +40°C (+32°F to +104°F).
Storage: –15°C to +40°C (+5°F to +104°F).
1.2
©
1.2
Detector Electronics Corporation 2008
Ultraviolet/infrared test Lamp
W1212 Portable Battery Pack
OPERatiNg tiME—
Internal Battery: Up to 10 minutes continuous when fully
charged.
W1212: Offers extended operating time
between charges.
OPERatiNg RaNgE—
The W8067S Test Lamp will activate IR and UV/IR
detectors at up to 20 feet, depending on the detector
sensitivity setting, angle of the test lamp relative to the
detector, and detector window cleanliness.
DiMENSiONS—
W8067S Test Lamp: See Figure 1.
W1212 Battery Pack: Length: 8.4 in. (21.3 cm)
Width:
Height:
WEight (approximate)—
W8067S Test Lamp: 13 pounds (5.9 kilograms).
W1212 Battery Pack: 11 pounds (5.0 kilograms).
NOTE: APPEARANCE AND/OR
DIMENSIONS MAY VARY SLIGHTLY
10.2
(25.9)

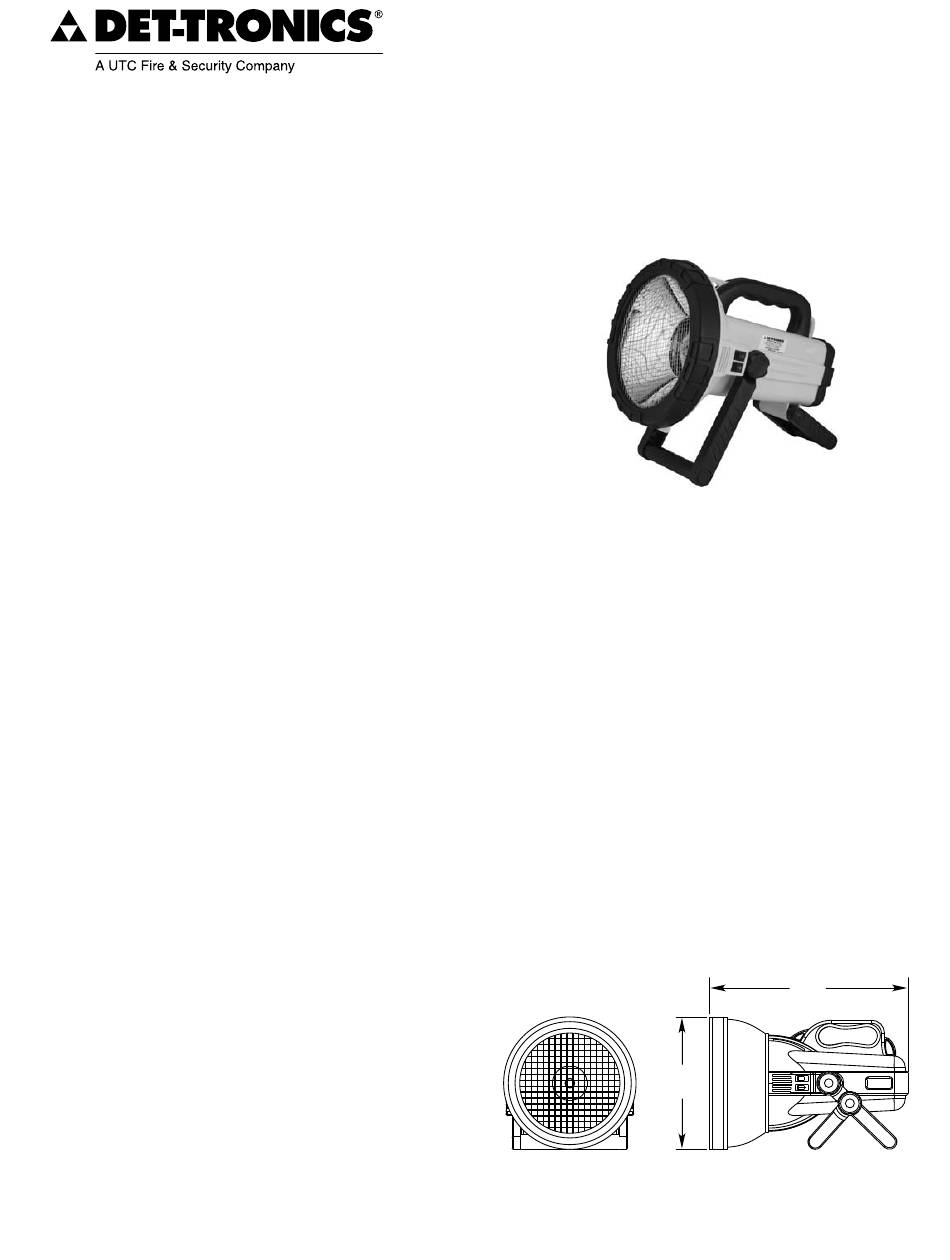

Figure 1—test Lamp Dimensions in inches (cm)
INSTRUCTIONS
W8067S
2.75 in. (7.0 cm)
5.5 in. (14.0 cm).
14.1
(35.8)
8/08 95-8626
B2410
