HANAU

™

ALCOHOL TORCH

INSTRUCTIONS

READ ALL INSTRUCTIONS

BEFORE USING

THE ALCOHOL TORCH

The Hanau

Alcohol Torch is an

™

instrument used to melt and control

the shape and flow of wax when taking

impressions, in fabrication of dentures,

setting up teeth, waxing, light soldering

or jewelry manufacture. It may be used

as an alcohol lamp or as a torch to

create either a needlepoint or brush-

type flame.

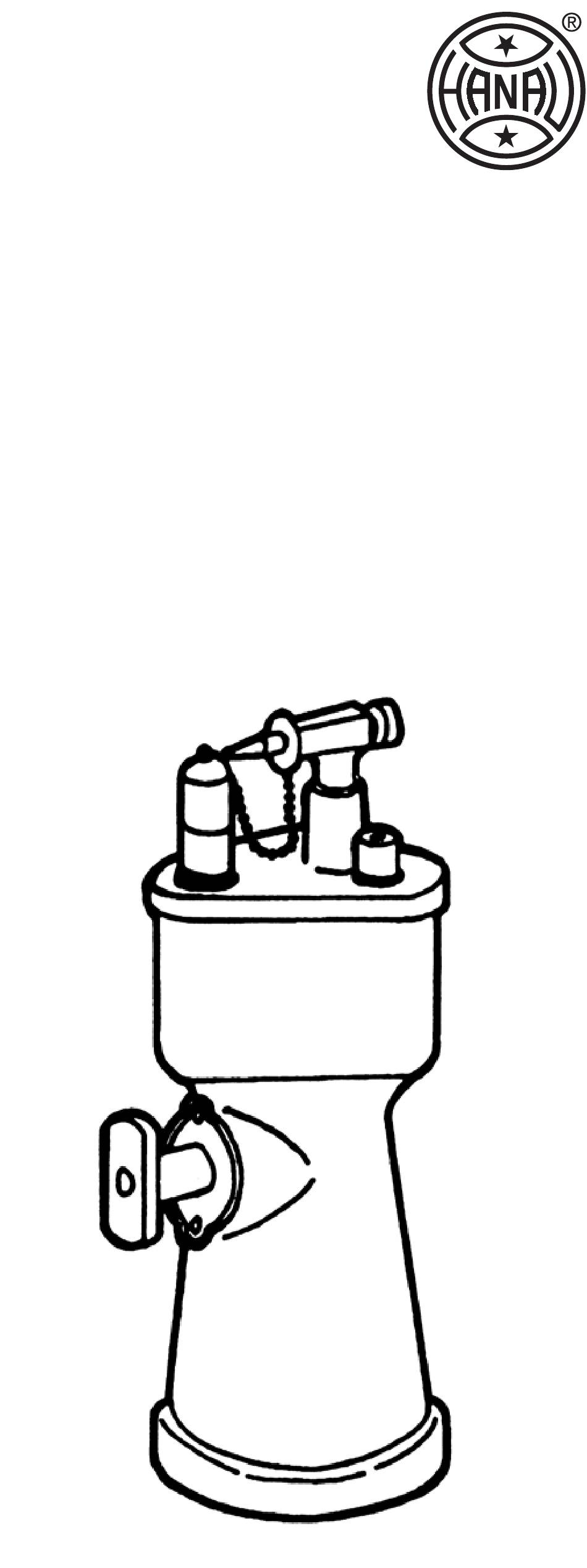

Figure A

Table of Contents

Need help?

Do you have a question about the 000301-000 and is the answer not in the manual?

Questions and answers

Summary of Contents for Hanau 000301-000

Page 1 ™ ALCOHOL TORCH INSTRUCTIONS READ ALL INSTRUCTIONS BEFORE USING THE ALCOHOL TORCH The Hanau Alcohol Torch is an ™ instrument used to melt and control the shape and flow of wax when taking impressions, in fabrication of dentures, setting up teeth, waxing, light soldering or jewelry manufacture.
Page 2 HANAU OPERATING INSTRUCTIONS ™ ALCOHOL TORCH WARNING: USE THE TORCH IN A WELL-VENTILATED AREA AWAY FROM FLAMMABLE MATERIALS. Nozzle Tip KEEP THE TORCH IN AN UPRIGHT POSITION. Inverting or tipping may cause alcohol to leak and Wick Height Thumbscrew cause a fire.
Page 3 FILLING THE TORCH Needle-point Flame Point the Alcohol Torch tip over the wick and continuously pump the trigger mechanism with a completely closed thumbscrew valve for a needle- Funnel used to fill alcohol point flame. Control the flame by the frequency of pumping the pump trigger.
Page 4 USE AS AN ALCOHOL LAMP PREPARATION FOR USE Wick Adjustment (see Figure B) Turn the nozzle TOP VIEW OF Position the wick slightly below the nozzle tip. To left or right away ALCOHOL adjust the wick, unscrew the wick holder and pull the from the wick.
Page 5 IMPORTANT SAFEGUARDS ALCOHOL TORCH PART IDENTIFICATION WARNING: MISUSE OF THE ALCOHOL TORCH CAN CAUSE AN EXPLOSION OR FIRE AND RESULT IN SEVERE PERSONAL INJURY AND PROPERTY DAMAGE. FILL WITH DENATURED ETHYL ALCOHOL (ETHANOL) ONLY. DO NOT USE METHANOL (methyl alcohol). Use of fuels other than denatured alcohol can result in an explosion or dangerous operation.
Page 6 Hanau Alcohol Torch ™ CAUTION Catalog No. 000301-000 USE A FUNNEL THAT FITS INTO THE FILLING OPENING WHEN FILLING THE TORCH WITH FUEL. Part Use care to not overfill the Torch and spill alcohol. Number Part Name Clean up any alcohol spilled.
Page 7 Whip Mix Corporation 361 Farmington Avenue Louisville, KY USA 40209 Toll-Free: 800-626-5651 Fax: 502-634-4512 www.whipmix.com Whip Mix and Hanau logo are registered ® trademarks and Hanau is a trademark of ™ Whip Mix Corporation. ©2009 Whip Mix Corporation PN 33813-2B...
