Summary of Contents for AlpsAV Soft-Touch Wall Mount

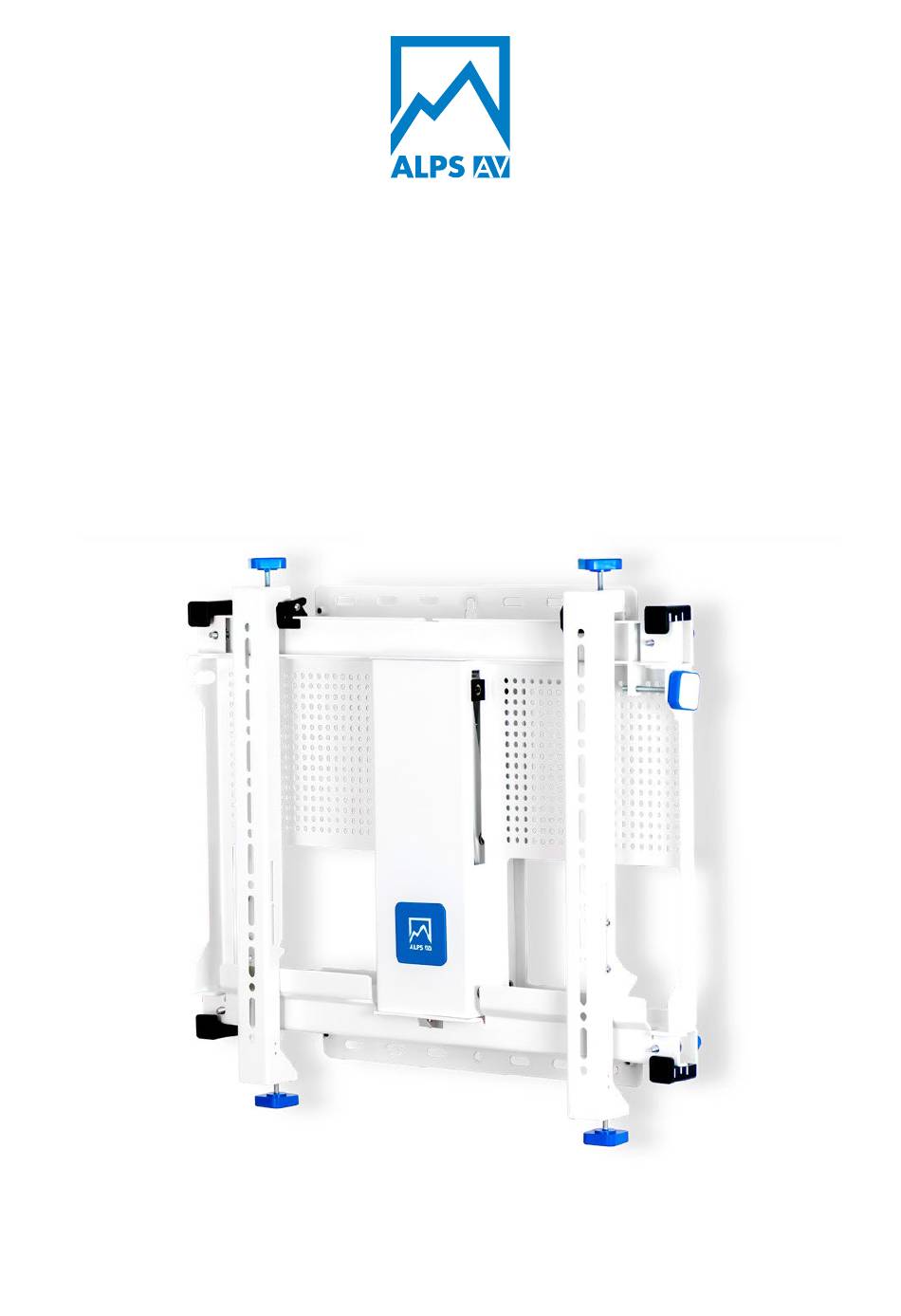

- Page 1 SOFT-TOUCH WALL MOUNT INSTALLATION GUIDE & PARTS LIST Please read all pages prior to installation!
- Page 2 Installation guide PARTS LIST PART NAME PART NAME Wall mount M6 x 10mm Screw Interface Arm M6 Washer x 2mm VESA 600mm Extension Arms...
- Page 3 AlpsAV.com INTERFACE KIT INTERFACE KIT INTERFACE KIT M6 x 16mm Screw M8 x 5mm Spacer M6 x 25mm Screw M8 x 13mm Spacer M6 x 40mm Screw M8 x 25mm Spacer M8 x 16mm Screw M6 washer (for parts A-C)
- Page 4 Please check carefully to make sure there are no missing or defective parts. Defective parts must never be used. AlpsAV, its distributors and dealers are not liable or responsible for damage or injury caused by improper installation, improper use or failure to observe these safety instructions. In such cases, all guarantees will expire.
-
Page 5: Table Of Contents
If in doubt, consult a professional AV installer or other suitably qualified person. Periodic Inspection Record: DATE INSPECTED BY LOCATION SIGNED CONTENTS Parts list Installation Safety Notes Warning Installation Instructions Single Screen Installation Multi-Screen Installation Product Dimension AlpsAV contact Installation tools required Pencil Level Drill Drill bit... -
Page 6: Warning
AlpsAV Ltd. recommande de confier I’installation de ce produit à un installateur AV professionnel ou à une autre personne dûment qualifiée. AlpsAV Ltd, ses distributeurs et ses revendeurs ne sauraient être tenus resounsables de tout dégât ou de toute blessure résultant d’... -
Page 7: Installation Instructions
AlpsAV.com INSTALLATION INSTRUCTIONS Unpack and check all parts Step 1 Open top and bottom handwheels on Interface Arms (closed for shipment). Check depth and lateral adjustment knobs are centered in adjustment range. Center Open top and bottom Handwheels Center Interface Arms... -
Page 8: Single Screen Installation
Installation guide SINGLE SCREEN INSTALLATION Step 1 Measure, mark and drill holes Use level to check alignment. Tighten all wall bolts (5 pcs recommened). (3 recommended) Use minimum 2 wall bolts Top and 2 wall bolts bottom of mount. Heavier screen should have 3 bolts including center top keyhole location. - Page 9 AlpsAV.com Step 4 A : Height adjustment B: Corner depth adjustment C: Lateral macro adjust D: Lateral micro adjustment Lateral macro E: Screw to secure adjust Height adjustment Lateral micro adjustment Corner depth Tighten to secure 1) unlock lateral Smart-Lock,...
- Page 10 Installation guide Detail Screen adjustments Height Adjustment Corner depth adjustment Lateral micro adjustment Lateral macro adjustment...
-
Page 11: Multi-Screen Installation
A flat mount will make adjustments much easier and faster when aligning screens. Note: The AlpsAV Soft-Touch Mount is ONLY suitable for installation perpendicular or slightly angeled to the floor in portrait or landscape orientation. It is NOT suitable for overhead mounting. -
Page 12: Product Dimension
FRONT VIEW LANDSCAPE ADAPTOR FRONT VIEW PORTRAIT ADAPTOR VESA 600mm X 400mm VESA 400mm X 600mm Alps AV Austria | Netherlands | USA: Nevada & New York | Hong Kong | Vietnam contact@AlpsAV.com +1 800 363 2918 www.AlpsAV.com +43 5572 535 30-3...
