Introduction
This guide describes the following pedals in the Hermida Audio Technology line:
• Zendrive
• Zendrive 2
• Mosferatu
• Distortion
• Nu-Valve
• Dual Boost
• Reverb
Zendrive, Zendrive 2, Mosferatu, Distortion and Nu-Valve Pedals
The above pedals have the following common configuration
(Diagram A):
• Vol(ume), Gain, Tone and Voice knobs
• In/ Out jacks
• 9V DC adapter jack
• Status LED
• Bypass footswitch (true bypass)
• 9V battery clip (inside the unit, except on Zendrive 2 and
© 2009 Hermida Engineering, Inc. · All Rights Reserved · www.hermidaaudio.com · support@hermidaaudio.com
Pedal Quick-Start Guide
Modified 11/25/09

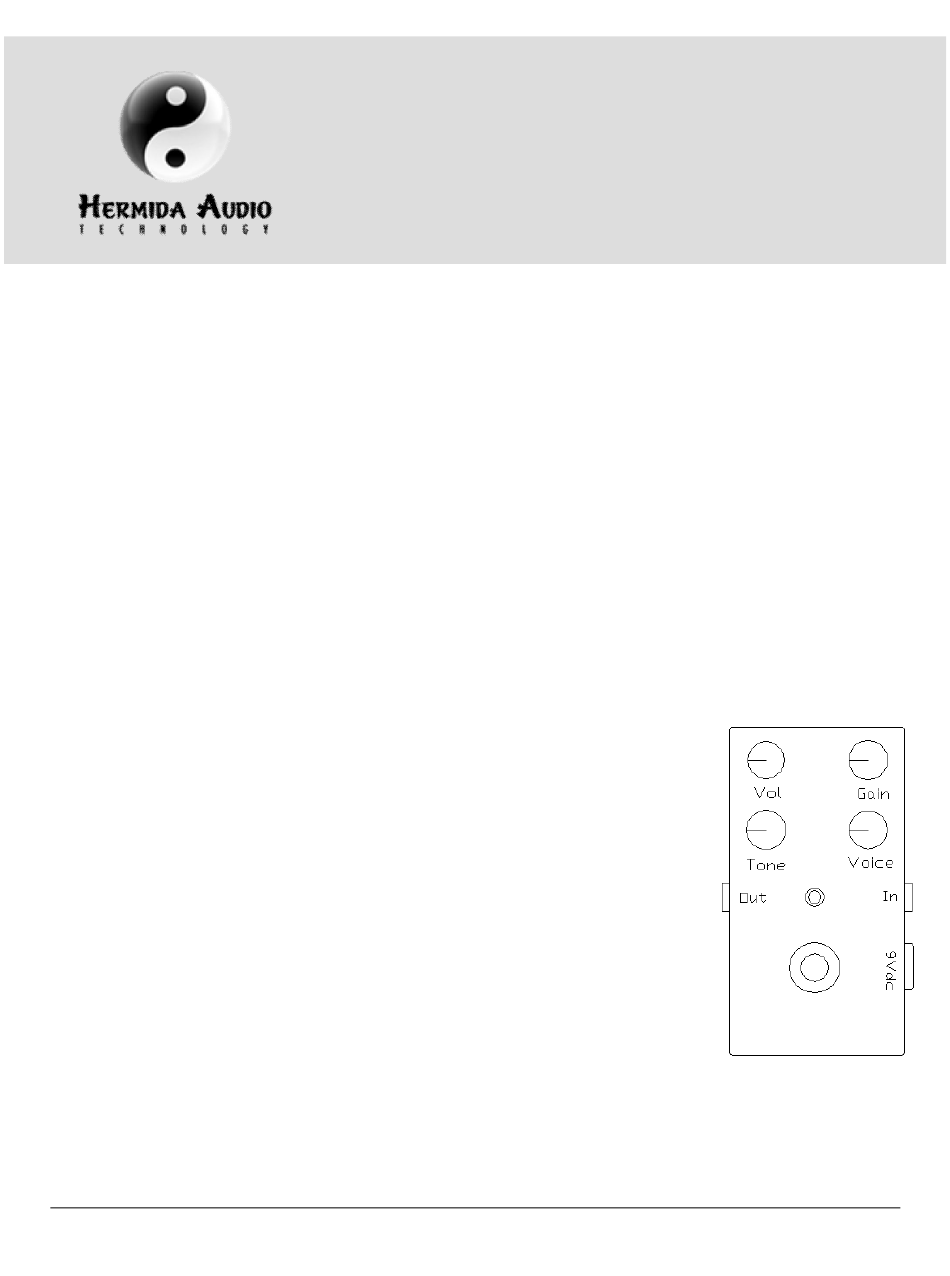

Diagram A: Zendrive, Zendrive
2, Mosferatu, Distortion and
